SF-SP11D-520 D11/D2.5
SINCEREFIRST

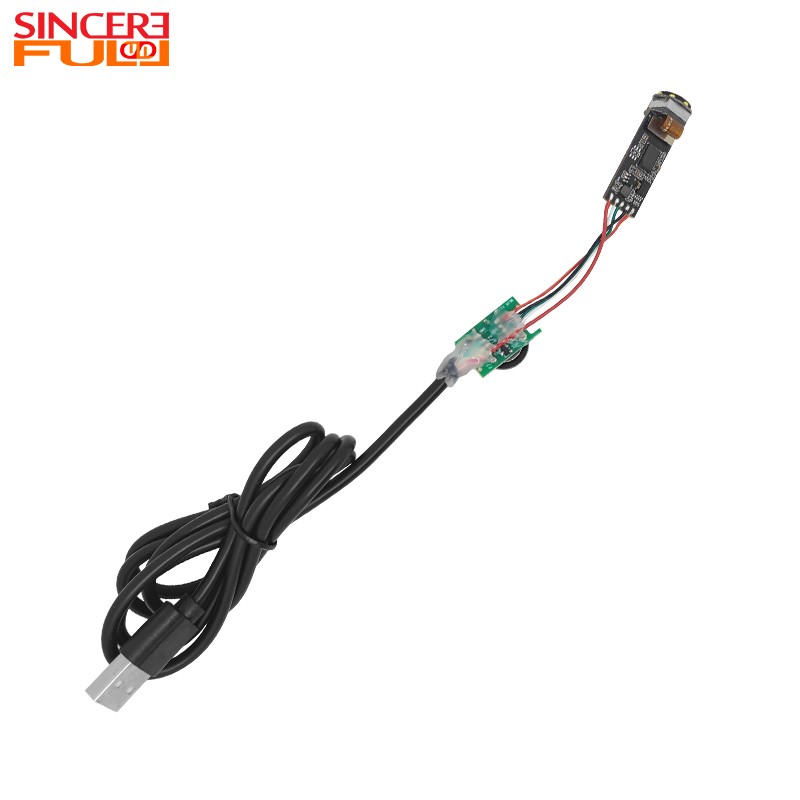

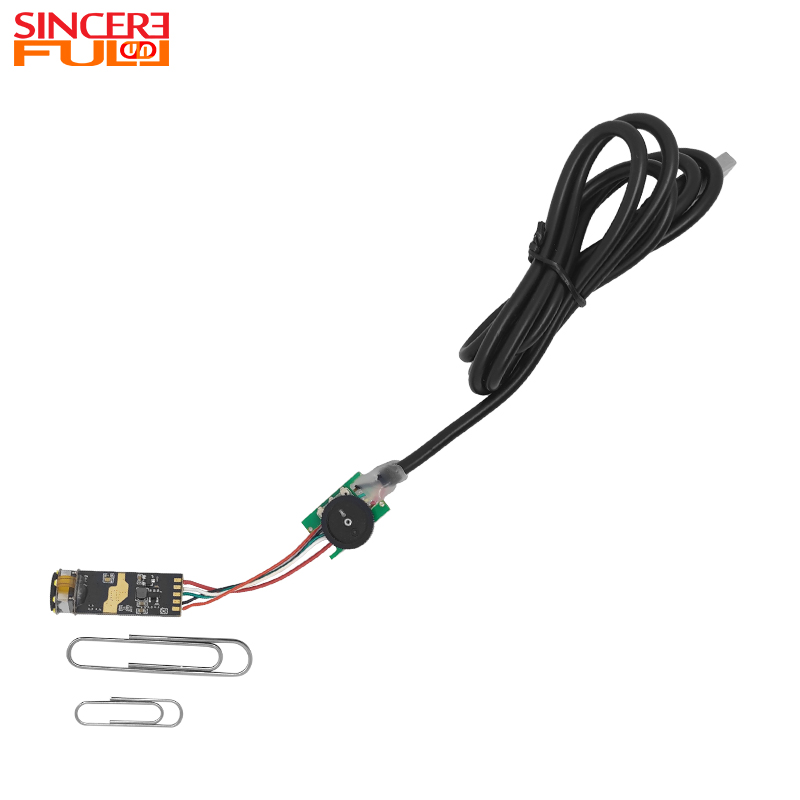

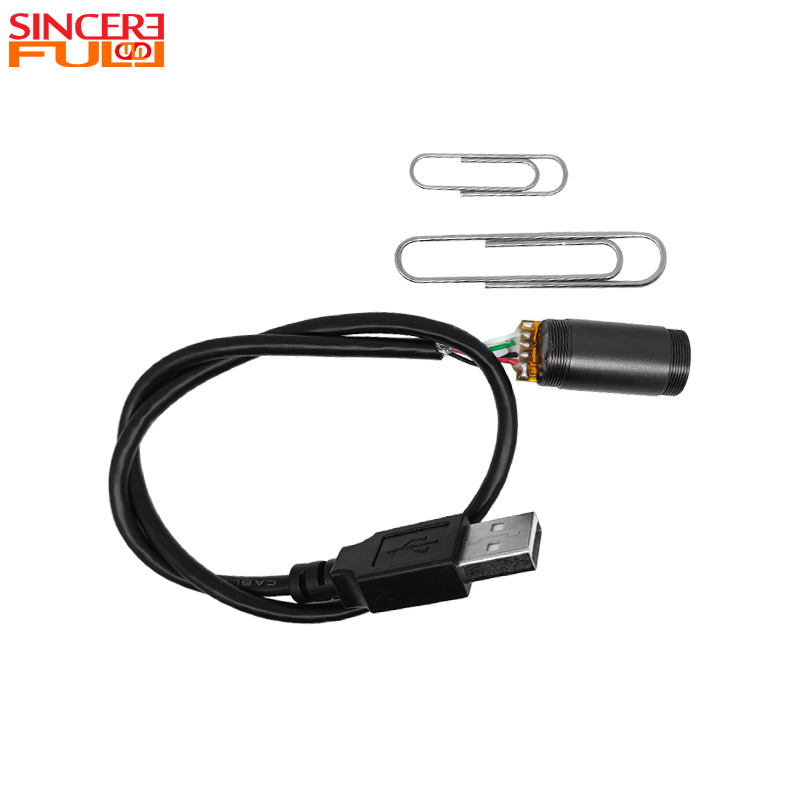

| This is 5MP HD Image Auto Focus Dimming Optional USB Endoscope Camera Module,Featuring 2592×1944 image output, autofocus capability, a 72° field of view and a 5cm-to-infinity focusing range, this module is suitable for both close-range and medium-distance observation tasks. It is available in a D11 non-steel-shell version and a D12.5 Steel Shell version,D12.5 features IP67 water resistance.This module is ideal for skin analysis, scalp inspection, oral observation, and other high-resolution imaging applications. |
|
Product Highlights◢
1. 5MP High-Resolution Imaging: Suitable for observing skin texture, scalp follicles, oral surfaces, laboratory samples and industrial component details.
2. AF Autofocus: Useful for handheld devices and applications with changing working distances, reducing the need for constant manual positioning.
3. 5cm-to-Infinity Focusing Range: Supports both close-range detail observation and medium-distance viewing, offering more flexibility than fixed close-focus modules.

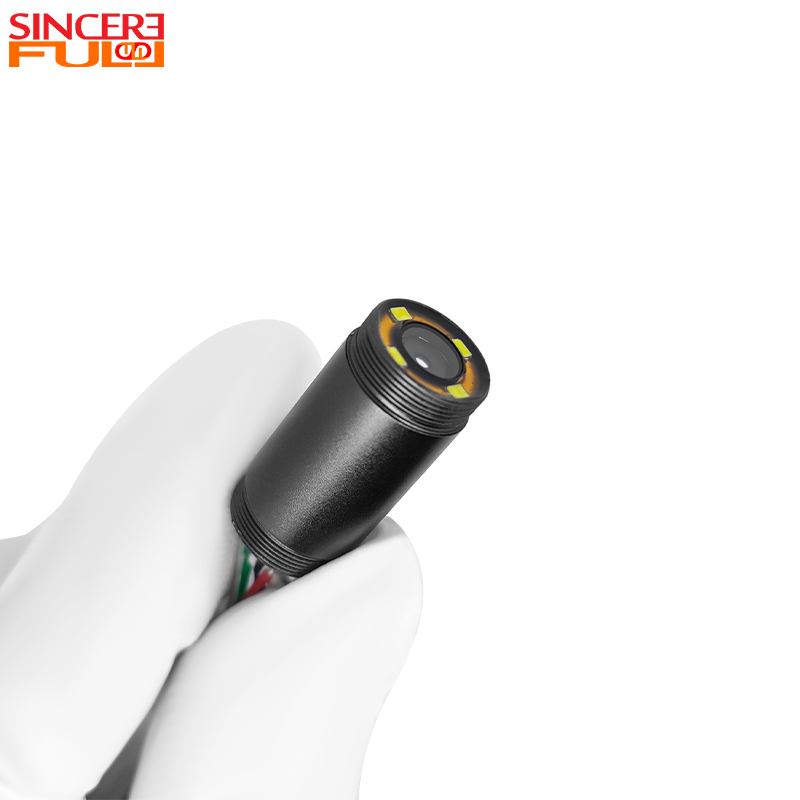

4. D11 / D12.5 Structural Options: The D11 version fits customer-designed housings, while the D12.5 Steel Shell version supports complete probe-style device integration.

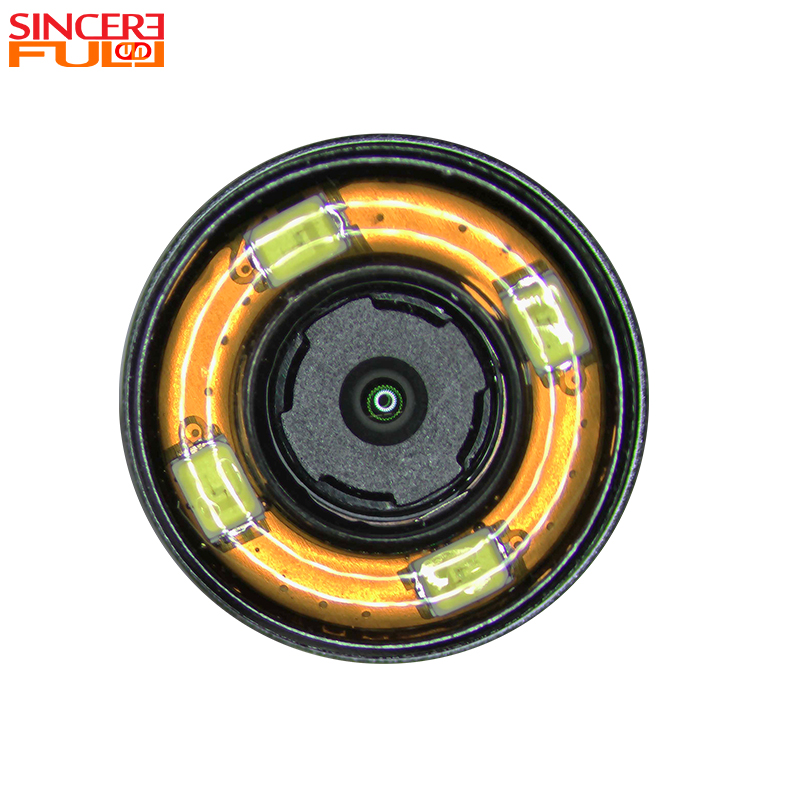

5. 4-LED Illumination with Optional Dimming: Supports close-range observation in low-light environments and allows brightness adjustment for different surfaces.

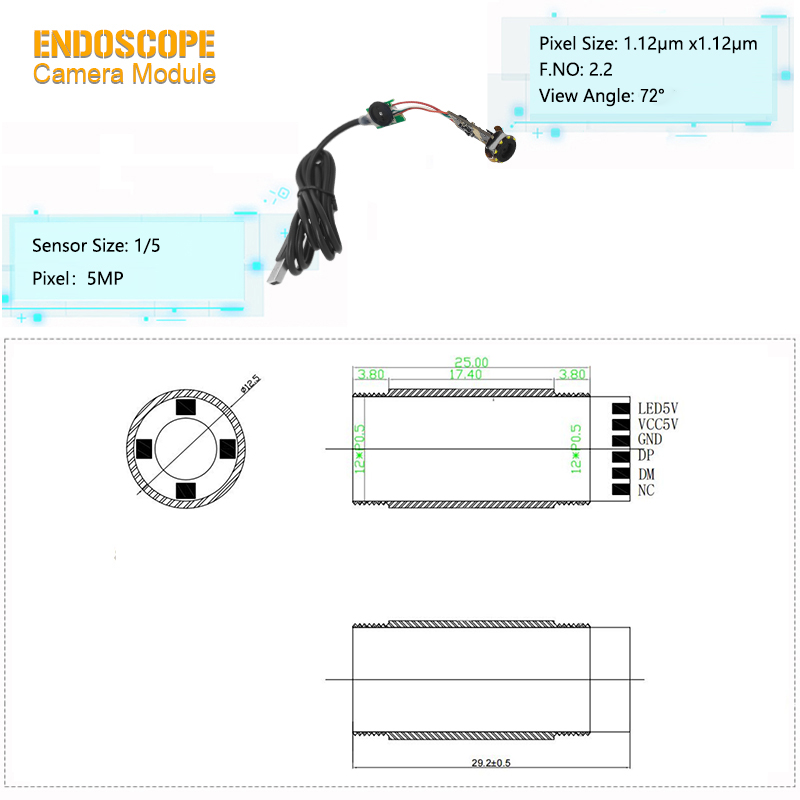

Technical Parameters ◢
Product Name | Endoscope Camera Module |
Features | 5MP Endoscope Camera |
Interface | USB2.0 , Type-A |
Diameter | 11mm/12.5mm |
Steel Sheel | no/yes |
Waterproof | no/IP67 |
Focusing Range | 5cm–∞ |
Resolution | 2592×1944 |
FOV | 72° |
| LEDs | 4pcs |
| Dimming | Optional |
Certification | CE RoHS Reach |
2. Scalp Inspection Systems: Suitable for observing scalp condition, hair follicles, hair roots and surface details, with LED illumination and optional dimming supporting different lighting environments.
3. Oral and Dental Observation Devices: Suitable for observing teeth, gums and local oral areas, where the 72° field of view helps focus on the target region.
4. High-Resolution Industrial Observation Equipment: Suitable for PCB inspection, precision component observation, product surface checking and appearance defect observation where detail visibility is more important than small-diameter entry.
5. Laboratory and Education Imaging Devices: Suitable for sample observation, teaching display, compact visual instruments and laboratory inspection equipment integration.
FAQ ◢
1. How does this module improve the user experience for handheld inspections?
It features built-in Autofocus (AF) with a 5cm-to-infinity range, eliminating manual distance adjustments and ensuring consistently sharp images during dynamic, close-range observation.
2. Can it prevent overexposure when inspecting reflective surfaces like skin or metal?
Yes. The integrated 4-LED illumination supports optional dimming, allowing users to adjust brightness dynamically to reduce glare and capture authentic surface details.
3. What structural options are available for custom device integration?
We offer two variants: the bare D11 version for custom housing integration, and the D12.5 Steel Shell version for robust, ready-to-use probe-style productization.
4. Is the resolution sufficient for micro-detail analysis in medical or industrial use?
Absolutely. It delivers true 5MP high-resolution imaging, specifically optimized to capture intricate textures such as skin pores, hair follicles, and precision component defects.
