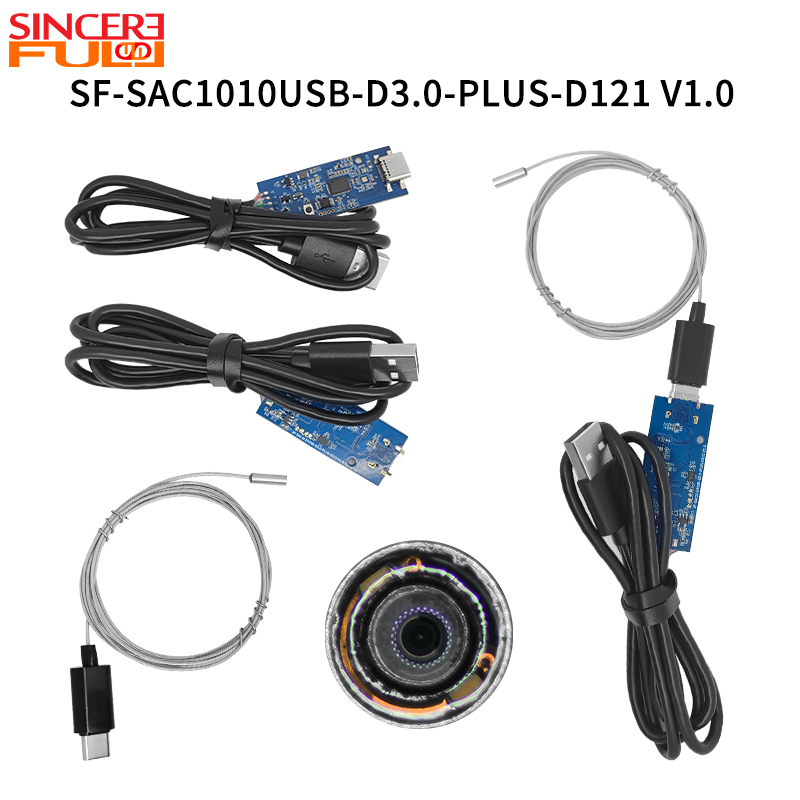

SF-SAC1010USB-D3.0-PLUS-D121 V1.0
SINCEREFIRST

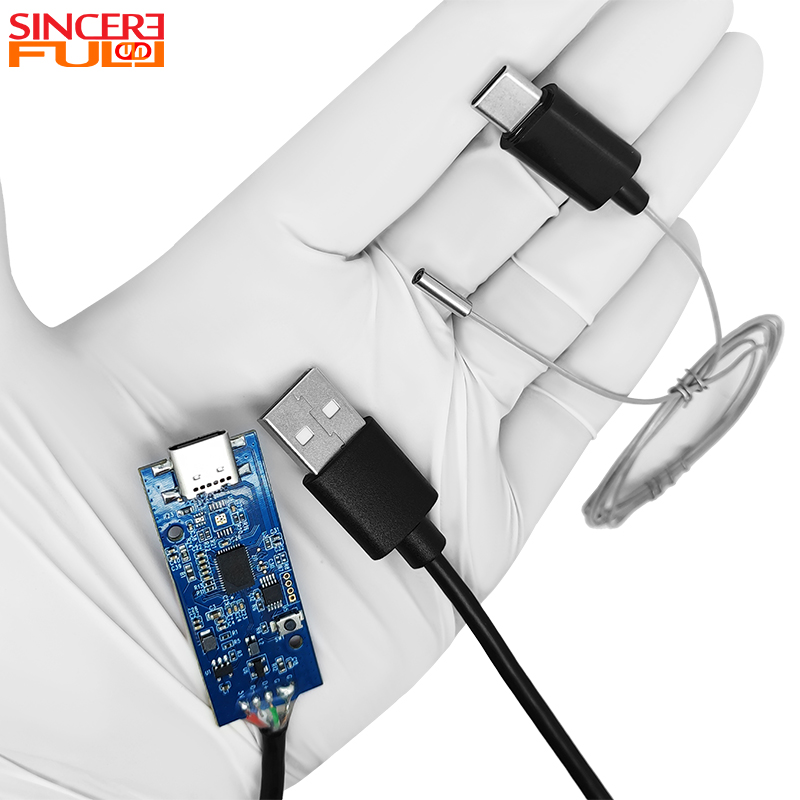

| This 3.0mm Diameter 1MP 720P HD Image Ultra-Wide Angle Type-C Interface IP67 Waterproof Endoscope Camera Module is a miniaturized close-range imaging component optimized for confined-space visual acquisition. Its 3.0mm steel-reinforced probe delivers IP67 waterproof performance and unlocks access to ultra-thin pipelines and deep cavities that regular-sized modules cannot reach. Equipped with a 0.72mm focal length and F5.5 optical lens, the camera provides multi-resolution output including 1280×960, 1280×720 and 640×480 at a maximum 30fps frame rate via 10-bit RGB format. The three-dimensional ultra-wide field of view covering 121.5° diagonal, 97.2° horizontal and 73° vertical angles expands single-frame coverage and reduces observation blind spots, even with distortion controlled below -30%. Factory-calibrated to focus steadily within 5–50mm, it maintains consistent sharpness across the most frequently used endoscopic working distances. The split-type LED fill light structure improves light uniformity for dark enclosed environments, while the reversible Type-C interface integrates power supply and data transmission to simplify device assembly. Compliant with RoHS standards, this all-round module balances waterproof durability, ultra-small size and wide-angle optical performance to support diverse precision close-range inspection tasks. |  |

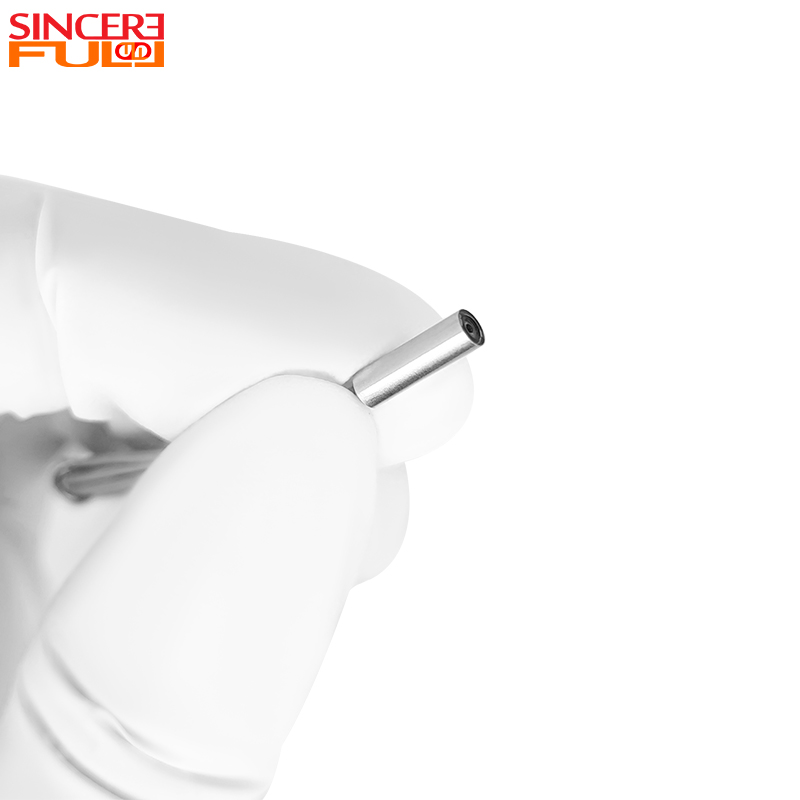

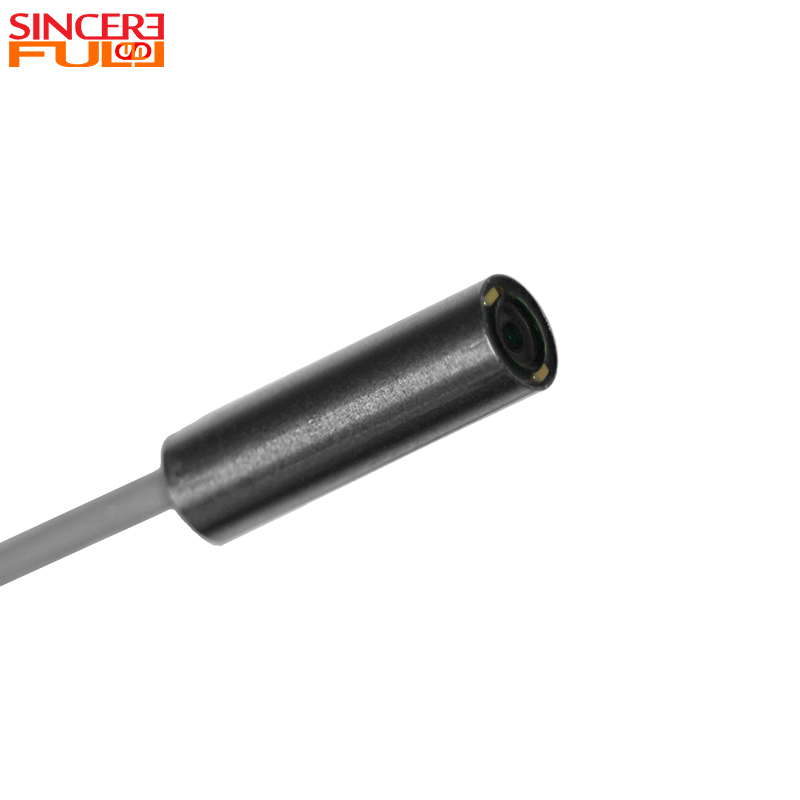

3.0mm Ultra-Mini Probe: Steel-sheathed structure with IP67 waterproof rating enhances accessibility to ultra-thin channels and deep cavities.
121.5° Ultra-Wide View: Multi-dimensional broad field of view minimizes blind zones and boosts overall inspection efficiency.
5–50mm Dedicated Focus Range: Predefined focal distance stabilizes close-range clarity and eliminates manual focusing operations.
User-Friendly Type-C Port: Reversible plug design unifies power supply and data transmission for effortless plug-and-play deployment.

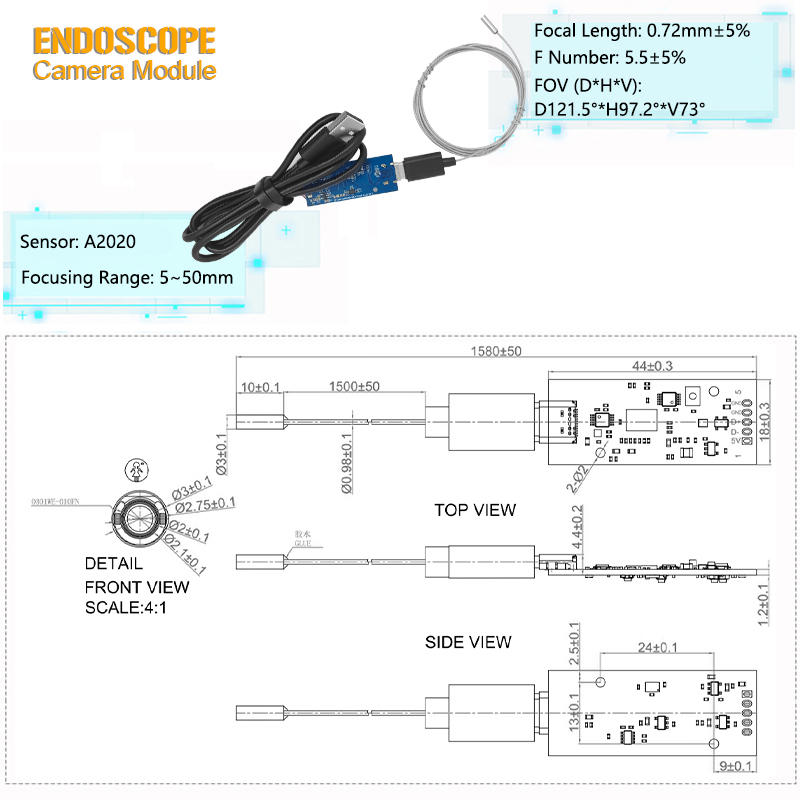

Product Name | 3.0mm Diameter USB2.0 Endoscope Camera Module |
Sensor | A2020 |
| Pixel | 1MP |
| Resolution | 720P |
Leds | 2pcs |
FOV | 121.5°*97.2°*73° |
F.No | 5.5 |

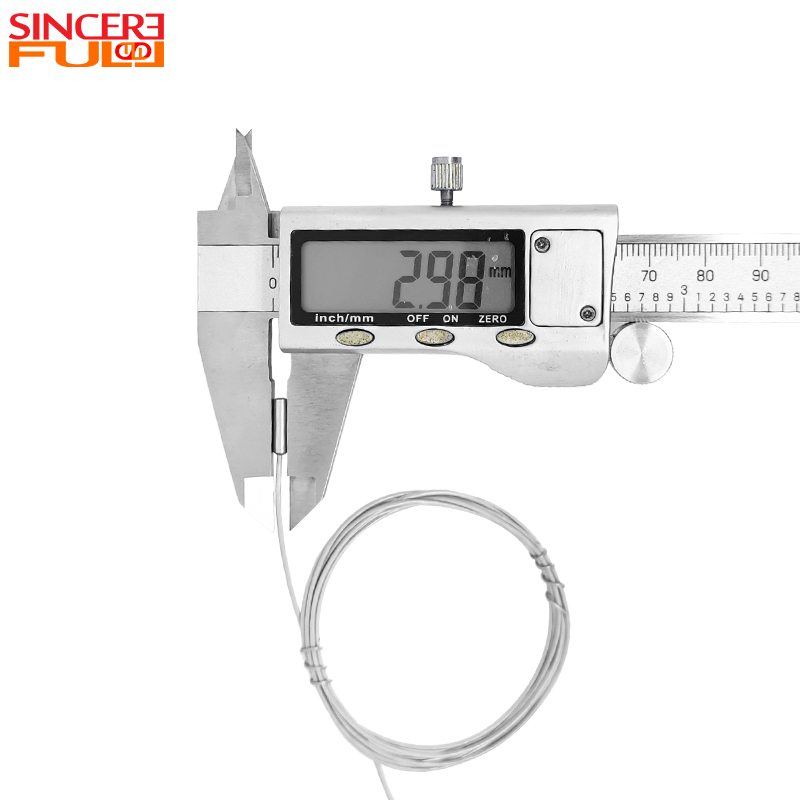

Diameter | 3.0mm |
| Focus Length | 0.72mm |
Output | USB2.0 UVC |
| Focusing Range | 5-50mm |
Waterproof | IP67 |
Output Format | RGB-10bits |
Brand | Sincerefirst |
Ultra-Thin Pipeline Inspection: Can detect internal defects and blockages of microchannels and catheters above 3.0mm by utilizing its ultra-slim waterproof probe.
Precision Micro-Component Checking: Can identify subtle flaws on micro parts and chip solder joints with its high-definition close-range imaging performance.
Minimally Invasive Exploration: Can serve as a supporting imaging unit for ultra-fine minimally invasive devices to realize visual observation of micro cavities.
Portable Micro Detection: Can act as the core visual module of handheld micro-inspection tools to complete on-site rapid imaging and fault positioning.
1. Can this module inspect deep, narrow cavities that standard 6-8mm probes cannot access?
Yes. Its 3.0mm steel-sheathed probe is specifically designed to enter ultra-thin channels and deep holes inaccessible to larger modules.
2. Does the optical design minimize blind spots inside complex internal structures?
Yes. It features a 121.5° ultra-wide field of view that significantly reduces observation blind spots in enclosed spaces.
3. Is the probe durable enough for wet or harsh industrial environments?
Yes. The probe boasts an IP67 waterproof rating, ensuring reliable operation in damp or dirty inspection scenarios.
4. How is lighting uniformity ensured in deep or dark cavities?
It utilizes a split-type LED layout that improves light distribution uniformity, eliminating central hotspots for clearer dark-space imaging.
