Side View Endoscope Camera Module
You are here: Home » Products » By Design » Side View Endoscope Camera Module

Hot Products

12MP High-resolution Integrated USB Endoscope Camera Module with Steel Shell
12MP High-resolution Integrated USB Endoscope Camera Module with Steel Shell
This is a 12MP high-resolution integrated USB endoscope camera module with steel shell.
0
0
3.9mm　Sensor OV6922 AV Endoscope Camera Module
3.9mm OV6922 AV Bronchoscope Module
This 3.9mm ultra-miniature OV6922 AV endoscopy camera module utilizes a high-performance CMOS image sensor with an ultra-wide 98° diagonal field of view to provide a wider viewing range.
0
0

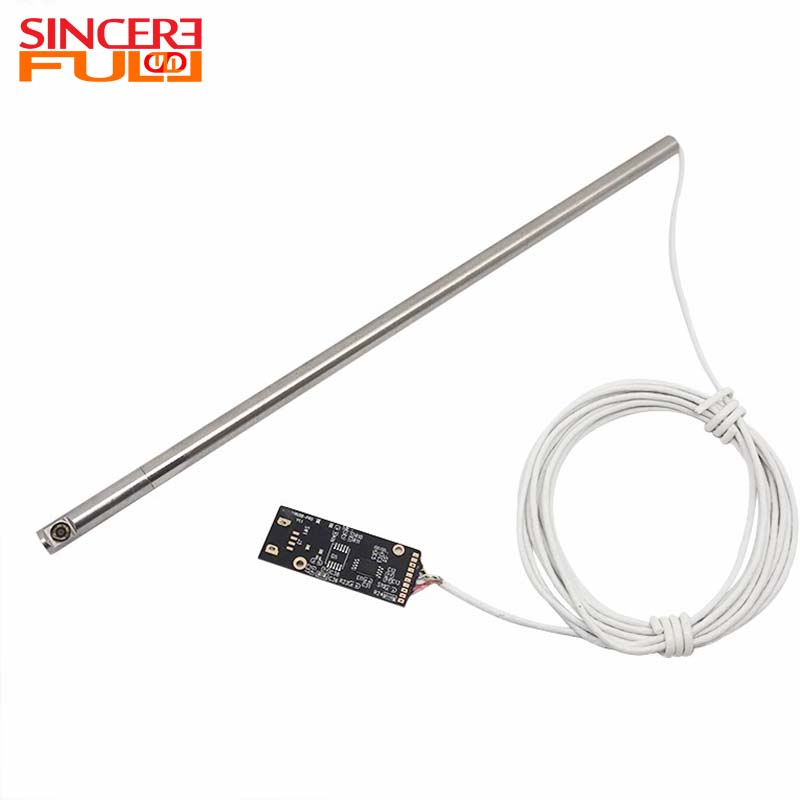

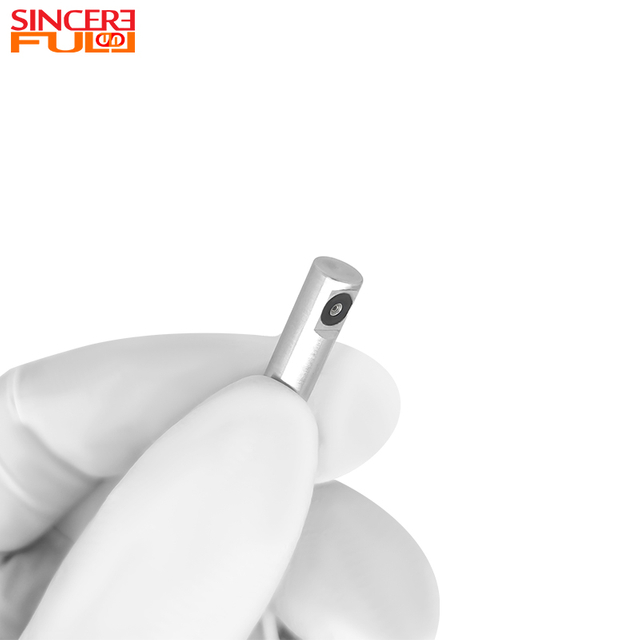

1MP Sensor OV9734 720P USB Intreface 6mm Side View Endoscope Camera Module
1MP OV9734 Sensor CMOS 720P USB Side View Endoscope Camera Module
This 1MP Camera Module features the OV9734 sensor, 720P resolution at 30fps, and a 95° field of view. With a focus range of 10mm-100mm, four adjustable LEDs, and an IP67 rating, it excels in medical and industrial inspections. USB-compatible for easy integration, it offers precise imaging in confined spaces.
0
0

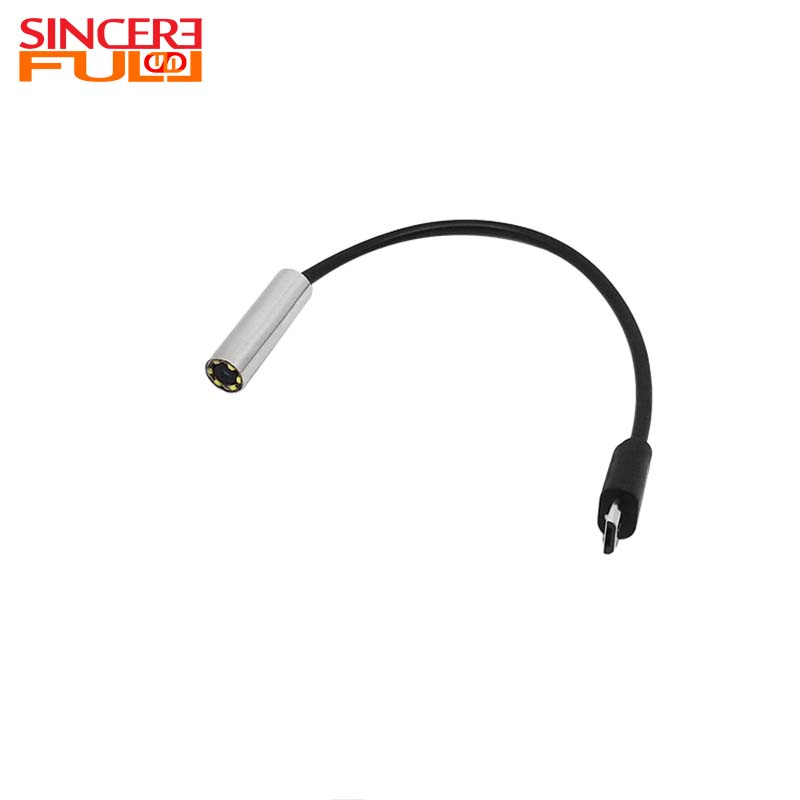

7mm diameter GC2755 Sensor Ultra Low Light Endoscope Camera Module 1080p
7mm diameter GC2755 Sensor Ultra Low Light Endoscope Camera Module 1080p
This GC2755 Endoscope Camera Module, which a 7mm diameter camera module . Powered by the COMS GC2755 sensor, this Ultra Low Light Camera Module delivers exceptional performance, capturing crystal-clear video at 1080p resolution.
0
0

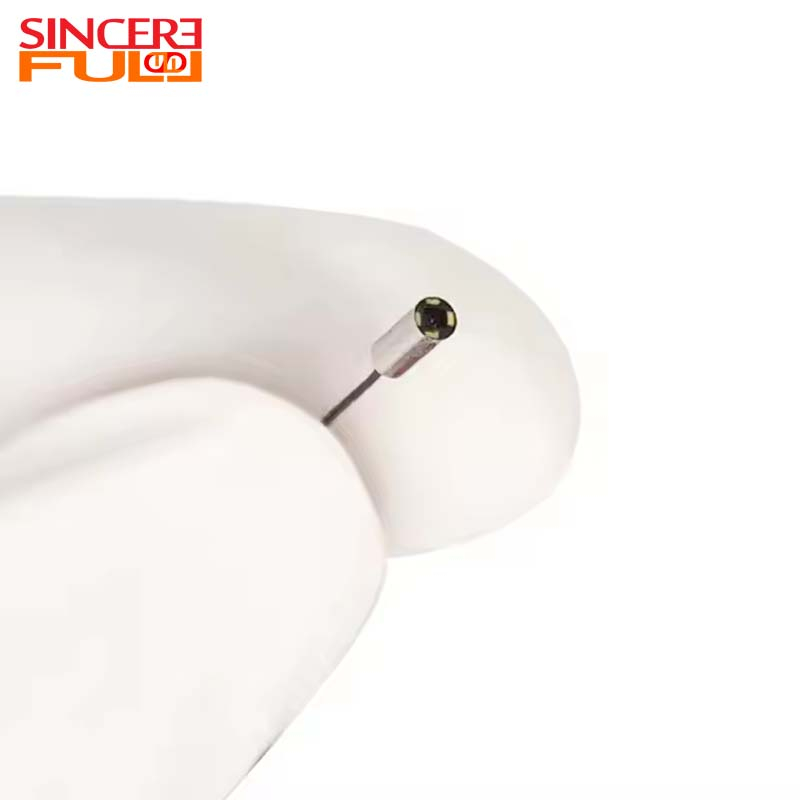

OCHFA10 CMOS Sensor USB2.0 Medical Endoscope Camera Module With Led
2mm Diameter OCHFA10 Image Sensor 30 FPS USB 2.0 Endoscope Camera Module with LED
This OCHFA10 Sensor Camera Module , a CMOS Sensor Camera Module designed specifically for medical applications.
0
0

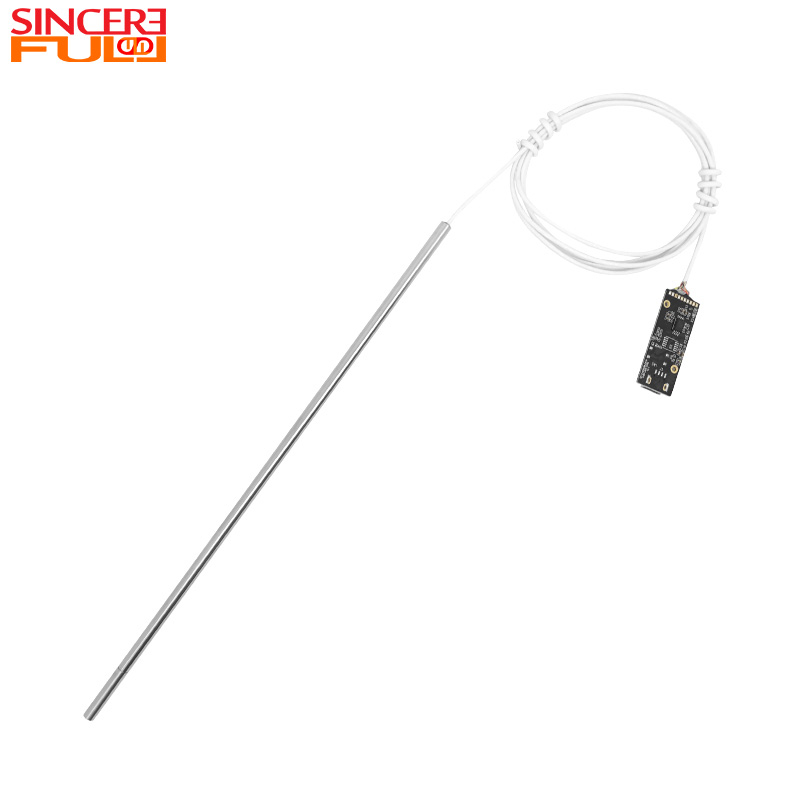

All-Glass Lens 1mp Omnivision OV9734 CMOS Sensor LED Endoscope Camera Module With Steel Sleeve And A Diameter Of 3.9mm
All-Glass Lens 1mp Omnivision OV9734 CMOS Sensor LED Endoscope Camera Module With Steel Sleeve And A Diameter Of 3.9mm
This is all-glass lens 1MP OmniVision OV9734 CMOS sensor LED endoscope camera module with steel sleeve and a diameter of 3.9mm.
0
0

Side View Endoscope Camera Module

SincereFull: Your Professional Side View Endoscope Camera Module Manufacturing Partner

SincereFull is a core brand under SincereFirst. Founded in 1992, it specializes in the R&D, production, and global services of endoscope camera modules, and is a high-tech enterprise engaged in integrated optical device manufacturing and optical imaging system solutions. With the mission of "Empowerment Global Intelligent Imaging, Adding Intelligent Eyes for All Thing", we focus on providing a full range of endoscope camera modules with diameters from 0.9mm to 10.0mm, covering various product categories such as integrated, separated, medical-grade, industrial-grade, WiFi-enabled, and side-view models in popular specifications. We offer end-to-end services from standardized products to customized solutions for customers in the global medical, industrial, and civil sectors.


What Makes SincereFull Stand Out

01
30+ Years of Industry Experience
Starting from mobile phone camera module OEM in 1992, we have deep experience in the optical imaging field for over 30 years, accumulating rich experience in information acquisition systems and optical design. Since focusing on the global smart imaging market in 2012, our business has continued to grow rapidly.​​​​​​​
02
Comprehensive Product Line
We offer a full specification product series from 0.9mm to 10.0mm. Our endoscope camera modules cover detailed models such as HD, night vision, multi-interface, and protected types, adapting to diverse scenarios like medical, industrial, pipeline, and consumer electronics, meeting the precise needs of different customers.​​​​​​​
03
R&D and Production Strength
We possess a professional R&D team capable of independent R&D across the entire process of product structure, electronic hardware, and firmware development. Equipped with SMT production lines, COB clean rooms, optical R&D laboratories, and high-precision manufacturing equipment, we guarantee product miniaturization and high-quality imaging.​​​​​​​
04
Quality Assurance
Certified under ISO9001, ISO13485, and other quality management systems, our products comply with international standards such as CE, FCC, RoHS, and REACH. Each product undergoes multiple strict tests including vibration, aging, high/low temperature, waterproofing, and image quality.​​​​​​​
05
Support & Service
We provide a 1-year replacement service and a 10-year warranty service, ensuring long-term support and reliability for users. Additionally, we can offer training on how to use the camera modules.
06
Customization Services
From demand analysis, solution design, sample production to mass production, we provide full-process customization services. We can perform personalized development on the endoscope camera module's sensor, interface, protection level, focal length, etc., to adapt to customers' end equipment needs.​​​​​​​
What Is A Side View Endoscope Camera Module?
The Side View Endoscope Camera Module is a professional imaging device adopting optical path deflection technology (usually using prisms or micromirrors), which can redirect the optical axis by 90° or other specified angles to perform vertical imaging of the lateral target surface along the insertion path. Its core structure integrates a side-facing lens assembly, CMOS/CCD sensor and lighting system into a miniature cylindrical housing (0.9mm-12mm). While the main body of the lens remains axially aligned with the narrow cavity, it captures high-resolution sidewall details and supports real-time data transmission via USB/HDMI/CSI/TV interfaces. The product is suitable for various application environments such as medical treatment, industry and automotive, providing reliable imaging performance for precision inspection and observation tasks.​​​​​​​​​​​​​​
Why choose the Side View Endoscope Camera Module？
Side View Endoscope Camera Module: An Indispensable Core Component for Blind Spot Inspection:​
1. Need to inspect side structures in narrow and enclosed spaces
When the target is a sidewall scenario, the axial imaging characteristics of front-view modules will form blind spots. The side-view module can clearly capture lateral details without repositioning the device, solving the core pain point of "inaccessible side inspection" in industries such as aerospace and precision manufacturing.


4. Achieve multi-angle panoramic observation from a single entrance
By rotating the side-view probe, the operator can obtain a nearly 360-degree panoramic view of the cavity interior from a single entry point, maximizing the amount of information obtained from limited access holes.
2. Observation direction is perpendicular to insertion direction
In scenarios where the insertion path of the endoscope is fixed, adjusting the device angle is often impractical. The side-facing lens design of the module is precisely matched with the observation needs, greatly reducing operational complexity, and can be seamlessly integrated into handheld or robotic endoscope equipment.


5. Achieve multi-angle panoramic observation from a single entrance
By rotating the side-view probe, the operator can obtain a nearly 360-degree panoramic view of the cavity interior from a single entry point, maximizing the amount of information obtained from limited access holes.
3. Avoid front obstacles
For tasks requiring zero visual obstruction (such as circuit board solder joint inspection, medical cavity lesion observation, jewelry setting inspection), front-view modules may affect imaging due to blockage by the insertion tube. The side-view optical design minimizes obstruction and is equipped with high-performance sensors to achieve high-definition detail capture, providing key support for quality control and diagnostic accuracy.

6. Meet specific requirements
When general-purpose modules cannot meet personalized parameter requirements (such as 45°/90°/120° observation angles, low-light sensitivity, special spectral imaging), the side-view module can flexibly match scenarios such as medical endoscopes, industrial Non-Destructive Testing (NDT) equipment, and security monitoring equipment, perfectly adapting to the business process needs of different industries.
Custom the Solution You Desire
Our R&D experts provide seamless support for mechanical, hardware, and firmware needs.
Diameter
  • 0.9mm
  • 3.6mm
  • 3.9mm
  • 1.2mm~10mm
  • ……
Interface
  • USB
  • WiFi/Wireless
  • AV
  • ……
Pixel
  • VGA
  • 1MP
  • 2MP
  • 5MP
  • 12MP
Material
  • Plastic
  • Glass
  • Glass-Plastic Hybrid
  • Steel Shell
Function
  • LED
  • Waterproof
  • Snapshot Button
  • Adjustable Light
  • ……
Design
  • Integrated
  • Separated
  • Direct-view
  • Side-view
  • ……
Your Questions, Our Answers.
  • What parameters of the Endoscope Camera Module can be customized?
    加 Created with Sketch.
    形状 Created with Sketch.
    Customization is supported for core parameters including diameter (expandable from 0.9mm to 10mm), sensor model, resolution (VGA~200MP), interface type (USB/Type-C/VGA), protection level (optional IP67/IP68), and focal length. Specific requirements can be discussed.
  • Can we adjust the spectrum of the LED light source for fluorescence imaging?
    加 Created with Sketch.
    形状 Created with Sketch.
    Absolutely. We support customization of LED light wavelengths and are equipped with corresponding infrared filter removal devices.
  • What do the product warranty and after-sales services include?
    加 Created with Sketch.
    形状 Created with Sketch.
    We provide comprehensive after-sales support, including technical document provision and online one-on-one guidance. Specific warranty policies can be negotiated based on cooperation plans.
  • What about the delivery cycle and production capacity for bulk purchases?
    加 Created with Sketch.
    形状 Created with Sketch.
    The company has sufficient monthly production capacity to ensure stable supply for mass production. The prototype production cycle is short, which can meet the supply needs of different purchase scales. Tiered discounts are available for bulk purchases.
  • Can the endoscope camera module adapt to extreme industrial environments?
    加 Created with Sketch.
    形状 Created with Sketch.
    Extreme environment-specific models can be customized, with a temperature resistance range of up to -40℃~120℃ and a maximum waterproof level of IP68. They are anti-electromagnetic interference, oil-proof, and corrosion-resistant, adapting to various complex industrial working conditions.
  • What are the company's core certifications?
    加 Created with Sketch.
    形状 Created with Sketch.
    We have obtained ISO9001, ISO13485 quality management system certifications, and our products have received international compliance certifications such as CE, FCC, RoHS, and REACH.
  • How to obtain product samples for testing?
    加 Created with Sketch.
    形状 Created with Sketch.
    You can contact customer service to discuss sample requirements. We will recommend a suitable endoscope camera module model based on your application scenario, complete prototype production and delivery quickly, and support parameter optimization adjustments after sample testing.
