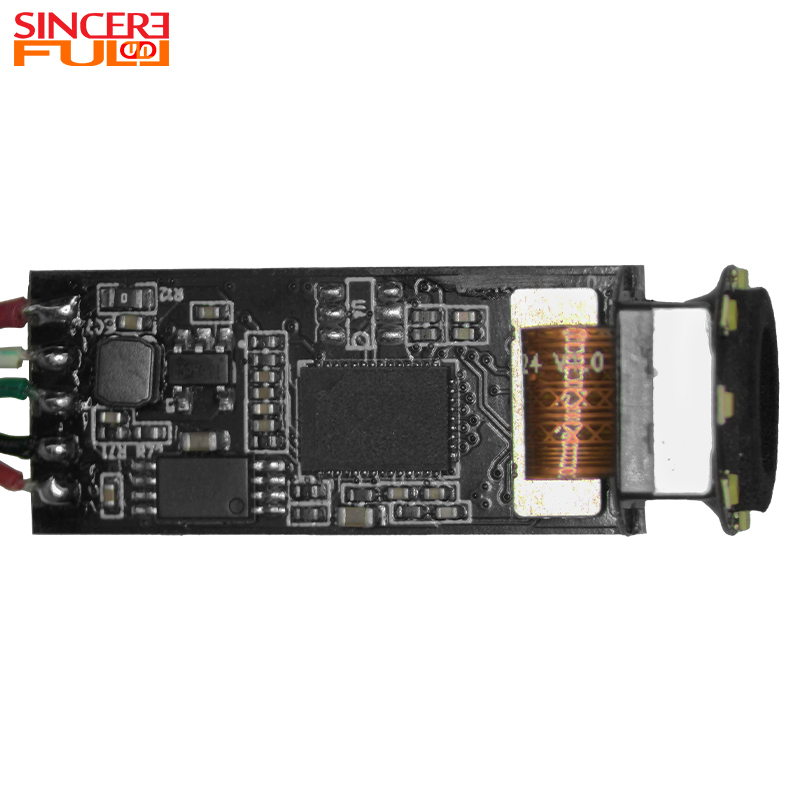

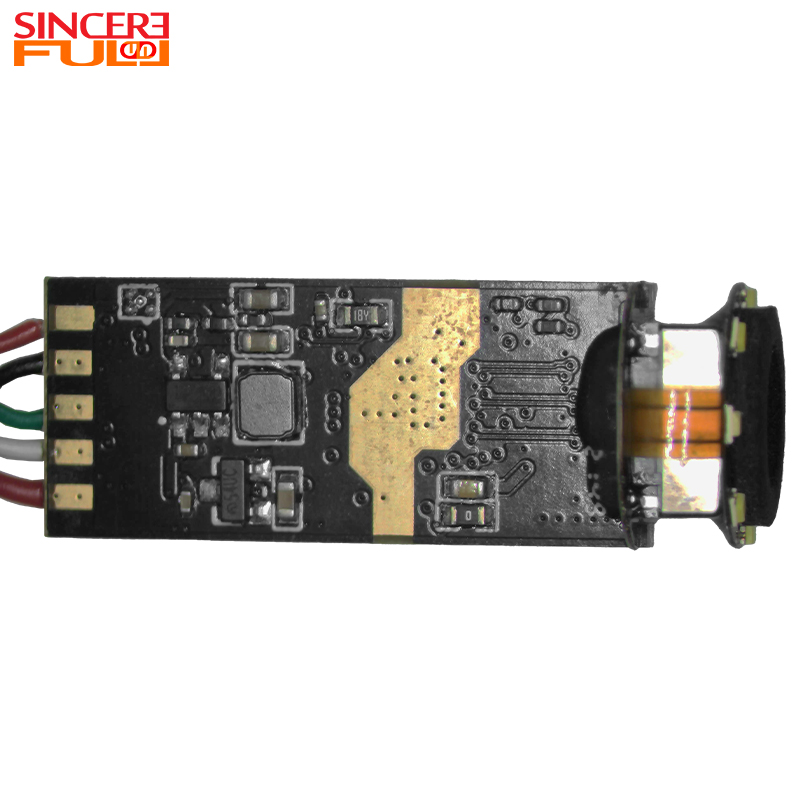

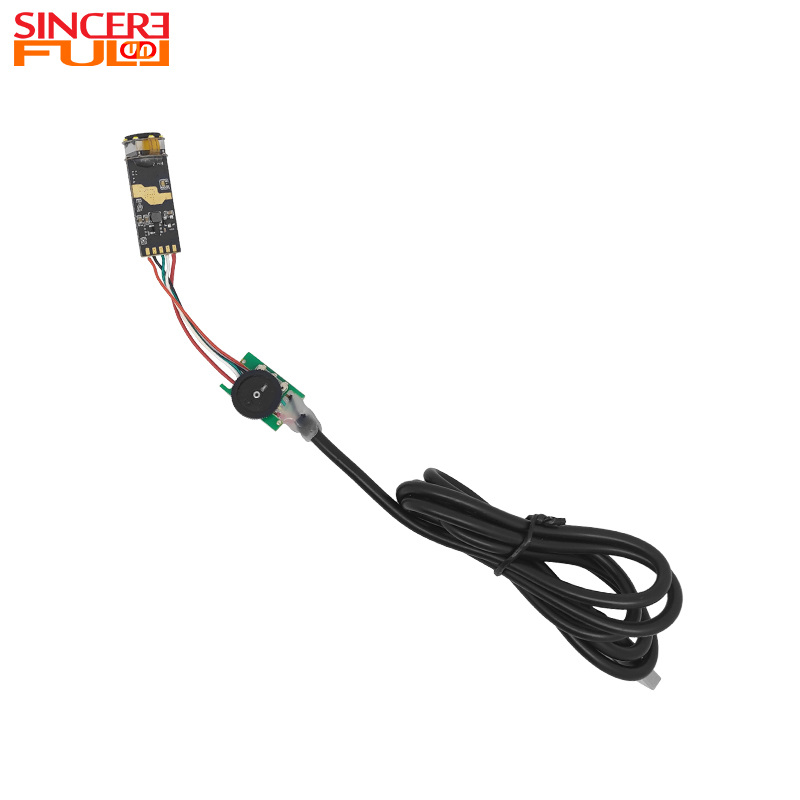

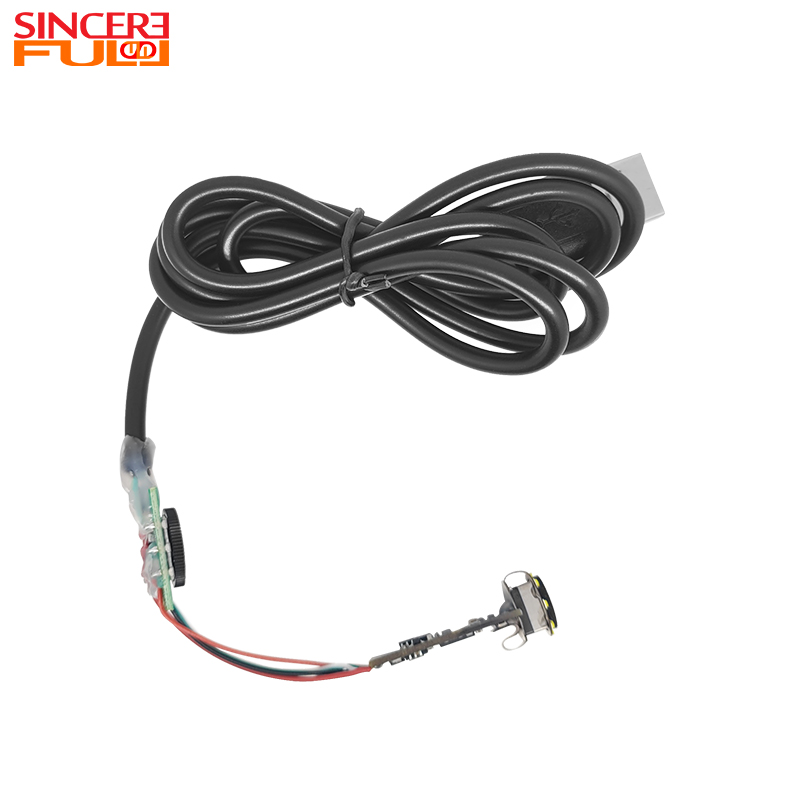

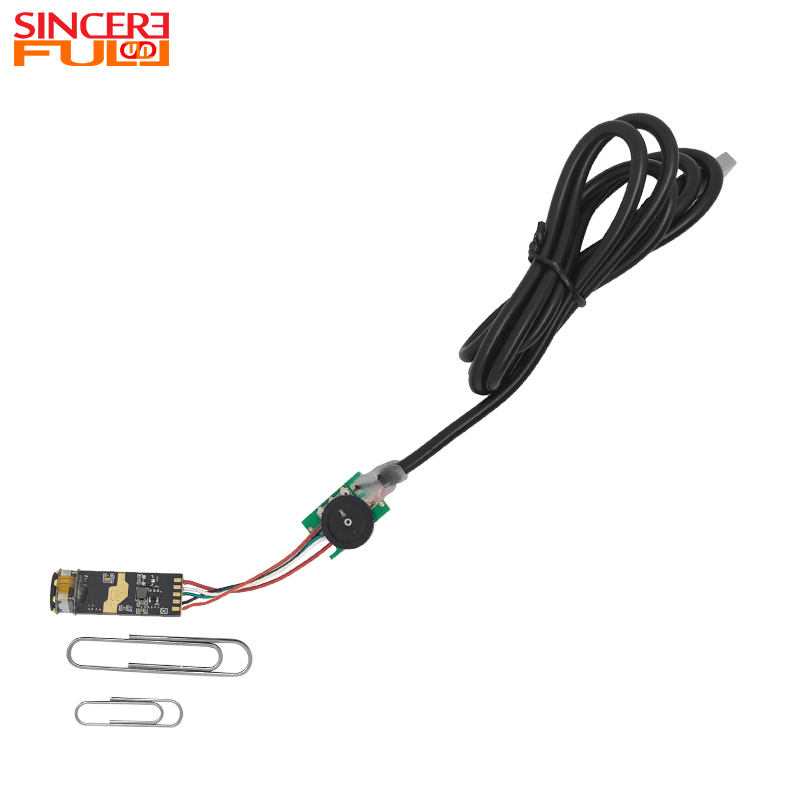

12.5mm Diameter 5MP 1/5inch CMOS Sensor USB2.0 Endoscope Camera Module

Product Overview

As a premier manufacturer and supplier of precision optical components, we present the 12.5mm Diameter 5MP 1/5-inch CMOS Sensor USB2.0 Endoscope Camera Module. Engineered for high-definition visual inspection, this compact unit seamlessly integrates into advanced diagnostic and industrial equipment to elevate imaging performance.

• 5-Megapixel CMOS sensor for crystal-clear, high-resolution imaging
• 12.5mm ultra-compact diameter designed for narrow cavity insertion
• Intelligent auto-focus capability ranging from 5cm to infinity
• Plug-and-play USB 2.0 interface for rapid system integration

Product Description

The 12.5mm Diameter 5MP 1/5-inch CMOS Sensor USB2.0 Endoscope Camera Module represents a pinnacle in micro-optical engineering, meticulously crafted to deliver uncompromising visual clarity in the most confined spaces. When deployed in complex pipeline inspections or delicate medical endoscopy, the module captures intricate textures and subtle color variations with remarkable precision. The tactile integration of the optional steel shell transforms the unit into a ruggedized, IP67-rated powerhouse, capable of withstanding moisture, dust, and mechanical stress without sacrificing optical fidelity. Operators will immediately notice the fluid, real-time visual feedback facilitated by the high-speed USB 2.0 interface, completely eliminating the frustrating latency often experienced during critical diagnostic procedures. Furthermore, the seamless interaction between the 1/5-inch CMOS sensor and the F2.8 aperture ensures that every captured frame is saturated with accurate, noise-free data, even when navigating through pitch-black cavities. By eliminating the need for bulky external illumination and complex driver installations, this module empowers equipment developers to drastically reduce their time-to-market while elevating the overall reliability, aesthetic integration, and performance of their final diagnostic systems.

Product Specifications

Key Features & Highlights

Engineered to elevate the standard of visual inspection, this module combines cutting-edge optical hardware with intelligent processing algorithms. It is designed to solve the most persistent challenges faced during confined-space imaging, ensuring your equipment operates flawlessly under demanding conditions.

• Uncompromising Visual Fidelity: Utilizing a premium 5-megapixel sensor with a 1.12μm pixel architecture, the camera captures highly detailed, artifact-free images. This level of clarity is crucial for identifying micro-fractures in industrial components or subtle tissue anomalies in specialized medical applications.
• Intelligent Auto-Focus Mechanism: The advanced auto-focus system smoothly transitions from a close-up 5cm macro view to infinite distance. This eliminates the need for manual focal adjustments, allowing operators to maintain continuous, sharp observation while navigating complex internal geometries.
• Self-Sustaining Illumination: Four integrated surface-mount white LEDs cast a uniform, 6000-6500K daylight-balanced glow. This eliminates harsh shadows and overexposure, revealing the true surface characteristics of dark, enclosed environments without requiring secondary lighting rigs.
• Rugged Environmental Resilience: Operating seamlessly between 0°C and +60°C, the module maintains strict thermal stability. The optional steel casing not only expands the diameter slightly to 14.5mm but provides a robust IP67 shield against water and particulate ingress, ensuring longevity in harsh operational theaters.

Versatile Application Scenarios

The highly adaptable architecture of this camera module allows it to serve as the visual core for a diverse array of professional and industrial systems. By integrating this component, developers can significantly enhance the functional capabilities and market value of their proprietary hardware.

• Advanced Industrial Vision Inspection: Seamlessly integrates into automated quality control lines and dimensional measurement tools. The high-resolution output allows for the rapid identification of microscopic assembly defects, ensuring strict quality assurance protocols are met.
• Precision Medical and Gynecological Equipment: Acts as the primary optical engine for colposcopes and other non-invasive diagnostic tools. The true-to-life color reproduction and auto-focus capabilities assist medical professionals in making accurate, timely assessments.
• Intelligent Security and Surveillance: Enhances access control devices and specialized monitoring systems by providing sharp, 72-degree wide-angle imaging. The superior low-light performance ensures reliable facial recognition and behavioral tracking around the clock.
• Autonomous Robotics and Drone Navigation: Provides critical visual data for AGVs and inspection drones. The compact footprint and lightweight design make it an ideal payload for assisting in obstacle avoidance, precise path planning, and remote target tracking.
• Smart Home and AI Edge Computing: Empowers IoT devices, companion robots, and smart locks with localized, high-definition image capture. The plug-and-play architecture drastically reduces the computational overhead required for edge-based AI recognition tasks.

Why Choose Us

Selecting the right optical component partner is critical to the success and longevity of your equipment. We are dedicated to providing not just hardware, but comprehensive visual solutions that drive your operational efficiency and product innovation forward.

• Unwavering Quality Assurance: Every camera module undergoes rigorous multi-stage testing, from sensor calibration to thermal stress trials. This ensures that the unit you integrate performs with absolute consistency, minimizing your post-deployment maintenance costs.
• Streamlined Integration Process: We understand that engineering time is a critical asset. By utilizing a standard USB 2.0 interface with native support for Windows OS, we eliminate the friction of complex driver development, allowing your engineering team to focus on core system functionalities.
• Scalable Production Capacity: Whether you require a limited batch for prototyping or high-volume continuous delivery, our agile manufacturing infrastructure is equipped to meet your demands precisely on schedule, ensuring your supply chain remains uninterrupted.
• Expert Technical Support: Our team of seasoned optical engineers provides deep technical guidance throughout your integration phase. From optimizing auto-exposure algorithms to advising on physical mounting strategies, we act as a dedicated extension of your own development team.

FAQ

To assist in your evaluation and integration planning, we have compiled detailed responses to the most common technical inquiries regarding this endoscope camera module.

• What is the effective working distance and focal behavior of this camera module?

  The module features an advanced auto-focus mechanism that operates seamlessly from a minimum distance of 5cm out to infinity. This dynamic range ensures that the imaging remains critically sharp whether inspecting the immediate interior wall of a narrow pipe or observing a wider cavity space, completely eliminating the need for manual focal recalibration during operation.

• How does the module perform in completely unlit or confined environments?

  It is exceptionally well-equipped for zero-light scenarios. The unit integrates four high-efficiency white SMD LEDs calibrated to a daylight color temperature of 6000-6500K. This built-in illumination system casts a smooth, uniform light across the 72-degree field of view, preventing localized glare and ensuring accurate color representation without any external light source.

• What are the specific advantages of opting for the retrofitted steel shell?

  While the base module boasts a highly compact 12.5mm diameter, adding the optional steel shell increases the diameter slightly to 14.5mm but provides substantial structural benefits. It upgrades the module's environmental protection to an IP67 rating, making it entirely dust-tight and capable of withstanding temporary immersion in water, which is indispensable for harsh industrial or plumbing inspections.

• What operating systems and integration protocols are supported?

  The module is designed for maximum compatibility and ease of deployment. It utilizes a standard USB 2.0 interface and is fully plug-and-play compatible with Windows XP and Windows 7 environments. The onboard ISP handles auto exposure, auto gain, and white balance autonomously, meaning no proprietary drivers or complex software development kits are required for basic operation.

• Can this module maintain image stability in environments with fluctuating temperatures?

  Yes, the hardware is engineered for high thermal reliability. It operates flawlessly within a temperature range of 0°C to +60°C. The CMOS sensor and associated circuitry are thermally optimized to prevent heat-induced image noise or focus drifting, ensuring that continuous operation in demanding industrial settings yields consistent, high-fidelity visual data.
