SF-C2015USB-1080P-D7 （without steel sheel and led)
SINCEREFIRST

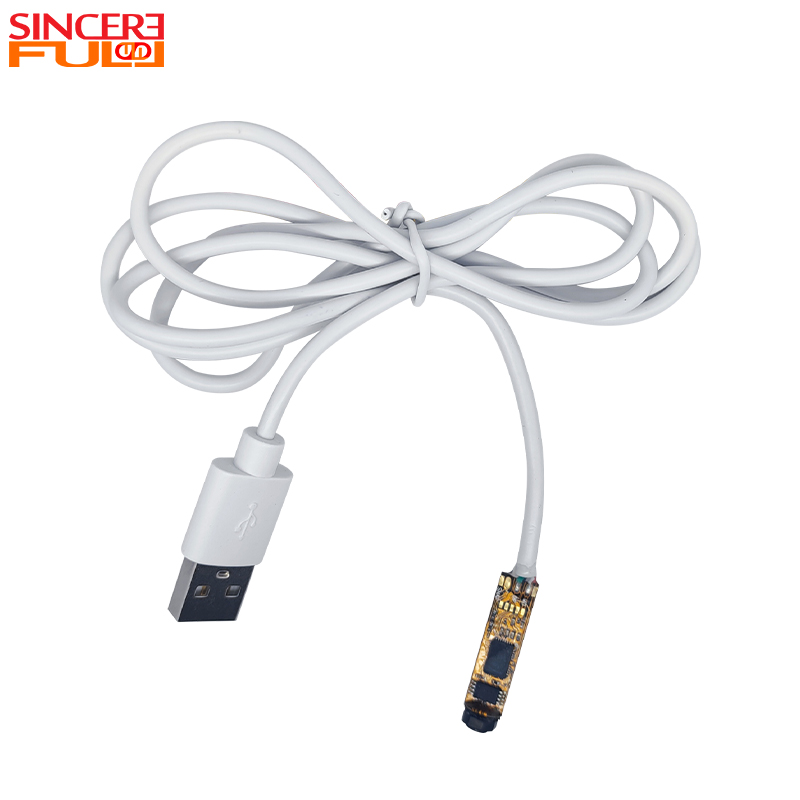

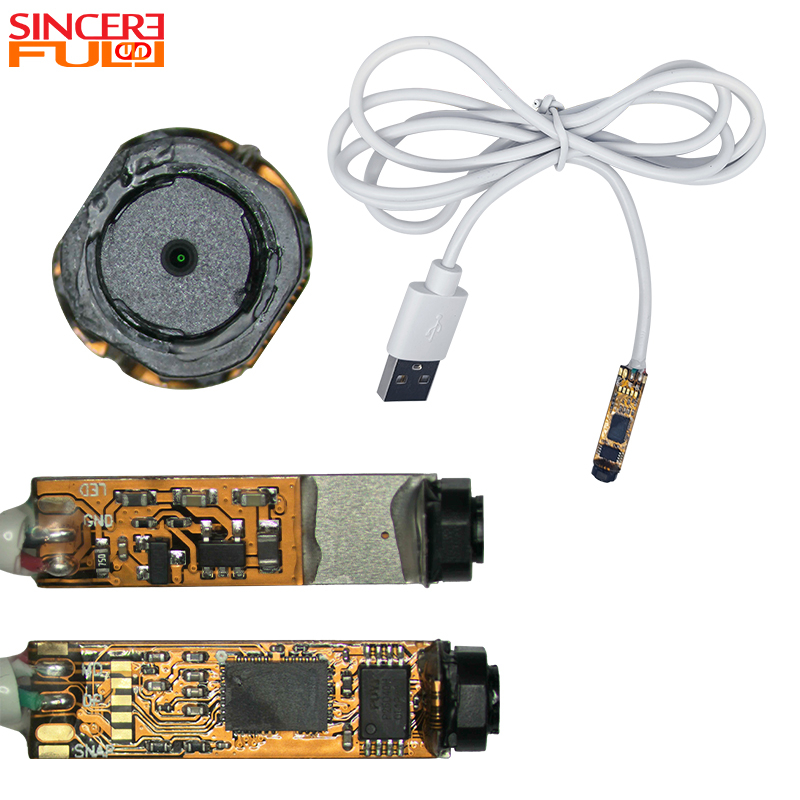

| This 7mm Diameter 1080P HD Image Fixed Focus Low Distortion USB2.0 Interface Endoscope Camera Module is an endoscope camera module equipped with a 1/5-inch CMOS sensor (2MP, 1920×1080), specialized for medium-short distance, high-precision imaging and multi-platform integration scenarios. Its 7mm diameter and 28.3mm length make it compact and easy to integrate into various devices, while the 1080P@30fps (MJPEG) output with 2MP resolution delivers smooth, clear images, ensuring detailed analysis meets high-precision identification needs. With distortion ＜1%, it strictly controls geometric image errors, restores real object shapes and guarantees measurement and detection precision. Equipped with a 2.63mm focal length, F2.8 aperture and 60° diagonal field of view, its 30–50mm fixed focus ensures stable, consistent imaging within this commonly used interval without extra debugging. It adopts a 6PIN USB2.0 interface (including LED power supply) with YUV2/MJPEG output, built-in UVC protocol enables plug-and-play compatibility with Windows, Linux and Android systems, significantly lowering integration thresholds. Operating within -10℃~50℃, it ensures stable performance in various environments, complies with RoHS standards, and balances compactness, high precision and multi-platform adaptability, perfectly fitting high-precision imaging and integration needs |  |
1.1080P HD Output: 2MP imaging, 1080P@30fps smooth output, meeting high-precision identification needs.
2.Ultra-Low Distortion (＜1%): Strictly controls geometric errors, restores real shapes, guarantees measurement precision.
3.USB Plug-and-Play: Built-in UVC protocol, directly compatible with Windows/Linux/Android, lowering integration thresholds.
4.Fixed Focus: 30–50mm fixed focus, stable imaging within the interval without extra debugging.
Product Name | 7mm Diameter USB2.0 Endoscope Camera Module |
F.NO | 2.8 |
| Focus Length | 2.63mm |
| Pixel | 2MP |
| Pixel Size | 1.6μm |
| Resolution | 1920H*1080V |
FOV(D) | 60° |
Optical filter | Infrared cutting filter |
Focusing Range | 30mm~50mm |
Diameter | 7mm |
| Distortion | <1% |
Connector | USB 5PIN |
Focus Type | Fixed Focus |
Output Format | YUV2/MJPEG |
Brand | Sincerefirst |
1.Precision Detection: Can be used for close-range HD identification and measurement of micro parts, solder joints and surface defects, thanks to its ultra-low distortion and HD quality.
2.Embedded Vision Systems: Can serve as a built-in imaging module for industrial computers and smart devices, adapting to multi-platform integration.
3.Portable Detection Equipment: Can be mounted on handheld tools, realizing on-site rapid imaging and fault location.
4.Close-Range Image Acquisition: Can be used for HD recording and archiving of product details and component status.
It might be due to sensor overheating, signal transmission interference, or excessively high ISO in low light conditions. It is necessary to check the heat dissipation design, cable shielding, or enable the noise reduction mode.

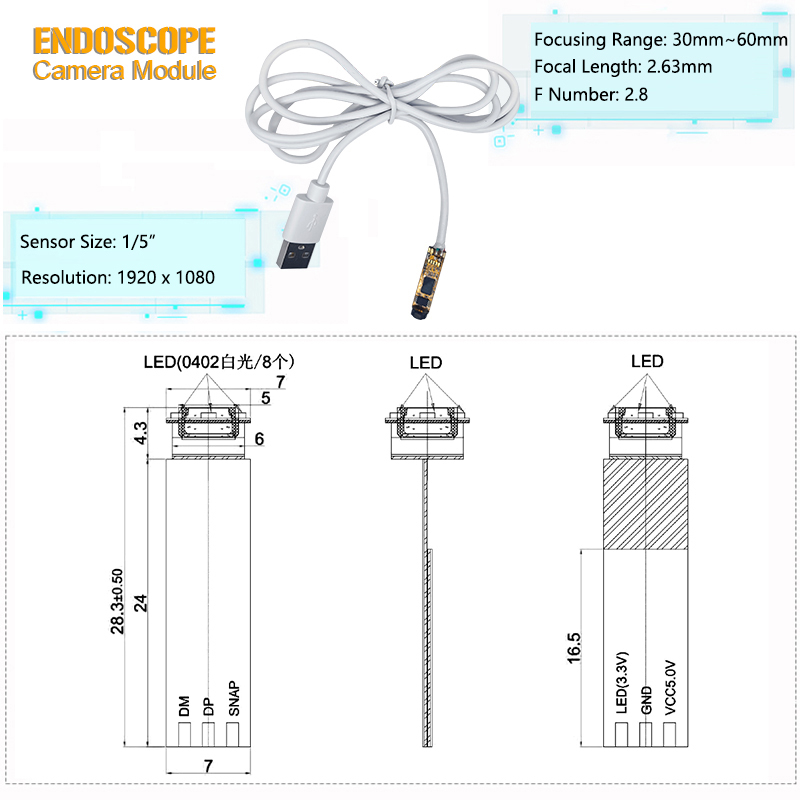

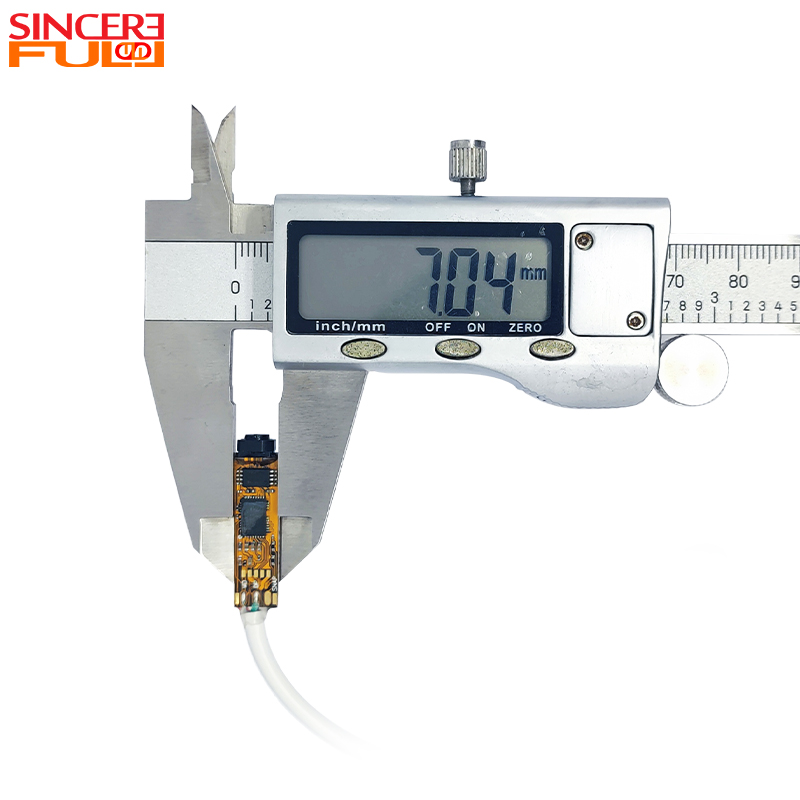

Yes. The 28.3mm(L) × 7.0mm(OD) slim-profile design is engineered for easy integration into narrow tubes and confined spaces.
4.How is image quality maintained in terms of distortion for measurement tasks?
Optical performance is strictly controlled with <1% TV Distortion, ensuring geometric accuracy for inspection and basic measurement tasks within the 60° FOV
