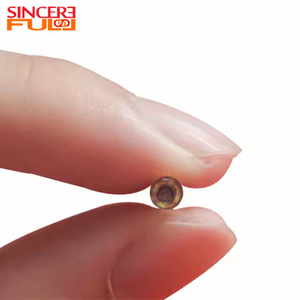

1.5mm Diameter OmniVision OCHFA10 Inspection USB Endoscope Camera Module Series

The SF-C50USB series is a high-performance miniature USB camera module specifically designed for medical endoscopy and industrial inspection applications. This series adopts OmniVision OCHFA10 CMOS color image sensor, combined with advanced SMT process and AA (Active Alignment) manufacturing technology, offering two viewing angle options (direct and side) to meet diverse application scenarios. The module features USB 2.0 output with UVC protocol support, enabling true plug-and-play functionality across mainstream operating systems including Windows, Linux, and Android.

Whichever you choose, the Series provides an uncompromising imaging foundation:

• Precise Manual Focus: 5~50mm focus range with manual adjustment, ensuring clear capture of tiny details without missing targets.

• Professional Imaging Foundation: Equipped with OmniVision OCHFA10 CMOS color image sensor, 0.5MP pixels and 700×700 resolution, supporting 30FPS smooth shooting for stable image output.

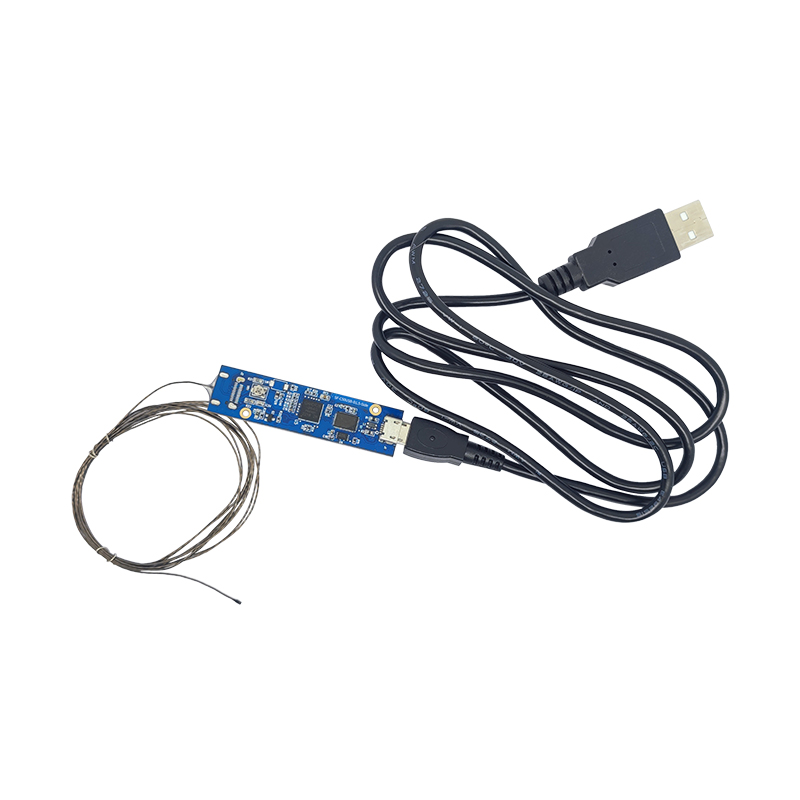

• Flexible Separated Design: Adopts separated structure, connected to DSP board via bonding wire, with USB 2.0 interface output, easy to integrate into various equipment.

• Wide Compatibility: Supports UVC protocol and is compatible with mainstream operating systems, realizing plug-and-play convenience.

• Industrial-Grade Stability: Manufactured through SMT process and AA process, with reliable performance and consistent quality.

• Global Certification Assurance: Passed international tests and certifications such as CE, FCC, RoSH, and Reach, facilitating smooth entry into the global market.

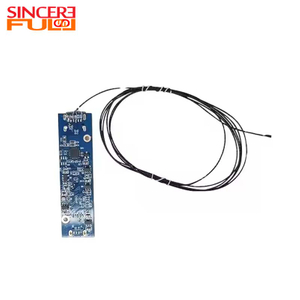

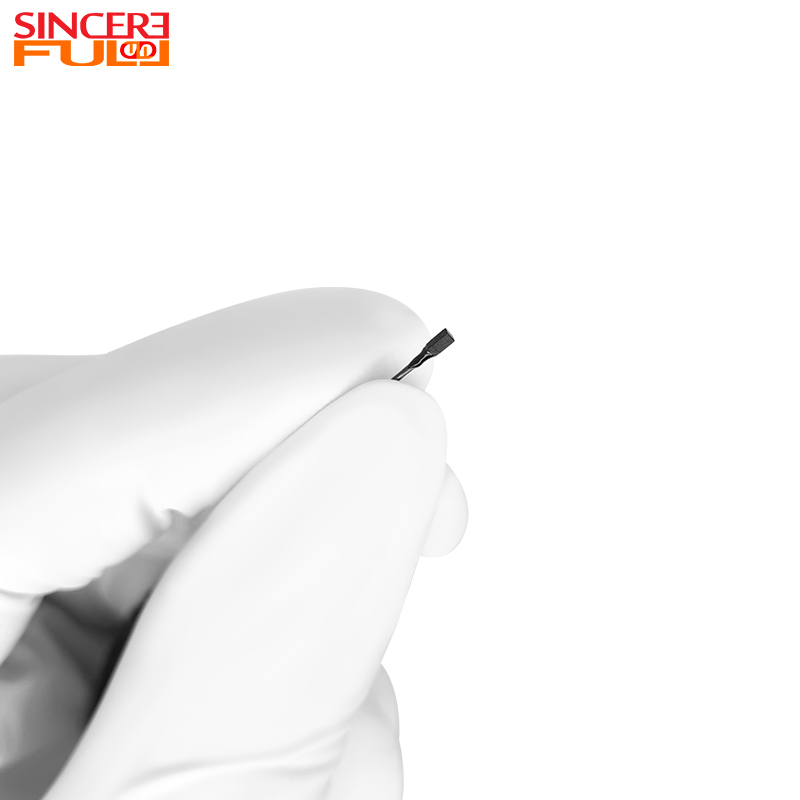

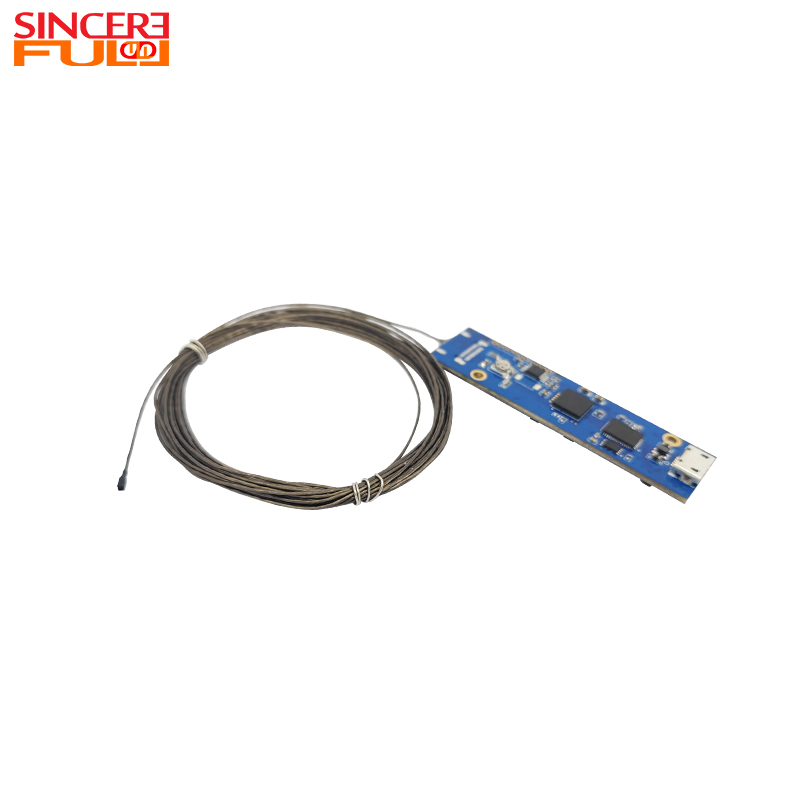

1. SF-C50USB-D1.5: Straight-View Design for Direct Path Detection

• Technical Features: Straight-view lens design, 5~50mm manual focus range, accurate targeting of front-side inspection objects, separated structure for flexible integration.

• Typical Application Scenarios:

1. Straight pipeline internal blockage detection: Direct-view imaging clearly shows pipeline internal conditions.

2. Precision equipment front cavity component inspection: Manual focus locks on tiny parts to avoid missing defects.

3. Electronic product internal front-side assembly inspection: Suitable for detecting assembly gaps and foreign objects in 3C products.

4. Daily maintenance of small mechanical equipment: Plug-and-play compatibility with mainstream systems for immediate use.

• Selection Recommendation: Choose this model when you need to inspect straight paths, front-facing cavities, or require direct and accurate imaging of target objects.

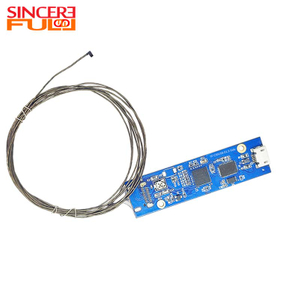

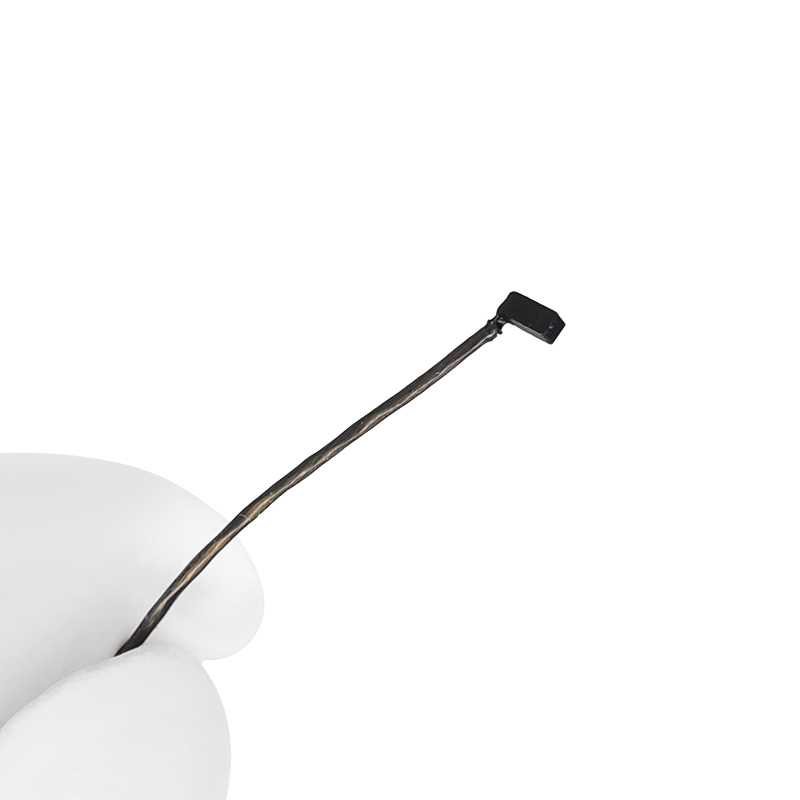

2. SF-C50USB-D1.5-Side: Side-View Design for Lateral Blind Spot Detection

• Technical Features: Side-view lens design, breaking through the limitation of straight-view detection, manual focus ensures clear imaging of lateral structures, consistent reliable performance with the straight-view version.

• Typical Application Scenarios:




1. Curved pipeline inner wall corrosion detection: Side-view design captures lateral wall conditions that straight-view cannot reach.

2. Equipment side gap and slot inspection: Suitable for detecting foreign objects or wear in narrow lateral gaps.

3. Automobile small parts lateral assembly inspection: Helps check the assembly status of side-mounted components.

4. Precision mold lateral stress crack detection: Manual focus accurately identifies tiny cracks on lateral surfaces.

• Selection Recommendation: Choose this model when inspecting lateral structures, curved inner walls, or side gaps, to solve the problem of blind spots in traditional straight-view detection.
