Single-View vs Dual-View vs Three-Lens Endoscope Camera Modules: Which Structure Fits Your Inspection Task?

Quick Answer

Use a single-view endoscope camera module when one observation direction is enough.

Choose dual-view when the device needs to inspect two directions without repeatedly repositioning the probe.

A three-lens configuration becomes valuable when the inspection system needs broader directional coverage and reduced dependence on probe rotation.

The decision should be based on:

target geometry → viewing directions → probe movement → image-switching requirement → cable/interface architecture.

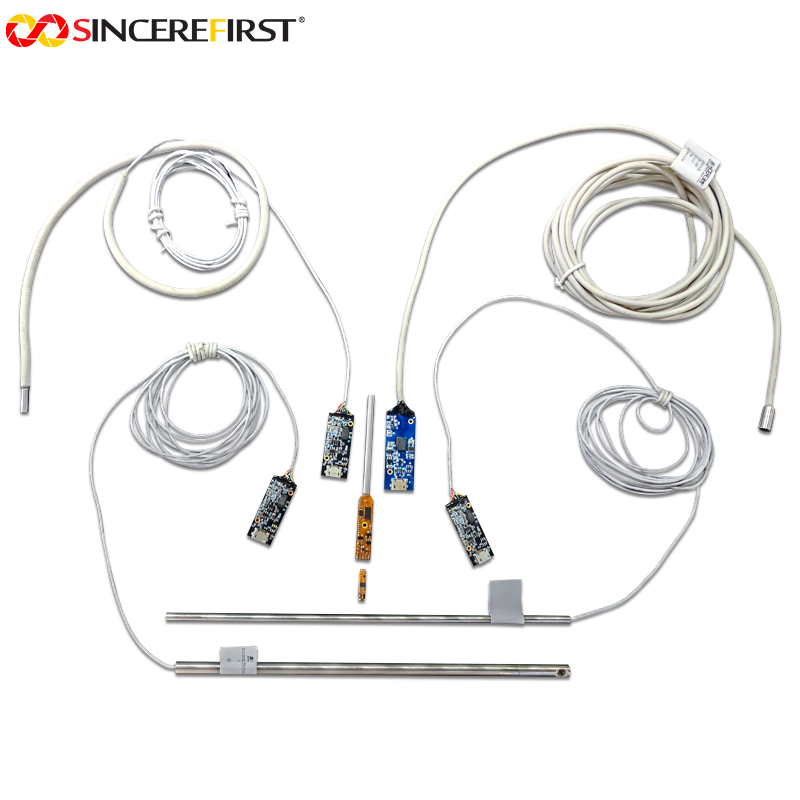

SincereFull currently has single-view, straight/side-view dual structures, dual-USB configurations and a three-lens OV9734 product direction.

1. Single-View

Single-view is the simplest structure.

It is suitable when:

• the target is always ahead;

• only one side wall needs observation;

• probe rotation is acceptable;

• minimum system complexity is preferred.

Advantages include:

• simpler cable architecture;

• fewer imaging channels;

• easier host processing.

2. Dual-View

Dual-view becomes useful when the operator needs two perspectives.

Typical combinations include:

• forward + side;

• two directional views;

• dual-camera structures for different target surfaces.

SincereFull has D5.0 straight/side-view and D5.5 dual USB product directions built around OV9734 configurations.

3. Three-Lens

A three-lens module can expand observation coverage further.

The SF-SJT720 uses an OV9734-based three-lens structure with an 80° × 3 viewing configuration.

This may be useful when:

• the cavity has several important surfaces;

• probe rotation is difficult;

• multi-direction visual access is more valuable than minimum camera-head complexity.

Comparison

4. More Cameras Do Not Automatically Mean Better Inspection

Adding cameras increases:

• wiring;

• interface complexity;

• image switching;

• host processing;

• mechanical size;

• illumination design.

If the application only needs one direction, a multi-camera structure may create unnecessary cost and complexity.

5. Industrial vs Medical Projects

Industrial

Multi-view designs can support:

• pipe inspection;

• engine cavities;

• larger internal spaces;

• complex mechanical structures.

Medical Device Development

Multi-direction structures may be evaluated when the device requires different visualization angles, but the complete device structure and compliance requirements must be assessed separately.

RFQ Checklist

Provide:

• target geometry;

• required number of viewing directions;

• probe diameter;

• whether simultaneous images are required;

• switching method;

• resolution;

• interface;

• cable length;

• host.

FAQ

Is dual-view better than side-view?

Not necessarily. Dual-view is useful only when two directions are genuinely required.

Can front and side cameras work in the same probe?

Yes, this is one possible dual-view architecture.

Does a three-lens module output three images simultaneously?

That depends on the specific interface and control architecture and should be confirmed for the project.

Will multi-camera design increase probe diameter?

It can increase mechanical complexity and space requirements.

Are multi-lens cameras suitable for pipe inspection?

They can be useful when both navigation and wall observation are required.

Can the number or direction of cameras be customized?

Multi-camera structure can be evaluated according to the project geometry and host requirements.

CTA

Send your target geometry, required viewing directions, probe diameter and host architecture to SincereFull for multi-view endoscope camera evaluation.
