A wider field of view is useful when the operator needs more scene coverage for navigation or general observation. A narrower field of view can make the same target occupy more of the image when the camera position and working distance stay unchanged. Neither is automatically better. For medical-device visualization and industrial inspection, FOV should be selected together with working distance, target size, viewing direction, edge distortion and the amount of probe movement available.
Field of view describes how much of the scene is visible through the camera system. In an endoscope, this directly changes the balance between context and target size. A wide lens helps the operator understand where the probe is, but the target occupies a smaller portion of the frame. A narrower lens shows less surrounding area but can allocate more pixels to the target at the same distance.
Wide FOV is valuable when the operator needs situational awareness. This is common in cavity navigation, pipe movement, general internal inspection and certain close-range visualization systems. The camera can show more of the surrounding surface, reducing the need for frequent probe repositioning.
However, wide FOV may also increase edge distortion depending on the lens design, and small defects can occupy fewer pixels. Therefore, “ultra-wide” should be treated as a functional choice, not a universal image-quality upgrade.
A narrower FOV can make a distant or small target appear larger within the frame because the camera captures less of the surrounding scene. This is useful in fixed or semi-fixed inspection positions where the operator already knows where the target is and needs more visual emphasis on a smaller area.
Project Need | FOV Direction | Reason |
Probe navigation in a cavity | Wider | Shows more surrounding structure |
Pipe wall overview | Wide / side-view combination | More surface coverage |
Known defect area | Moderate or narrower | Target occupies more of the frame |
Very close observation | Depends on lens and working distance | Wide FOV may help but distortion must be checked |
Multi-direction inspection | FOV + viewing direction together | Angle of view alone cannot solve direction problem |
FOV cannot be selected without the expected working distance. At very close distances, a wide lens can show a large surface area, but the optical system must still maintain focus and acceptable edge quality. At longer distances, the target can become too small within an ultra-wide frame. OEM teams should define the normal working distance first and then evaluate FOV using the real target.
Wide-angle lenses often create more visible geometric distortion near the edge of the frame. In some navigation tasks this may be acceptable; in dimensional inspection or applications where shape is important, it may become a problem. The correct question is not “Does the lens have distortion?” but “Does the distortion interfere with the visual task?”
A direct-view camera uses its FOV along the probe axis. A side-view camera applies its FOV to a lateral surface. For pipe-wall or cylinder-wall inspection, a side-view structure can solve the observation-direction problem more effectively than simply increasing FOV on a forward-facing camera.
Project | FOV Priority | Additional Factor |
Medical-device visualization | Stable close-range visualization | Working distance, distortion, illumination |
Industrial borescope navigation | Scene coverage | Probe movement, direct/side view |
Pipe inspection | Wall coverage and orientation | Side-view, LED reflection |
Defect inspection | Target size in frame | Resolution, distance, lens quality |
Robotic / fixed probe | Repeatable framing | Mechanical position and calibration |

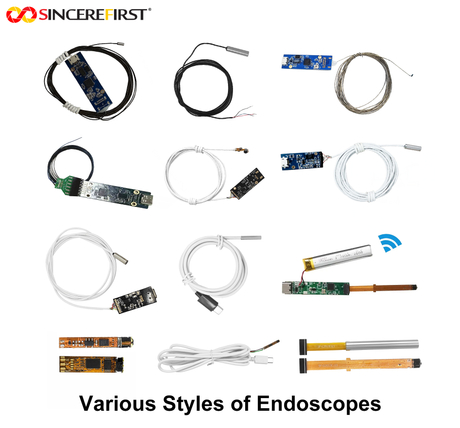

For ultra-small modules, lens choices are constrained by the camera-head diameter and front-end structure, so the available FOV should be evaluated with the finished probe. In 3.x mm USB families, multiple optical configurations and direct/side-view directions provide more room for matching navigation versus detail needs. Larger autofocus or multi-view products may be preferred when working distance or target direction changes significantly.
1. Use the real target at the real working distance.
2. Compare target size in the center of the frame, not only total scene coverage.
3. Check edge distortion on straight or known geometry.
4. Confirm the FOV after the camera is installed behind the final optical window.
5. Evaluate illumination uniformity across the field.
6. Test direct-view or side-view orientation in the real inspection path.
Is a wider FOV always better for an endoscope camera?
No. Wider FOV improves scene coverage, but the target occupies fewer pixels and edge distortion may become more visible. The best FOV depends on the task.
Can higher resolution compensate for a very wide FOV?
Higher resolution can add more total pixels, but it does not change how much of the scene the target occupies. Lens choice and working distance still matter.
Should pipe inspection use the widest available lens?
Not necessarily. Pipe inspection should first decide direct versus side viewing, then choose an FOV that balances wall coverage, detail and distortion.
Does FOV change with working distance?
The lens angular FOV remains a lens/system property, but the physical area covered at the target changes with distance, which changes what the operator sees.
Can FOV be customized?
Lens/FOV options can be evaluated according to camera diameter, sensor, working distance and mechanical structure.
What should I send for FOV evaluation?
Provide target size, normal working distance, camera position, viewing direction, required scene coverage and whether edge geometry is important.
The best FOV is the one that puts enough of the right scene into the frame. Navigation generally benefits from wider coverage; detail inspection may benefit from tighter framing. OEM teams should evaluate FOV using the real working distance, target and viewing direction rather than selecting the widest number available.
