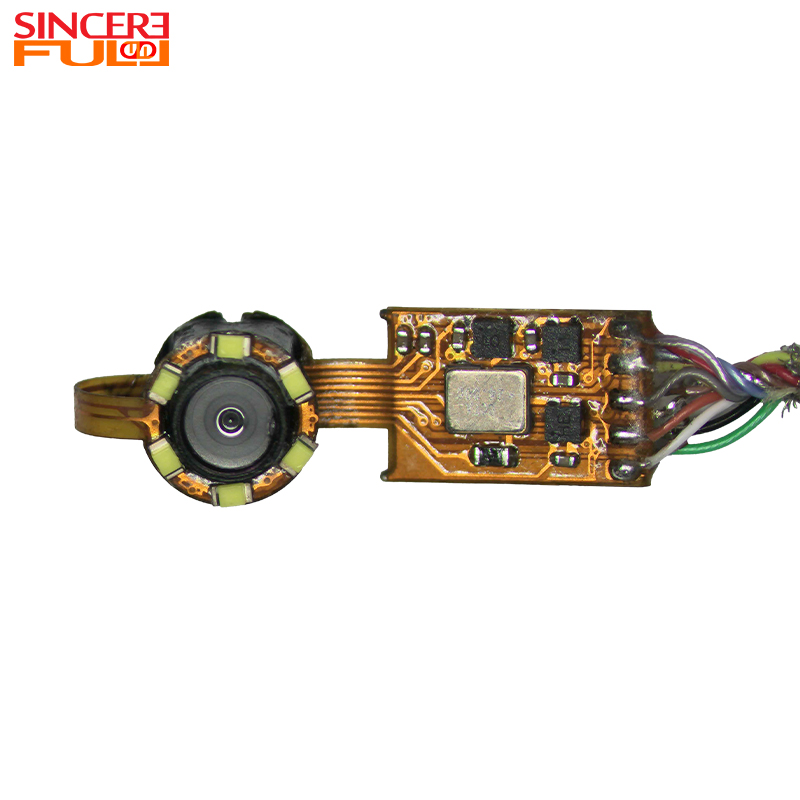

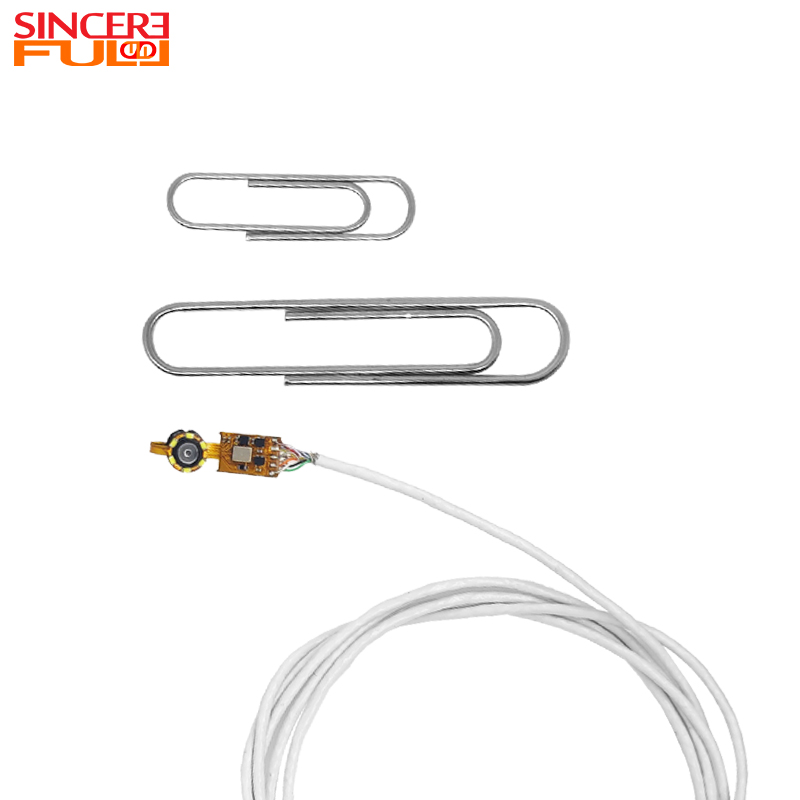

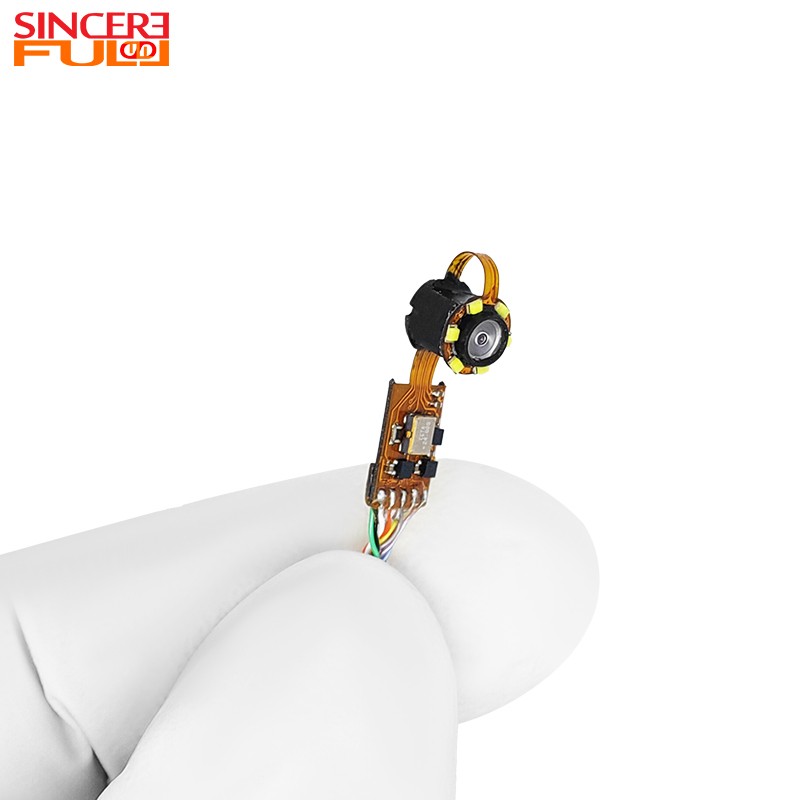

This 1080P 1/6-inch OV2740 HD USB 2.0 Endoscope Camera Module， is a high-definition side-view camera module specifically designed for precision imaging applications such as medical endoscopes, stomatoscopes, and industrial inspection. Without a steel shell,the module features a 1/6-inch OV2740 sensor with 1.4μm × 1.4μm pixel size, supporting up to 1920×1080 resolution output. It delivers dual-format video streams (MJPEG and YUV2) at up to 60fps, meeting real-time high-definition preview requirements. The module incorporates a high-sensitivity macro lens design, delivering exceptional low-light performance with a minimum illumination of just 1 lux. It achieves a signal-to-noise ratio of 38.3dB and a dynamic range of 73.3dB, ensuring true color reproduction and sharp detail. Supports USB Video Class (UVC) protocol for plug-and-play operation across various operating systems. Equipped with OTG functionality for seamless mobile device connectivity. Featuring a Type-C interface with a compact design, it integrates seamlessly into medical aesthetics equipment, embedded medical devices, and industrial endoscopes, delivering stable, high-definition, and reliable image capture solutions.
|  |
Product Advantage ◢
1. High-Definition Real-Time Imaging with Low Light Adaptability: Equipped with a 1/6-inch OV2740 sensor and 1.4μm large pixel design, the module supports 60fps real-time preview in MJPEG format, ensuring smooth and detailed imaging even under 1lux low-light conditions. Its 38.3dB signal-to-noise ratio and true color reproduction capability provide reliable visual support for medical and industrial applications.
2. Plug-and-Play Compatibility and Flexible Integration: Fully compliant with USB Video Class (UVC) standard, the module supports driver-free operation across multiple operating systems and enables OTG connectivity for mobile devices. Its compact structure and Type-C interface design allow for easy integration into space-limited equipment, facilitating rapid system development and deployment.
3. Robust Construction and High Environmental Reliability: The module undergoes stringent reliability testing including temperature cycling, vibration, and drop tests, ensuring stable performance across varying environmental conditions. Designed with ESD protection and sealed construction, it meets the durability and safety requirements of professional medical and industrial inspection applications.
Application Of Endoscope Camera Module ◢
1.Medical Endoscopy and Minimally Invasive Procedures: Suitable for integration into laryngoscopes, oral endoscopes, and various clinical endoscopic systems to provide clear real-time visual support during diagnostic and surgical procedures.
2.Dermatology and Medical Aesthetic Devices: Ideal for blackhead removal instruments, skin analyzers, and other aesthetic diagnostic equipment, offering detailed imaging for treatment and assessment.
3.Industrial Internal Inspection and Nondestructive Testing: Widely used in pipeline inspection, mechanical internal viewing, welding seam detection, and other industrial quality control scenarios that require compact, high-definition visual access.
4.Embedded Medical and Portable Diagnostic Equipment: Applicable in handheld diagnostic devices, portable medical monitors, and other embedded systems that require reliable, miniaturized imaging modules for on-site or mobile healthcare applications.
Technical Parameters ◢
Product Name | Endoscope Camera Module |
Features | 4.4mm Endoscope Camera Module |
Interface | USB2.0 UVC |
Pixel | 720P |
LED | 6 |
Pixel | 1MP |
Focusing Range | 10-100mm
|
Distortion | <-20% |
Fov(D) | 110° |
FAQ ◢
1.Where is SINCEREFULL headquartered, and what is its production scale?
Headquartered in Guangdong, China, with marketing headquarters in Guangzhou. It has 33,350 square meters of factory buildings, a monthly production capacity of 3 million units, and a Class 100 dust-free COB automatic production workshop plus AA (Active Alignment) process.
2. What is the minimum illumination required for the module to function effectively?
The module can operate under illumination as low as 1 lux, making it suitable for low-light environments commonly encountered in medical and industrial inspection applications.
3.Does this module require additional drivers for use with Windows or Linux systems?
No, it is fully compliant with the USB Video Class (UVC) standard, which enables plug-and-play functionality on Windows, Linux, macOS, and Android systems without the need for additional drivers.
