SF-C16USB-D2.0 D120
SINCEREFIRST
| This 2.0mm Diameter Wide Angle OVM6946 CMOS Sensor USB2.0 UVC Endoscope Camera Module is equipped with the OVM6946 sensor and USB2.0 UVC plug-and-play solution, delivering 400×400@30fps high-definition images. It adopts a 120° ultra-wide-angle optical design, supports precise focusing at an ultra-close range of 5–50mm, and is paired with 4 independently controllable LEDs for supplementary lighting.Also It has steel sheel,With IP67-rated dust and water resistance, the module ensures stable operation in harsh conditions, making it ideal for demanding industrial applications such as pipeline inspection and sewer maintenance. Compact and plug-and-play, it can easily access tiny spaces to complete visual inspection, with wide picture coverage, clear and stable imaging, which greatly improves the efficiency of micro-scenario detection and complies with RoHS standards. |  |
Ultra-compact 2.0mm diameter, easily accessing tiny spaces
120° ultra-wide angle, with large single-frame coverage and higher inspection efficiency
5–50mm macro precise focusing, enabling clearer close-up imaging
UVC plug-and-play, compatible with multiple platforms for fast integration
4 independent LEDs for supplementary lighting, ensuring stable imaging in low-light environments
Micro-channel inspection: Used for the inner wall inspection of micro flow channels and micro catheters, enabling observation of blockages, damages and inner wall conditions.
Precision component inspection: Used for close-range defect detection and quality judgment of micro parts and chip solder joints.
Minimally invasive medical exploration: Used for small cavities and minimally invasive instruments to provide stable close-up imaging.
Miniature instrument integration: Used as the core imaging module for portable micro-detection equipment and experimental devices.

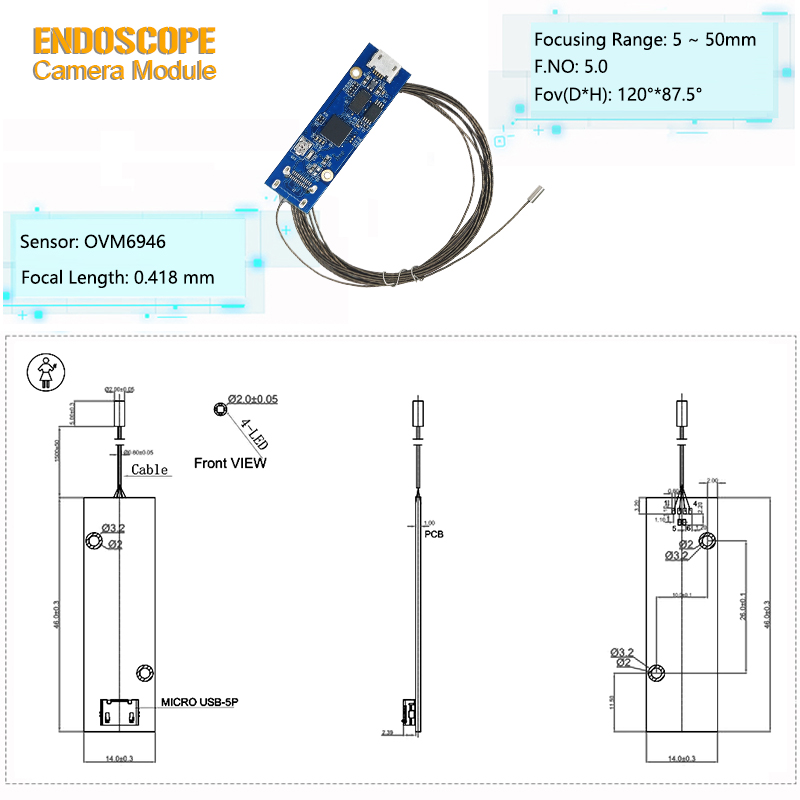

Keywords | 4pcs LED Endoscope Camera Module |
Sensor | OVM6946 |
LED | 4pcs LED |
FOV(D*H*V) | 120°*87.5° |
Focusing Range | 5-50mm |
Focal Length | 0.418mm |
Format | YUV&MJPEG |
TV Distortion | <-11% |
Output | USB2.0 UVC |
F Number | 5.0 |
Resolution | 400*400 |
Features | Mini Endoscope Camera |
| Waterproof | IP67 |
1.What are the dimensional requirements for the 2.0mm probe?
The inspection channel requires an inner diameter (ID) of at least 2.0mm to accommodate the probe, ensuring smooth insertion and unobstructed imaging.
2.How does the 5–50mm focusing range impact imaging?
Optimized for extreme close-up applications, this range delivers peak clarity within 5–50mm. Image sharpness attenuates beyond this zone, making the module specifically suited for near-field inspection.
3.What is the engineering significance of < -11% distortion?
The intentional negative distortion is a strategic trade-off that maximizes the Field of View (FOV) within the ultra-compact optical assembly, balancing size constraints with visual coverage.
4.What is the functional value of the separated structure?
By physically decoupling the probe from the mainboard, the design enables deployment in slender spaces and deep cavities, significantly enhancing installation flexibility.
