Bare Camera Module vs Finished Endoscope Camera Head: Which Structure Fits OEM Development?

Quick Answer

Choose a bare endoscope camera module when your engineering team needs maximum freedom over the probe housing, lighting, sealing, cable routing or final camera-head diameter. Choose a more complete camera-head assembly when the project values faster prototype integration and an existing mechanical structure already fits the device. Neither direction is universally better. The decision is mainly about where the design responsibility should sit: with the camera supplier, with the OEM device team, or shared between both.

1. What Is a Bare Endoscope Camera Module?

A bare module provides the imaging core without a complete finished probe structure. It is commonly used when the OEM already has its own mechanical enclosure or when the project has very strict space constraints. Examples in the current SincereFull range include ultra-small OCHTA10 and OVM6946 bare directions, OV9734 bare USB structures around 3.x mm, and larger OV2740 bare configurations for higher-resolution or higher-frame-rate projects.

The main value is integration freedom. The customer can decide how the optical window, front shell, LED, cable, sealing and mechanical fixation should be arranged around the camera core.

2. What Is a Finished or More Complete Camera Head?

A more complete camera head includes more of the front-end structure, such as integrated housing, steel shell, LEDs, defined cable routing or a protected optical window. It is useful when the existing structure is already close to the final device requirement and the OEM wants to reduce mechanical design work during the first sample stage.

3. The Smallest Diameter Is Not Always the Smallest Finished Probe

A bare camera core can appear attractive because the listed diameter is extremely small. But the final probe may still need an optical window, shell, LED path, adhesive, cable reinforcement and assembly clearance. A 0.9 mm bare optical core, for example, does not automatically mean the finished device can remain at exactly the same diameter.

OEM teams should therefore compare the complete mechanical envelope. If the project has a hard finished-diameter limit, provide that limit first. This helps avoid selecting a camera core that later becomes too large after protection and illumination are added.

4. Bare Modules Transfer More Responsibility to the OEM

The flexibility of a bare module comes with additional engineering responsibility. The OEM must evaluate the front housing, optical window, sealing, LED method, cable strain relief, electromagnetic environment and the way the board is mounted. This can be a good trade-off for a mature device platform, but it can slow down early prototyping when the mechanical design is not yet stable.

5. Finished Camera Heads Reduce Mechanical Work but May Limit Flexibility

A finished or protected camera head can shorten the path from camera sample to device test. However, it may impose an existing shell diameter, camera-head length, LED layout or cable exit. If any of these conflict with the final device, modifying the complete structure may be harder than starting from a bare module.

6. Medical vs Industrial OEM Decisions

7. Recommended Product Directions

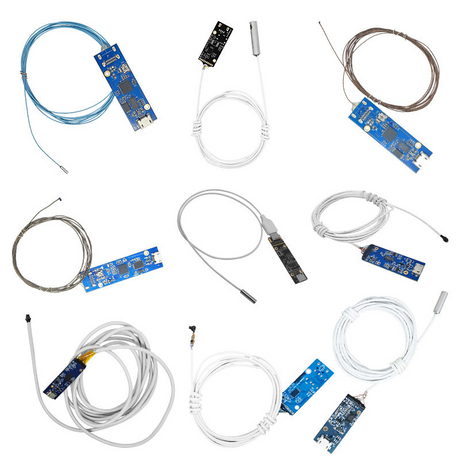

For extreme diameter constraints, sub-2 mm bare camera directions provide the greatest freedom for custom probes. Around 3.1–3.9 mm, both bare and integrated USB options are available, which makes this diameter range useful for comparing the two development strategies. In 5–6 mm OV2740 families, integrated, separated and long-cable structures illustrate how the same imaging requirement can be packaged differently depending on the final device architecture.

8. OEM Decision Checklist

1. Is the maximum limit based on bare camera size or finished probe size?

2. Does the OEM already have a front housing design?

3. Who will design the optical window and sealing?

4. Are LEDs required inside the camera head?

5. Does the camera board need to sit inside the front end or farther back in the device?

6. What cable length and bend requirement must the probe support?

7. Does the first sample need to be near plug-and-play, or is custom integration acceptable?

FAQ

Is a bare module better for customization?

Usually yes, because it leaves more freedom for the OEM to design the housing, LED, sealing, cable and mechanical fixation. The trade-off is more engineering work.

Is a finished camera head always faster to integrate?

Often, but only when its existing diameter, length, viewing direction and cable structure match the device. If they do not, a bare module may be more efficient.

Can a bare module become an IP67 probe?

It can be integrated into a protected probe, but the complete enclosure and sealing system must be designed and validated.

Which structure is better for a disposable endoscope project?

That depends on the target cost, diameter, production volume and whether the OEM wants to own the probe mechanical design.

Can the cable and connector still be customized on a finished camera head?

They can be evaluated, but the available changes depend on the selected structure.

What should I send before asking for a bare-module recommendation?

Send the maximum finished diameter, front-end length, viewing direction, working distance, illumination method, cable, connector, host and protection requirements.

Conclusion

The choice between a bare module and a finished camera head is fundamentally a choice about design responsibility. Bare modules maximize freedom; more complete camera heads reduce early mechanical work. OEM teams should choose the structure that matches their product-development stage rather than treating one as technically superior.

Project Evaluation

Provide the finished camera-head envelope, housing responsibility, LED method, sealing requirement, cable, interface and target sample stage to determine which structure is the more practical starting point.
