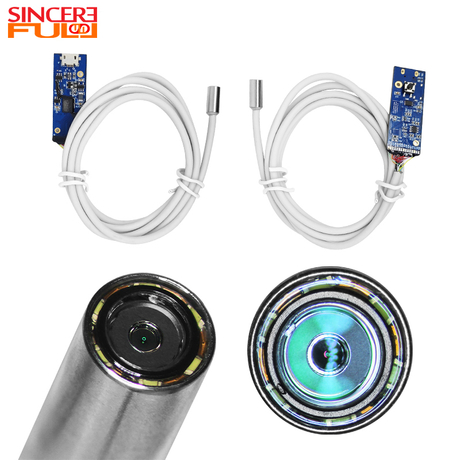

Endoscope Camera Module Sample Validation FAQ: What to Test Before Mass Production

Quick Answer

A camera sample should not be approved only because it displays an image on a PC. OEM validation should reproduce the final device as closely as possible: real working distance, target, host, video mode, cable length, LED condition, camera-head housing, bend/routing and environmental requirement. The goal is not to prove that the module works in ideal conditions; it is to confirm that the complete device can maintain the required image and integration behavior under the expected operating conditions.

FAQ 1. What should I test first when the sample arrives?

Start with identity and baseline function. Confirm the model/configuration, connector, output mode, resolution/frame rate and basic image stream on a known-good host. This creates a reference condition before you introduce the final cable, enclosure or device software. If the sample is already unstable under the baseline setup, there is little value in continuing to complex environmental tests.

FAQ 2. Is a desktop preview enough to approve image quality?

No. Desktop preview only proves basic functionality. Image quality must be evaluated at the real working distance, with the actual target material and intended illumination. A camera that looks good on a desk may produce reflections, blur or poor detail once it is installed behind the final optical window or used inside a dark cavity.

FAQ 3. How should I validate focus and depth of field?

Test the nearest, typical and farthest target distances required by the device. Use real target detail, not only a printed chart. For fixed-focus modules, confirm that the required range remains acceptably sharp. For autofocus products, confirm focus acquisition and stability across the real distance range and movement condition.

FAQ 4. How should I test FOV and distortion?

Place the camera at the normal working distance and compare the visible scene with the device requirement. Check whether the target occupies enough of the frame and whether edge distortion affects the task. For side-view products, test the orientation inside the actual cavity or pipe rather than only checking the camera on a flat table.

FAQ 5. What LED tests are necessary?

Evaluate the camera with the real target reflectivity and working distance. Check minimum and maximum useful brightness, hot spots, center/edge uniformity, reflection from the optical window and heat during extended use. If the product has dimming, test the actual control method—button, app or wheel—inside the final workflow.

FAQ 6. Should I use the final host during sample validation?

Yes. A module that works on a desktop PC may behave differently on Android, an embedded computer, a custom industrial board or a system with multiple USB devices. Validate the exact host, OS, application, video format, resolution and frame rate intended for production.

FAQ 7. When should I test the final cable length?

As early as possible. Long cables can affect signal and power margin, and additional connectors, hubs or adapters can create new variables. If the production device uses a 2 m or longer probe path, do not approve the camera using only a short engineering cable.

FAQ 8. How do I validate mechanical integration?

Install the camera in a representative housing or probe. Check finished diameter, front-end length, cable exit, bend radius, connector retention and strain relief. Move or bend the device as it will be used. Mechanical stress can create electrical symptoms that never appear during open-bench testing.

FAQ 9. What should be tested for waterproof or protected camera heads?

Define the protection boundary first. Then validate the complete camera head or probe, including window, shell, sealing, cable exit and connector location. Do not assume that a steel shell alone proves IP67. The final device requirement and applicable validation method should determine the test.

FAQ 10. How long should stability testing run?

There is no universal duration for every project. The test should be long enough to expose heat, power, cable, host and reconnect problems that short previews may hide. Include repeated start/stop, power cycles, reconnects and the longest realistic continuous operating condition for the device.

FAQ 11. How should I compare two samples?

Use the same host, target, working distance, lighting, cable and software. Change one variable at a time. Comparing two modules under different conditions produces misleading conclusions. Create a simple scorecard for image detail, focus, FOV, illumination, stability, mechanical fit and integration effort.

FAQ 12. When is a sample ready for mass-production approval?

A sample is ready only when the image and system behavior are repeatable in the intended device configuration—not just when one unit works once. The OEM should also confirm the final BOM/configuration, cable, connector, lens, LEDs, shell and any custom parameters before locking the production version.

FAQ 13. What information should I send if the sample fails?

Send the exact camera configuration, host, OS, application, resolution, frame rate, video format, cable length, connector path, LED condition, mechanical setup and a clear description of when the failure occurs. Photos or videos of the setup are often more useful than saying only “the camera is unstable.”

FAQ 14. Which sample failures usually mean the project requirement needs to change?

If the camera physically cannot fit after sealing, the target stays out of focus across the required distance, the host cannot process the required mode, or illumination cannot be made stable in the available front-end space, the issue may be a requirement conflict rather than a defective sample. In that case the project should revisit diameter, optics, resolution, frame rate or device architecture.

OEM Sample Validation Checklist

1. Baseline camera identification and supported video mode.

2. Real target and working-distance image test.

3. FOV / distortion / viewing-direction test.

4. LED brightness, reflection and thermal observation.

5. Final host + software + format test.

6. Production-intent cable and connector test.

7. Mechanical housing, bend and strain-relief test.

8. Protection/environment test where required.

9. Long-run, reconnect and power-cycle test.

10. Final configuration sign-off before mass production.

Conclusion

The best sample test reproduces the final device, not the laboratory. If the OEM validates the real optical, electrical, mechanical and environmental conditions before mass production, most integration risks appear while they are still inexpensive to fix.

Project Evaluation

When requesting technical support, send the sample model, host, software, cable, working distance, LED condition, mechanical setup and the exact failure symptom. This allows the issue to be narrowed before a module change is recommended.
