1MP 6mm Diameter USB 2.0 140 Degree Side View Endoscopic Camera Module

This 1MP Camera Module showcases a 6mm Diameter Endoscope Camera, ideal for a range of medical and industrial inspection tasks. Available with field-of-view options of 95°, 110°, and 140°, this Side View Camera Module provides a distinctive vantage point, enhancing visibility in hard-to-reach locations.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SF-C1019USB-D6.0-SV-L25-D140

  • SINCEREFIRST

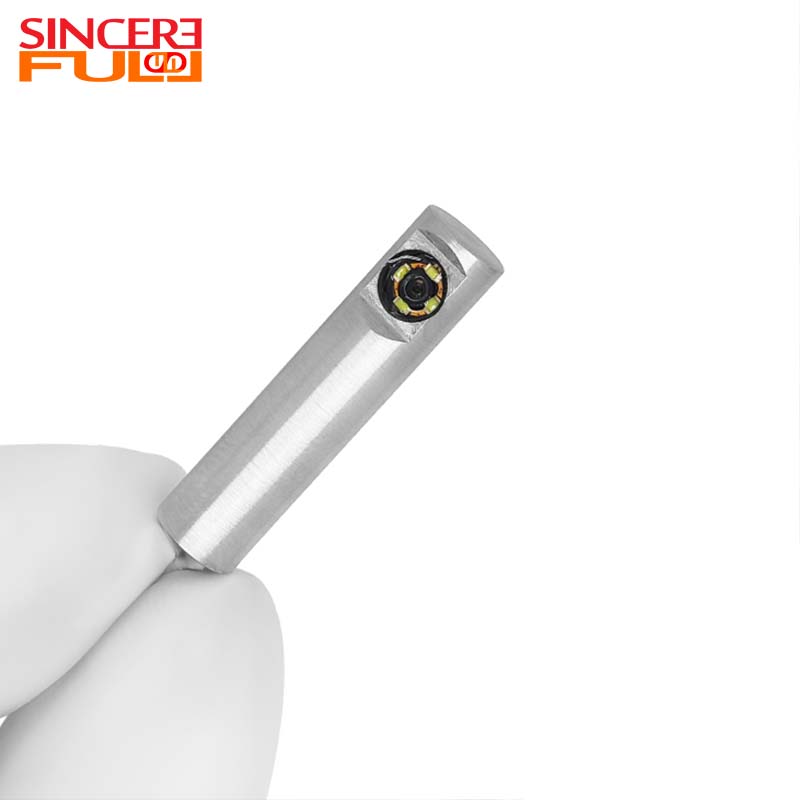

This 1MP Camera Module features a 6mm Diameter Endoscope Camera Module, designed for various medical and industrial inspection applications. With options of 95°DFOV, 110°DFOV, and 140°DFOV, this Side View Camera Module offers a unique perspective, allowing for better visibility of certain hard-to-reach areas.


The depth of field ranges from 10mm to 100mm, and it is equipped with a fixed-focus lens for clear imaging. The module supports a high-resolution output of 1280*720 at 30fps, and it includes 4 adjustable bright LEDs to enhance visibility.


With IP67 waterproof rating, it ensures durability in challenging environments. This USB Camera Module is ideal for use in oral endoscopes, medical endoscopes, gynecological endoscopes, automotive inspections, pipeline inspections, and more.


The 6mm Diameter Endoscope Camera Module is highly versatile and effective for small, precise inspections. Additionally, its USB 2.0 Camera Module connectivity ensures easy integration with various devices for streamlined usage.

1mp Camera Module


Features ◢

1. High-resolution output of 1280*720 at 30fps.

2. Compact size for precise inspections.

3. Offers unique visibility for hard-to-reach areas.

4. 4 bright LEDs for enhanced illumination.

5. USB 2.0 connectivity for easy device integration and IP67 waterproof rating for durability.


Application Of Endoscope Camera Module ◢

  • Gastroscope

  • Enteroscope

  • Bronchoscope

  • Cystoscope

  • Arthroscope

  • Laparoscope

  • Hysteroscope

  • Otoscope


Product Details ◢

Keywords

4pcs LED Endoscope Camera Module

Sensor

OV9734

LED

4pcs LED

FOV(D*H*V)

95°*85°*43.5°

Focusing Range

10-100mm

Focal Length

1.08mm

FOV(D)

90°

TV Distortion

<-10%

Output

USB2.0 UVC

F Number

3.58

Resolution

720P Max 30fps

Features

Mini Endoscope Camera


In the realm of endoscope camera modules, the Side View Endoscope Camera Module stands out as a revolutionary device that offers a unique and invaluable perspective. Whether in the medical field for intricate procedures or in industrial applications for detailed inspections, this module provides a side view that was previously challenging to obtain. With its advanced technology and user-friendly design, it opens up new possibilities for professionals seeking to explore and understand the inner workings of various objects and environments.
