How to Select the Right Ultra-Short-Throw HD Camera Module for Confined Spaces?

How to Select the Right Ultra-Short-Throw HD Camera Module for Confined Spaces?

When integrating vision systems into industrial endoscopes, pipeline inspection tools, minimally invasive surgical instruments, or compact devices, choosing the right camera module is critical to success. Faced with challenges like limited space, complex lighting conditions, and the need for close-range high-definition imaging, a camera module featuring ultra-short throw, wide field of view, and high integration is often the ideal solution. This article provides a clear selection framework.

I. Identifying Core Requirements: What Does Your Application Need?

Before selecting a module, clarify the following questions:

Inspection Distance: How far is the target object from the lens? Millimeters, centimeters, or decimeters?

Space Constraints: What are the diameter and length available for camera installation? Is flexibility or bendability required?

Ambient Lighting: Is the operating environment bright, dim, or completely dark?

Output & Integration: What video output interface is required? What are the system's power consumption and thermal management requirements?

II. Key Metrics Explained: Understanding the Meaning Behind Specifications

Focal Length & Focus Range: The 1.29mm ultra-short focal length signifies this is an ultra-wide-angle macro lens. Its 8mm to 80mm focus range indicates it's optimized for extremely close-up observation, capturing sharp images at nearly point-contact distances while also accommodating slightly more distant scenes. This makes it ideal for navigating and inspecting within confined cavities.

Field of View and Distortion: The ultra-wide 140° diagonal field of view (FOV) captures expansive scenes at close range, reducing the need for camera movement or rotation and boosting inspection efficiency. However, such a wide angle inevitably introduces significant barrel distortion (in this case <53%). When selecting a model, verify: Does your backend software possess robust distortion correction capabilities? Does the corrected image's edge quality and geometric accuracy meet requirements?

Optical Speed: The F5.0 aperture is relatively small. This ensures sharp imaging and a large depth of field (clear foreground and background) in well-lit environments, but limits light intake in low-light conditions, necessitating auxiliary lighting. If your application involves dim lighting, you must evaluate whether the module reserves an auxiliary light interface or has the capability to drive such lights (e.g., LED pins mentioned in specifications).

Sensor and Performance: Paired with a sensor supporting 1080P resolution and 60 frames per second output, it delivers clear and smooth dynamic video. For observing fast-moving components (like rotating gears) or fluids, high frame rates are critical.

Interface and Power: Utilizing a Micro USB interface with USB 2.0 UVC protocol support is a significant advantage. This enables plug-and-play functionality and compatibility with most operating systems, greatly reducing driver development and system integration complexity. Power is supplied via the USB bus (5V), offering simplicity and convenience.

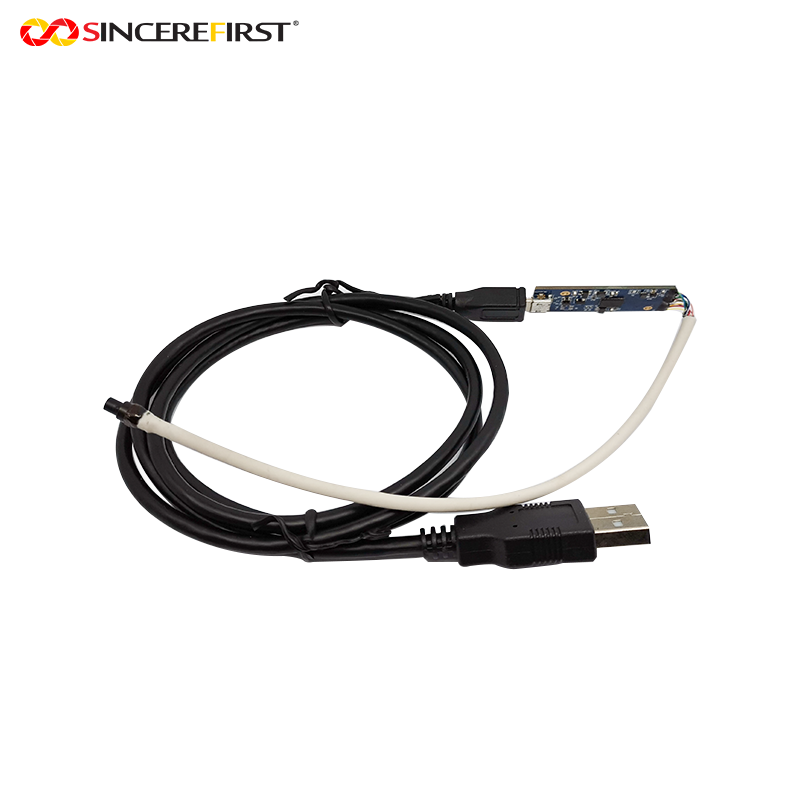

Mechanical Dimensions and Form Factor: The entire module's front-end diameter is only approximately 5mm, enabling access to extremely confined spaces. When selecting a model, carefully verify the overall length, connector dimensions, and cable specifications to ensure it can pass through your device's designated access points.

III. Application Scenario Recommendations

Industrial Endoscopy and Pipeline Inspection: This is its primary application. The ultra-short focal length and wide field of view are ideal for inspections inside pipelines, engine cylinders, and precision molds. Pairing with a high-brightness LED light source is recommended.

Minimally Invasive Medical Devices: Provides high-definition imaging for endoscopes, dental cameras, etc. Pay special attention to the module's biocompatible encapsulation and sterilization tolerance (not specified in this specification; must be confirmed with the supplier during selection).

Embedded Machine Vision: Integrated into automated equipment for component positioning, QR code reading, or defect detection in confined spaces. Utilizes its close-focusing capability.

Research & Education: Used for microscope-assisted imaging, small-scale experimental observation, etc.

IV. Selection Checklist & Risk Mitigation

Before selection, ensure the following:

Is the actual working distance within the 8-80mm focus range?

Is the device's reserved aperture larger than the module's front diameter (including protective cover)?

When ambient light is insufficient, is there space and circuitry available to power the fill light?

Does your processing platform support the UVC protocol and handle 1080P@60fps video streams?

For images with significant distortion, are algorithms available for real-time or post-processing correction?

Can the supplier provide stable SDKs, technical support, and reliability data compliant with medical/industrial standards?

Summary: Selecting such an ultra-short-throw HD module hinges on balancing the relationship between “wide viewing angle,” “close-range viewing,” and “image correctability.” It is a specialized tool designed for specific narrow-space visual tasks. By clearly defining your application requirements and ensuring proper integration with lighting, algorithms, and mechanical design, you can unlock its immense value.
