USB ‌OCHFA10‌ Image Sensor ‌1.5mm Diameter‌ Medical Side View Endoscope Camera Module

Can it meet the special requirements of medical disinfection?

Can it meet the special requirements of medical disinfection? Can it meet the special requirements of medical disinfection?Can it meet the special requirements of medical disinfection?The USB OCHFA10 Side View Medical Endoscope Camera Module is a separated imaging system engineered for micro-space visual inspection. Featuring the OmniVision OCHFA10 CMOS color image sensor with a 1/18-inch optical format and 1.008μm pixel size, it delivers real-time output at 720×720 resolution @ 30fps. The module connects to the DSP processing board via Wire Bonding and provides UVC-compliant video streaming through a Micro USB interface. It supports dual-format decoding (YUV/MJPEG) for low-latency transmission over USB 2.0 bandwidth. The optical assembly employs a 0.418mm short-focus lens with an F5.0 aperture, achieving an 86°×86° field of view, a 5-50mm focusing range, and <-11% distortion rate, ensuring geometric fidelity in macro imaging. Manufactured with SMT precision mounting and AA (Active Alignment) optical axis calibration, the module holds CE/FCC/RoHS/Reach certifications. The lens section measures just 1.5mm in diameter and operates across -10°C to 70°C, meeting the reliability requirements for both medical and industrial environments.

Product Advantage ◢

1. Minimally Invasive Side-View Architecture: The 1.5mm lens diameter with 90° side-view optical path, combined with a split-type flexible circuit design, enables access to narrow cavities unreachable by traditional forward-view systems. The lateral imaging mechanism captures panoramic side-wall views without requiring axial alignment to the target, significantly reducing patient trauma in medical exams and blind spots in industrial inspections.

2. HD Streaming Processing Engine: Deep integration of PureCel® Plus-S pixel technology and UVC driver-free protocol enables 30fps lossless video streaming at 720×720 resolution. The dual-format auto-switching feature dynamically adjusts bandwidth usage based on host performance, ensuring smooth visuals for mobile medical devices and portable industrial endoscopes.

3. Precision Optical Control: The 0.418mm micro-focus focal length with a wide 5-50mm manual focus range, F5.0 fixed aperture, and <-11% distortion suppression algorithm maintain edge sharpness and color accuracy even at 5mm close-range observation, ideal for micro-defect analysis on precision component surfaces.

4. Industrial-Grade Environmental Adaptability: The IP67-rated housing withstands temporary immersion and high-pressure liquid jets, while the -10°C to 70°C wide temperature range supports hot-state engine detection and cold-chain equipment maintenance. The module passes meter-level drop tests and 1,000-hour continuous aging verification, with MTBF ≥ 20,000 hours.

Application of Endoscope Camera Module

• Dental Root Canal Therapy Systems: Real-time visualization of dentin debris, microcracks, and lateral canal morphology on root canal side walls, assisting with precise rotary NiTi instrumentation and fill conformance assessment.
• ENT Examination Endoscopes: Intubates external auditory canals, nasal sinuses, and pharyngeal recesses to diagnose side-wall mucosal hyperemia, polyp hyperplasia, and foreign body impaction, enabling rapid outpatient screening.
• Industrial Micro-Pipeline Borescopes: Detects side-wall corrosion, weld porosity, and internal scaling in hydraulic capillaries, fuel injection lines, and refrigerant circulation tubes, covering pipe diameters Ø2-10mm.
• Automotive Fuel Injector Analyzers: Observes carbon deposits, gum buildup, and flow orifice changes on side walls of direct-injection nozzle valves, matching maintenance needs for GDI engine systems without disassembly.
• Microelectronic Repair Probes: Inspects interlayer micro-short circuits, BGA solder joint sidewall cracks, and connector pin oxidation on PCBs, adapting to micron-level inspection requirements for chip-level repairs.

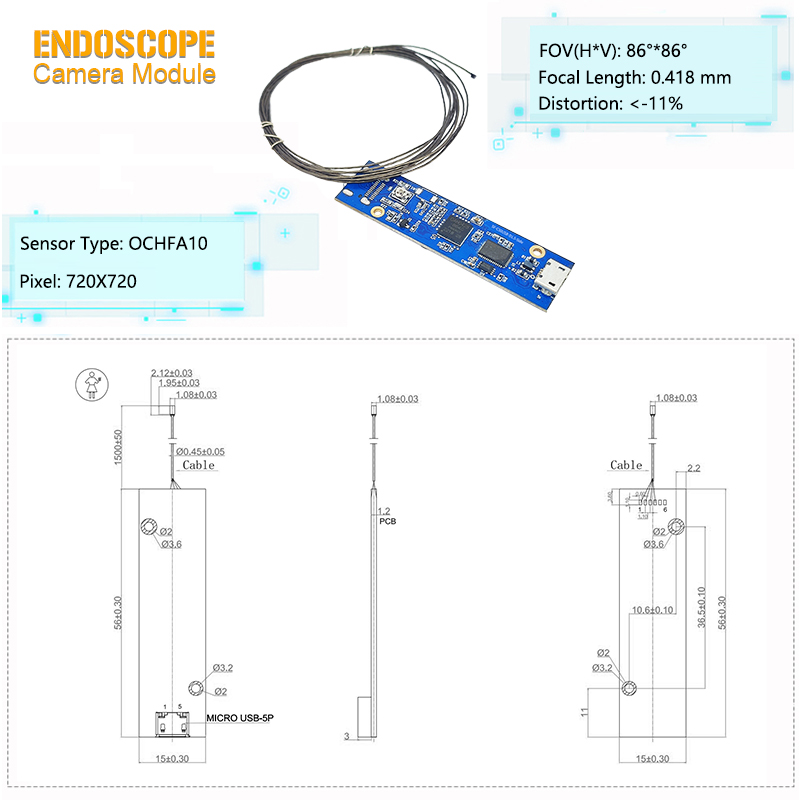

Technical Parameters ◢

FAQ◢

1. Does this module support customized adjustments?

Yes, customization services are available for cable length, interface type, housing structure, etc., to meet specific equipment integration needs.

2. How is the imaging effect in low-light environments?

Relying on high-sensitivity pixels and PureCel® Plus-S technology, it effectively reduces noise in low-light conditions while maintaining clear images and true colors.

3. What is the core difference from ordinary forward-view endoscopes?

The 1.5mm ultra-small diameter + side-view design allows observation of lateral wall lesions in ultra-thin lumens, eliminating forward-view blind spots, and is ideal for non-invasive screening in natural body tracts such as ENT and urology.

4. Can it meet the special requirements of medical disinfection?
