SF-A345
SINCEREFIRST

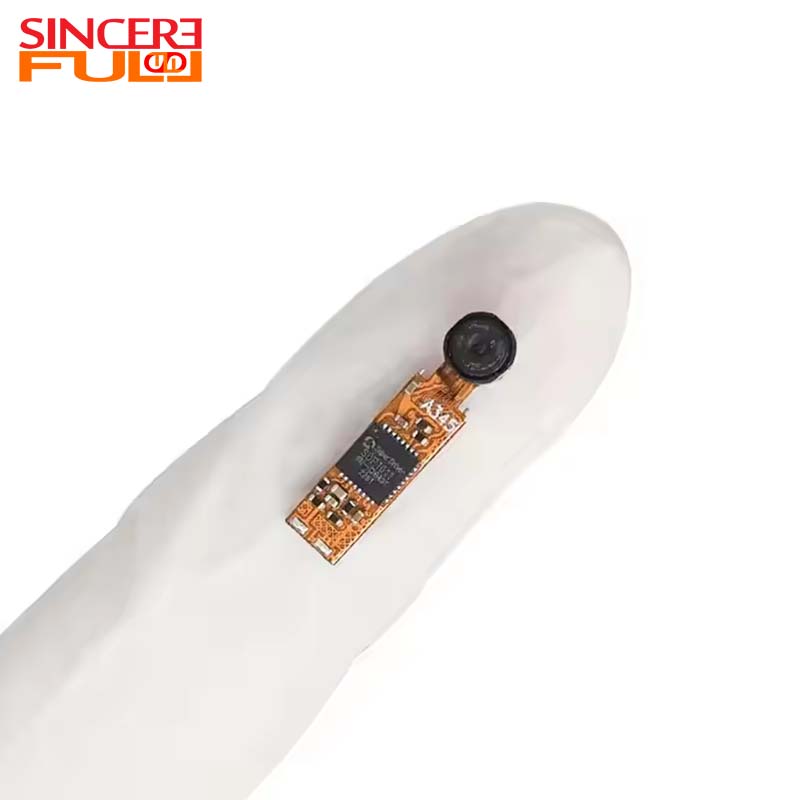

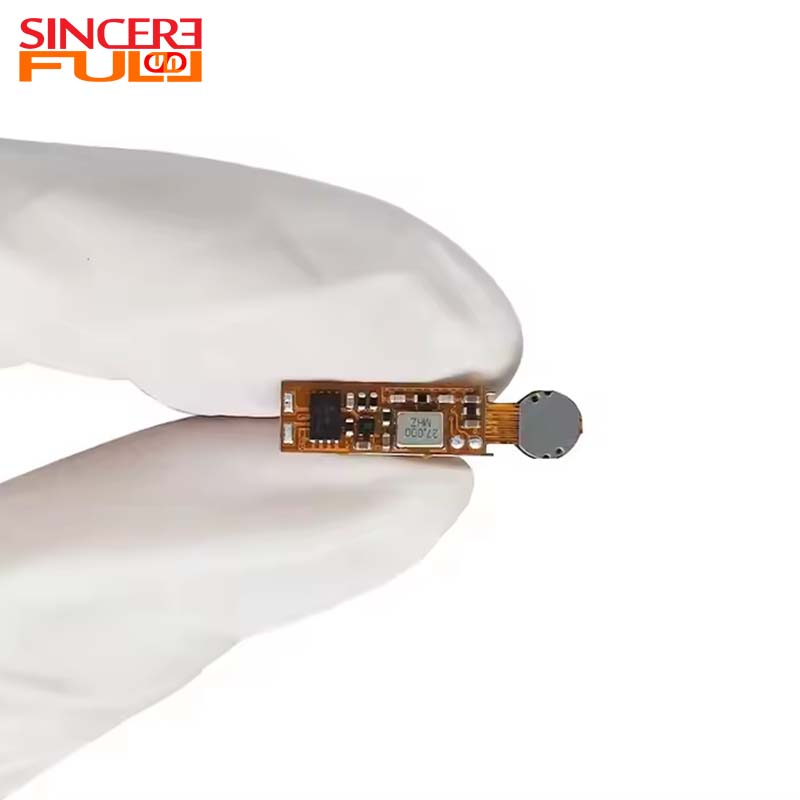

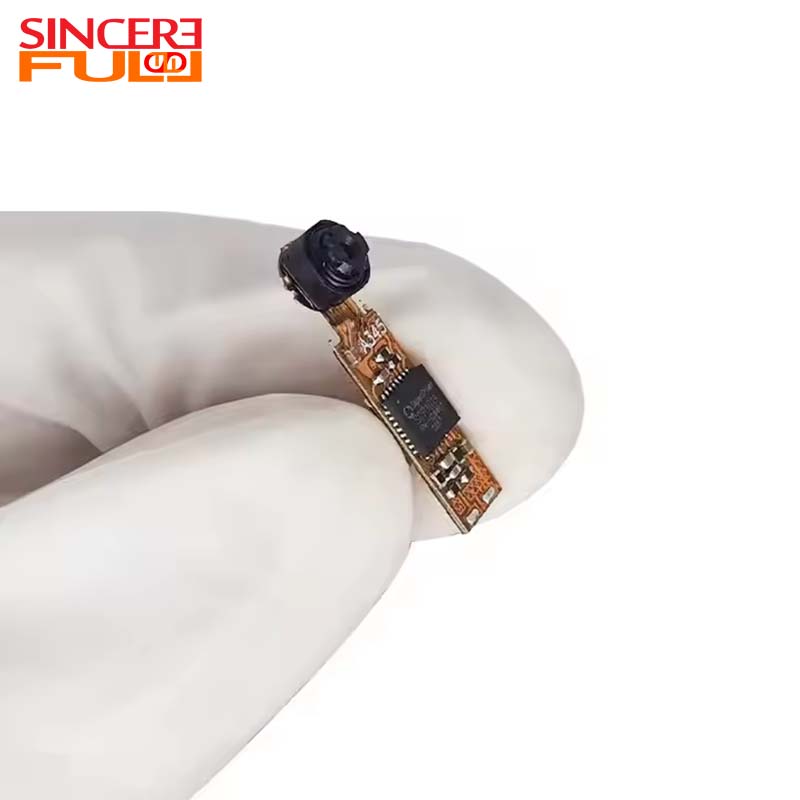

This Industrial Endoscope Camera Module featuring the BF3A03 sensor, This 0.3MP camera module is designed to deliver efficient performance with a frame rate of 20 FPS, ensuring smooth video output via its AV interface. And it also a mini camera module is equipped with a VGA sensor that boasts a signal-to-noise (S/N) ratio of ≥38.7dB, providing clear and detailed imagery even in challenging environments. The endoscope camera module is optimized for close-up work, with an effective focal length (EFL) ranging from 2cm to 6cm and a depth of field (DOF) from 20mm to 60mm, allowing for precision in tight spaces.
 |
Product Advantage ◢
Features a signal-to-noise (S/N) ratio of ≥38.7dB for clear and detailed images.
Video Performance:Supports 20 FPS frame rate for smooth video output.
Versatile Focal Range:Effective focal length (EFL) ranges from 2cm to 6cm
Depth of field (DOF) is 20mm to 60mm

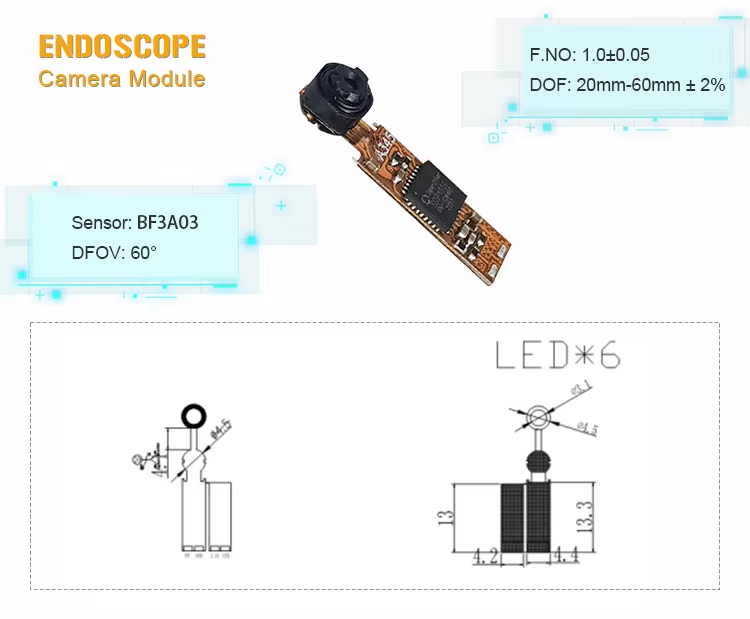

Technical Parameters ◢
Product Name | 0.3Mp Endoscope Camera Module |
Features | Smallest Endoscope Camera Module |
Output Interface | USB2.0 |
Sensor | BF3A03 |
Focusing Range | 20-60mm |
Fov(D) | 60° |
Fps | 20Fps |
Keyword | camera module |
Effective Pixels | 640*480 |
EFL | 2cm-6cm±2% |
Product Uses ◢
gastroscope
bronchoscope
FAQ ◢
Q1: What is a endoscope camera module?
A1: An endoscope camera module is a compact imaging device positioned at the tip of an endoscope, designed to capture detailed images from within the body and relay them to a monitor for medical analysis. The module is made up of three key components: the camera sensor, which captures the image; the lens system, which focuses light and directs it onto the sensor; and the electronic circuitry, which processes the captured images and transmits them to a display for viewing by healthcare professionals.
Q2: Are you factory or trade company?

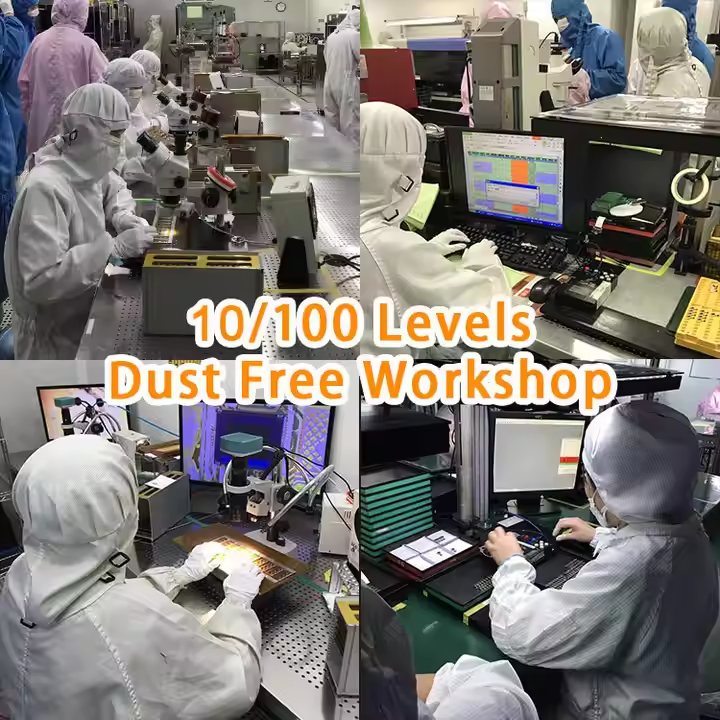

A2: Our factory has ten dust-free and sterile automated workshops, each with a different function, ensuring that every step of the production process meets strict cleanliness standards. The workshop is equipped with an advanced air purification system that monitors air quality 24 hours a day to ensure that international standards are met. Each workshop has a dedicated cleaning staff and regular disinfection process to ensure that the dust-free environment is not polluted. In addition, employees receive rigorous training that covers not only operational skills, but also protective measures and emergency handling procedures. Before entering the workshop, every employee must undergo professional dustproof clothing wearing and code of conduct training to ensure proper personal protection measures. In the production process, employees strictly carry out every step according to the standardized operation manual, ensuring that every product meets our high quality requirements. Each endoscope module in the production process will go through a number of rigorous inspection, including size, function, appearance and other aspects of the inspection. We use advanced inspection equipment, such as high-precision optical scanners and automated inspection systems, to ensure the accuracy and performance of our products. Before the final factory, all products must pass a strict quality inspection process, including high and low temperature testing, electromagnetic compatibility testing, image testing, storage testing, etc., to ensure that products can work stably in a variety of environments. Our research and development team consists of a group of experienced engineers, team members continue to track the latest technology in the industry, and constantly promote technological innovation. Through close market research and communication with customers, we always maintain a keen insight into market needs and respond quickly to provide customers with tailor-made solutions. Our research and development team is committed to improving the performance and intelligence of our products, creating more efficient, more energy efficient, and easier to integrate smart camera products to help customers cope with increasingly complex market demands. Our products have been widely used in smart home, security monitoring, industrial automation and other fields, with excellent quality and stable performance, won the trust and praise of many domestic and foreign customers. We always adhere to the customer-centric principle, and constantly optimize the after-sales service system to ensure that customers can get timely technical support and product maintenance after purchase.
Q3: How to control an endoscope camera module?
A3: Connect the endoscope probe to the display device or computer via an appropriate interface, such as USB, micro-USB, HDMI, or Wi-Fi. Different types of endoscopes need to ensure the power adapter and battery status, to ensure the normal power supply of the device, the voltage is relatively stable, to avoid the failure of the device caused by power surge, through the software to adjust the brightness, contrast, saturation and other image parameters to adapt to different detection environments, some endoscope camera modules provide brightness adjustment function. The user can adjust the brightness to the appropriate level as needed to view the image transmitted by the endoscope in real time through a connected display device or computer. Use the "Record" or "take a photo" function to save the observed image or video, and after saving, the user can choose to view the saved file in the software and make the necessary edits or tags. Some medical endoscope camera modules are equipped with professional medical software to support the generation of test reports for subsequent analysis and archiving. Clean the endoscope probe and connection line regularly to avoid dirt affecting image quality, and use a proper cleaning tool, such as a cotton swab dampened with 75% alcohol, to clean the optical surface gently. Disinfection and sterilization.
Q4: What does an endoscope camera module see?
A4: The endoscope camera module captures high-definition images or videos in real time, stores them and transmits them to the display screen to help doctors or technicians analyze problems inside the body, pipes, engines and other areas. On the medical side, endoscopes can look deep into organs such as the digestive tract, lungs, ears, esophagus, and nasal passages that are difficult to examine directly, as well as tubes, industrial systems, and mechanical areas. It is equipped with LED lighting, and some special operation endoscopes may also have suction, grasping, cutting and other functions for real-time direct intervention to assist diagnosis or surgery.
Q5: What can be customized for endoscope camera modules?

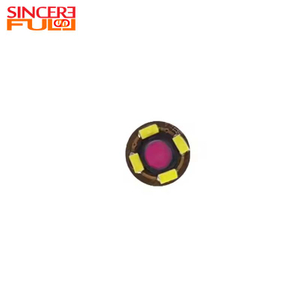

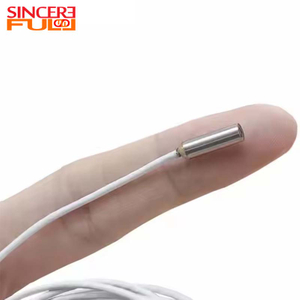

A5: The endoscope camera module is available in a variety of configurations to meet different needs, supporting integrated and separate designs. Users can choose the right diameter according to the application requirements to ensure the best fit and performance. In addition, the modules are available with customization options, including whether they are equipped with durable steel sleeves for increased protection, or whether they have built-in LED lighting to help provide brighter, clearer views in tight Spaces enclosed in darkness.
