SF-C1019USB-D6.0-SV-PRO-L200
SINCEREFIRST

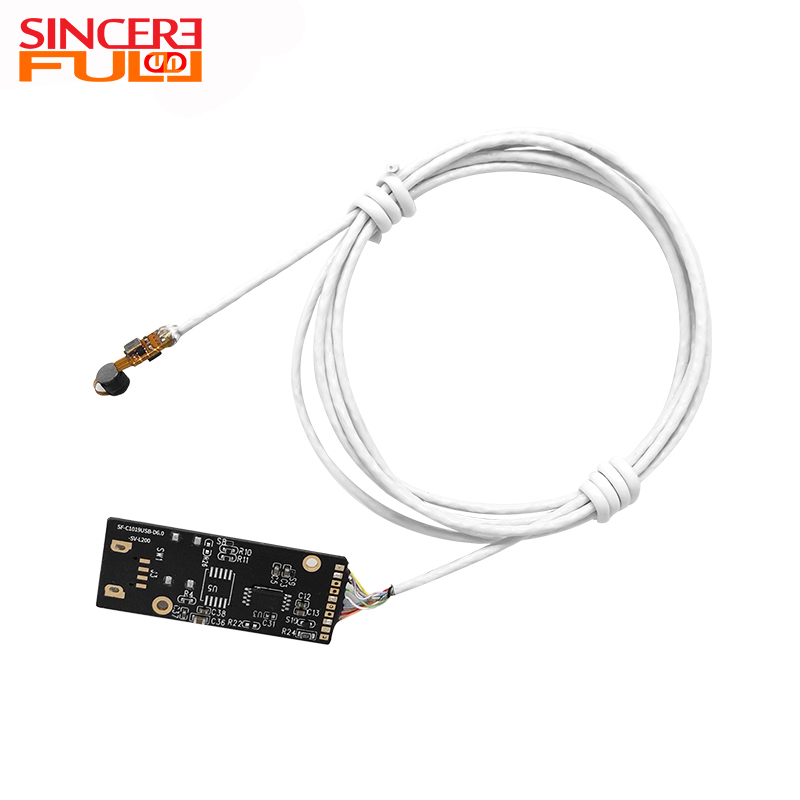

The SF-C1019USB-D6.0-SV-PRO-L200 endoscope camera module is a professional-grade optical imaging device launched by SincereFull. It integrates the high-performance OV9734 CMOS image sensor and adopts a side-view optical design with a 6mm ultra-fine diameter. This module supports 720P@30fps and VGA@45fps dual-mode output, achieving a perfect balance between HD imaging quality and smooth dynamic performance. It complies with the USB 2.0 UVC protocol, realizing true plug-and-play functionality without additional drivers. The product uses SMT surface-mount technology and high-precision assembly processes, ensuring excellent structural stability and signal consistency. It can meet the strict requirements of professional fields such as medical endoscopic diagnosis and industrial non-destructive testing for equipment size, imaging effect, and operation reliability.
The 6mm ultra-compact diameter and side-view optical system enable the module to be directly inserted into narrow and complex environments such as pipes, cavities, and mechanical gaps. It can complete side observation without changing the insertion path, solving the non-axial inspection problem that cannot be achieved by traditional straight-view endoscope lenses.
Equipped with a 1.08mm ultra-short focal length lens and F4.0 large aperture, the module supports a 10–100mm focusing range. It can capture sharp and clear full-field images even in low-light confined spaces, effectively avoiding edge blurring and partial defocusing, and meeting the needs of fine detection.
The module has a 95° horizontal field of view and adopts optical distortion suppression technology, with a distortion rate of less than 10%. It ensures high fidelity from the center to the edge of the image, which is especially suitable for medical diagnostics and industrial measurement scenarios that require true-scale judgment.
The standardized USB interface and mechanical structure allow the module to be quickly embedded into various medical equipment and industrial inspection instruments. It supports mainstream operating systems, greatly shortening the product development cycle and reducing the difficulty of system integration for customers.
Parameter | Details |
Product Name | Medical 720P Side-View Endoscope Camera Module |
Image Sensor | OV9734 CMOS |
Pixel Size | 1.4μm |
FOV (DHV) | 95°×85°×43.5° |
Focusing Range | 10–100mm |
Focal Length | 1.08mm |
F Number | 4.0 |
TV Distortion | < -10% |
LED Type | 0402 LED |
Interface | USB 2.0 UVC |
Brand | SincereFull |
It is suitable for observing lateral wall lesions in oral, ENT, and other body cavities, and provides lateral field-of-view assistance during minimally invasive surgeries, helping doctors to accurately locate the lesion position.
It is used for defect detection in narrow and curved structures such as pipeline inner walls and precision machinery interiors, as well as lateral quality inspection of key components, reducing equipment maintenance costs.
It supports lateral microscopic imaging of biological tissues, and can realize long-term covert monitoring of moving components inside equipment, providing reliable data support for scientific experiments.
It can conduct non-invasive lateral inspection of concealed locations such as door and window gaps and ventilation ducts, and assist in post-disaster crevice search and rescue operations, improving the efficiency of emergency response.
The biggest advantage is the side-view capability. It can observe the side wall of the detection target without changing the insertion direction, which is especially suitable for non-axial inspection scenarios such as pipes and cavities. The 6mm ultra-fine diameter further expands its application scope in narrow spaces.
Medical modules emphasize biocompatibility, sterilization performance, and high imaging quality, and need to comply with FDA/CE certification standards. Industrial modules focus on durability, corrosion resistance, and wide temperature operation range (-20°C to 70°C), and can be equipped with special light sources such as UV according to needs.
You can comprehensively consider three aspects: first, the imaging resolution and distortion rate to ensure that it meets the detection needs; second, the structural stability and service life; third, the after-sales support such as manufacturer's calibration services. For industrial scenarios, the MTBF (mean time to failure) indicator can be prioritized.
Are you looking for a high-performance side-view endoscope module for medical diagnosis or industrial testing? Contact us now to get the detailed quotation and customization scheme of the SF-C1019USB-D6.0-SV-PRO-L200 module. SincereFull will provide you with one-stop optical imaging solutions to help your products gain a competitive edge in the market!
