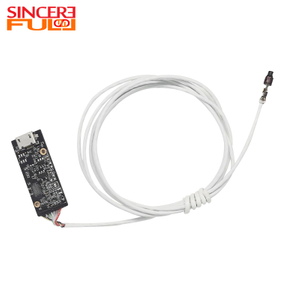

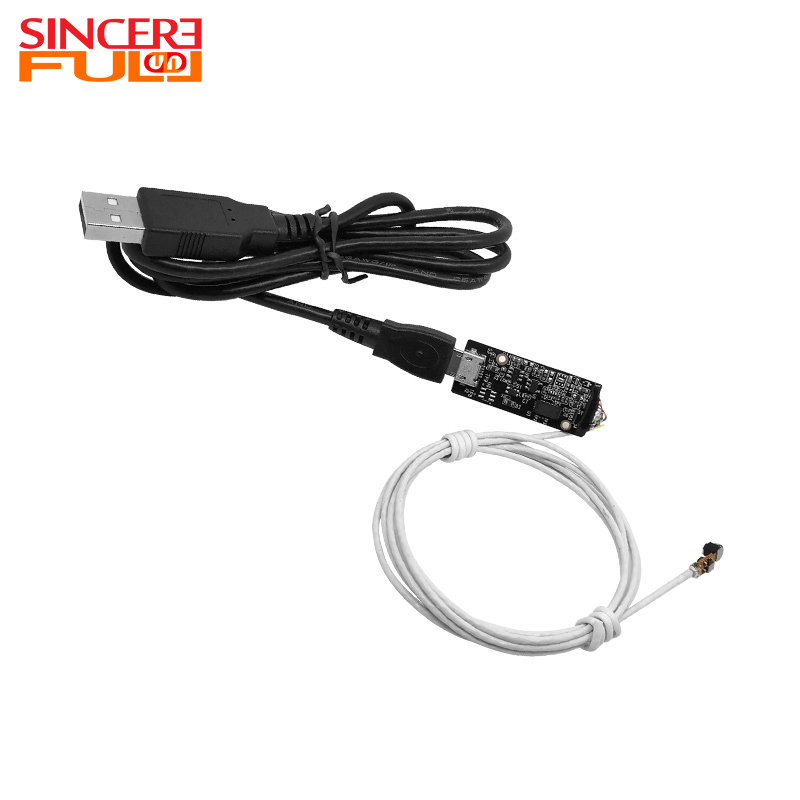

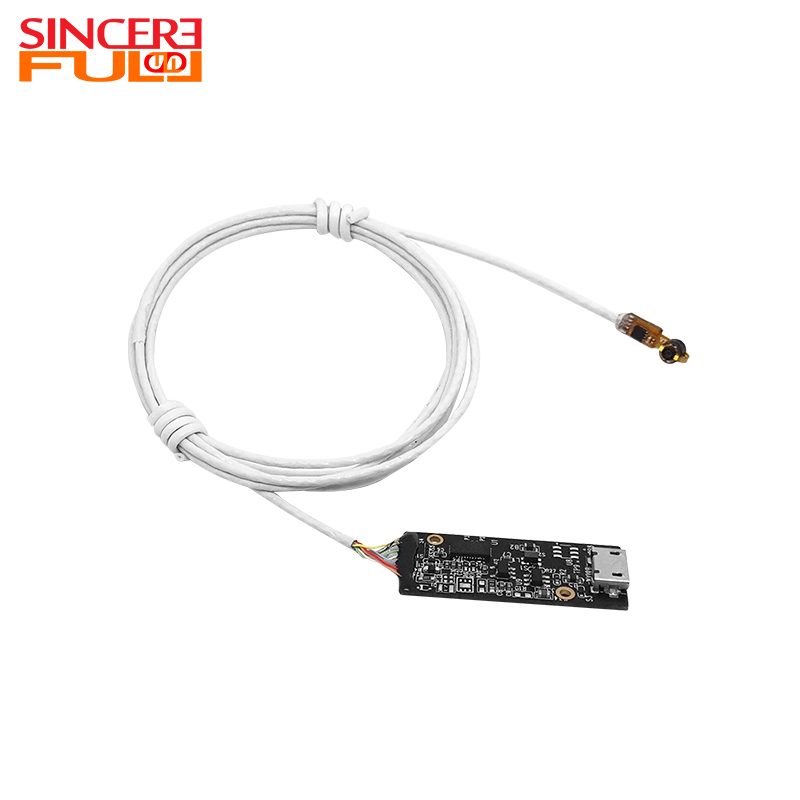

SF-C1019USB-D6.0-SV-L200
SINCEREFIRST

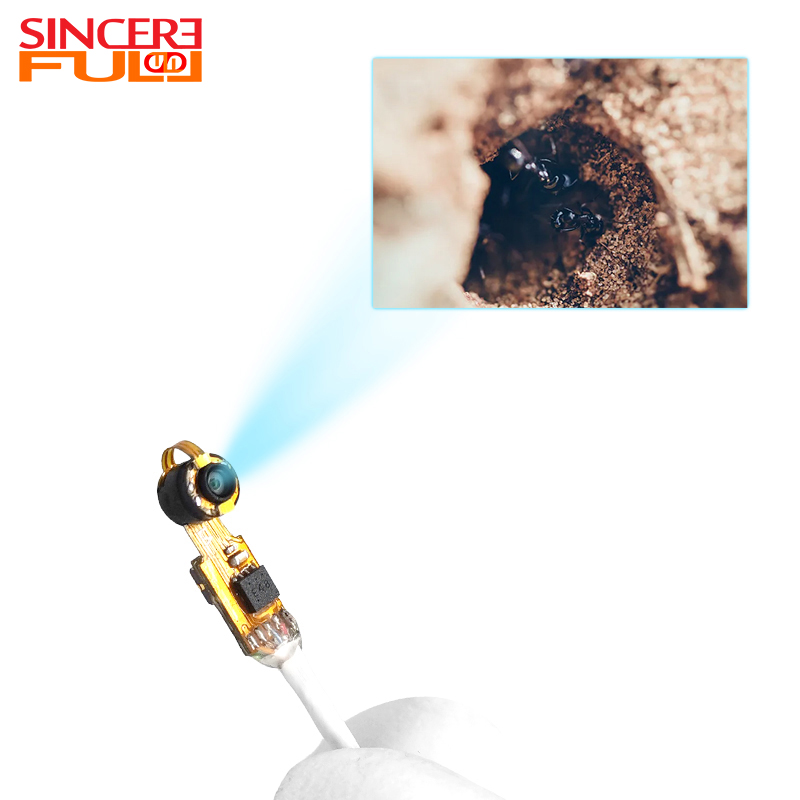

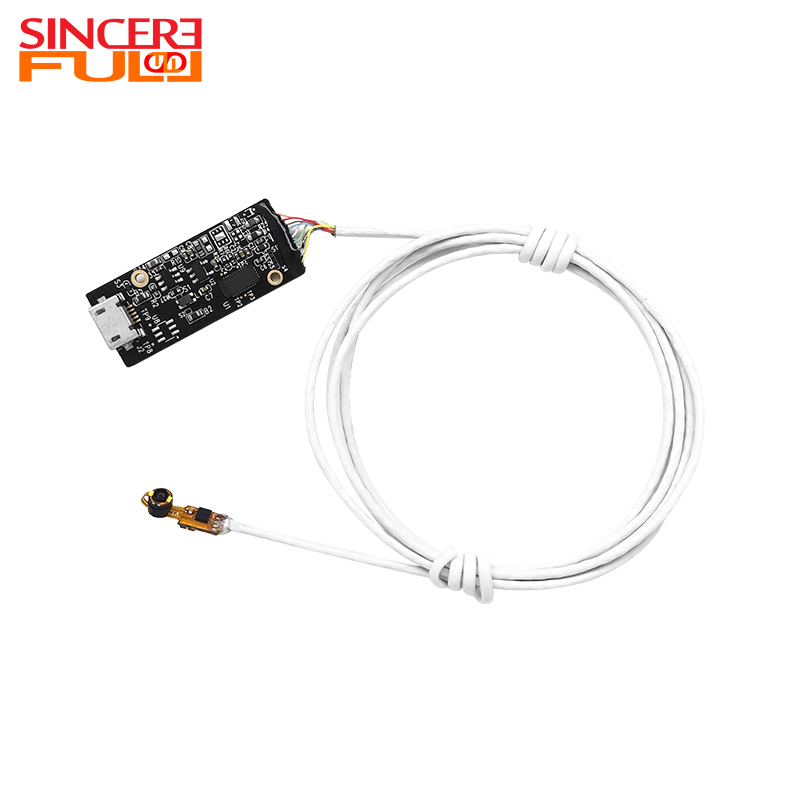

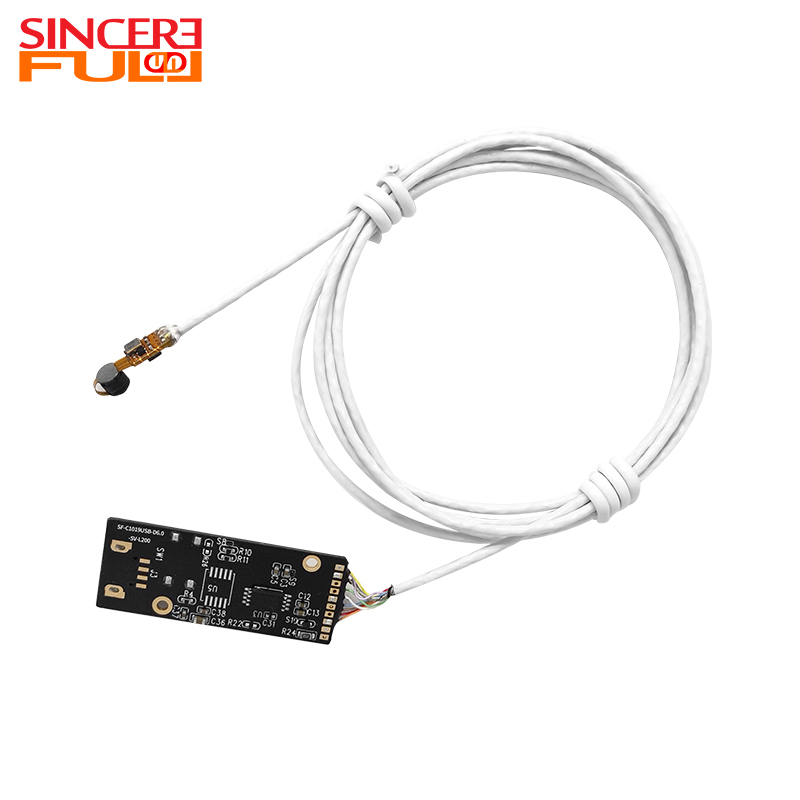

This is the OV9734 Side-View Digital Endoscope Detection Camera Module, a highly adaptable imaging device designed specifically for precision observation scenarios. Its core configuration features the OmniVision OV9734 CMOS color image sensor, with 1MP effective pixels, capable of stably outputting clear images at a resolution of 1280x720. It supports a maximum frame rate of 30FPS, ensuring smooth image without stuttering during dynamic observation. The sensor size is 1/9 inch, and the pixel size reaches 1.4μm x 1.4μm. Equipped with an optical lens with an aperture of F4.0 and a focal length of 1.08mm, it can achieve a focusing range of 10-100mm, meeting observation needs at different distances. In terms of field of view, its DFOV 95°, HFOV 85°, and VFOV 43.5°, with distortion controlled within a low range of < -10%, ensuring the authenticity and integrity of imaging. The module adopts a manual focusing design, supports side-view imaging, and features an innovative split structure. The lens diameter is only 6mm (in bare module state), and 4 LED beads are integrated into the lens for supplementary lighting. For the interface, USB2.0 is selected, and it supports the UVC protocol. The production process adopts SMT technology and AA process, ensuring the stability and consistency of the product. |  |
1. HD Image Quality: Equipped with the OmniVision OV9734 CMOS color image sensor, the 1MP pixels and 1280x720 resolution ensure clear and detailed images. The 30FPS high frame rate avoids stuttering during dynamic observation. It supports the UVC protocol, enabling compatibility with a variety of devices and lowering the threshold for use.
2. Flexible Observation Range: The combination of 1.4μm x 1.4μm pixel size, F4.0 aperture, and 1.08mm focal length, along with an adjustable focusing range of 10-100mm, allows it to capture both close-range details and long-distance scenes. The wide field of view 95° DFOV, 85° HFOV, 43.5° VFOV combined with low distortion (< -10%) provides a broad observation field without obvious image deformation.

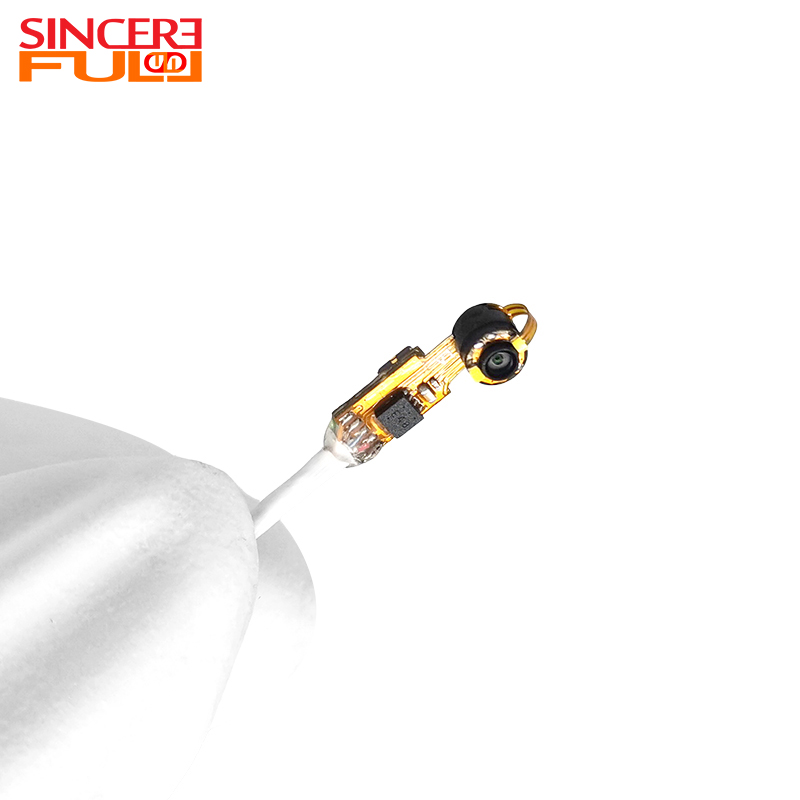

3. Compact and Flexible Structure: The 6mm bare module lens combined with a split design enables flexible deployment in narrow spaces, making it suitable for scenarios such as oral cavity. Side-view imaging breaks the limitations of traditional front-view observation, fills the blind spots in the field of view, and makes it more convenient to capture side-angle images.
4. Stable and Reliable Quality: The lens integrates 4 LED beads to flexibly supplement light, avoiding the impact of insufficient light on imaging. The production using SMT technology and AA process improves the consistency and stability of the product, extending its service life and reducing maintenance costs.
1. Oral Diagnosis and Treatment Scenario: The 6mm compact lens can easily extend into the oral cavity, and the split design does not interfere with the doctor's operation. Side-view imaging clearly presents blind areas such as the side of teeth and gingival sulcus, helping doctors accurately detect dental caries, periodontitis, etc. LED supplementary lighting combined with high-definition and low-distortion imaging assists in disease diagnosis and communication with patients.
2. Industrial Testing Scenario: The small-sized lens can penetrate into narrow gaps of equipment. The 10-100mm focusing range is suitable for different components. The wide field of view and low distortion present the overall appearance of components, and high resolution captures subtle defects, enabling rapid problem identification.
3. Pipeline Inspection Scenario: The split design and small-diameter lens are suitable for narrow pipelines. Side-view imaging allows observation of pipeline inner wall corrosion and blockage. The USB2.0 interface enables easy connection to inspection equipment, and the 30FPS frame rate ensures smooth inspection images, facilitating timely detection of hidden dangers.
4. Scientific Research Observation Scenario: Manual focusing accurately focuses on sample details. High resolution combined with 1.4μm x 1.4μm pixel size presents the microscopic structure of samples. Side-view imaging supplements the observation of the three-dimensional shape of samples, providing comprehensive data for scientific research.

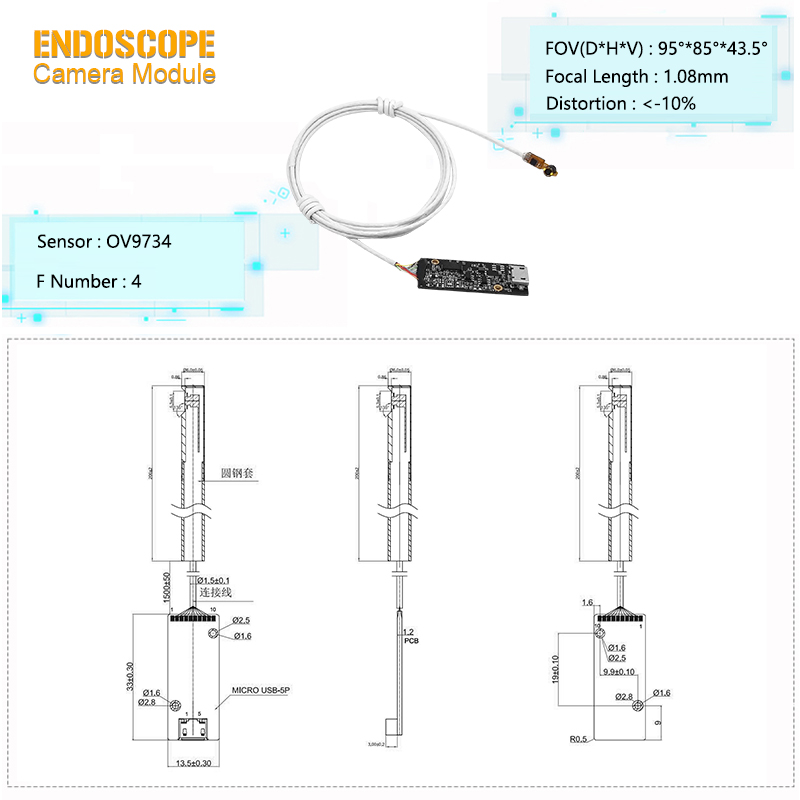

Product Name | Endoscope Camera Module |
Image Sensor | OV9734 |
Diameter | 6mm |
Pixel | 1MP |
FOV(D*H*V) | 95°*85°*43.5° |
TV Distortion | ＜-10% |
Connector | Mini USB-5P |
LED | 0402 LED |
DSP | USB2.0 UVC |
Format | YUV&MJPG |
