All Glass Lens Side View 1MP High-definition OV9734 CMOS Sensor LED Mini Endoscope Camera Module

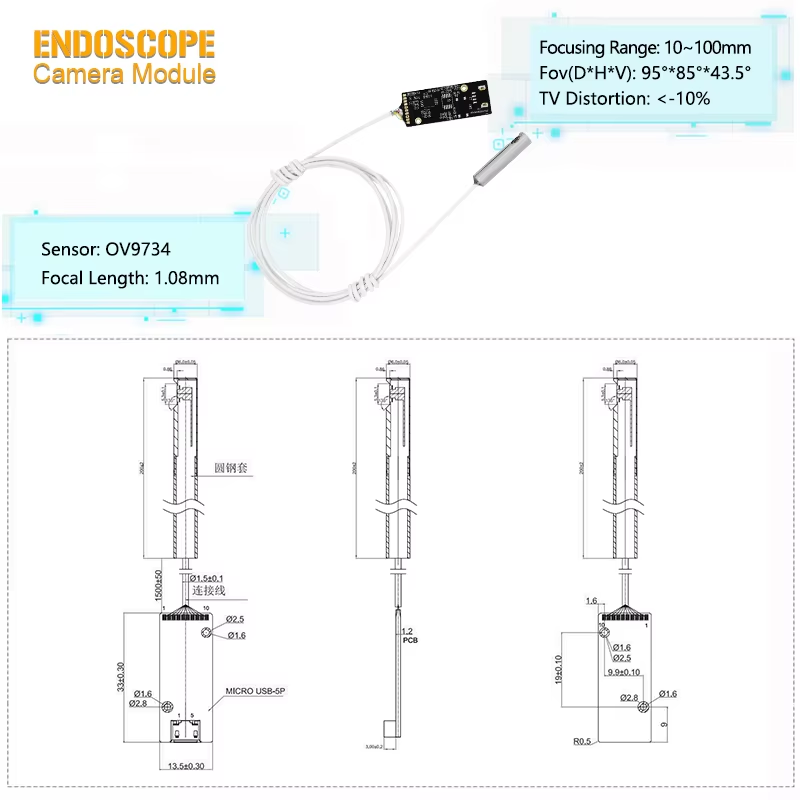

This is all glass lens side view 1MP high-definition OV9734 CMOS sensor LED mini endoscope camera module. It adopts the OmniVision OV9734 color image sensor, supporting 720P resolution and 30FPS smooth output. The 1MP pixels, combined with a 1/9-inch sensor size and 1.4μm×1.4μm large pixels, ensure high-definition image quality. Its core highlights are the **side-view imaging function** and **all-glass lens design**: the lens offers optional wide-angle views of 95°, 110°, and 140° to adapt to different cavity observation needs; the all-glass lens encapsulated in a 6mm diameter steel sleeve, with a 1.08mm focal length, achieves a wide focusing range of 10~100mm, and manual focusing is precise and controllable. The module integrates 4 LED fill lights to enhance low-light performance, featuring plug-and-play functionality via a USB 2.0 interface and UVC protocol. It adopts a split structure to improve flexibility, and the SMT process and AA manufacturing process ensure high-precision assembly and stability. It is suitable for professional scenarios such as medical care and industrial testing.

Product Advantage ◢

• Smooth And HD Imaging: 720P resolution combined with 30FPS frame rate ensures clear dynamic images without motion blur. The 1.4μm large pixels enhance low-light sensitivity, meeting the needs of detailed observation in medical and industrial scenarios.

• Side View Wide Angle And Broad Field Of View: Three optional viewing angles of 95°, 110°, and 140° are available to adapt to different cavity structures; the all-glass lens, combined with a 1.08mm focal length, achieves a wide focusing range of 10~100mm, and the side-view imaging design can flexibly cope with complex spatial detection.

• Excellent Durability And Stability: The 6mm steel sleeve-encapsulated lens has strong impact resistance; the SMT process and AA manufacturing process ensure the assembly precision of the module, which is not easy to shift or defocus during long-term use.

• Plug-And-Play With Strong Environmental Adaptability: IP67 waterproof rating and four adjustable bright LEDs for enhanced visibility.

• Modular Flexible Adaptation: The split design facilitates integration into different devices, balancing portability and functionality.


Application Of Product ◢

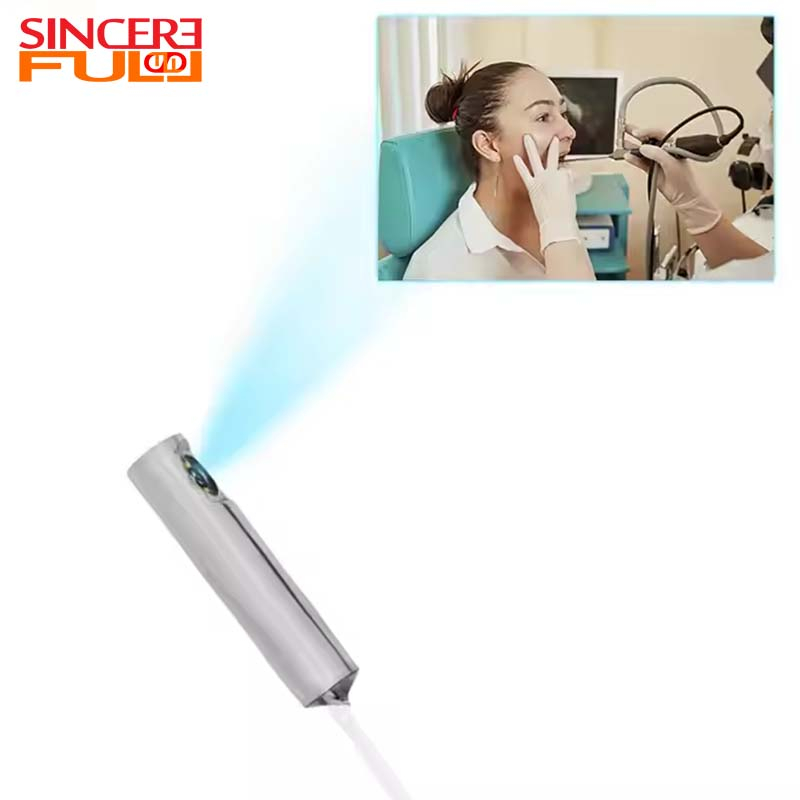

• ‌Dental Treatment：The 95° field of view combined with the 6mm steel-sleeved lens enables ‌precise visualization of interproximal spaces and root canal anatomy‌, while the integrated LED supplementary lighting ‌effectively mitigates shadow interference‌ within the oral cavity.

• Pipeline Interior Inspection：The 110° viewing angle with side-view imaging capability facilitates ‌efficient detection of weld seams and corrosion conditions‌. Robust SMT manufacturing ensures ‌stable operation in harsh environments with high temperature and pressure‌.

Technical Parameters ◢

FAQ

1. Why is low illumination performance important for endoscope modules?

In case of insufficient light in the body or pipeline environment, the module needs a high sensitivity sensor and a large aperture lens, and the noise reduction algorithm ensures the clarity of the dark field. Some products use infrared fill light or HDR technology to improve low light performance.

2. What is the significance of the depth of field range of the module?

Large depth of field (such as 5mm to 50mm) can clearly show near and far objects at the same time, reduce the need for frequent focusing, suitable for endoscopic surgery; Shallow depth of field is used to highlight specific plane details, such as skin inspection.

3. How to achieve waterproof and sterilization design?

The medical-grade module uses IP68 waterproof seal, the housing material is resistant to high temperature and pressure (such as epoxy resin), and can withstand 134°C steam sterilization. Industrial modules may require only a splash proof design (IP54).
