Research on Lightweight Integration of Low-Power Imaging Modules in Children’s Educational Microscopes

Research on Lightweight Integration of Low-Power Imaging Modules in Children’s Educational Microscopes

Abstract

Scientific enlightenment tools designed for young children must ensure both operational safety and engagement while providing intuitive and clear observational experiences. Traditional optical toy microscopes often suffer from limitations such as fixed eyepieces, narrow fields of view, and difficulty in sharing images. To enhance interactivity and imaging quality during children's exploration, this study investigates the integration of a miniaturized, low-power endoscopic camera module into a portable children’s microscope. This integration aims to replace or supplement the traditional optical path with electronic imaging, enabling plug-and-play functionality and easy output of observation results. Such a design makes findings easier to present and record, thereby increasing the immersive and educational value of scientific exploration activities.

1. Observational Limitations in Children’s Scientific Toys and the Need for Electronic Integration

Scientific exploration tools designed for children aged 3 to 8 must satisfy multiple constraints: devices must be lightweight and robust enough to withstand children’s handling, while the observation interface must be intuitive and stimulating enough to sustain interest. Traditional monocular microscopes rely on optical eyepieces, requiring children to maintain a specific posture and eye distance, which can lead to fatigue during prolonged use. Moreover, the observed field of view cannot be shared or recorded in real time, limiting opportunities for interactive teaching and result presentation. Introducing electronic imaging modules to convert optical images into digital signals and display them on a screen is considered an effective approach to overcome these limitations. However, such modules must achieve a delicate balance among size, power consumption, imaging stability, and cost to align with the positioning of toy products.

2. Technical Characteristics of the Imaging Module and Its Suitability for Children’s Devices

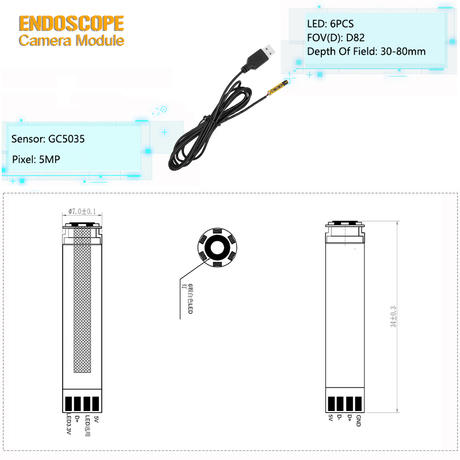

The imaging module selected for this study is designed with miniaturization and low power consumption in mind. Its compact cylindrical body has a diameter of Φ7.0±0.1 mm, allowing it to be easily integrated into the microscope tube or a dedicated expansion module without significantly increasing overall weight or size. This dimensional control is crucial for maintaining the device’s “child-friendly” lightweight characteristics.

The imaging core employs a 5-megapixel sensor, supporting high-definition still image capture and video streaming. The lens features an 82-degree diagonal field of view, which provides a wide viewing angle that makes it easier for children to capture broader observation areas without precise alignment, thereby reducing operational difficulty. Its depth of field ranges from 30 mm to 80 mm, enabling clear imaging of specimens of varying thicknesses—such as leaves, insect wings, or fabric fibers—within a certain distance range, minimizing the need for frequent refocusing and better aligning with the patience levels of young children.

To adapt to varying lighting conditions in outdoor or indoor exploration environments, the module integrates six miniature white LEDs arranged in a ring for illumination. This lighting solution can be driven by a simple 5V power supply, and its optical design helps reduce shadows, providing relatively uniform frontal fill light for observed subjects, thereby ensuring basic visibility under diverse conditions. The module operates at voltages compatible with both 3.3V and 5V systems, with typical low power consumption, making it suitable for use with rechargeable or dry battery setups commonly found in toys and supporting extended continuous operation.

In terms of signal output and connectivity, the module supports universal video transmission protocols and features a streamlined output interface. This allows it to be easily connected to a small built-in display in the microscope, an external mobile device screen, or even a household television via a simple adapter. The advantage of this design is that it transforms the act of “observing” from a private, individual experience into a shareable and discussible group activity, significantly enhancing parent-child interaction or classroom demonstration effectiveness.

3. Systemic Enhancement of Children’s Exploration Experience Through Module Integration

Integrating this imaging module into a children’s microscope is not merely about adding a “camera” function; it represents a restructuring of the scientific exploration process for children. The microscope’s original mechanical focusing and stage mechanisms guide children in basic specimen placement and focusing operations. The integrated electronic imaging module, acting as a “visual extender,” magnifies the microscopic world in real time and displays it on a screen.

This design offers multiple experiential improvements: First, it frees children’s eyes from the need to press against the eyepiece, allowing them to observe the screen more comfortably and even enabling multiple viewers simultaneously, fostering collaboration and communication. Second, the imaging process itself becomes part of scientific documentation—children can save images of their discovered “treasures” to create their own nature observation notes, adding a sense of achievement and continuity to the exploration activity. Third, clear electronic images facilitate guidance from parents or teachers, who can point to specific structures on the screen for explanation, making knowledge transmission more precise.

From the perspective of product safety and durability, the module’s miniaturization and low-power design comply with toy safety standards. Its robust construction can withstand reasonable impacts during children’s use, while standardized electronic interfaces reduce failure rates, ensuring product reliability and longevity.

4. Conclusion: Technological Integration Empowering Children’s Scientific Enlightenment

By combining a miniature high-definition imaging module with a children’s microscope, this study demonstrates a viable pathway to enhance the interactivity, educational value, and user experience of scientific enlightenment toys. This integration cleverly translates the advantages of electronic imaging technology into functions suited to children’s cognitive and operational characteristics, transforming microscopic observation from a static, individual activity into a dynamic, shareable, and recordable exploration journey.

This approach not only aligns with modern education’s emphasis on immersive and interactive learning but also offers new insights for the development of scientific toys: by integrating mature, stable miniaturized electronic modules with relatively low technical complexity, the functional dimensions and market appeal of traditional toys can be significantly enhanced. This, in turn, plants the seeds of scientific inquiry earlier and more effectively in the minds of young children.
