SF-C016USB-D0.9-Side
SINCEREFIRST

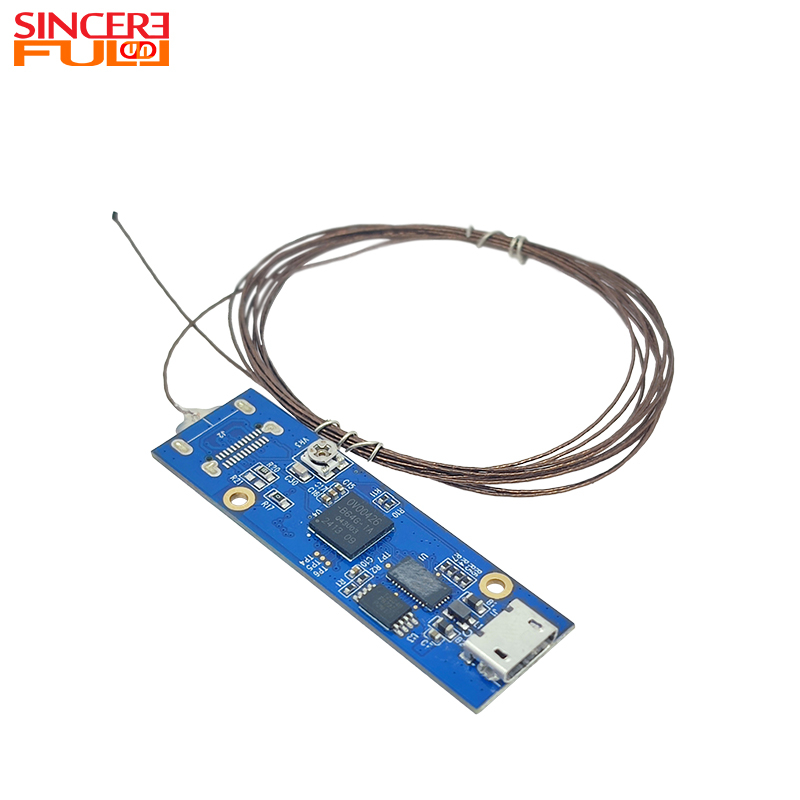

This is the smallest 0.9mm diameter OmniVision OCHTA10 CSI side view separate USB endoscope camera module. The ingenious combination of its 0.9mm ultra-small lens diameter and side view imaging function allows it to easily penetrate into narrow spaces and achieve clear imaging from a side perspective, providing great convenience for scenarios such as fine detection. It is equipped with the OmniVision OCHTA10 CMOS color image sensor, supporting a resolution of 400x400 and a maximum frame rate of 30FPS, ensuring clear and smooth images. The sensor size is 1/31 inch, with a pixel size of 1.008μm x 1.008μm. Combined with a wide field of view of 100° horizontal (HFOV) and 100° vertical (VFOV), it can capture rich image information. It has a focal length of 0.175mm, a focusing range of 3~30mm, an aperture of F4.5, distortion of < -11%, and supports manual focusing, which can be flexibly adjusted to obtain accurate and clear images. In terms of interface, it adopts a Micro USB interface, supports USB2.0 speed and UVC protocol, featuring convenient connection and strong compatibility. The module adopts a separate design and is produced using SMT technology and AA process, ensuring high quality and stability of the product. In addition, parameters such as its focal length and focusing range further enhance the adaptability and accuracy of imaging, meeting the detection needs in different scenarios. |  |
1. Combination of Ultra-Small Size and Unique Viewing Angle: With an ultra-small lens diameter of 0.9mm and a side-view imaging function, it can easily enter narrow spaces and realize side-view imaging. It has an irreplaceable advantage in scenarios such as fine detection, breaking through the limitations of traditional endoscopes in spatial adaptability.
2. High-Quality Imaging Performance: Equipped with OmniVision OCHTA10 CMOS color image sensor, 400x400 resolution combined with a maximum frame rate of 30FPS ensures clear and smooth images; 100° horizontal and vertical viewing angles can capture rich image information, meeting the imaging needs in multiple scenarios.
3. Flexible and Precise Focusing Capability: With a focal length of 0.175mm, a focusing range of 3~30mm, and support for manual focusing, combined with an F4.5 aperture and distortion control of < -11%, it can be flexibly adjusted to obtain accurate and clear images, adapting to detection targets at different distances.
4. Convenient Connection and Compatibility: Adopting a Micro USB interface, supporting USB2.0 speed and UVC protocol, the connection method is simple and compatibility is strong, which can be easily connected with various devices for use.
5. Reliable Design and Craftsmanship: The split design improves the flexibility of use; using SMT technology and AA process for production ensures high quality and stability of the product, extending its service life.
1. Precision Instrument Internal Inspection: It can penetrate into narrow gaps, internal cavities and other spaces of precision instruments, conduct detailed inspections of component welding points, circuit connection conditions, etc. from a side view, and promptly detect potential faults.
2. Pipeline Inspection: It is used to check the corrosion, blockage, cracks and other conditions of the inner wall of small-diameter pipelines, providing a reliable basis for pipeline maintenance.
3. Scientific Research Experiment Observation: In some scientific research experiments that need to observe material changes, microstructures, etc. in narrow spaces, it provides clear images and strong support for experimental research.

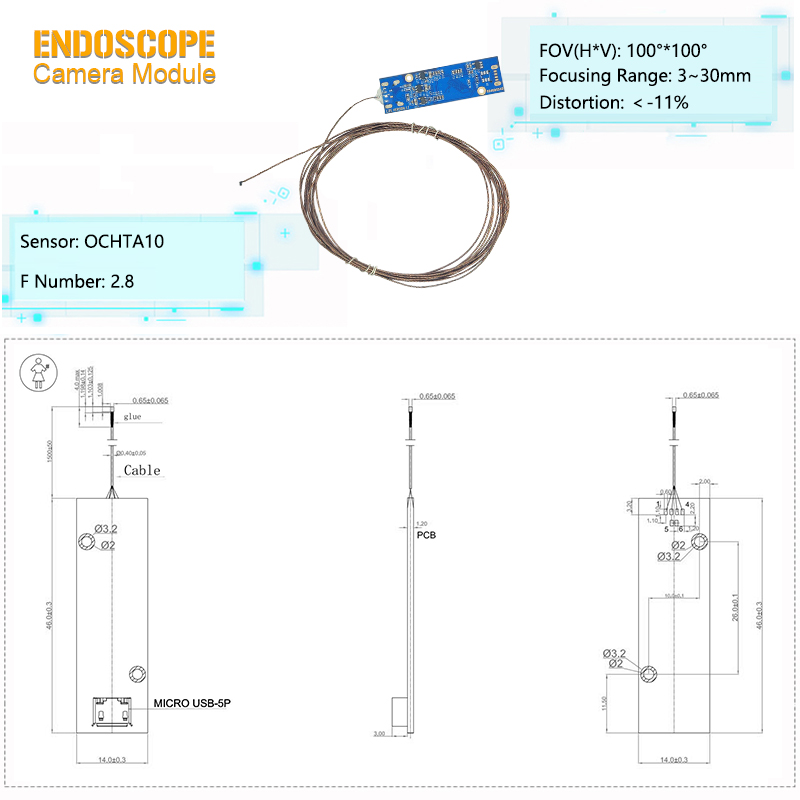

Product Name | Side-view endoscope camera module |
Basic tolerance | ±0.1mm |
DSP | USB2.0 |
Sensor | OCHFA10 |
Focusing Range | 3-30mm |
Focal Length | 0.175mm |
F Number | 4.5 |
FOV(H*V) | 100°*100° |
TV Distortion | ＜-11% |
Connector | Mini USB-5P |
1. How does the endoscope camera module work?
The endoscope camera module collects the internal image through the front optical lens, converts it into electrical signal by CMOS or CCD sensor, and then optimizes it through image processing chip for noise reduction and enhancement, and finally outputs high-definition video signal. Some modules support wireless transmission or fiber optic signal transmission, suitable for medical or industrial inspection scenarios.
2. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).
3. What can I do if the module fails to start?
Check the power adapter (for example, 12V output), the port is loose, and the fuse is blown. If the wireless module is used, check the battery level and pairing status.
4. Is there an endoscope camera module with a 0.9mm diameter and forward-view imaging?
Yes! Please feel free to contact us for more product information!
