SF-YL745-V2
SINCEREFIRST

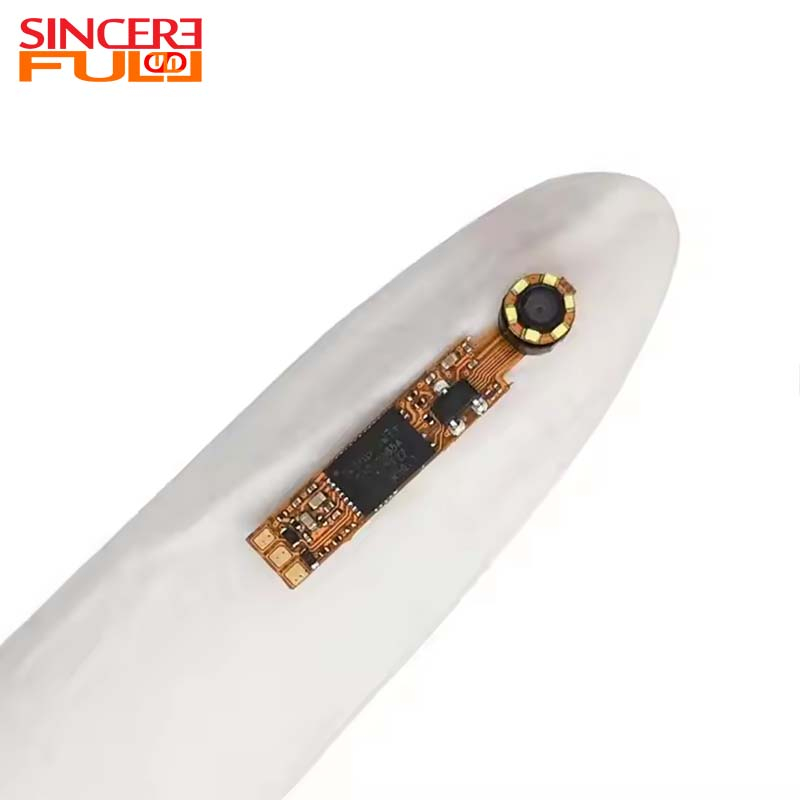

This high-speed USB2.0 interface GC1009 sensor 1mp mini medical endoscope camera module is engineered by SincereFirst for professional medical applications. Powered by GalaxyCore’s reliable GC1009 sensor, it delivers 1280x720 high-definition imaging, providing clinicians with clear, detailed views of internal tissues and lesions.
Equipped with six LED lights around the lens, the module ensures uniform illumination in narrow or dark surgical spaces, eliminating blind spots that often plague traditional endoscope systems. Its high-speed USB2.0 interface supports HS/FS transmission, minimizing latency to enable real-time image streaming— a critical advantage for arthroscopic surgery, skin tumor excision, and emergency debridement and suture procedures.
Unlike bulky alternatives, this mini camera module offers exceptional flexibility for integration into various medical devices. It balances performance and affordability, making it a cost-effective choice for hospitals, clinics, and medical device manufacturers seeking stable, high-quality endoscope solutions without compromising on core functionality.

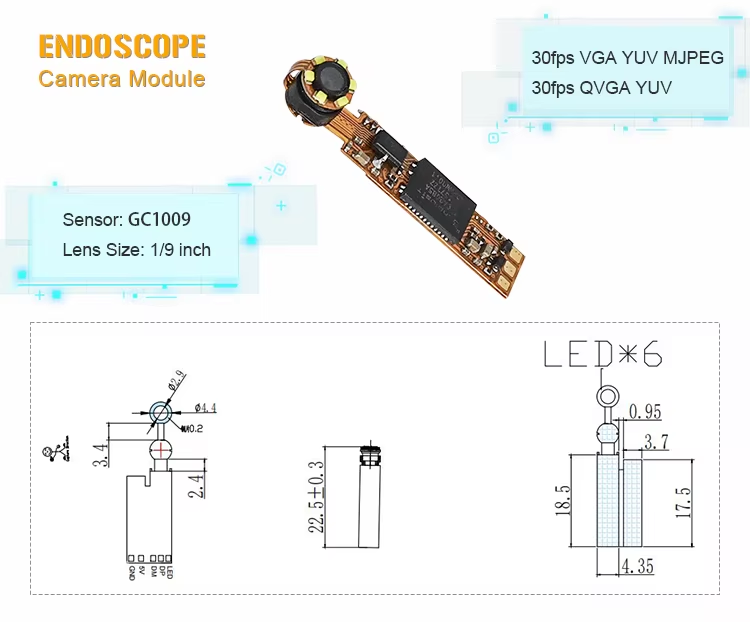

Product Name | Endoscope Camera Module |
Image Sensor | GC1009 |
Pixel | 1mp |
Sensor Size | 1/9inch |
Pixel Size | 1.4 μ m x 1.4 μ m |
Video Output | Analog AV Interface |
Output Interface | USB2.0 |
Dynamic Range | 68db@8x gian |
Sensitivity | 600mV/Lux-sec |
USB Protocol: | USB2.0 HS/FS |
This module captures dynamic joint movements at high frame rates, providing clear visual guidance for ligament repair and meniscus suture. Real-time low-latency transmission allows surgeons to adjust their operations promptly, improving surgical precision and patient recovery outcomes.
In macro mode, the module accurately locates the boundaries of skin tumors. The LED white light mode restores true skin color, enabling easy comparison and recording of lesion conditions before and after surgery, which is valuable for post-operative follow-up and case documentation.
With its portable design, the module fits perfectly on emergency carts. The USB plug-and-play feature enables fast access to hospital monitoring systems, supporting multi-angle recording of wound conditions to assist emergency physicians in making quick and accurate treatment decisions.
A large depth of field can clearly display both near and far objects simultaneously, reducing the need for frequent focusing during endoscopic surgery. Shallow depth of field, on the other hand, is ideal for highlighting specific plane details, such as in skin lesion inspections.
Our medical-grade module adopts IP68 waterproof sealing technology. The shell material is resistant to high temperature and pressure, and can withstand 134°C steam sterilization, fully complying with strict medical device safety standards.
Medical modules prioritize biocompatibility, sterilization capability, and high imaging quality, and must comply with FDA/CE certifications. Industrial modules focus more on durability, wide-temperature operation adaptability, and compatibility with special light sources for harsh industrial environments.
Inquire now to get a customized quote for the GC1009 1MP medical endoscope camera module. Our team will provide professional technical support to help you integrate the module seamlessly into your devices.
