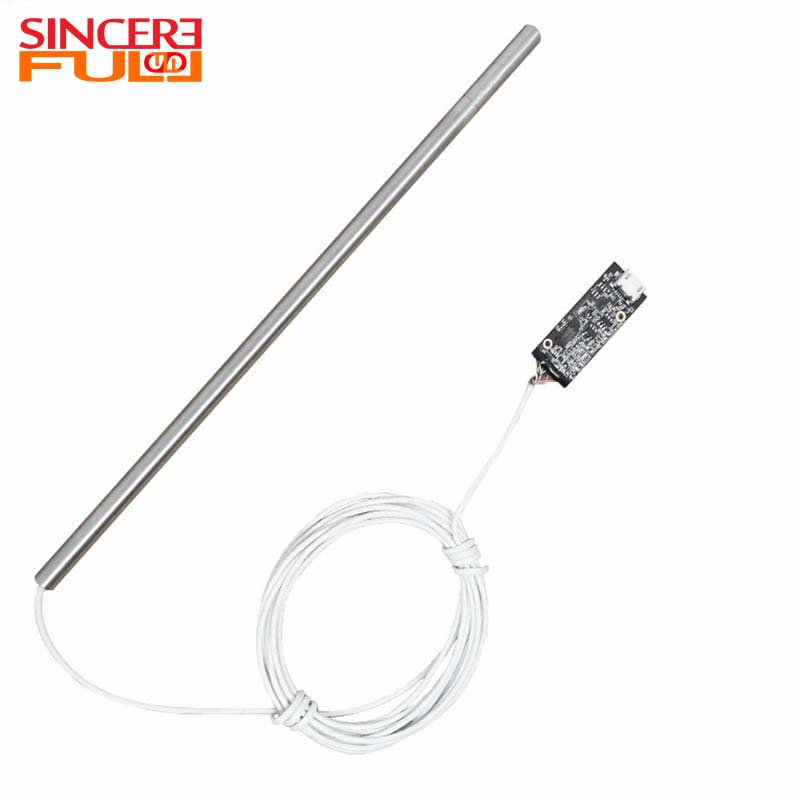

This 6mm side-view endoscope module is equipped with the OV9734 HD sensor, which can output 720P full HD picture quality with 1280×720 resolution, and achieve lossless real-time transmission through the USB2.0 high-speed interface. Its 1.08mm ultra-short focal length design with F4.0 aperture provides excellent optical performance in the wide focusing range of 10-100mm, and the 3D field of view Angle is 95°×85°×43.5°, which can cover the inspected area in all aspects. The lens distortion control is better than the -10% standard, ensuring industrial measurement accuracy. The module adopts side view observation structure, combined with 0402 micro LED array, to achieve uniform shadowless lighting in a narrow space, especially suitable for complex Angle precision inspection scenarios, such as aero engine blade root inspection, industrial equipment side weld inspection and colonoscopy. |  |
1. Three-dimensional panoramic detection: 95°85°43.5° three-dimensional field of view Angle can cover the three-dimensional surface of the object, solving the problem of traditional direct vision lens blind area.
2. Side view Angle breakthrough: The use of side view optical design, can go deep into the L-shaped pipeline, equipment corners and other conventional lens can not reach the position.
3. Ultra-wide focusing depth: 10-100mm focusing range to achieve macro - vision one-lens pass inspection, improve detection efficiency.
4. Hd detail restoration: 720P resolution with 4.0 large aperture, can still clearly identify 0.1mm cracks in dim environment.
5. Industrial accuracy: TV distortion <-10% to ensure the reliability of measurement data, meet the ISO 16090 testing standards.
1. Aerospace: turbine disc mortise test, fuel pipeline side wall corrosion analysis.
2. Precision manufacturing: mold cooling water channel side wall detection, 3D printing parts inter-layer defect detection.
3. Medical field: lateral perspective assistance in arthroscopic surgery.
Product Name | Endoscope Camera Module With LED |
Image Sensor | OV9734 |
Pixel | 1MP |
Focusing Range | 10-100mm |
Focal Length | 1.08mm |
F NO | 5.0 |
Product Type | Endoscope Camera Module |
Led | 0402 Led |
TV Distortion | <-10% |
Feature | Side-View Endoscope Camera Module |
