SF-C1019USB-D6.0-SV-L25-D95
SINCEREFIRST

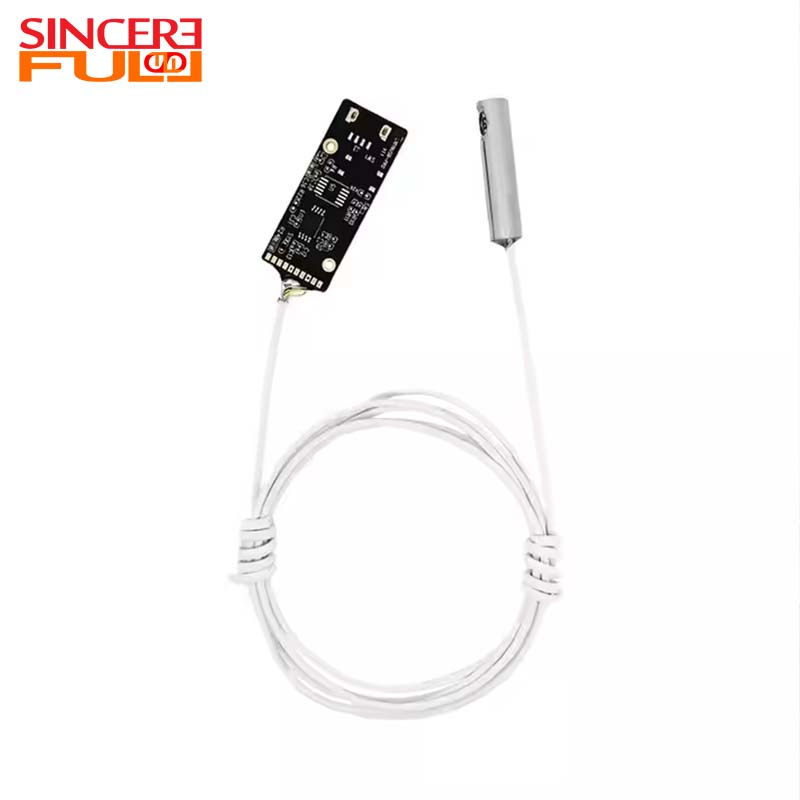

This is our 6mm Camera Module, featuring the cutting-edge OV9734 sensor. This Cmos Sensor Camera Module delivers exceptional performance with a maximum resolution of 1280x720 at 30fps, making it an ideal Camera Module HD for medical and industrial inspections. The unique Omnivision sensor camera Module offers three field-of-view options: 95°, 110°, and 140°, ensuring versatility for various applications. Designed as a side view endoscope camera module, its small 6mm diameter allows easy access to tight spaces, perfect for oral and gynecological endoscopes, automotive inspections, and pipeline examinations. Equipped with a USB interface, this USB Interface camera Module provides seamless connectivity and compatibility. The fixed focus lens maintains a depth of field between 10mm to 100mm, while four adjustable LEDs enhance visibility for detailed inspections. With an IP67 waterproof rating, this **endoscope camera module** can withstand harsh environments, making it the go-to solution for reliable and high-quality imaging in diverse inspection scenarios. |  |
Product Advantage ◢
6mm diameter ideal for accessing tight spaces.
Delivers 1280x720 at 30fps for clear, detailed images.
Choose from 95°, 110°, and 140° field-of-view for various inspection needs.
Effective depth of field from 10mm to 100mm, enhancing focused imaging.
P67 rating ensures reliability in medical and industrial environments.

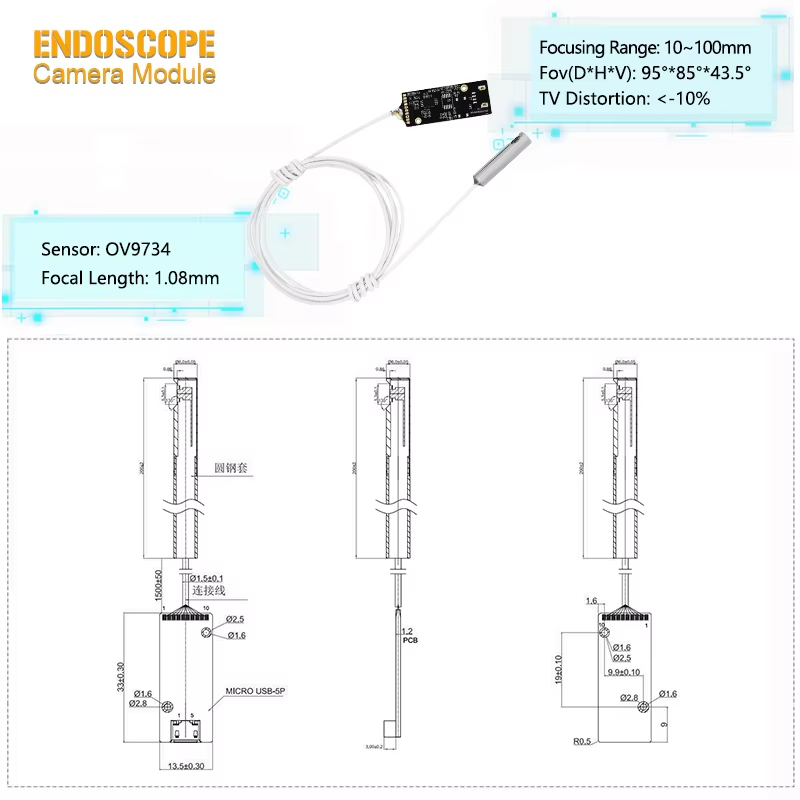

Technical Parameters ◢
Product Name | HD Side-View ENDOSCOPE Camera Module |
Image Sensor | OV9734 |
Resolution | 720P Max 30fps |
Focusing Range | 10-100mm |
Focal Length | 1.08mm |
FOV(D) | 95°, 110°, 140° |
Product Type | Endoscope Camera Module |
Led | 0402 Led |
TV Distortion | <-10% |
Feature | Side-View Endoscope Camera Module |
Product Uses ◢
Medical
FAQ ◢
Q1: What is a endoscope camera module?
A1: A camera module for endoscopes is a compact imaging device positioned at the end of an endoscope, enabling healthcare professionals to obtain high-resolution images of internal body structures. It comprises three essential components: an imaging sensor that transforms light into electronic signals, a lens assembly that ensures sharp image focus, and electronic circuitry that processes and transmits the captured data. These components work together to facilitate real-time visualization of internal features, greatly aiding in diagnosis and treatment. This innovative technology provides critical insights into patient health, enabling more accurate assessments and interventions.
Q2: Are you factory or trade company?
A2: Our factory features independent production lines and 10 levels of dust-free workshops, ensuring product quality while accommodating diverse production requirements. Our production team consists of highly skilled and experienced workers dedicated to efficient operations. The workshop environment is meticulously controlled to adhere to industry standards, significantly reducing dust and pollution, thus creating an optimal setting for manufacturing. We are committed to delivering high-quality products that cater to our customers' varied needs while continuously enhancing production efficiency. This dedication to excellence positions us as a reliable partner in meeting market demands.
Q3: How to control an endoscope camera module?
A3: To utilize an endoscope camera module, begin by connecting it to a compatible device, like a smartphone, tablet, or computer. Once connected, gently insert the camera into the area you wish to inspect, be it a body cavity or a confined space. Adjust the focus and lighting settings on your device to accommodate your specific examination needs. This method enables clear visualization and thorough inspection of areas that are typically difficult to access, providing valuable insights for various applications.
Q4: What does an endoscope camera module see?
A4: An endoscopic camera module examination involves inserting an endoscope to capture images or videos of internal organs and structures. This technology is crucial for healthcare professionals in screening, diagnosing, and treating various medical conditions. Different types of endoscopic procedures are designed for visualizing specific organs, which facilitates accurate medical evaluations and interventions. By providing clear views of internal anatomy, endoscopes enhance the ability to identify issues and guide treatment options effectively.
Q5: What can be customized for endoscope camera modules?
A5: The endoscopic camera module features a versatile design, allowing it to be used as either an integrated unit or a standalone component. Users can select from various diameters to suit specific needs. Customization options further enhance its functionality, with the option to add a stainless steel sleeve for increased durability and built-in LED lighting for improved visibility during procedures. This adaptability makes the endoscopic camera module suitable for a wide range of medical applications and user preferences, ensuring effective performance across different settings.
