The medical imaging landscape is rapidly shifting from Full HD (1080p) to Ultra HD (4K) as the new gold standard for high-end visualization. While marketing departments often demand 4K specifications to compete in premium segments, engineering teams face a complex reality. Integrating a high-resolution sensor involves navigating strict constraints on dimensions, heat dissipation, and data throughput. It is not merely a question of pixel count; it is a balancing act between physical limitations and clinical requirements.
For medical device developers, the decision between 1080p and 4K impacts every subsystem, from the distal tip design to the image signal processor (ISP). This article moves beyond buzzwords to evaluate sensor physics, system architecture implications, and clinical ROI. We will help you determine the correct specification for your next device, ensuring you choose an Endoscope Camera Module that aligns with your technical and commercial goals.
Physics Dictates Resolution: 4K sensors require larger optical formats; if your device requires a distal tip under 3mm, high-quality 1080p (or lower) is often the physical limit.
System-Wide Impact: Upgrading to a 4K endoscope camera module triggers a chain reaction of requirements for illumination, ISPs, and cabling to manage 4x the data bandwidth.
The "Downscaling" Advantage: 4K modules offer superior 1080p output via supersampling and allow for digital zoom without quality loss, extending device longevity.
ROI Context: 1080p remains the winner for cost-sensitive, single-use (disposable) endoscopes, while 4K is essential for diagnostic accuracy in neurosurgery and laparoscopy.
In the operating room, resolution is only valuable if it translates to better clinical outcomes. We must assess how pixel density influences surgical precision and diagnostic confidence.
Higher pixel density does more than just sharpen the image. It resolves subtle texture variations, such as mucosal structures and micro-capillaries. In 2D endoscopic systems, these textures serve as critical monocular depth cues. When a surgeon can clearly see the texture of tissue, their brain better estimates distance and volume.
For microsurgery or oncology, where differentiating between healthy tissue and a tumor margin is vital, this extra detail is non-negotiable. However, for general airway inspection or routine intubation, the clinical benefit of 4K over a high-quality 1080p sensor diminishes. The decision factor often hinges on the pathology being treated rather than the marketing spec.
The relationship between monitor size and viewing distance fundamentally changes the requirement for resolution. Operating rooms are increasingly adopting 32-inch to 55-inch 4K monitors. On these large displays, a 1080p feed can reveal the "screen door effect," where individual pixels become visible grid lines.
Surgeons often lean in during critical maneuvers. If the image breaks down into pixels at close range, it increases cognitive load and eye fatigue. A 4K Endoscope Camera Module maintains image integrity even when the surgeon is inches away from the screen. This ensures that the visual data remains organic and continuous, reducing the mental effort required to interpret the image.
Resolution is often conflated with overall image quality, but color science plays an equally important role. Modern 4K sensors frequently support wider color gamuts, such as BT.2020, compared to the legacy Rec.709 standard used in many HD sensors. This expanded color space improves tissue differentiation, allowing surgeons to distinguish between varying shades of red and pink.
Furthermore, newer 4K sensors often incorporate High Dynamic Range (HDR) capabilities. This prevents "blowout" reflections from wet tissue while maintaining visibility in dark cavities. In many cases, the perceived upgrade in image quality comes more from better color and dynamic range than from the pixel count itself.
Physics remains the stubborn adversary of miniaturization. While consumer electronics shrink rapidly, optical physics dictates a strict relationship between sensor resolution and sensor size.
The optical format of a sensor refers to its physical dimensions. To capture 4K resolution (approximately 8 million pixels), a sensor requires a significant surface area. A native 4K sensor typically demands an optical format larger than 1/3 inch. For standard laparoscopes (10mm diameter), this is manageable. However, for ureteroscopy, arthroscopy, or bronchoscopy, the available space at the distal tip is often less than 3mm or 4mm.
Fitting a 1/3-inch sensor into a 3mm tip is physically impossible. Engineers designing ultra-thin scopes often must rely on high-performance 1080p sensors or even smaller formats. Attempting to force 4K into these form factors often requires moving the camera to the proximal end (handle), which introduces fiber optic limitations, or accepting a "Chip-on-Tip" compromise with lower effective resolution.
There is a dangerous trade-off in cramming 8 million pixels onto a small medical sensor: pixel size reduction. As individual pixel size shrinks (often below 1.1 microns in small 4K sensors), the light-gathering capability of each pixel drops significantly.
The risk here is a poor Signal-to-Noise Ratio (SNR). Inside the human body, lighting is always a challenge. Small pixels struggle in dark cavities, generating "noise" or graininess that obscures detail. Unless the module utilizes expensive Backside-Illuminated (BSI) technology to maximize light intake, a high-resolution sensor might actually produce a worse image than a lower-resolution sensor with larger, more sensitive pixels.

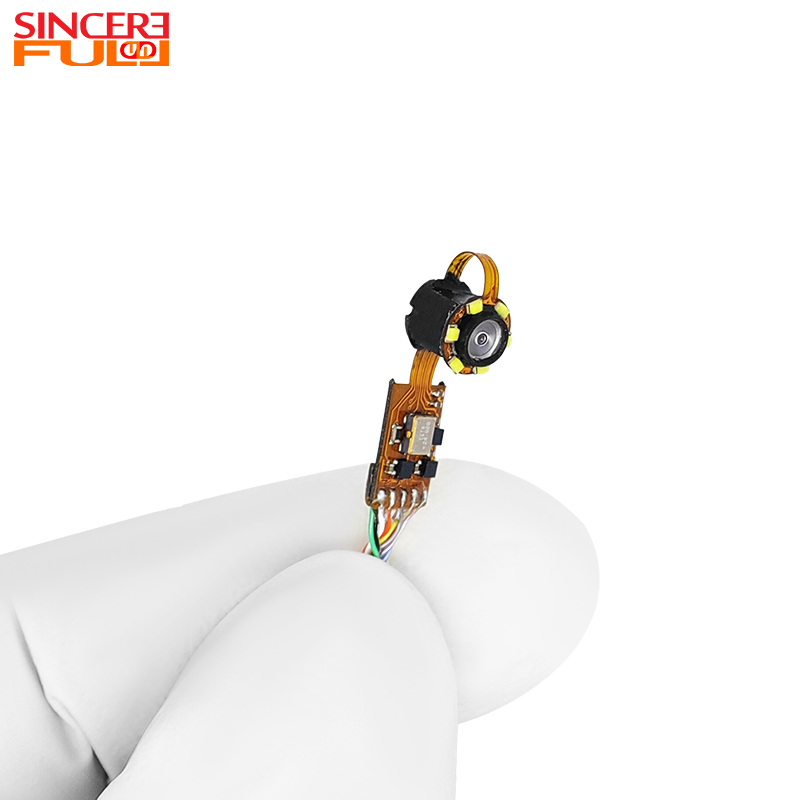

We must also consider the total footprint. An Endoscope Camera Module is not just the sensor; it includes the lens stack, the PCB, and the decoupling capacitors. A 4K lens stack is inherently larger and heavier because it requires more optical elements to resolve the higher frequency details. For disposable or compact devices, a compact 1080p module (like the 3.9mm ES101) often provides the optimal balance between size, image quality, and assembly complexity.
Table 1: Physical Trade-offs by Resolution | ||
Feature | 1080p Module | 4K Module |
|---|---|---|
Typical Optical Format | 1/9" to 1/6" | 1/3" to 1/1.8" |
Distal Tip Diameter | Can fit in <4mm | Usually requires >5.5mm |
Low Light Performance | Generally Higher (Larger Pixels) | Requires intense illumination |
Lens Complexity | Moderate | High (Precision Glass) |
Upgrading to 4K is not a "drop-in" replacement. It places immense stress on the entire electronic architecture of the medical device.
A 4K stream generates four times the data of a 1080p stream. Processing approximately 8.3 million pixels at 60 frames per second requires a robust Image Signal Processor (ISP). If the ISP cannot handle this throughput in real-time, it introduces input lag or latency.
In surgery, hand-eye coordination is critical. The threshold for noticeable delay is roughly 30-50 milliseconds. If the video feed lags behind the surgeon's hand movements, it can lead to overshooting targets or hesitation. 4K systems demand high-performance interfaces like MIPI or high-speed LVDS to ensure sub-frame latency. Standard USB 2.0 interfaces typically lack the bandwidth for uncompressed 4K at high frame rates, whereas they handle 1080p comfortably.
Processing power creates heat. High-resolution sensors and the ISPs that drive them consume significantly more power than their HD counterparts. In a "Chip-on-Tip" design, the sensor is located directly inside the patient. Excessive heat generation at the distal tip poses a compliance risk (IEC 60601-2-18 limits tip temperature to 41°C for continuous contact).
Managing this heat often requires complex heat sinks or active cooling, which increases the diameter of the scope. 1080p modules run significantly cooler, making them safer and easier to integrate into strictly regulated devices without elaborate thermal management solutions.
An imaging system is only as good as its weakest component. Investing in a premium 4K Endoscope Camera Module is wasted if the optical chain does not match its specifications. If the lenses, rod lenses, or fiber bundles cannot resolve 4K line pairs, the sensor will simply capture a high-resolution blur. Similarly, 4K requires substantially more light. If the light source is not upgraded to a high-lumen LED or Laser system, the image will be dark and noisy, negating the benefits of the higher pixel count.
Beyond raw image quality, 4K resolution unlocks software-defined capabilities that can redefine the utility of a medical device.
Digital Zoom: Mechanical optical zoom is expensive, fragile, and bulky. A 4K sensor enables "lossless" digital zoom. By cropping the center 1080p portion of a 4K sensor, a surgeon can achieve 2x magnification without any interpolation or loss of detail. This allows a device to serve multiple functions—wide-angle overview and close-up inspection—without moving parts.
AI & Computer Vision: Artificial Intelligence models, such as those used for polyp detection or vessel segmentation, rely on edge data. Higher resolution provides cleaner, more defined edges for these algorithms to analyze. 4K inputs significantly improve the accuracy of machine learning models compared to upscaled HD images, reducing false positives in automated diagnostics.
There is a distinct advantage to capturing in 4K even if the output is viewed on a 1080p monitor. This process, known as supersampling or downscaling, averages the pixel data to produce a 1080p image with exceptional sharpness and color fidelity. It reduces aliasing artifacts (jagged edges) and lowers noise levels. Therefore, a 4K module provides a superior HD image compared to a native HD sensor, assuming the physical size constraints can be met.
Finally, the decision must make commercial sense. The Total Cost of Ownership (TCO) and Return on Investment (ROI) vary wildly between disposable and reusable systems.
The sensor is just the starting point. 4K requires more expensive cabling (often moving from micro-coaxial to micro-twinax or fiber optics) to handle the data rate over long distances. Connectors must be shielded more heavily against electromagnetic interference (EMI). Consequently, the Bill of Materials (BOM) for a 4K video chain can be 2x to 3x higher than a comparable 1080p system.
For single-use (disposable) endoscopes, Cost of Goods Sold (COGS) is paramount. The market will rarely support the price premium of a disposable 4K ureteroscope. Here, a high-performance 1080p sensor represents the "sweet spot," balancing acceptable clinical performance with manufacturing costs that allow for disposability.
Conversely, for reusable capital equipment, the camera head is a long-term investment. Hospitals expect these systems to last 5-7 years. In this context, 4K is essential for future-proofing and premium branding. The higher initial BOM is amortized over hundreds of procedures, making the investment in superior visualization justifiable.
Launching a non-4K device in a premium segment (like neurosurgery or laparoscopic towers) in the current market carries a "marketing cost." Even if 1080p is clinically sufficient, the perception of outdated technology can hinder adoption. For flagship products, 4K is often a commercial necessity, regardless of the strict clinical need.
Choosing between 1080p and 4K is not about finding the "best" resolution, but finding the right fit for your specific constraints. 4K offers unparalleled detail and future-proof capabilities but demands significant trade-offs in size, heat, and cost. 1080p remains a robust, efficient, and clinically proven standard for compact and cost-sensitive applications.
Application Type | Recommended Resolution | Rationale |
|---|---|---|
Laparoscopy / Neurosurgery | 4K (Native) | Critical need for depth cues, large monitors, reusable systems. |
Flexible Ureteroscopy / ENT | 1080p (or 720p) | Strict diameter constraints (<4mm); 4K physically impossible at tip. |
Single-Use Scopes | 1080p | Cost sensitivity; high-quality HD is sufficient for procedure. |
Robotic Surgery | 4K (Dual Channel) | Required for 3D stereoscopic vision and AI integration. |
Final Verification: Do not rely solely on spec sheets. We strongly recommend requesting evaluation kits to test the modules in real-world conditions. Assess low-light performance, thermal stability after 30 minutes of operation, and actual latency. If you are developing a compact device, consider a high-performance, compact Endoscope Camera Module to balance size and quality effectively.
A: Yes, but with caveats. A high-quality 4K monitor can use upscaling algorithms to smooth out jagged edges of a 1080p signal. However, it cannot create detail that was not captured by the sensor. The main benefit is the reduction of the "screen door effect" (visible pixel grid), making the image look smoother at close viewing distances compared to a 1080p monitor of the same size.
A: It can. 4K requires processing four times the data of 1080p. If the Image Signal Processor (ISP) or the transmission interface (like USB vs. MIPI/SDI) is not rated for this bandwidth, significant latency (lag) will occur. Medical systems must be designed specifically for low-latency 4K processing to ensure the video stays synchronized with the surgeon's hand movements.
A: This is due to pixel size. To fit 8 million pixels (4K) onto a small medical sensor, the individual pixels must be very small. Smaller pixels capture less light (photons), leading to a lower Signal-to-Noise Ratio (SNR). This results in graininess or "noise" in dark body cavities unless the sensor uses advanced Backside-Illuminated (BSI) technology or the light source is significantly brightened.
A: Currently, native 4K sensors usually require a "Chip-on-Tip" assembly diameter of at least 5mm to 6mm due to the sensor's optical format (typically 1/3" or larger). For scopes smaller than 4mm (like ureteroscopes), engineers usually must use 1080p or lower resolution sensors, or place the camera in the proximal handle and use a fiber optic bundle (which degrades image quality).
