SF-C1019USB-F&S-DUAL
SINCEREFIRST
This Image Sensor Camera Module, equipped with the OV9734 Image Sensor, is specifically designed for high-performance applications. The Dual Lens Camera Module provides a maximum resolution of 720p at 30fps, making it ideal for a wide range of endoscopic and inspection tasks. Its compact design, featuring a diameter of only 5.5mm, facilitates seamless integration into confined spaces. The module supports USB 2.0 UVC connectivity and is compatible with both YUV and MJPEG formats, ensuring effortless integration with various devices and software solutions. Additionally, the inclusion of a 0402 LED enhances visibility, providing clear imaging even in low-light conditions. |  |
Product Advantage ◢
1. High-performance imaging capability: 720p resolution +30fps frame rate: both clarity and real-time, to meet the needs of smooth observation of dynamic scenes.
2. Extremely compact design :5.5mm diameter: suitable for space-limited scenarios such as minimally invasive medical treatment and precision industry, supporting ultra-fine endoscopes or detection equipment integration.
3. Dual lens extensibility: Dual lens configuration can support stereo vision or wide-angle + macro combination to improve scene adaptability.
1. Medical endoscope: minimally invasive examination of digestive tract, respiratory tract, etc., small size design to reduce patient trauma, dual lens can realize 3D image-assisted diagnosis.
2. Industrial inspection: internal corrosion detection of pipelines, precision measurement of mechanical parts, clear imaging in low light environment to reduce reliance on artificial light.
3. Robot vision: Service robots to navigate and avoid obstacles, or special robots to transmit images in real time in complex environments.
4. Security monitoring: Integrated in micro-monitoring equipment, support low-light environment monitoring, USB interface simplified deployment.

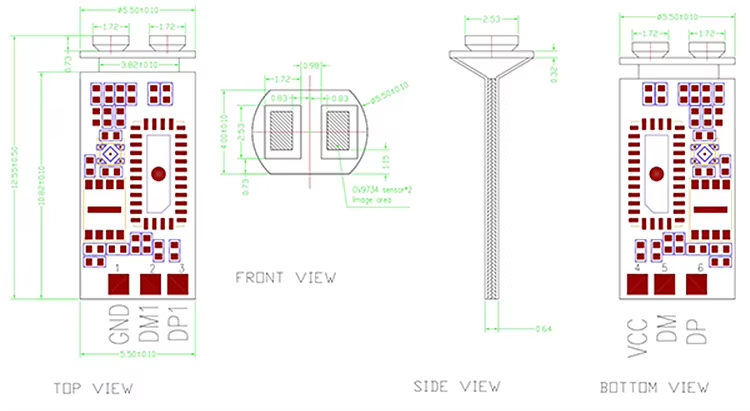

Technical Parameters ◢
Product Name | Dual Camera Endoscope Camera Module |
Features | Industrial endoscope camera module |
Pixel Size | 1MP |
Sensor | OV9734 |
Resolution | 720P Max 30fps |
Output | USB2.0 UVC |
Diameter | 5.5mm |
Trademark | SINCERE FIRST |
Keywords | Endoscope Dual Lens |
Focus | Fixed |
FAQ ◢
1. How to evaluate the cost performance of the module?
Comprehensive resolution, durability and after-sales support are required, and MTBF indicators can be prioritized in industrial scenarios.
2. Can I buy a used medical endoscope module?
The sterilization history, sensor wear degree must be confirmed and must be re-certified by the original factory, otherwise there is a risk of cross-infection or performance.
3. What are the typical requirements for custom modules?
Common requirements include special dimensions, multispectral imaging, and interface protocol adaptation.
