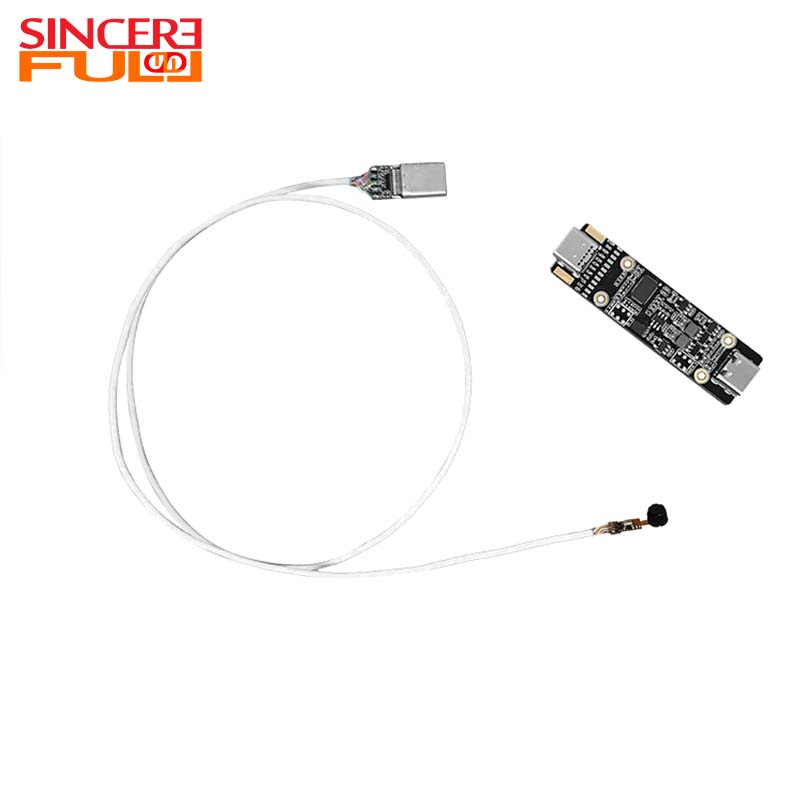

SF-N1050-V1 + SF-YL0320-V1
SINCEREFIRST
The High Definition Endoscope Camera Module is a compact and efficient imaging solution, by the Ov2740 sensor. With a dynamic range of 73.3dB, this USB2.0 Camera Module ensures exceptional clarity and detail in every frame. Featuring a pixel size of 1.4μm x 1.4μm, it delivers outstanding resolution, making it well-suited for capturing images in confined or hard-to-access areas. This High Definition Camera Module supports versatile output formats, including MJPEG and YUV2, to meet diverse application requirements. Designed for inspection, medical, and industrial uses, the Endoscope Camera Module offers stable and reliable performance via USB connectivity, ensuring seamless integration across devices. the Endoscope Camera is a powerful tool for medical which demand imaging. Whether for diagnostic or operational purposes, the sensor Ov2740 provides the cornerstone of this innovative camera module. |  |
Product Advantage ◢
Imaging Sensor:Equipped with the Ov2740 sensor, providing a dynamic range of 73.3dB .
High Resolution:Pixel size of 1.4μm x 1.4μm, ensuring superior image quality even in confined spaces.
Versatile Output Formats:Supports both MJPEG and YUV2 formats, allowing compatibility with various applications.
Connectivity:Utilizes USB2.0 connectivity for easy integration and stable performance in a range of settings,
Application Of Endoscope Camera Module ◢
1. Minimally invasive surgery: Assisted laparoscopic and thoracoscopic surgery, real-time transmission of tissue texture and instrument location to improve operation accuracy.
2. Pipeline flaw detection: Observe the weld fusion line and corrosion pit distribution of oil and gas pipelines to replace traditional X-ray detection and reduce radiation risk.
3. Aerospace: Check engine blade cracks, fuel pipeline internal deposits, adapt to extreme temperature environment.
Technical Parameters ◢
Product Name | Side View Endoscope Camera Module |
Features | OV2740 Endoscope Camera |
DSP | USB2.0 UVC |
Sensor | OV2740 |
Lens Size | 1/6inch |
Output Image Format | MJPEG/YUY2(YUYV) |
Dynamic Range | 73.3dB |
Trademark | SINCERE FIRST |
Imterface Mode | TYPE C/5PIN 1.0 |
Operating Voltage | DC5V |
FAQ ◢
1. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).
2. Why do pipeline inspection modules need long cables?
The cable length is usually 10-30 meters, including Kevlar tensile layer and waterproof connector, which supports real-time transmission while resisting internal friction and chemical corrosion of the pipeline.
3. What should I do if the module fails after high temperature sterilization?
Check whether the tolerance temperature is exceeded (for example, some are only 120°C), turn off the power and remove the battery before sterilization, damage may involve sealant failure or circuit board deformation.
