SF-C0310USB-D3.9-PLUS-D9
SINCEREFIRST

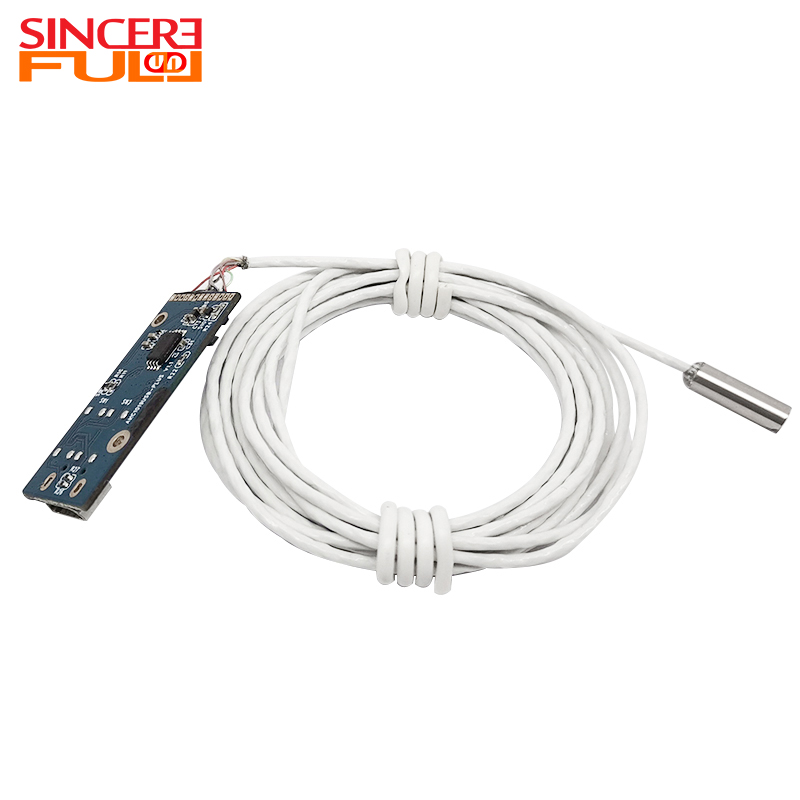

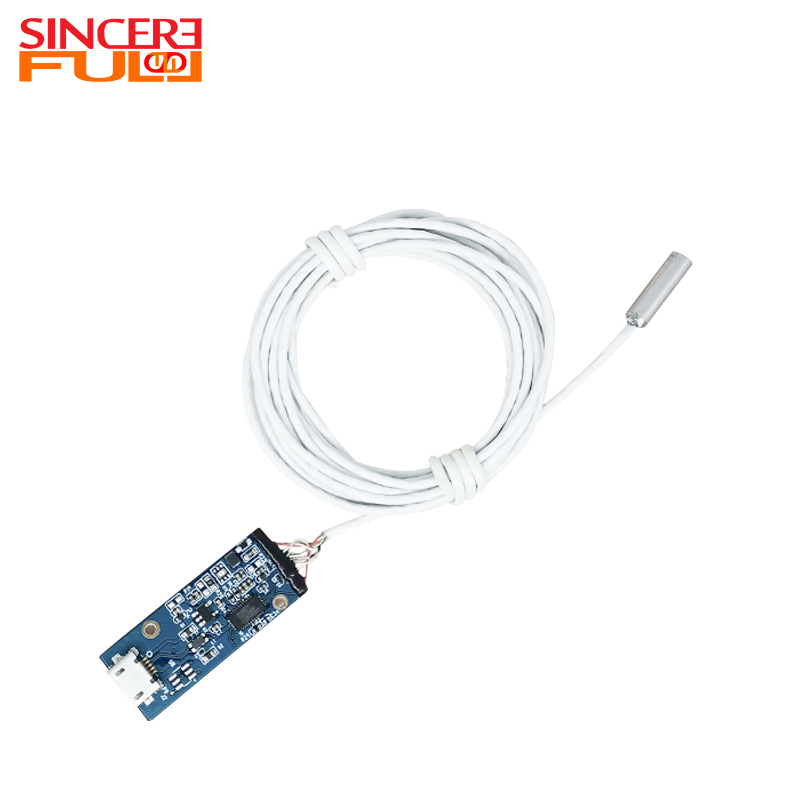

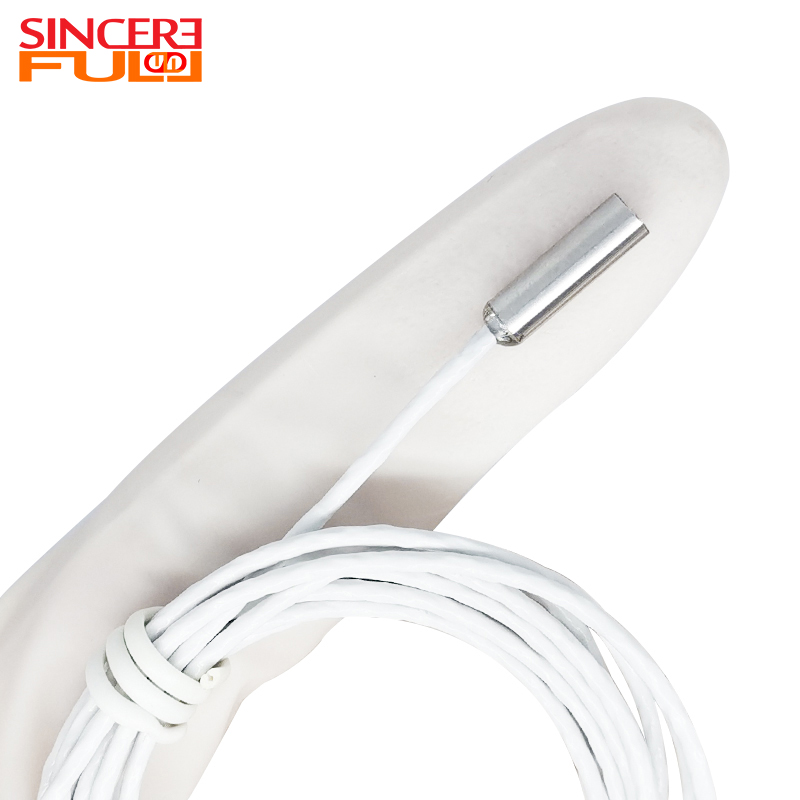

This is a HD Inspection Camera featuring a 3.9 mm borescope with a VGA Sensor, designed for exceptional visual clarity and precision. This USB Borescope Camera Module seamlessly integrates via USB2.0 interface, equipped with LED light to illuminate even the tightest spaces. With a focusing range of 20-80mm, a focal length of 1.074, an F Number of 3.58, and a wide 90° FOV , it ensures comprehensive coverage and sharp details. The module boasts minimal TV Distortion of <-5.5%, making it ideal for medical endoscope camera module applications or any scenario requiring reliable, high-definition inspection. |  |
Features ◢
1. Ultra-fine detection without dead Angle: 3.9mm probe diameter can penetrate into narrow gaps, with 90° ultra-wide field of view Angle, comprehensive coverage of the detection area, reduce the operation of blind areas.
2. Low distortion of high-definition imaging: VGA sensor with F3.58 large aperture, in the 20-80mm focus range to achieve high contrast imaging, TV distortion <-5.5%, to ensure accurate picture restoration.
3. Medical industry dual adaptation: Short focal length design takes into account the needs of macro observation and depth of field, supporting multi-scenario application of medical equipment integration or industrial non-destructive testing.
Application Of Endoscope Camera Module ◢
1. Endoscopy center: gastroenteroscopy, cystoscopy light imaging, support PC side image amplification and case archiving.
2. Pipeline inspection: oil/gas pipeline inner wall corrosion detection, weld quality assessment, support long-distance push operation.
3. Security equipment: Check the internal mechanical structure of the lock and the wiring of the hidden corner of the monitoring camera.
Product Details ◢
Keywords | 3.9mm USB Endoscope Camera Module |
Sensor | VGA |

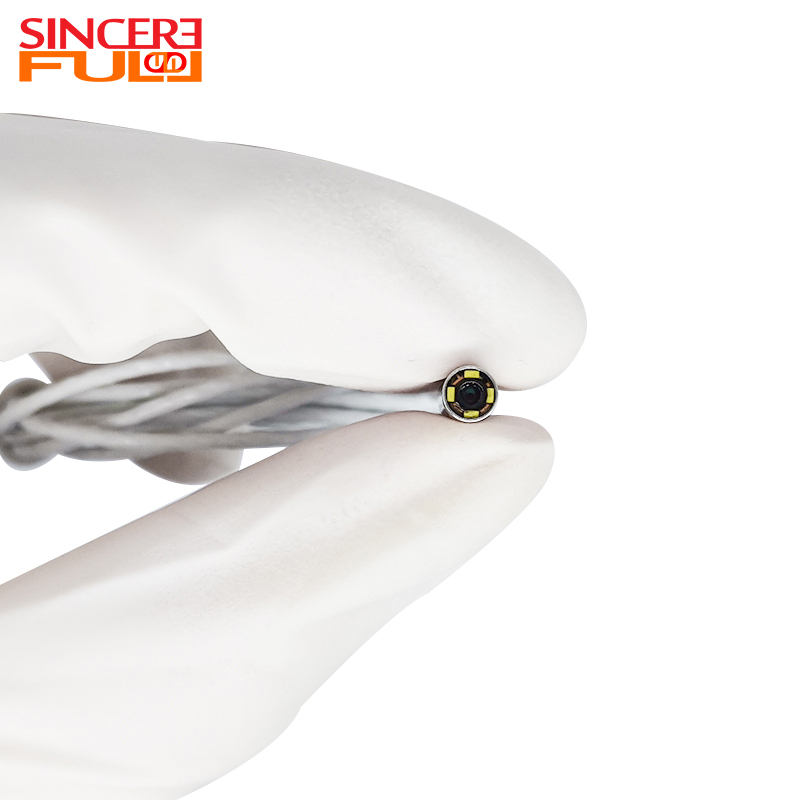

LED | 4pcs LED |

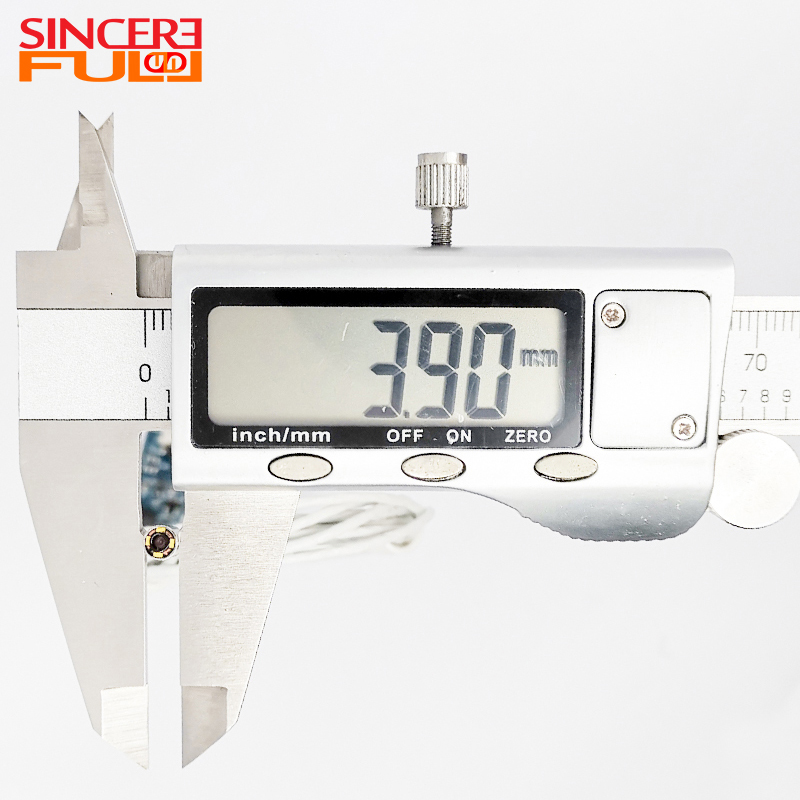

Module Size | 3.9mm dia |
Focusing Range | 20mm-80mm |
Focal Length | 1.074mm |
FOV(D) | 90° |
TV Distortion | ＜-5.5% |
Output Format | YUV&MJPG |
F Number | 3.58 |
Output | USB2.0 UVC |
Features | Mini Endoscope Camera |
FAQ ◢
1. What are the special requirements of laparoscopic surgical modules?
Anti-fogging design (lens heating or anti-fogging coating), 3D imaging capability, instrument channel integration, and color reproduction must be accurate (e.g., distinguishing tissue oxygen status).
2. Why do pipeline inspection modules need long cables?
The cable length is usually 10-30 meters, including Kevlar tensile layer and waterproof connector, which supports real-time transmission while resisting internal friction and chemical corrosion of the pipeline.
3. How does 3D endoscope achieve stereoscopic vision?
Images of the left and right eyes are captured through a dual lens module or a splitter prism, and synchronously output to a 3D display at ≥1080p/60fps to ensure smooth operation, suitable for minimally invasive surgery.
