SF-N1050-V1 + SF-YL0320-V1
SINCEREFIRST
OV2740 Sensor USB2.0 1080P HD Endoscope camera module adopts the industry-leading 1/6-inch OV2740 CMOS image sensor, supports 1920×1080 full HD resolution, and outputs smooth images at a high frame rate of 60FPS. Meet the stringent requirements of medical endoscopy and industrial testing for real-time dynamic observation. With a large pixel size of 1.4μm×1.4μm and an electronic shutter, the module achieves an excellent signal-to-noise ratio of 38.3db in low-light environments and a dynamic range of 73.3db, ensuring perfect detail from shadow to highlight areas. The module integrates the USB2.0 High Speed interface, supports the UVC no-drive protocol, and is compatible with Windows, Linux, and Android systems. Advanced automatic white balance and automatic exposure algorithms can intelligently adapt to different lighting environments to maintain color accuracy and exposure consistency. Optimized for endoscopy applications, the optical system minimizes module size while maintaining high resolution for easy integration into a wide range of minimally invasive medical devices and industrial inspection equipment. |  |
Product Advantage ◢
1. 60FPS High frame rate: Industry-leading smoothness, 50% less motion blur than regular 30FPS modules
2. Medical-grade imaging: 73.3db wide dynamic range, perfect presentation of tissue/instrument light and dark details
3. Intelligent adaptive: AWB+AE algorithm ensures the stability of image quality under different lighting conditions in the cavity
1. Minimally invasive surgery: laparoscopic/arthroscopic real-time image navigation.
2. Industrial testing: precision parts inner wall defect analysis.
3. Pipeline maintenance: municipal/oil/pipeline internal corrosion detection, automotive tire internal imaging.

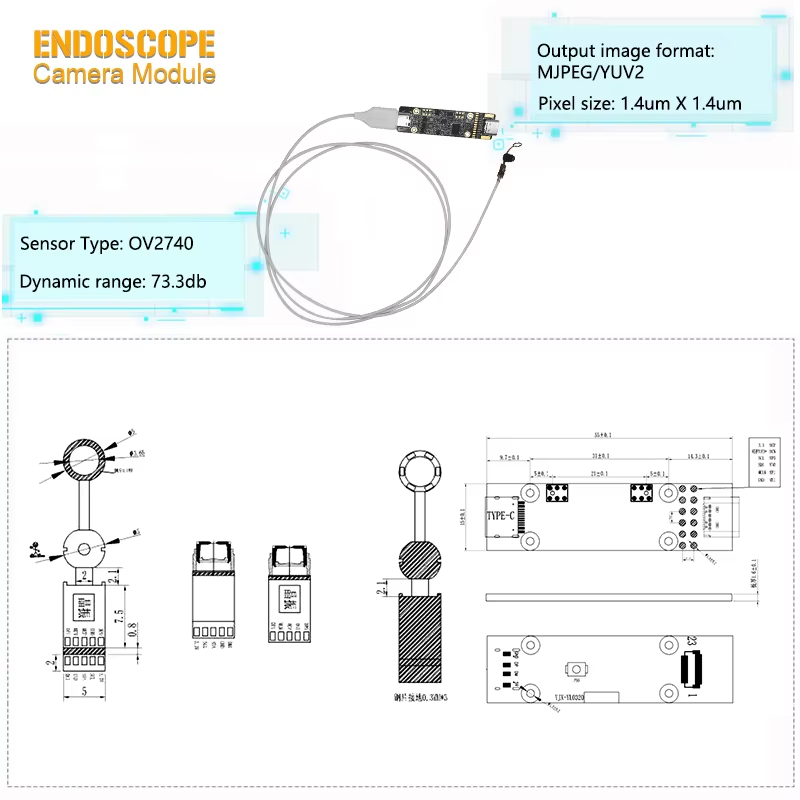

Technical Parameters ◢
Product Name | Side View Endoscope Camera Module |
Features | OV2740 Endoscope Camera |
DSP | USB2.0 UVC |
Sensor | OV2740 |
Lens Size | 1/6inch |
Output Image Format | MJPEG/YUY2(YUYV) |
Dynamic Range | 73.3dB |
Trademark | SINCERE FIRST |
Imterface Mode | TYPE C/5PIN 1.0 |
Operating Voltage | DC5V |
FAQ ◢
1. What is a endoscope camera module?
A1: An endoscope camera module is a small camera device attached to the end of an endoscope that is used to capture high-quality images of the inside of the body and transmit them to a monitor for viewing by medical professionals. An endoscope camera module consists of three main components: the camera sensor, the lens system, and the electronic circuitry.
2. How to control an endoscope camera module?
A3: To use an endoscope camera module, first connect the camera to a compatible device, such as a smartphone, tablet, or computer. Then, insert the camera into the area you want to examine, such as a body cavity or a confined space. Use the camera's controls to adjust the focus and light as needed.
3. What are the interface types of the module?
Common interfaces include USB3.0, HDMI, SDI, etc. Industrial scenarios may use PoE power supply interfaces, and medical devices are multi-integrated dedicated medical image interfaces.
4. How to choose the module suitable for car maintenance?
It is necessary to have an oil-proof lens, adjustable focal length (such as 10-100mm), LED strong light, some with magnetic probes or 360° rotating head to check the engine dead Angle.
5. Why do pipeline inspection modules need long cables?
The cable length is usually 10-30 meters, including Kevlar tensile layer and waterproof connector, which supports real-time transmission while resisting internal friction and chemical corrosion of the pipeline.
