SF-C50USB-D1.6 with Shell
SINCEREFIRST

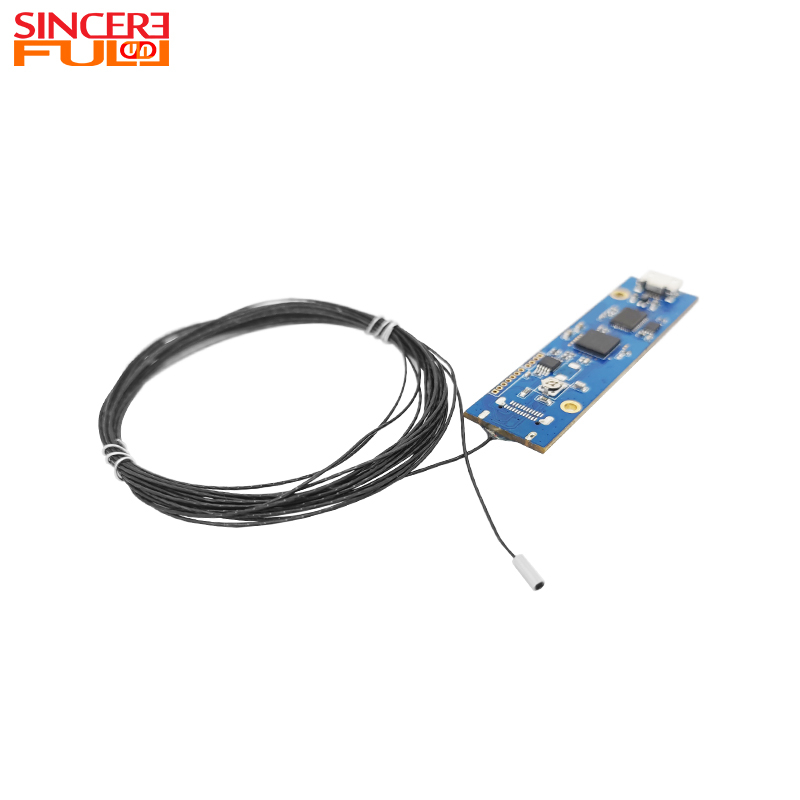

| This is a 1.6mm diameter waterproof inspection HD 720P OCHFA10 sensor endoscope camera module, developed based on the OmniVision OCHFA10 image sensor. Its most groundbreaking design lies in a lens diameter of only 1.6mm with Steel Shell protection — this ultra-slim size can easily penetrate narrow spaces that conventional lenses struggle to reach, such as ear canals, gaps in tiny electronic components, and root canals. At the same time, the Steel Shell material balances structural strength and damage resistance, solving the industry pain point of "slim lenses being prone to damage". The module features 0.5MP pixels and 720×720 resolution, supporting 720P@30FPS high-definition real-time output. The 1/17.5-inch sensor, paired with a 1.008μm×1.008μm pixel size, ensures clear imaging and low noise performance in low-light environments. It supports dual output formats (YUV and MJEPG) simultaneously, with a field of view (FOV) of H86°×V86°. Combined with a 0.418mm focal length, F5.0 aperture, and a wide focusing range of 5~50mm, its TV distortion is < -11%, and the manual focusing design can accurately adapt to different detection distances. The module adopts a Separated structure, connected to the DSP board via bonding wires, and supports IP67 dustproof and waterproof rating. It integrates 4 LED fill lights to supplement light in dim spaces; is equipped with a Micro USB interface, supporting USB2.0 speed and UVC protocol, and is compatible with mainstream operating systems. Manufactured through SMT process and AA Alignment Process, it has passed multiple international tests and certifications including CE, FCC, RoHS, and Reach. |  |
Miniaturization + Durability: The 1.6mm lens with Steel Shell not only meets the penetration needs of extremely narrow spaces but also enhances shock and wear resistance through Steel Shell protection, avoiding the damage-prone issue caused by slim design and adapting to high-frequency use scenarios.
Multi-format HD Imaging: The 720P@30FPS frame rate ensures smooth images; the 1.008μm pixel size, combined with LED fill lights, can still capture clear details in low-light environments. Dual output formats can flexibly match the needs of real-time transmission (YUV) and high-definition storage (MJEPG), offering stronger practicality.
Full-Scenario Adaptability: The IP67 dustproof and waterproof design resists erosion by liquids and dust; the 5~50mm wide focusing range covers near and long-distance detection needs; the 86° FOV can fully present the detection area, balancing adaptability to complex environments and imaging integrity.
Quality + Compliance: Adopting SMT process and AA Active Alignment Process ensures consistency and precision in mass production. Full-series international certifications enable terminal products integrated with this module to enter major global markets without barriers, significantly reducing customers' market access threshold.
Disposable Ear Endoscope: The 1.6mm slim lens can reach deep into the ear canal; the IP67 waterproof design facilitates post-operation disinfection. LED fill lights combined with high-definition imaging help doctors clearly observe tympanic membrane lesions and avoid cross-infection.
Tiny Electronic Component Inspection Endoscope: The lens can probe into tiny spaces such as chip pins and circuit board gaps; the 720×720 high resolution can accurately identify subtle defects like solder joint cold soldering and pin oxidation, improving the inspection precision of electronic devices.
Miniature Industrial Robot Vision System: Integrated at the front end of miniature robotic arms with a diameter of less than 2mm, it provides real-time visual feedback for precision operations such as micro-assembly and micro-welding. Its strong depth of field adaptability ensures clear images within complex working distances.
Pipeline Inspection Endoscope: For precision industrial pipelines with a diameter of 5~50mm, the 1.6mm lens can pass through bends smoothly; the IP67 dustproof and waterproof design resists oil and impurities in pipelines; LED fill lights solve detection blind spots in dark areas, helping locate tiny blockages or corrosion points.

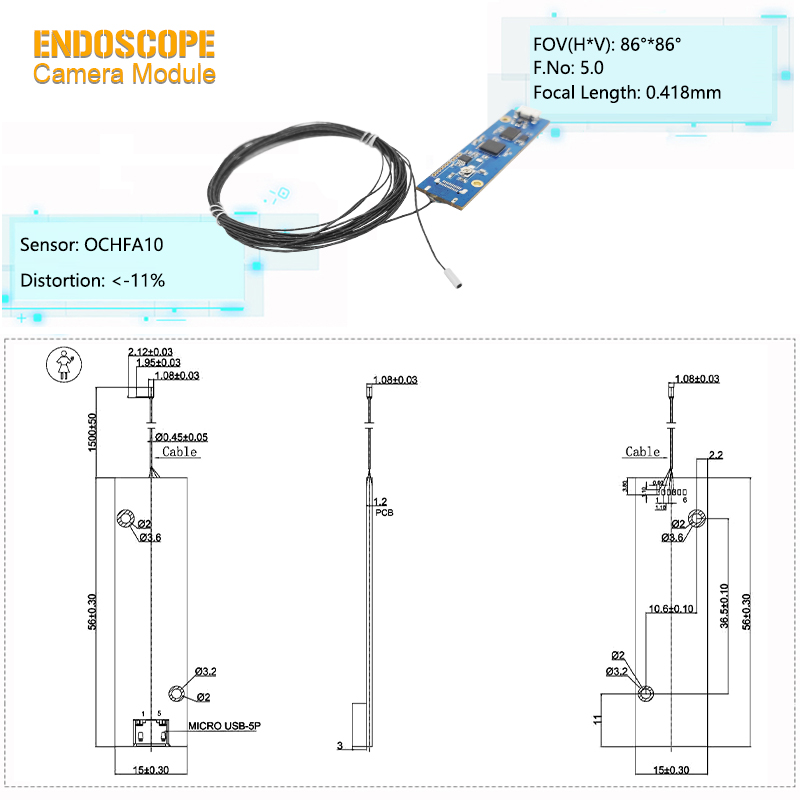

Product Name | LED USB Endoscope Camera Module |
Focal Length | 0.418mm |
DSP | USB Board |
Sensor | OCHFA10 |
Focusing Range | 5-50mm |

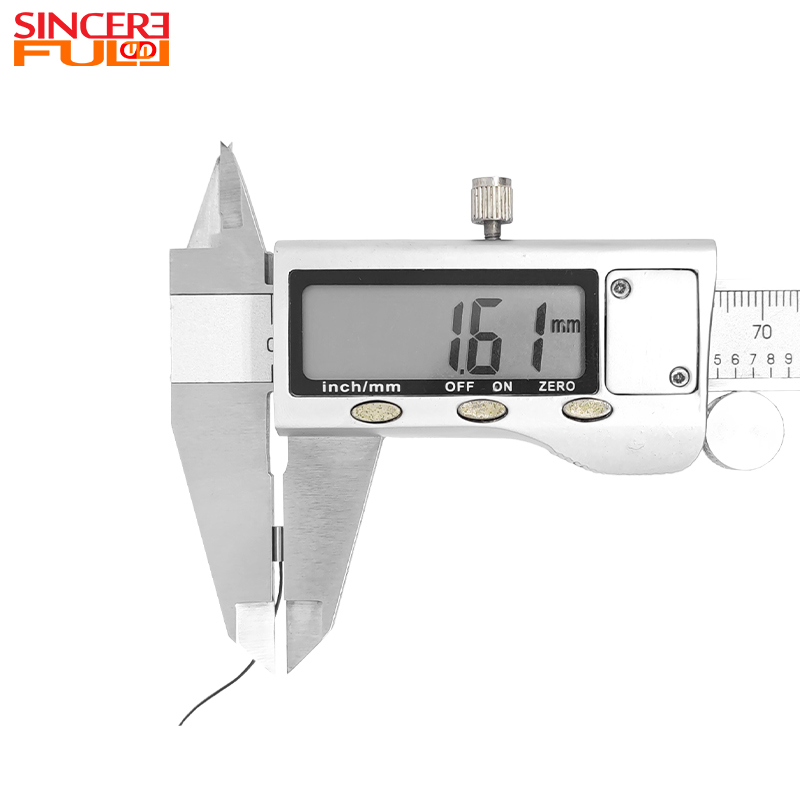

Diameter | 1.6mm |
F Number | 5.0 |
LED: | 4pcs |
Resolution | 30fps |
FOV | H86°*V86° |
It has an IP67 rating, resisting liquid immersion and dust erosion. Suitable for scenarios like post-operative disinfection, oil-polluted industrial pipelines, and wet inspection environments.

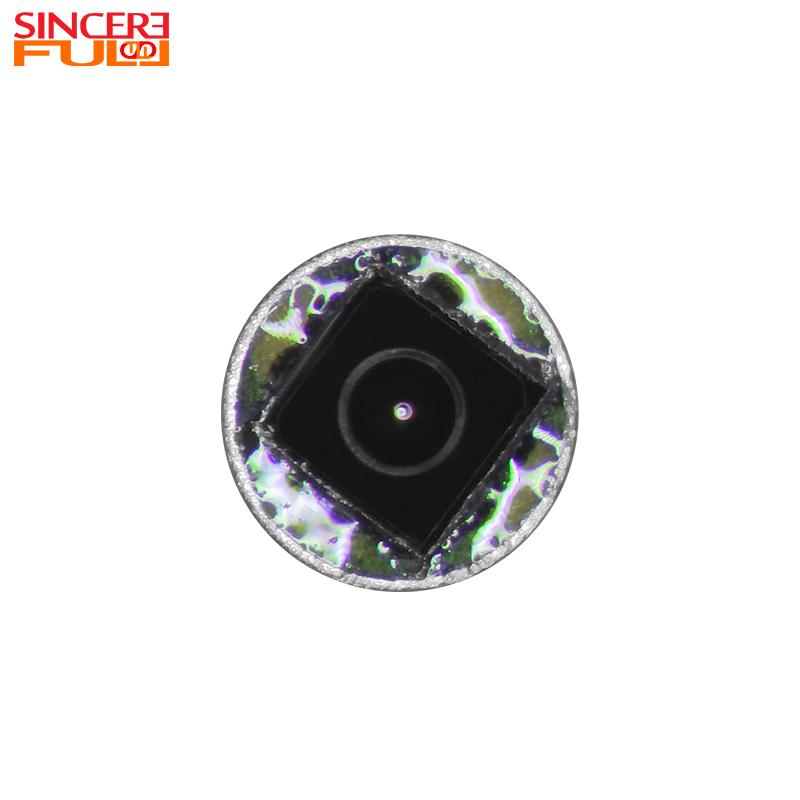

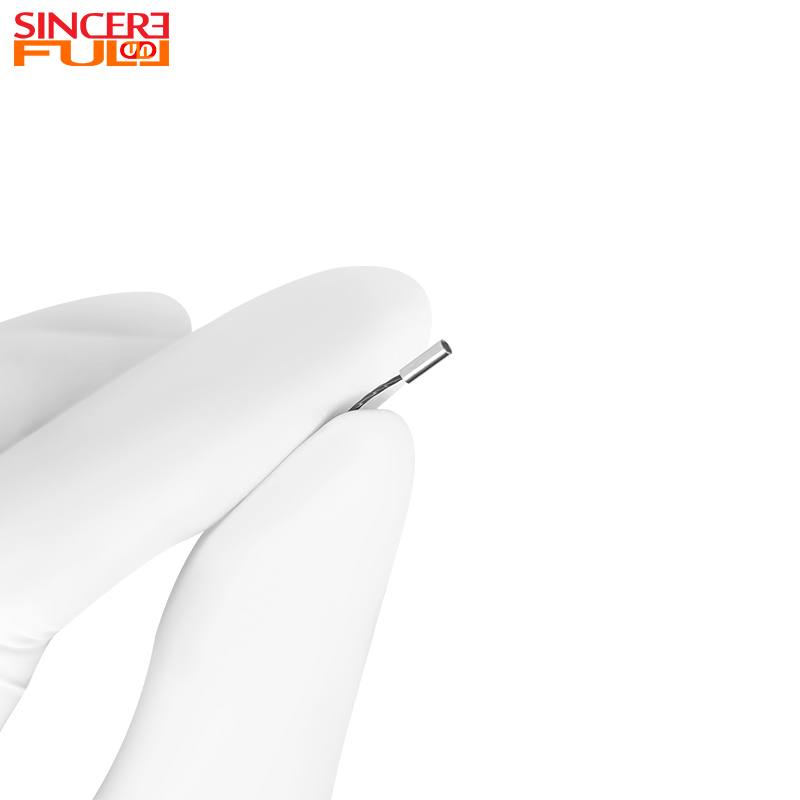

The 1.6mm lens (with Steel Shell) enables penetration into ultra-narrow spaces (e.g., ear canals, electronic component gaps, root canals) that conventional lenses cannot reach. The Steel Shell also enhances shock and wear resistance, solving the "slim lens fragility" issue.

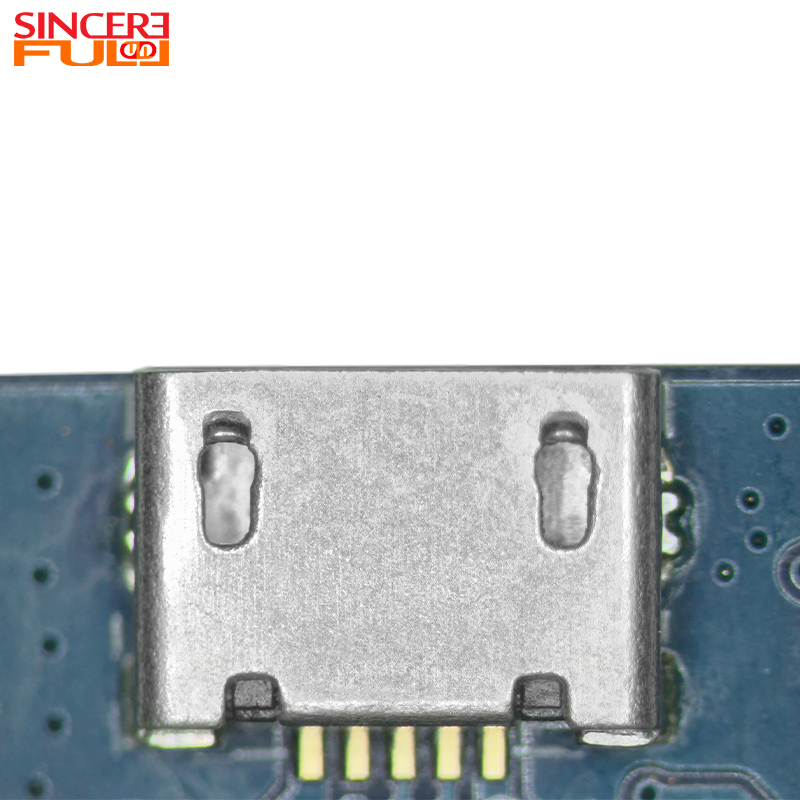

It uses a Micro USB interface, supports USB2.0 speed and UVC protocol (plug-and-play), and is compatible with mainstream operating systems (Windows, Linux, etc.).
