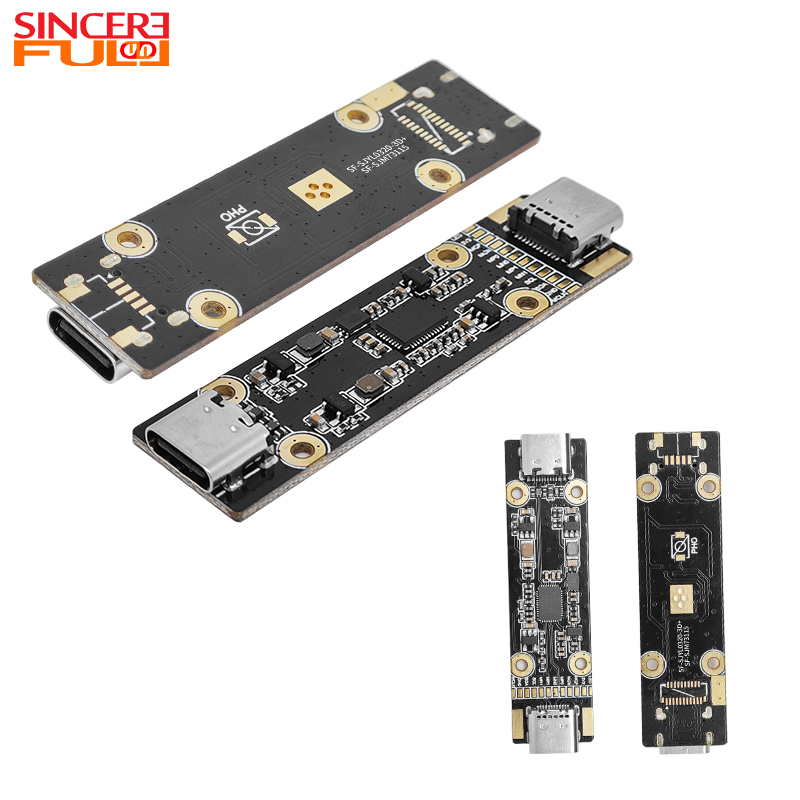

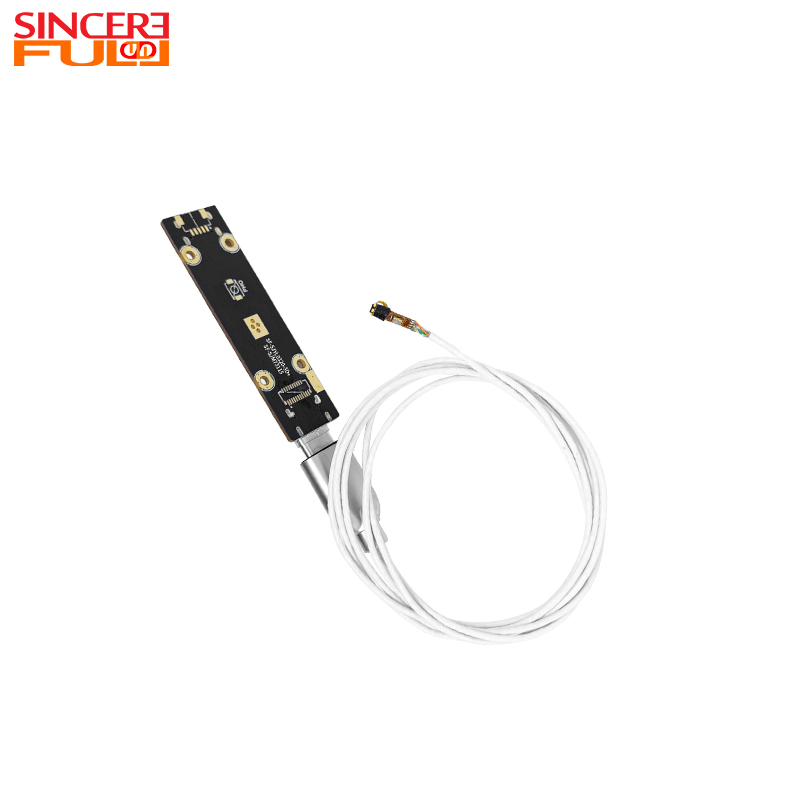

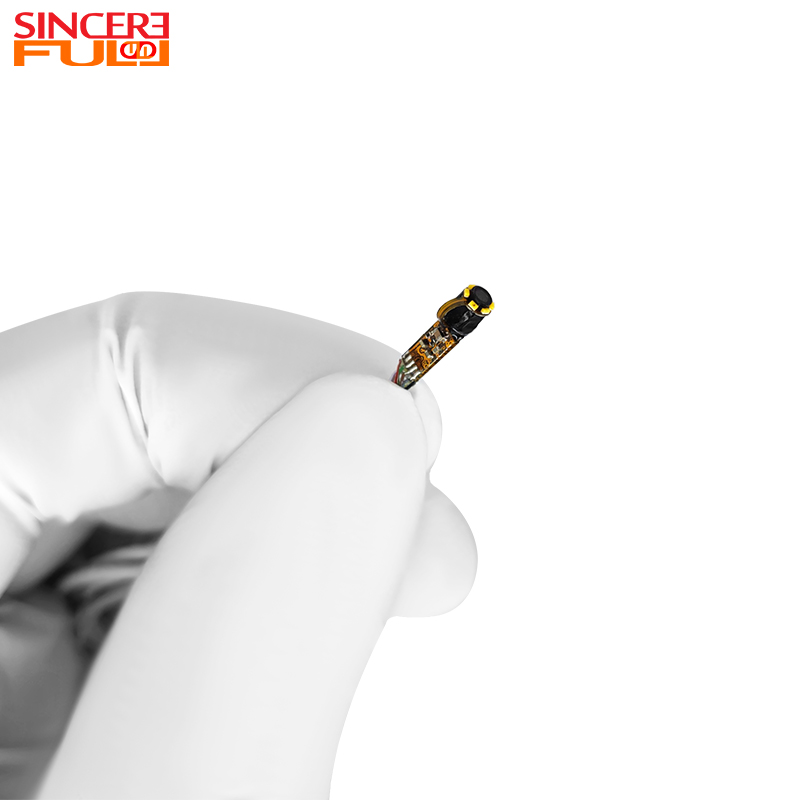

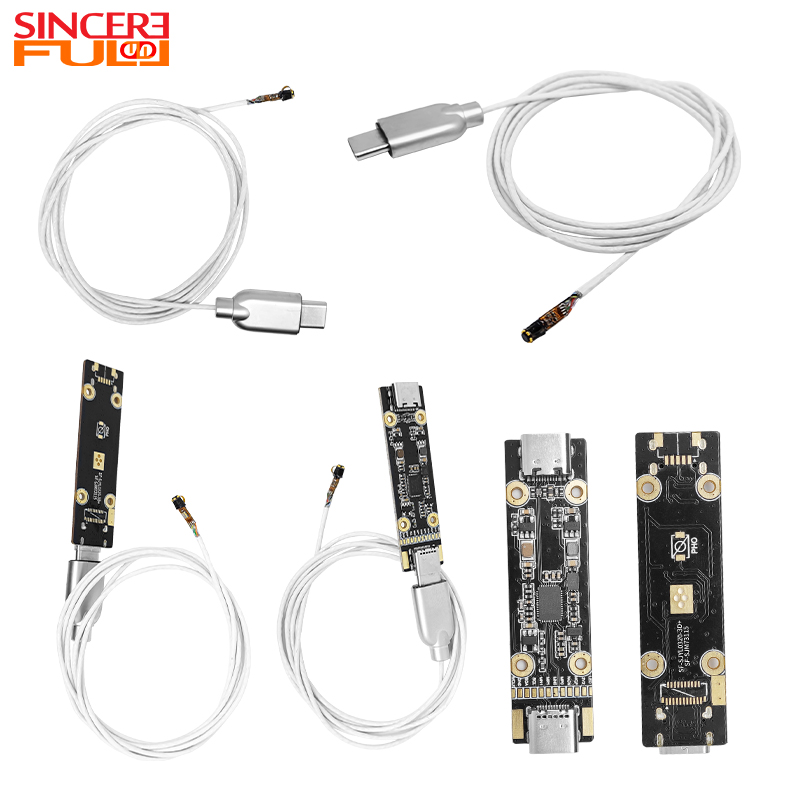

This 3.1mm diameter 1MP ES101 CMOS image sensor LED bare endoscope camera module is a professional micro imaging optical solution focusing on high-frame-rate and high-definition imaging. Equipped with Ruixin Micro ES101 color sensor, it supports excellent high-frame-rate output capabilities of 1000×1000@60FPS and 1000×800@75FPS, which can clearly capture fast-moving targets in practical applications such as medical endoscopic operations and industrial precision testing. It has 1MP pixels and 1000x1000 high-definition resolution, with a sensor size of 1/9 inch and a pixel size of 1.4μm×1.4μm. The output format supports 10bit/8bit RAW, reserving sufficient space for post-image processing; it adopts a manual focus design, combined with a 140° ultra-large field of view, which can flexibly adapt to different observation distance and range requirements; the bare module lens diameter is only 3.1mm, which can easily extend into narrow observation spaces, and integrates 6 white LED lights to provide stable fill light and ensure imaging clarity in low-light environments. In terms of structure and compatibility, the module adopts a Separated design, connects to the DSP board through a Type-C interface supporting MIPI 1Lane rate, and then outputs through the Type-C interface, compatible with USB2.0 rate and UVC protocol, and adaptable to a variety of terminal devices; the production process adopts SMT process and AA process to ensure product consistency and stability, and has passed multiple international testing and certifications such as CE, FCC, RoHS, and Reach, which can meet the market access requirements of many places around the world. |  |
Plug and Play: Adopting standard Type-C interface and UVC protocol, it has excellent cross-platform compatibility without complex drivers. It supports 10bit RAW data output, providing original data depth for subsequent image processing.

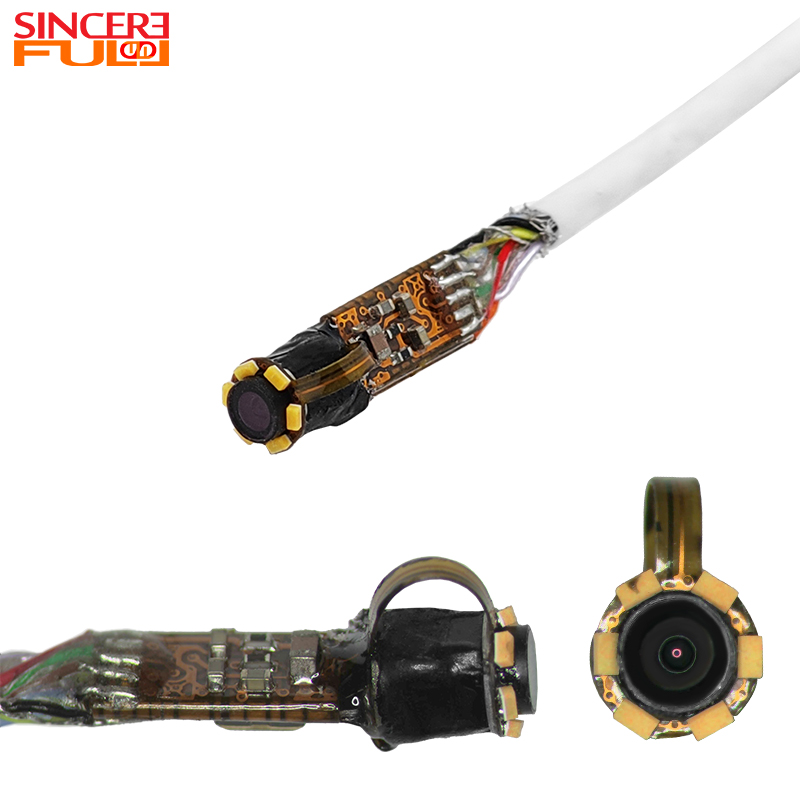

High Integration: The 3.1mm diameter lens module integrates sensor and LED fill light, with small size and low invasiveness; the 140° wide-angle field of view covers a large range, reducing blind areas. The Separated design takes into account the miniaturization of the probe and the flexibility of system heat dissipation and integration.
Low-Cost Compatibility: The Separated structure + Type-C dual-interface design supports MIPI 1Lane, USB2.0 rate and UVC protocol, adapts to a variety of DSP boards and terminal devices, simplifies the integration process; SMT + AA process improves mass production yield and reduces mass application costs.

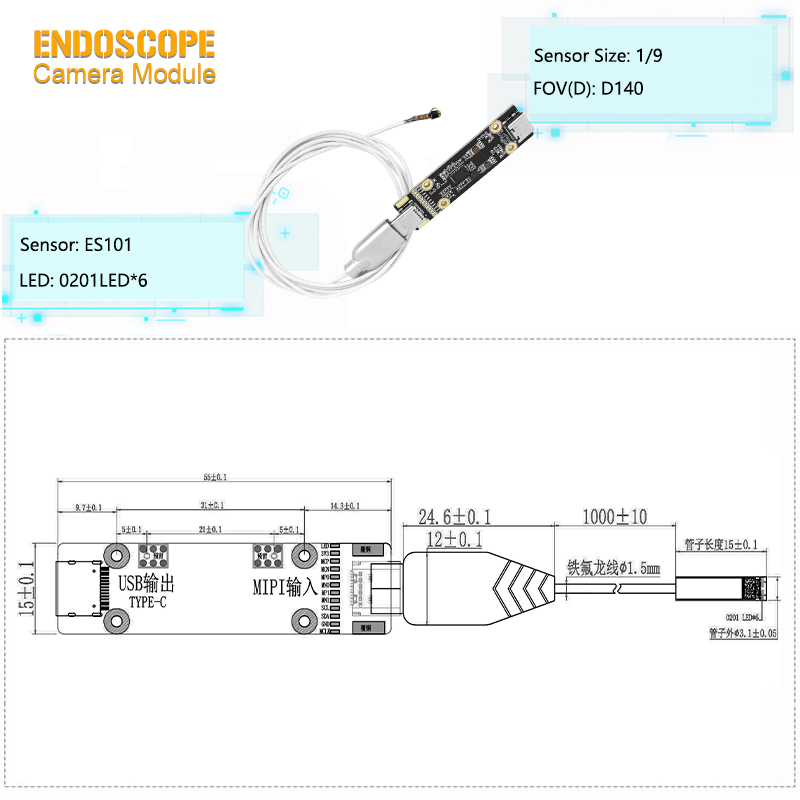

Product Name | Separate endoscope camera module |
Sensor | ES101 CMOS Sensor |
Sensor Size | 1/9 Inch |
Pixel | 1.4µm×1.4µm |
Resolution | 1000x1000 |
Interface | USB 2.0 |
Diameter | 3.1mm |
FOV | 140° |
Output Format | 10bit/8bit RAW |
LED | 6Pcs LED |
Arthroscope: In minimally invasive surgeries such as knee and shoulder joints, the high frame rate can clearly show the dynamic changes of cartilage fragments, ligaments and the precise operation of surgical instruments. The 75FPS smooth image helps doctors make complex and rapid movement judgments in the narrow joint cavity.
Neuroendoscope: In delicate neurosurgical operations such as transsphenoidal pituitary tumor resection, high-fluidity and delay-free images are crucial for safe navigation and operation around important nerves and blood vessels, which can improve the safety and accuracy of the operation.
Non-Sedation Otoscope: When examining uncooperative children, the high frame rate can compensate for sudden head movements, providing clear tympanic membrane visualization images without the use of sedatives, improving outpatient efficiency and safety.
Engine Borescope: The 140° wide-angle lens with 60FPS frame rate allows maintenance personnel to inspect rotating compressor blades through a single probe hole, detecting microcracks when the blades pass by without engine disassembly.
Yes, it uses a standard Type-C interface and USB2.0 UVC protocol for true plug-and-play connectivity with Windows, Android, and medical tablets—no driver installation required.
Six white LEDs are built into the 3.1mm diameter lens module, providing self-contained illumination. This eliminates external light guides and reduces invasiveness in narrow spaces.
The module supports both YUV (uncompressed) and MJPEG (compressed) video output formats, allowing users to choose based on their image quality and bandwidth requirements.
