SF-SJYL7-FT+SF-SJN735125 D102
SINCEREFIRST

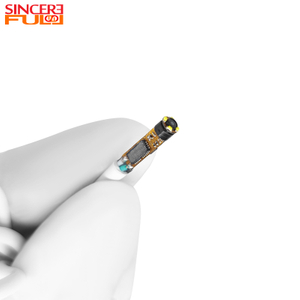

This is wide-angle 720P HD OV9734 CMOS detachable Type-C endoscope camera module utilizes the OmniVision OV9734 sensor, delivering 1280x720 resolution and smooth 30FPS video quality. Its most prominent feature is the combination of a 5-15mm ultra-close focus range and a 102° ultra-wide field of view, it can provide an extremely wide and clear field of vision even at very close distances, significantly improving inspection efficiency. The module features a φ3.5mm ultra-slim lens integrated with 4 LED beads for coaxial illumination. Manufactured using SMT and AA (Active Alignment) processes, it ensures excellent optical quality. The detachable design, coupled with a USB Type-C interface supporting UVC protocol, offers true plug-and-play functionality, making it an ideal choice for medical and industrial endoscopic inspection. |  |
Ultra-Close Range with Expansive View: The unique combination of 5-15mm ultra-close focusing and 102° ultra-wide field of view addresses the core challenge of limited visibility during close-range inspections. It allows for a comprehensive view without movement, greatly enhancing examination efficiency and observational completeness.

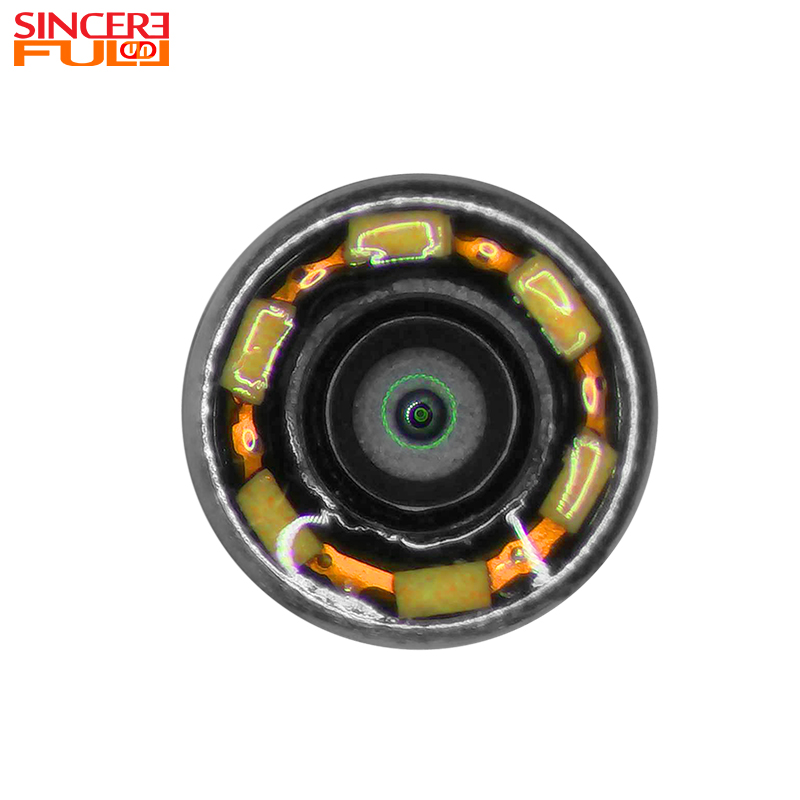

Integrated Lighting Design: The lens front integrates 4 LED beads, achieving coaxial light source alignment. This provides uniform, shadow-free illumination for small, dark cavities, effectively preventing shadowing and ensuring clear, bright images.
High-Quality Precision Manufacturing: Produced using SMT technology and AA (Active Alignment) process, it ensures precise optical centering, minimizes distortion and aberrations, and delivers consistent high-definition image quality and product reliability from center to edge.
Ultimate Convenience and Compatibility: True plug-and-play operation. Utilizing a Type-C interface and supporting UVC protocol, it requires no driver installation and is compatible with mainstream operating systems like Windows, macOS, Linux, and Android, enabling seamless integration with various software.

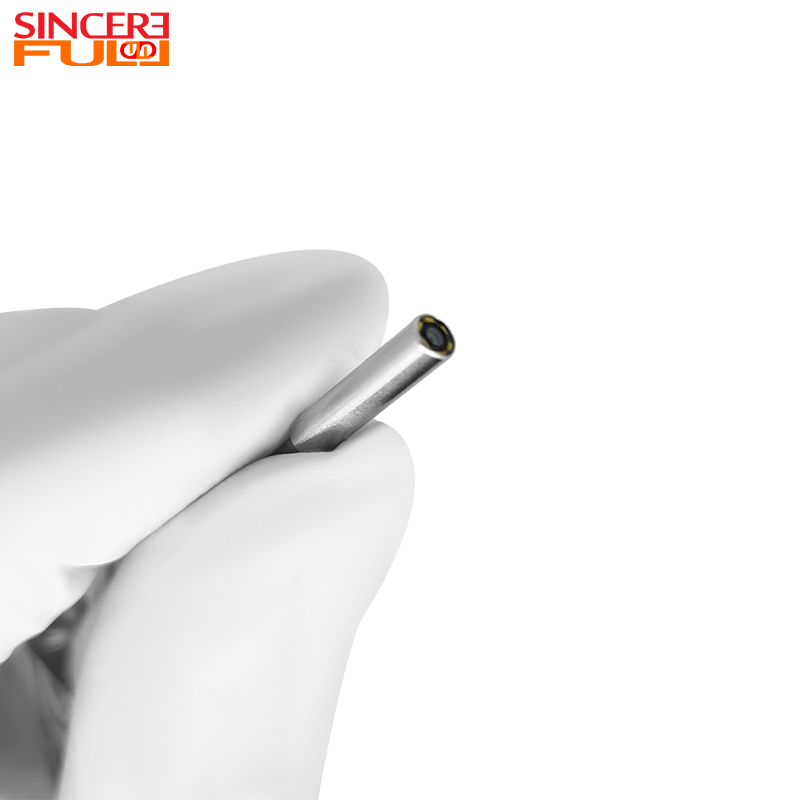

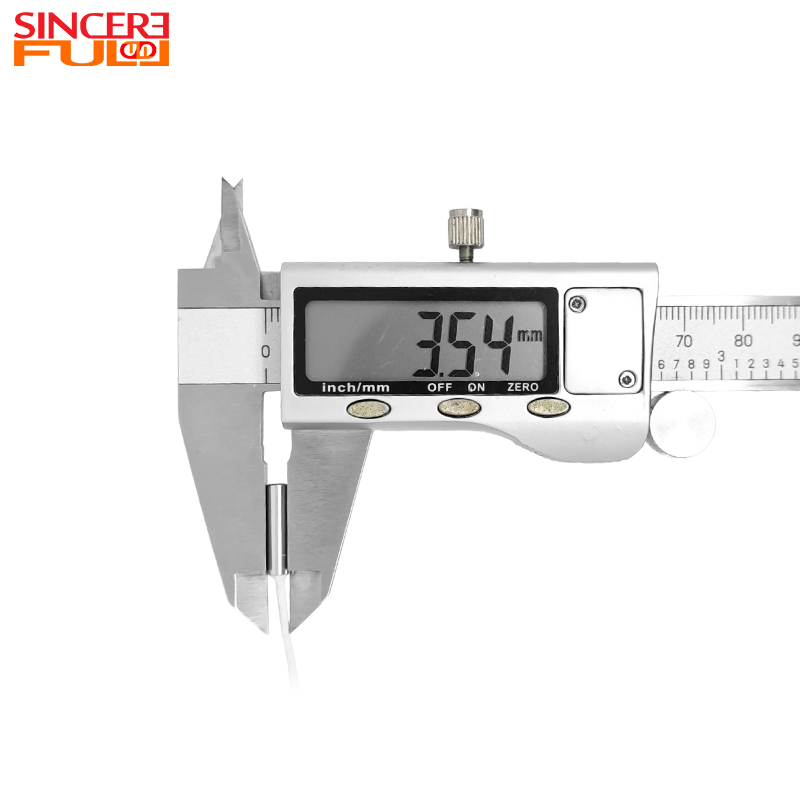

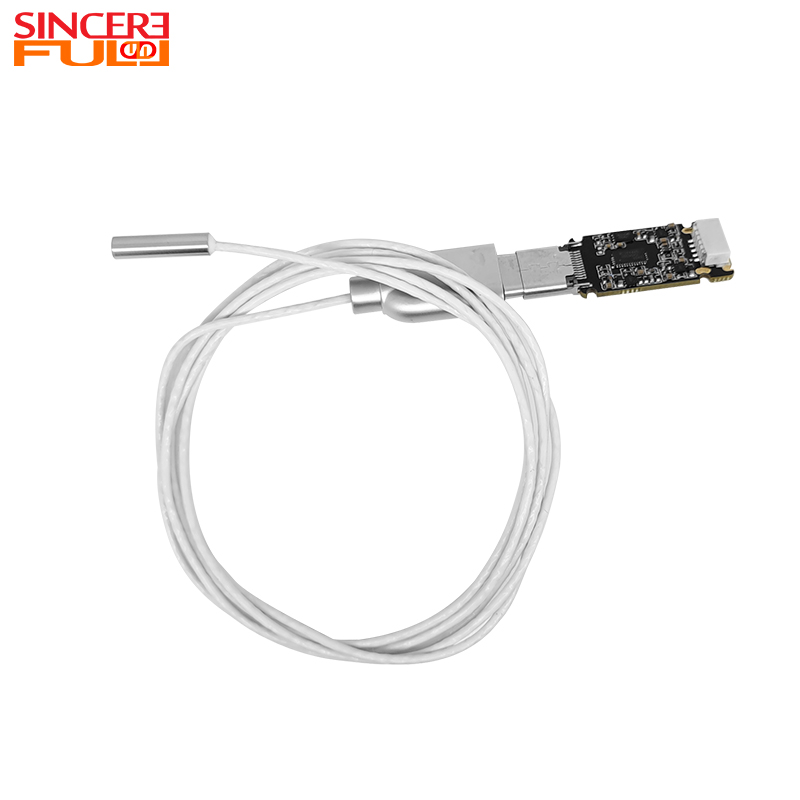

Flexible Structural Design: The detachable design separates the core module from the cable, minimizing the module's volume (lens only φ3.5mm). It can be easily integrated or adapted to various specifications of sheaths and fixtures, offering high application flexibility.
1. Superficial Diagnostics: Painless, non-invasive examinations suitable for ENT (ear canal, nasal cavity), dentistry (teeth, oral mucosa), dermatology (skin micro-observation), and veterinary applications.
2. Compact Medical-Device Integration: Can be embedded in portable diagnostic devices or handheld endoscopes as their core imaging module.
3. Precision Manufacturing & Quality Inspection: Used to inspect internal machining flaws, burrs, assembly conditions, and mold damage within precision parts such as engines and gearboxes.
4. Equipment Maintenance & Overhaul: Enables visual inspection of hard-to-reach interiors—like pipe walls, valves, and condensers—without disassembly, allowing rapid fault location.

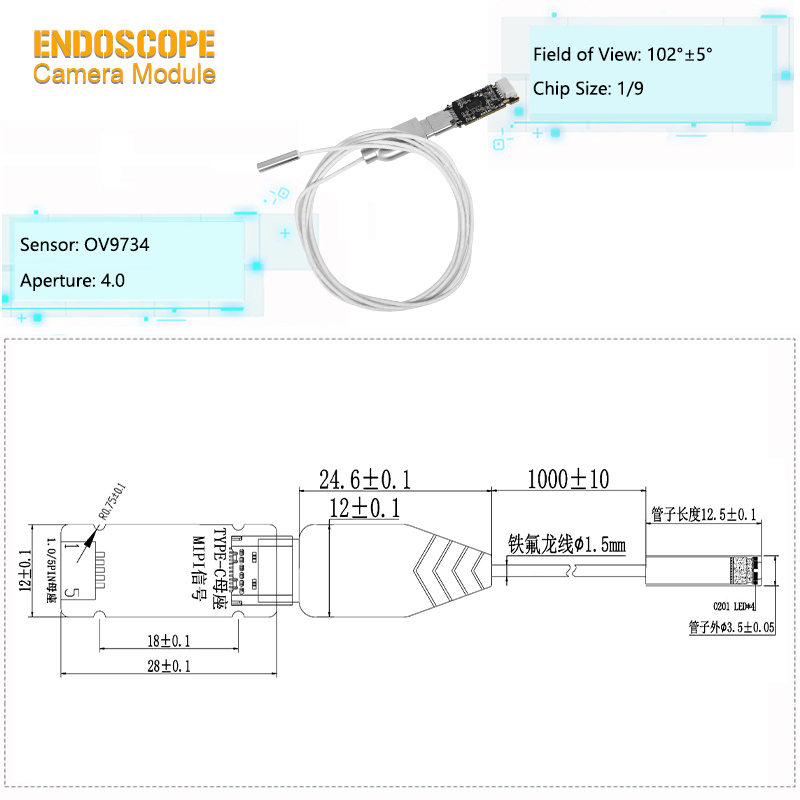

Product Name | Endoscope Camera Module |
Features | OV9734 Endoscope Camera with Shell |
Pixel | 1MP |
Sensor | OV9734 |
F.NO | 4.0 |
Focus Range | 5-15mm |
Sensor Size | 1/9 Inch |
Trademark | SINCERE FIRST |
Fov | 102° |
TV Distortion | <20% |
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability, wide temperature operation and special light sources.
This pairing achieves a 90° large field of view to expand observation range, balances light intake, and keeps the lens slim (3.6mm diameter) for easy access to narrow spaces.
The endoscope camera module provides a range of options for users, including the choice between an integrated or separate design tailored to meet individual requirements. adaptability for various medical or industrial applications. Users can also select the diameter of the module, allowing it to fit different anatomical or operational contexts while ensuring effective access and clear visualization , Furthermore, the module's customization extends to the inclusion of a protective steel sleeve, which adds to its robustness and maintains sterility during medical tasks. Another significant aspect is the integrating LED lighting into the module. This feature enhances visibility in low-light environments, facilitating thorough examinations and accurate diagnoses.
Yes. The 1.4μmx1.4μm pixel size enhances light sensitivity, and 4 integrated LED beads provide supplementary lighting for clear imaging in dim settings.
