SF-U4530-SL-V3
SINCEREFIRST

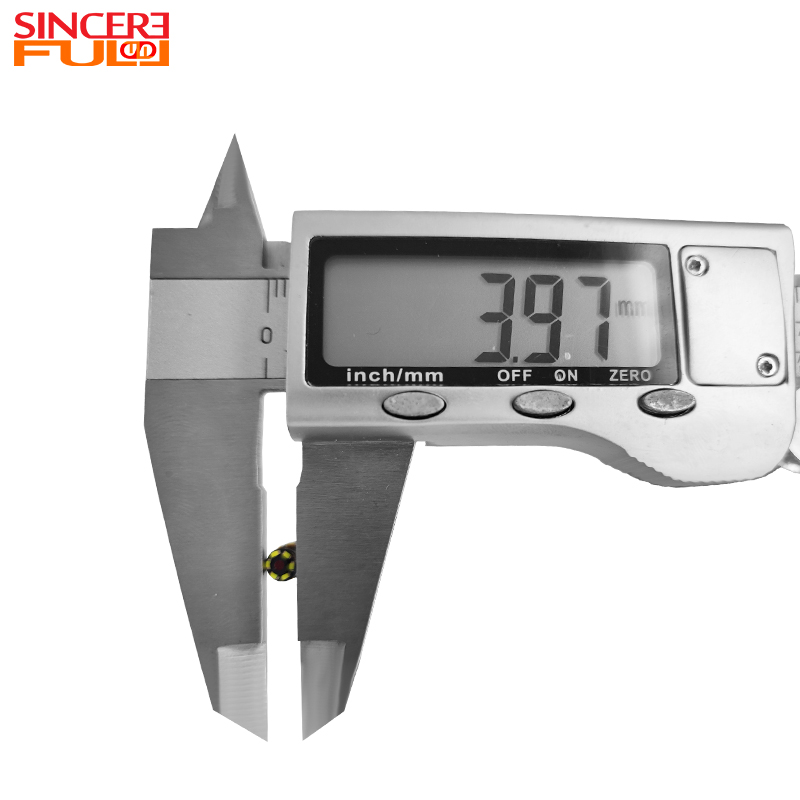

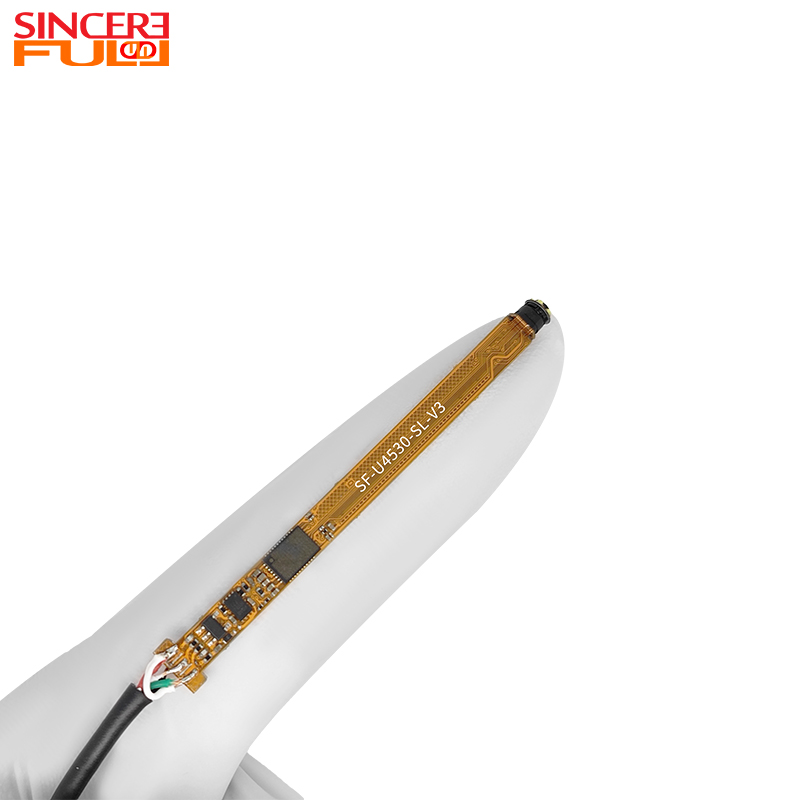

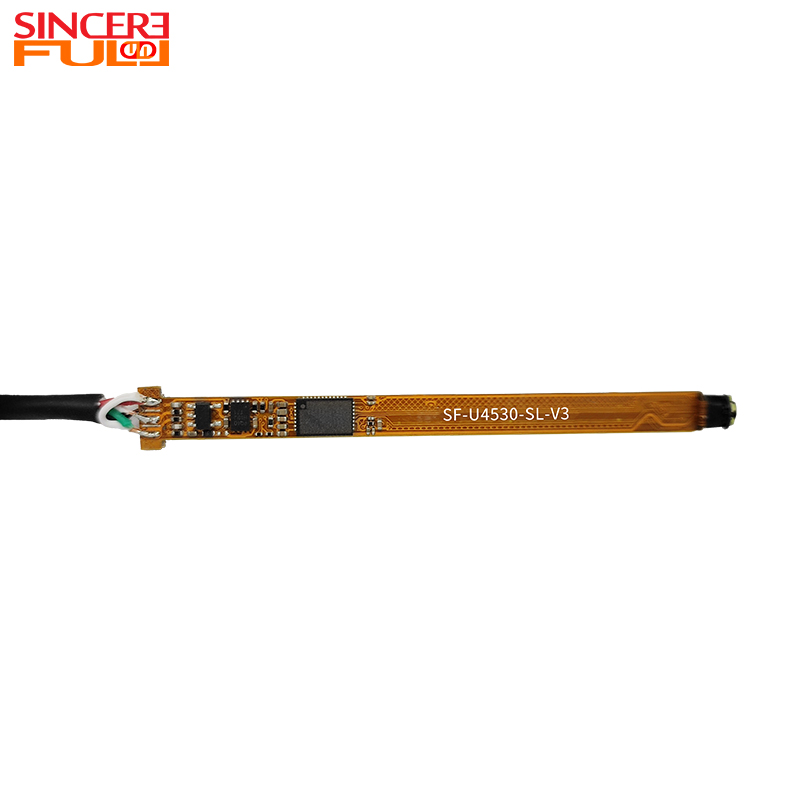

This is a camera module that adopts the BF2013CMOS chip specially designed for endoscopes and is equipped with 6LED beads. It can output images with a resolution of 653×493 and a speed of 30FPS in low-light conditions. Supports USB2.0 output, enabling stable and high-speed transmission of real-time low-latency images. The module size is only 60*2mm, φ2mm, and it is suitable for various industrial inspection, pipeline maintenance, medical diagnosis and other scenarios. |  |
1. Structural compactness
The LED beads adopt miniaturized packaging and are seamlessly integrated with a 2mm module diameter without any additional volume increase.
2. Clear image acquisition
VGA resolution (653×493 pixels), supporting 30 FPS real-time dynamic imaging, meeting the detailed observation requirements of medical and industrial inspection.
3. Uniform supplementary lighting
Six LED beads are arranged around the lens to provide 360° shadowless illumination, eliminating the shadow or reflection interference caused by traditional single-sided light sources.
4. Wide depth of field range
The module has a wide depth of field range of 5 to 50 mm, which enables it to conduct both close-up detailed observation and cover medium and long-distance scenes, such as internal inspection of industrial pipelines.
5. Stable image transmission

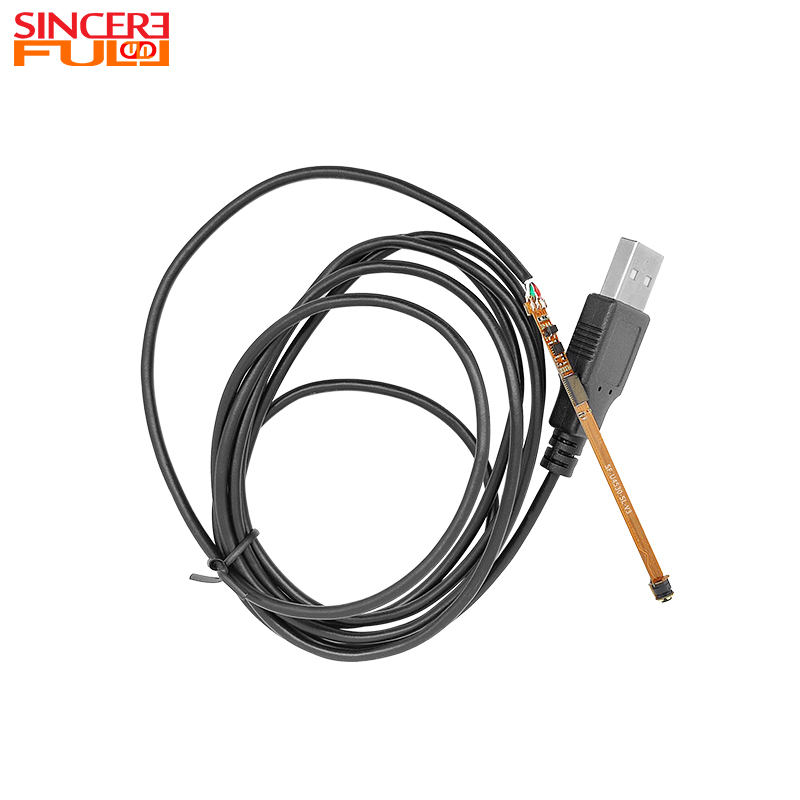

Equipped with a USB2.0 interface, it can transmit real-time low-latency high-definition images, enhancing work efficiency in medical and industrial inspection applications.
1. Minimally invasive surgical endoscope
Integrated into neuroendoscopes, arthroscopes or otolaryngological examination tools, it supports high-definition imaging of the surgical field and reduces patient trauma.
2. Precision equipment flaw detection
Detect internal defects in engines, pipelines, and circuit boards, with a wide depth of field (5-50mm) covering inspection requirements at different distances.
3. Semiconductor manufacturing
Real-time monitoring of the microstructure during 3D printing or chip packaging processes to ensure process accuracy.
4. Micro-robot vision
Integrated into micro-unmanned aerial vehicles or pipeline robots to achieve navigation and obstacle avoidance functions.

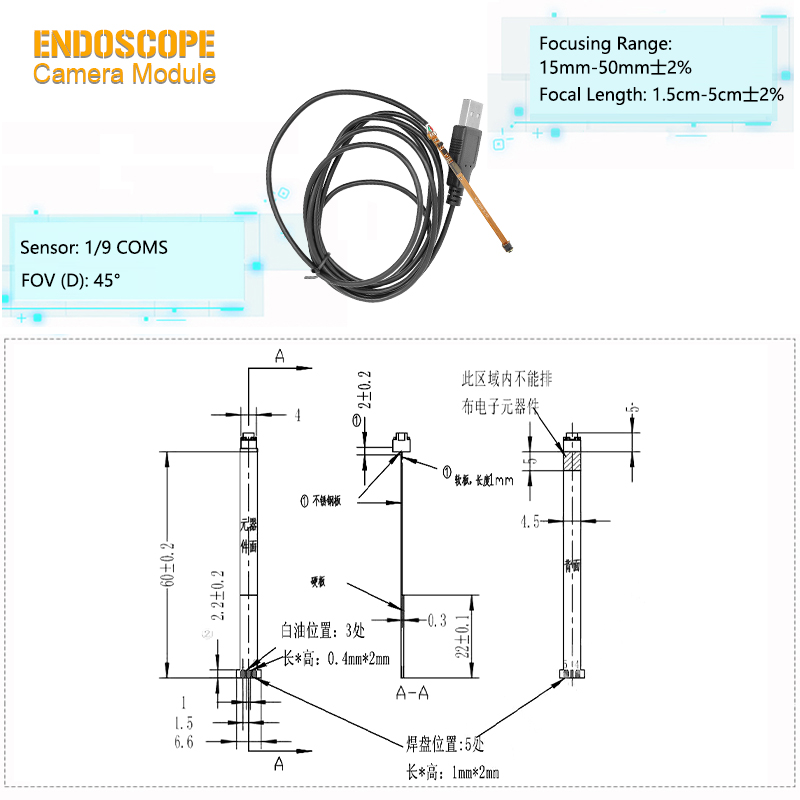

Product Name | Endoscope Camera Module with LED |
Image Sensor | BF2013 |
Pixel | 640×480 Pixels |
Focusing Range | 15-50mm |
Focal Length | 1.5-5cm |
F NO | 1.0 |
Product Type | Endoscope Camera Module |
Led | 2016 Led |
FOV(D) | 45° |
Feature | CMOS sensor Endoscope Camera Module |
Q1: Does this endoscope camera module have no casing?
Yes, this endoscope module has no casing. We offer customized shell services and there are a variety of different shells to choose from.
Q2: How much does the housing increase the size?
The housing increases the diameter from 2mm to 2.5-4mm (depending on material/function), with a 10%-20% size increase, yet remains compact for confined spaces.
Q3: How to confirm compatibility? More specs?
Suitable if you need a ≤4mm diameter, VGA (653×493) resolution, 30fps real-time video, low power (<100mW), and medical/industrial use. Full specs available upon request.
