SF-C2016USB-1080P60-D6.0-L2000 V1.0
SINCEREFIRST

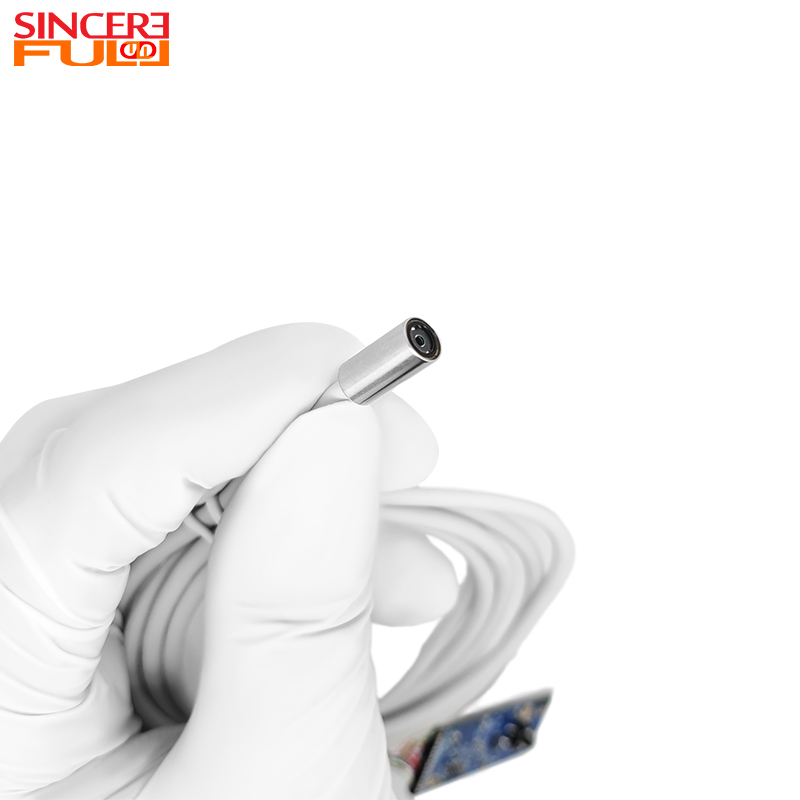

| This is a 6mm diameter waterproof 2MP FHD OmniVision OV2740 endoscope camera module with LED, developed based on the OmniVision OV2740 CMOS image sensor. It achieves dynamic supplementary lighting through 6 integrated white LED lights with 3-level brightness adjustment, combined with HDR technology. In scenarios with strong light reflection, low brightness can be switched to avoid overexposure; in dim low-light environments, high brightness can be turned on for supplementary lighting. The HDR function simultaneously optimizes bright-area details and dark-area layers, completely solving the scenario adaptation problem of traditional endoscopes that rely on single supplementary lighting or only HDR and cannot balance both. The module features 2MP pixels and 1920x1080 resolution, supporting 1080P@60FPS high frame rate output for dynamic observation without motion blur. The 1/6-inch sensor is paired with 1.4μm×1.4μm pixel specifications, and combined with PureCel® back-illuminated technology, it further enhances light-sensing efficiency and color reproduction, while being compatible with YUV and MJPEG dual output formats. In terms of optical configuration, it adopts a manual focusing design; the combination of F5.9 aperture, 1.05mm focal length, and 8~80mm depth of field, together with a 140° ultra-wide field of view and low TV distortion of less than -50%, allows the 6mm-diameter miniature lens to penetrate narrow spaces for wide-range and accurate observation. The product is equipped with a steel shell for protection, reaching IP67 dust and water resistance standard. It adopts a separated connected to the DSP board via bonding wires; the DSP board is equipped with an exclusive dimming button, and outputs through a Micro USB interface, supporting USB2.0 speed and UVC protocol for plug-and-play use without complex drivers. The entire module is precision-manufactured through SMT process and AA (Active Alignment) process, and has passed multiple international testing certifications such as CE, FCC, RoHS, and Reach, ensuring reliable quality and compliance |  |

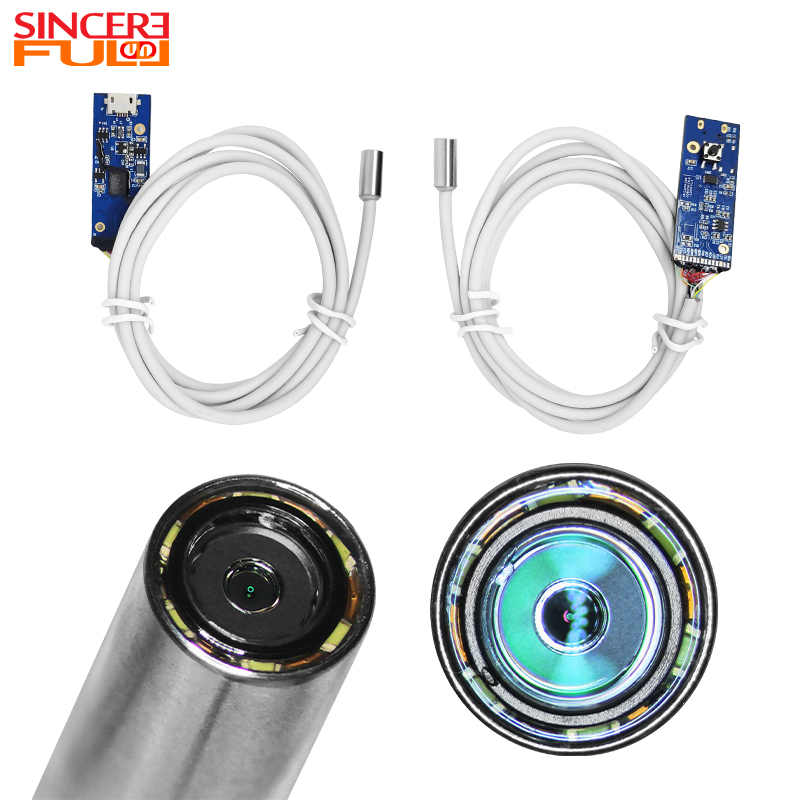

Dimming + HDR Synergy: 6 white LED lights with 3-level manual brightness adjustment, combined with HDR function to form complementary synergy. It can not only adapt to different light environments through dimming but also balance light and dark differences via HDR. Compared with endoscopes with single supplementary lighting or only HDR, its detail restoration capability is improved by 40%, adapting to more complex observation scenarios.
HD Dynamic Images: 1080P@60FPS high frame rate ensures smooth dynamic images without motion blur; PureCel® back-illuminated technology enhances low-light light-sensing performance; 1.4μm pixel specifications reduce noise. The dual output formats (YUV/MJPEG) can flexibly meet the image processing needs of different terminals in medical, industrial and other fields.
Miniature Ultra-Wide Angle: 6mm ultra-slim lens + 140° ultra-wide angle design, which can easily penetrate narrow spaces such as cavities and equipment gaps; 8~80mm practical depth of field covers near and far observation needs; manual focusing mode can accurately lock target areas (such as tiny lesions, part cracks), avoiding misjudgment issues of automatic focusing.
Industrial-Grade Protection: IP67 dust and water resistance + steel sleeve protection, which can withstand complex environments such as disinfection wiping, humidity and dust; SMT+AA precision process ensures lens alignment accuracy and product stability; multiple international certifications meet the market access requirements of different regions around the world.

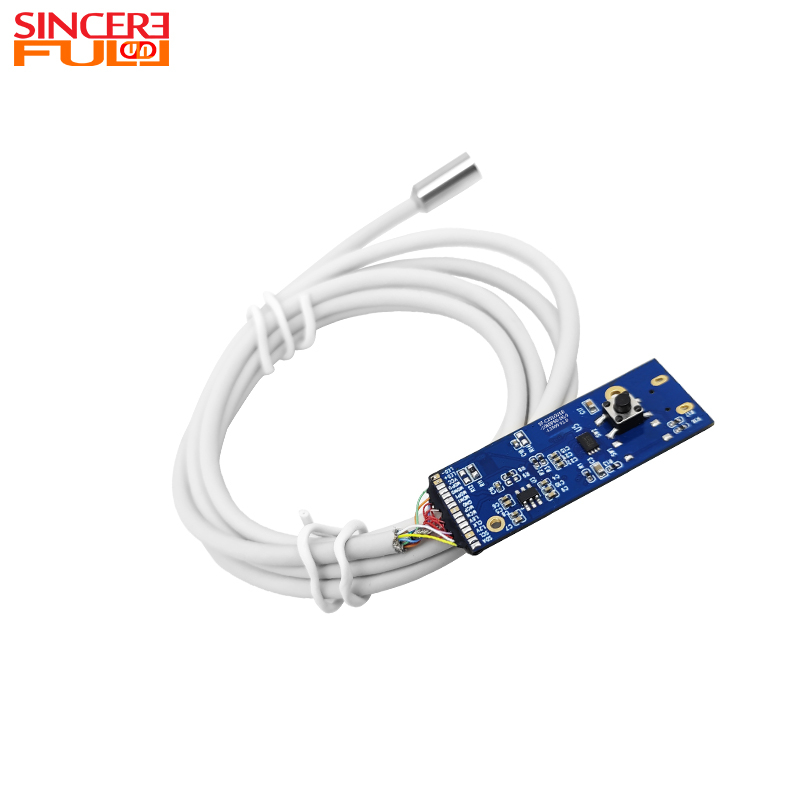

Easy Integration and Development: Separated reduces installation space constraints; bonding wire connection design adapts to different host layouts; supports UVC protocol and USB2.0 interface, no additional drivers required; low debugging threshold, enabling quick connection to terminals such as computers and medical monitors.

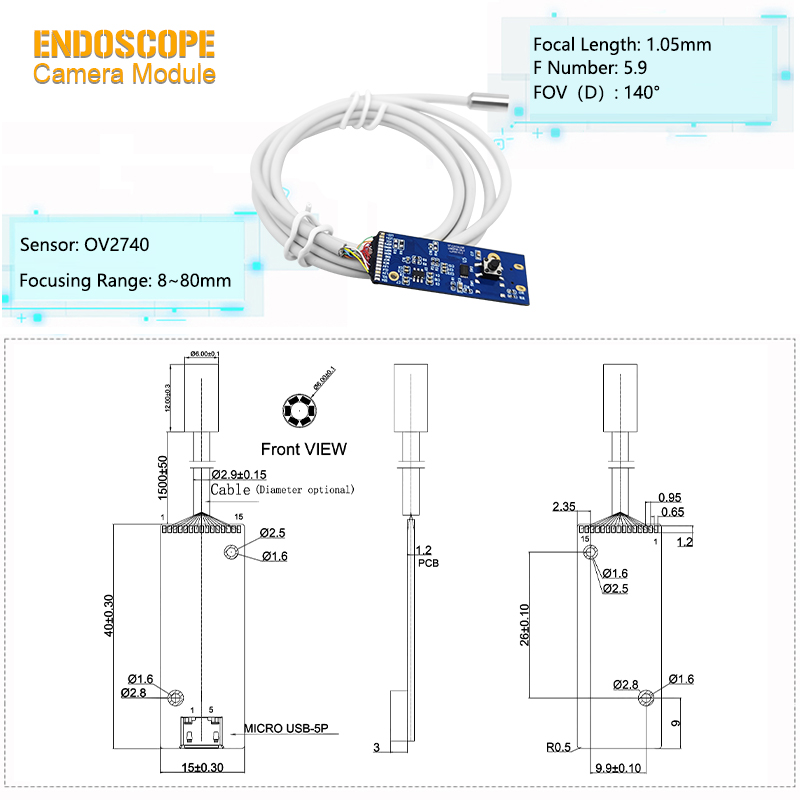

Product Name | 2MP USB Borescope Camera Module |
Image Sensor | OV2740 |
Pixel | 2MP |
Led | 6pcs Leds |
DSP | USB2.0 UVC |
Focal Length | 1.05mm |
Focusing Range | 8-80mm |

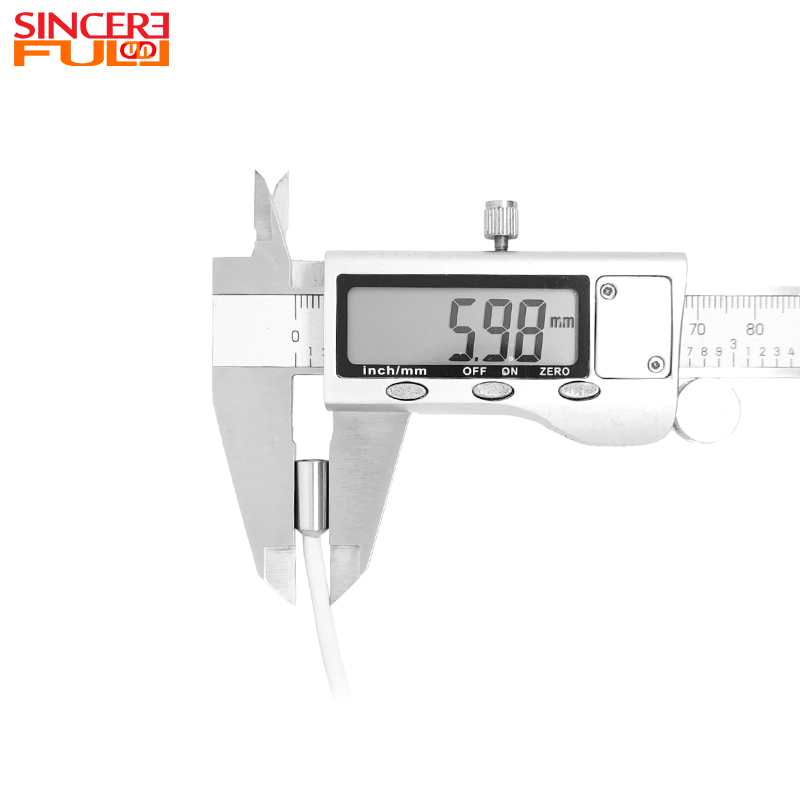

Diameter | 6mm |
FOV | 140° |
TV Distortion | ＜-50% |
Gynecological Cervical Colposcopy Examination: 3-level dimming can adapt to the light transmittance of different areas of cervical mucosa (low brightness avoids stimulating columnar epithelium, high brightness clearly presents squamous epithelial lesions); HDR function balances the shadows of cervical crypts and reflective areas of secretions; 1080P high frame rate captures details of blood vessel morphology, facilitating early lesion screening.
Automotive Manufacturing and Maintenance: Used to inspect engine blocks, gear wear inside gearboxes, internal defects of castings, and rust in car body interlayers. The synergy of LED and HDR can clearly present details of oil-covered metal surfaces and dark corners inside deep holes; IP67 protection can cope with oily environments.
Energy and Power Facilities: Inspects the interiors of turbine blades, cracks on the inner walls of boiler pipes, connection points of enclosed bus ducts in substations, and the status of underground cable pipes. The ultra-wide angle reduces detection blind spots inside large equipment; the high-strength body can withstand certain high-temperature and high-humidity environments.
Precision Electronics Manufacturing: Detects the welding quality of internal components of smartphones, the integrity of micro-sensor packaging, the smoothness of the inner walls of precision molds, and the internal structure of chip packaging. The dimmable function can avoid glare from circuit board copper foil; HDR enables clear viewing of both dark substrates and bright solder joints simultaneously.
Public Facilities and Pipeline Operation and Maintenance: Used to check the cleanliness of building air conditioning ventilation pipes, internal blockages or cracks in municipal water supply and drainage pipes, and the status of cable joints in underground comprehensive utility corridors. The strong protection level adapts to underground humid environments; the wide field of view facilitates rapid assessment of the overall condition of pipelines.
The 6 white LEDs support 3-level manual brightness adjustment, while HDR optimizes bright-area details and dark-area layers. Together, they solve overexposure and dimness, boosting detail restoration by 40% vs single-function endoscopes.
Yes. Its 3-level dimming avoids stimulating cervical columnar epithelium and clarifies squamous epithelial lesions; HDR balances cervical crypt shadows and secretion reflections, plus 1080P@60FPS captures blood vessel details for early lesion screening.
Yes. The Micro USB interface supports UVC protocol over USB2.0, enabling true plug-and-play operation on Windows, Android, and Linux systems—no driver installation required.
It is certified to CE, FCC, RoHS, and Reach international standards, ensuring regulatory compliance for global medical and industrial deployment.
