SF-YL0320-V1+SF-SJM10365
SINCEREFIRST

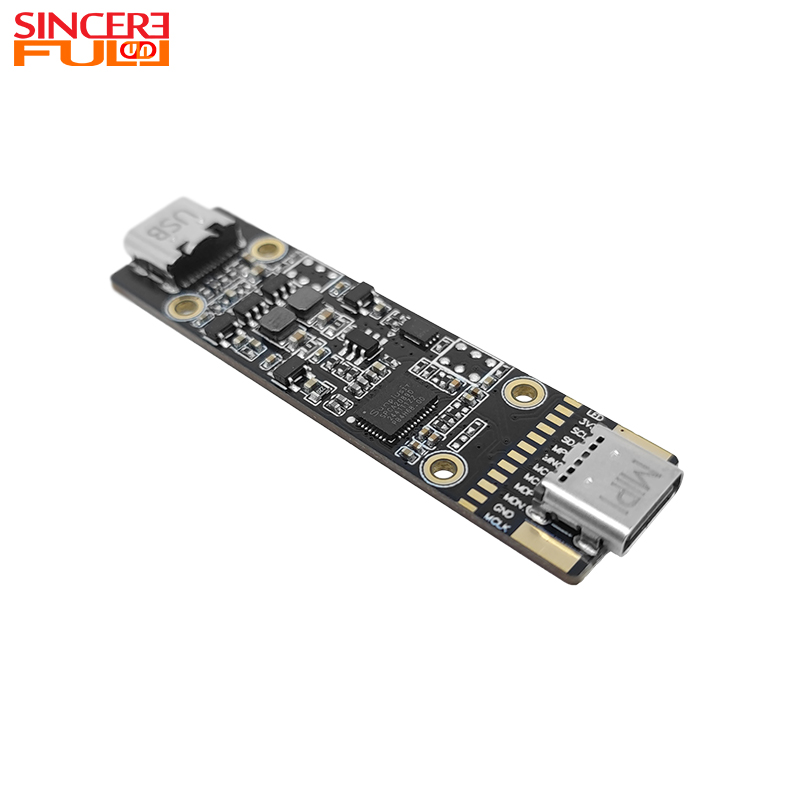

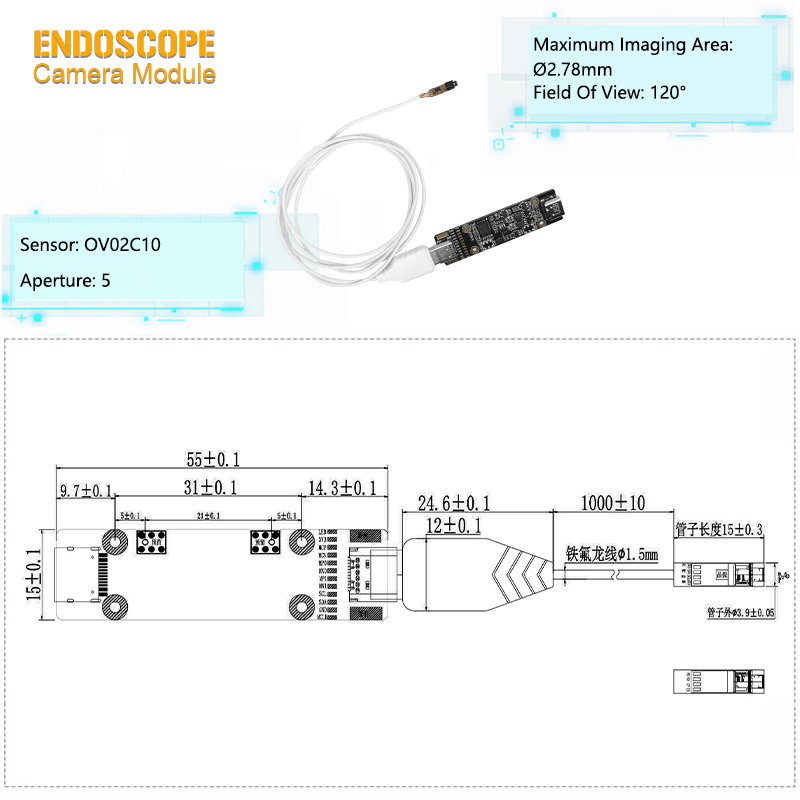

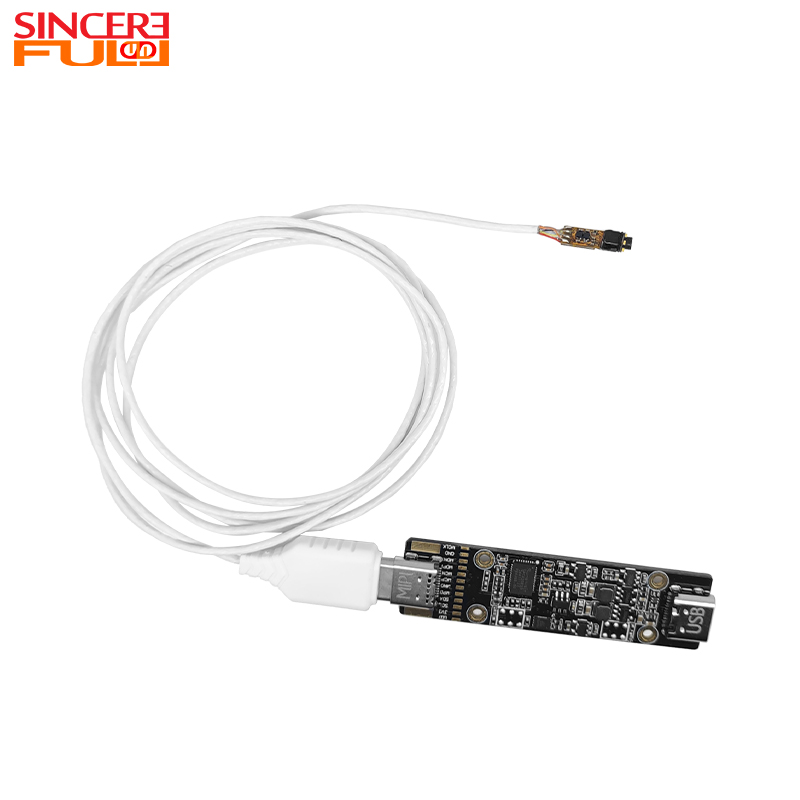

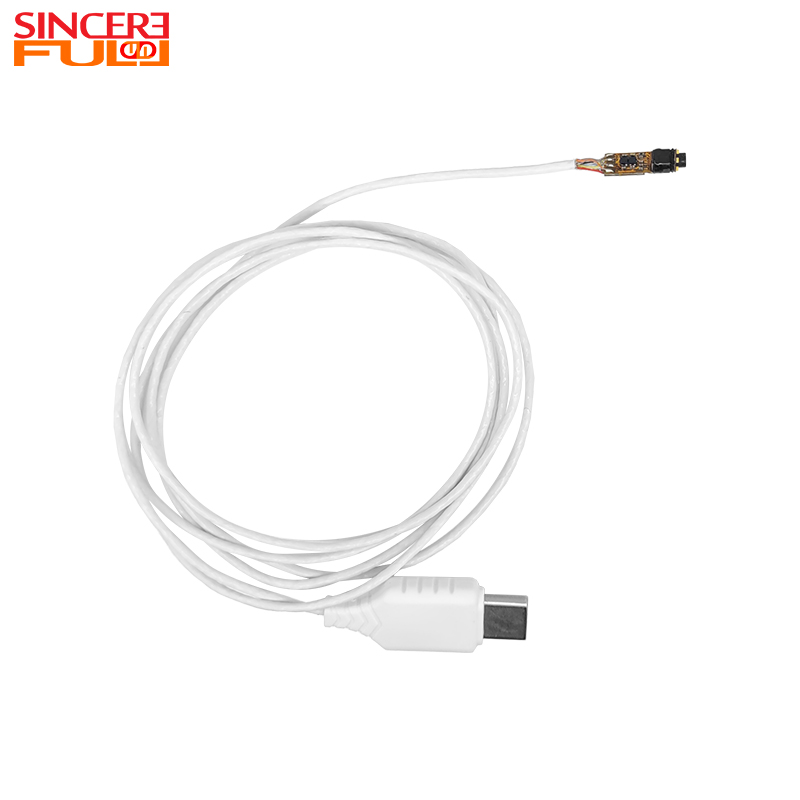

This is an industrial LED endoscope camera module equipped with the 60FPS full-HD OV02C10 image sensor. It adopts the OmniVision OV02C10 CMOS color image sensor, featuring 2MP pixels. Its core advantage lies in supporting a maximum output of 1080P@60FPS images, which effectively eliminates motion blur and lag when observing fast-moving objects or dynamically scanning complex internal structures, enabling the capture of smooth, high-definition images without delay. The sensor size is 1/7.25 inch, paired with an ultra-slim lens with a diameter of only 3.9mm, which can be easily adapted to detection needs in narrow spaces. Meanwhile, the lens is equipped with an F5.0 aperture, a 120° wide field of view, and a maximum imaging circle of 2.78mm, allowing it to cover a wider observation range. It also integrates 6 9653 LED beads to cope with low-light environments. The product supports manual focusing and direct-view image output, and adopts a split design. It transmits MIPI signals to the DSP board via a Type-C interface, then outputs signals at USB 2.0 speed through a Type-C interface, and is compatible with the UVC protocol for plug-and-play functionality. Overall, it is in a bare module form, manufactured using SMT technology and Active Alignment (AA) process, and has fully passed multiple tests and certifications such as FCC, CE, Reach, and RoHS, balancing performance and compliance. |  |
Dynamic HD Imaging: The combination of 1080P resolution and 60FPS high frame rate ensures no motion blur or detail loss in dynamic scenarios. Combined with 2MP pixels and lens LED fill light, it can still maintain clear imaging in low-light environments, meeting the needs of precise observation.
Strong Adaptability to Narrow Spaces: The 3.9mm ultra-slim lens diameter and 1/7.25-inch compact sensor can be embedded into slim endoscope probes or small detection equipment. The split design and bare module form further reduce installation restrictions, making it compatible with various compact device structures.
Flexible and Convenient Operation & Compatibility: The manual focusing function enables precise positioning of observation targets; the Type-C interface and USB 2.0 speed ensure fast data transmission; and compatibility with the UVC protocol supports direct integration with most systems, allowing it to be put into use without complex secondary development.
Reliable Production Quality & Compliance: Manufactured using SMT technology and Active Alignment (AA) process, it ensures the structural accuracy and performance stability of the module. It has passed multiple authoritative global tests and certifications, meeting the strict quality standards of medical, industrial, and other fields.
Real-time Monitoring of Mechanical Operation Status: It is highly suitable for real-time online monitoring of high-speed rotating gear sets, transmission shafts, or precision components in vibrating environments. The smooth 60FPS images help engineers accurately judge the real-time working status and potential abnormalities of mechanical equipment.
Fluid System & Biological Dynamic Research: It can be used to observe the flow pattern of liquids in closed pipelines and the process of bubble formation and disappearance. In the field of biomedicine, it can also be used to study the physiological dynamics and real-time responses of small animal models in a free-moving state.
Product Name | 2MP 3.9mm Endoscope Camera Module |
Image Sensor | OV02C10 CMOS Sensor |
Pixel | 2MP |
Diameter | 3.9mm |
View Angle | 120° |
F NO | 5.0 |
Product Type | Separated Endoscope Camera Module |
Led | 6pcs 9653 Led |
Interface | Type-C |
Feature | CMOS sensor Endoscope Camera Module |

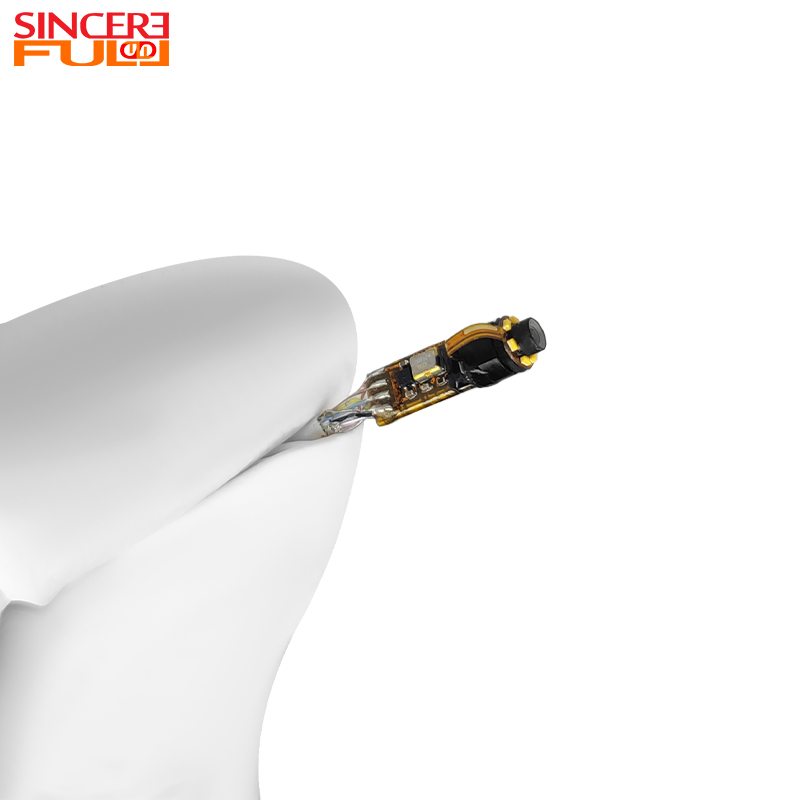

The lens integrates 6 9653 LED beads for fill light, paired with the OmniVision OV02C10 sensor—ensuring clear imaging even in dim conditions.
Manual focusing allows precise targeting of specific details. It's especially helpful for scenarios where auto-focus might miss small, critical areas.
It uses a Type-C interface, supports USB 2.0 speed and UVC protocol, enabling plug-and-play compatibility with most systems without complex secondary development.
