SF-TA10USB-D0.9
SINCEREFIRST

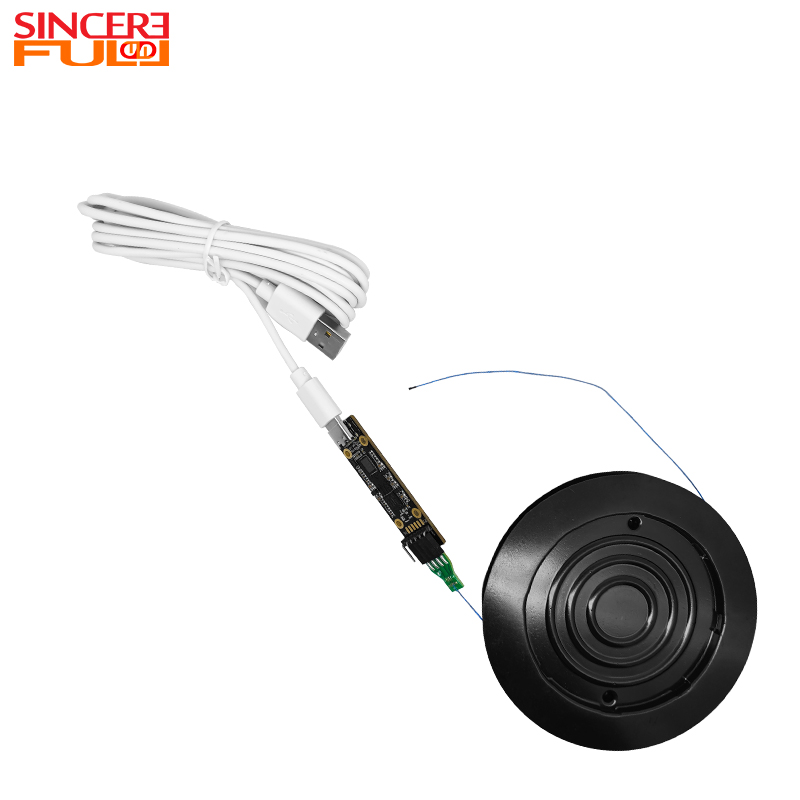

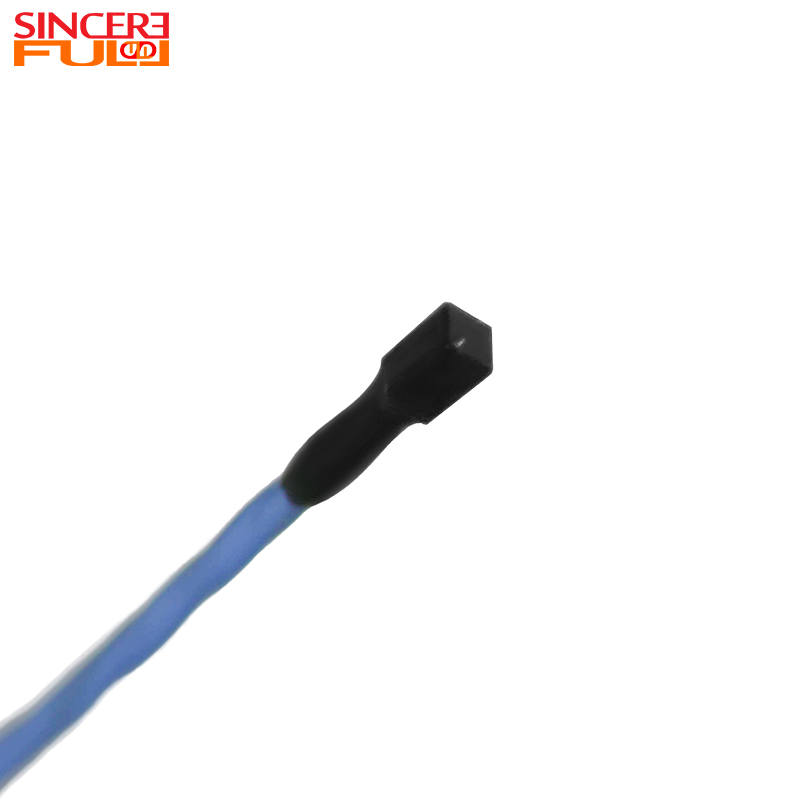

This is ultra micro 0.9mm diameter OCHTA10 CMOS separate USB endoscope camera module. It incorporates a 1/31-inch OmniVision OCHTA10 CMOS sensor, leverages 1.008 µm pixel technology and a 120° wide-angle lens to deliver 30 fps smooth video at 400 × 400 resolution, ensuring lesion details in narrow cavities are clearly visible. The detachable architecture separates the Ø0.9mm ultra-micro lens from the main body, significantly improving device flexibility, while four high-CRI LEDs integrated around the lens eliminate insufficient illumination in deep cavities. A Type-C connector supports USB 2.0 UVC for true plug-and-play operation. Combined with SMT precision placement and AA active alignment manufacturing, the module achieves medical-grade reliability at the extremes of miniaturization, offering a disruptive imaging solution for ultra-delicate procedures such as neuro-intervention and intravascular endoscopy. |  |

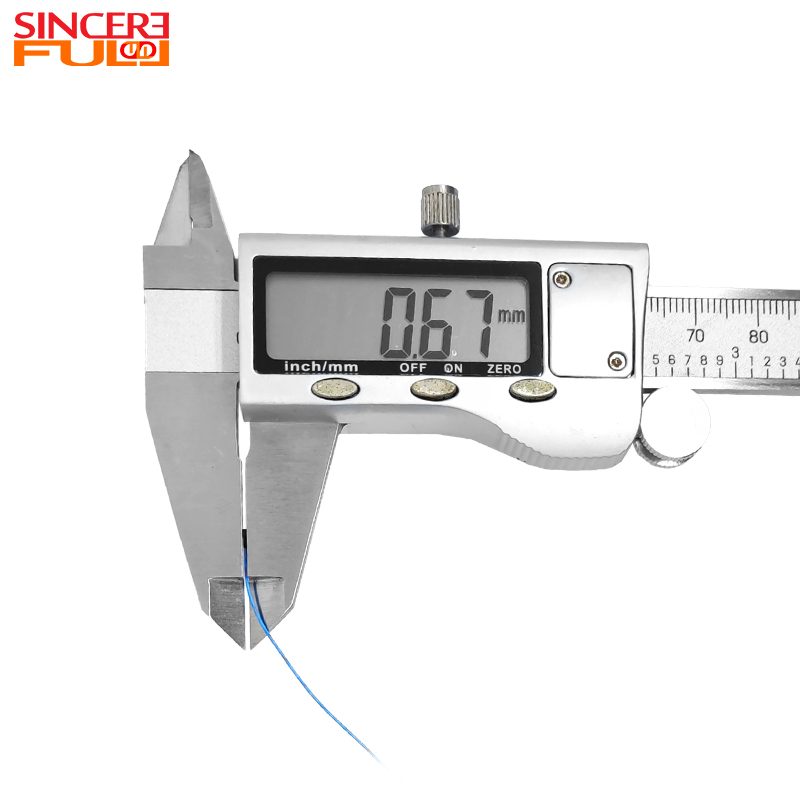

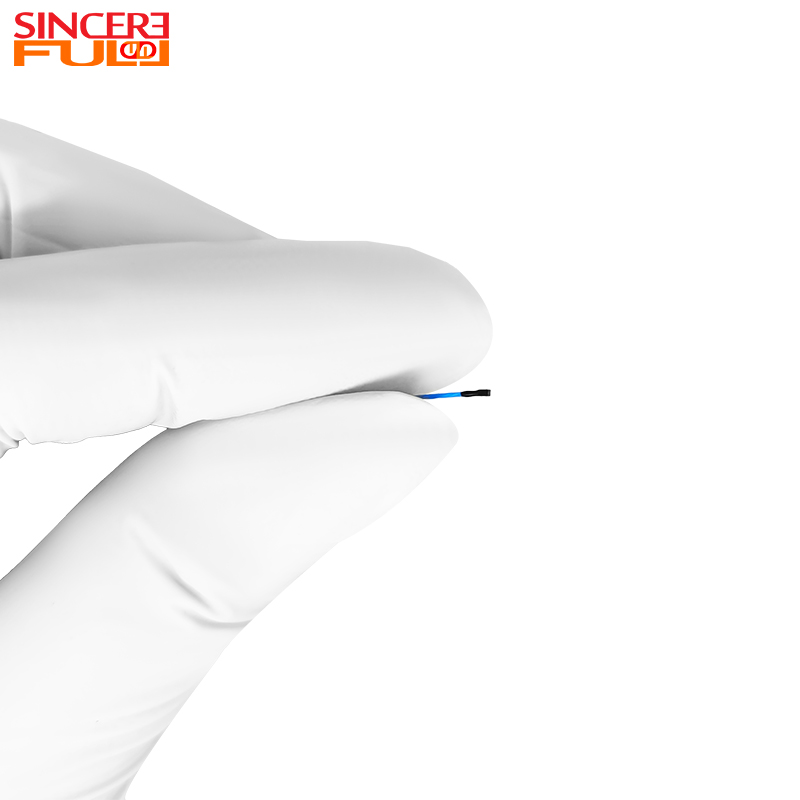

1. 0.9mm Lens Diameter: A breakthrough in micro-miniaturization that fits neuro catheters, intravascular scopes, and other ultra-delicate surgical scenarios—minimizing invasive trauma and markedly lowering patient risk.
2. High-Precision Imaging System: 400 × 400 resolution at 30 fps delivers fluid video, while 1.008 µm pixels render tissue textures in crisp detail. The 120° wide-angle lens captures a broader field of view, reducing the need for repeated lens repositioning and the associated procedural risk.
3. Smart Illumination Solution: The 88° diagonal field of view covers a broader area, making it particularly suitable for operations in confined spaces.
4. Strong Compatibility: Four integrated LEDs dynamically compensate for dark zones inside the cavity, ensuring clear, bright images under any lighting condition.
5. Plug-and-Play Compatibility: Type-C connector with UVC protocol offers driver-free compatibility with mainstream surgical imaging systems. USB 2.0 transmission latency is < 50 ms, satisfying real-time video requirements.
6. Advanced Production Techniques: State-of-the-art SMT placement plus Active Alignment (AA) processes achieve micron-level assembly accuracy, guaranteeing long-term stability and medical-grade reliability.
1. ENT Examinations: Easily navigates deep into the ear canal and nasal cavity to inspect corners unreachable by conventional instruments, such as minute lesions in otitis media.
2. Minimally Invasive Neurosurgery: When operating beside nerves as thin as a hair, it slips through the tiniest incision and gives surgeons a clear view of delicate microstructures.
3. Precision Equipment Maintenance: Inspects faults in confined spaces like watch movements or aircraft engine oil lines where access is extremely limited.
Product Name | 0.9mm Endoscope Camera Component |
Image Sensor | OCHTA10 CMOS |
Lens Size | 1/31 inch |
Pixel Size | 1.008um X 1.008um |
Maximum effective pixel | 400x400 |
Interface type | USB2.0 High Speed |
View Angle | 120° |
Supported resolution and frame rate | 30fps VGA YUV MJPEG / 30fps QVGA YUV |
Focus Type | Fixed Focus |
Operating temperature | -20～70℃ |
FAQ
1. What are the special requirements of laparoscopic surgical modules?
Anti-fogging design (lens heating or anti-fogging coating), 3D imaging capability, instrument channel integration, and color reproduction must be accurate (e.g., distinguishing tissue oxygen status).
2. Why do pipeline inspection modules need long cables?
The cable length is usually 10-30 meters, including Kevlar tensile layer and waterproof connector, which supports real-time transmission while resisting internal friction and chemical corrosion of the pipeline.
3. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).
4. Does this endoscope camera module require driver installation?
No, it is completely driver-free. With a USB2.0 interface and UVC protocol support, it offers plug-and-play functionality on Windows, Mac, and Android systems.
5. Does this endoscope camera module support custom lenses?
We support the customization of endoscope camera module lenses with a diameter of 0.9mm.
