High Resolution 7.9mm Hd Colposcope Mini Multi Endoscope Camera Module

This 1 MP CMOS Endoscope Camera Module features a compact 7.9mm lens with a 95° field of view, 1.08mm focal length, and a focus range of 10-100mm, delivering sharp, accurate images for medical and industrial inspections.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SF-SJT720 D7.9

  • SINCEREFIRST

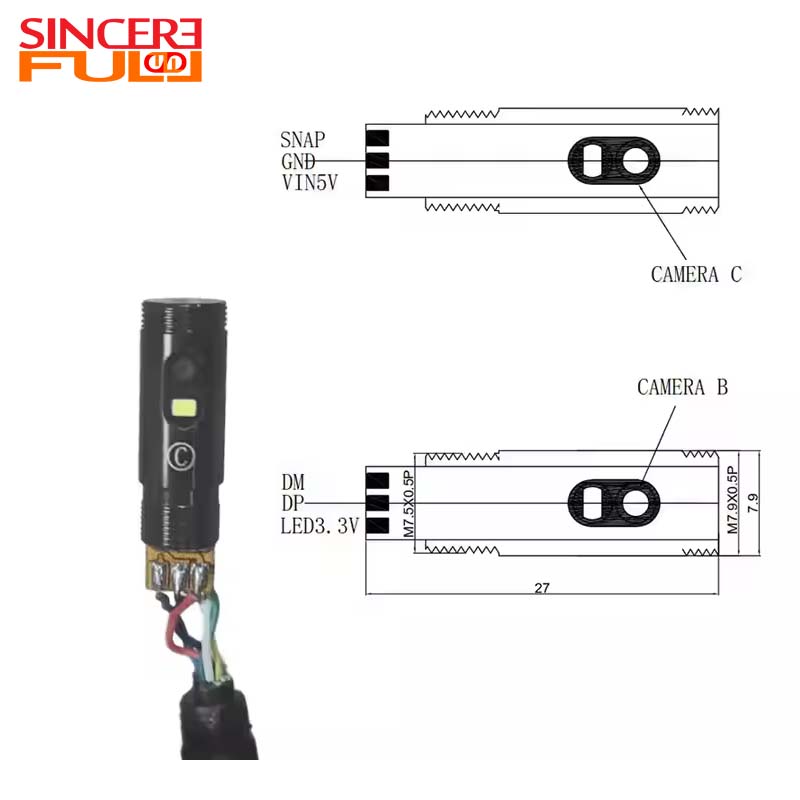

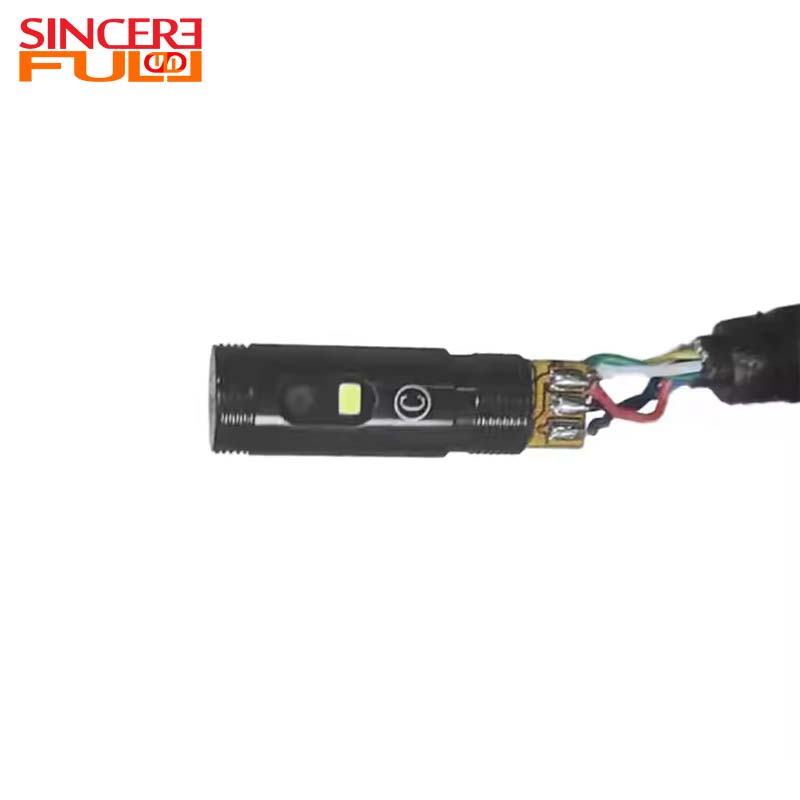

This is a High Resolution Camera Module and a Mini Camera Module features a 1 MP CMOS sensor paired with a compact 7.9mm diameter, With a focal length of 1.08mm and a generous field of view of 95° (D), 85° (H), and 43.5° (V), this 7.9mm Endoscope Camera Module captures extensive detail in tight spaces.


The lens is engineered with TV distortion of less than -10%, ensuring sharp and accurate images. Its focus range spans from 10mm to 100mm, accommodating various inspection needs.


This Multi Endoscope Camera Module integrates seamlessly into your setup, whether for medical applications or industrial inspections. Experience the imaging with our endoscope camera module, ideal for endoscope camera systems and HD colposcopes.

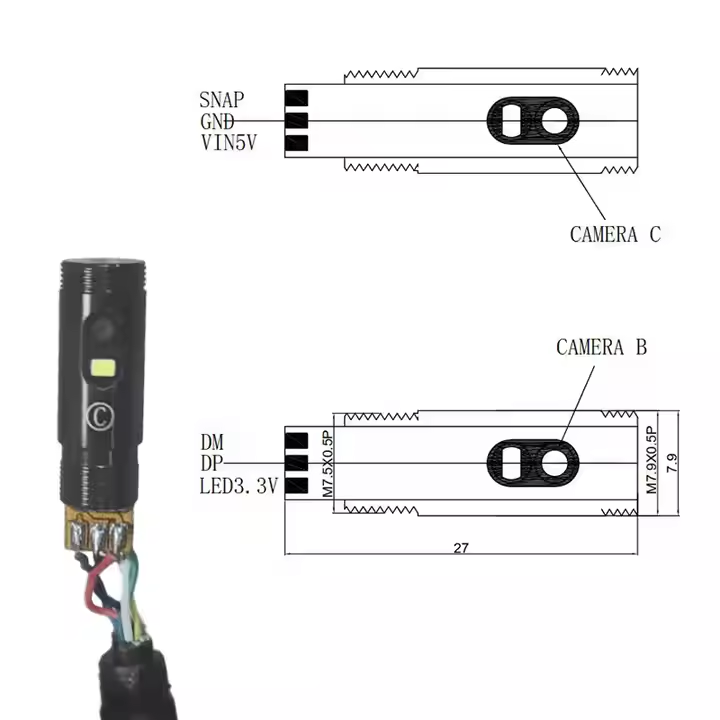

High Resolution Camera Module


Product Advantage ◢

  • Resolution: 1 MP CMOS sensor for clear and detailed imaging.

  • Design: 7.9mm diameter suitable for tight spaces.

  • Field of View: 95° diagonal, 85° horizontal, and 43.5° vertical.

  • Focus Range: Adjustable from 10mm to 100mm for various applications.


Technical Parameters ◢

Product Name

Mini Endoscope Camera Module

Features

Multi Camera Module

Pixel

1MP

Sensor

CMOS

Diameter

7.9mm

Interface

USB

Focusing Range

10-100mm

Trademark

SINCERE FIRST

Fov(D)

95°*85°*43.5°

Focus

Fixed


Product Uses ◢

  • Gynecological Examination

  • Colposcopes


Packing and Shipping◢

Product Packaging

Endoscope Camera Module

USB Cable


User Manual Shipping

Ships within 1-2 business days

Free shipping within the US

International shipping available for an additional fee

Tracking number provided


Application of Endoscope Camera Module

1. Minimally invasive surgery: peritoneoscope-assisted surgery with visual field extension (95° wide Angle to reduce blind areas), otorhinolaryngology narrow cavity exploration (7.9mm diameter suitable for standard Trocar), real-time navigation of arthroscopic surgery without failure time).


2. Automobile manufacturing quality inspection: cylinder casting porosity analysis (TV distortion <-10% to ensure measurement accuracy), transmission gear meshing state monitoring, new energy battery module welding quality inspection.


3. Pipeline testing: diagnosis of structural defects of municipal drainage pipes, monitoring of weld corrosion of petroleum pipelines (IP67 protection grade), inspection of microbial contamination of air conditioning ducts.



FAQ

1. How to clean the endoscope camera lens?

Use a sterile soft cloth and special lens cleaner to avoid alcohol damage to the coating. Industrial modules can be blown with air to remove dust, oil environment should be combined with oil resistant solvent.


2. Why do Otolaryngology departments need ultra-small diameter modules?

With narrow ear/nasal space, modules with a diameter of less than 3mm can reduce patient discomfort while maintaining high resolution (e.g., ≥300 line pairs /mm) to identify small lesions.


3. How to achieve waterproof and sterilization design?

The medical-grade module uses IP68 waterproof seal, the housing material is resistant to high temperature and pressure (such as epoxy resin), and can withstand 134°C steam sterilization. Industrial modules may require only a splash proof design (IP54).
