SF-C1011USB-D3.9-720P60-L20
SINCEREFIRST

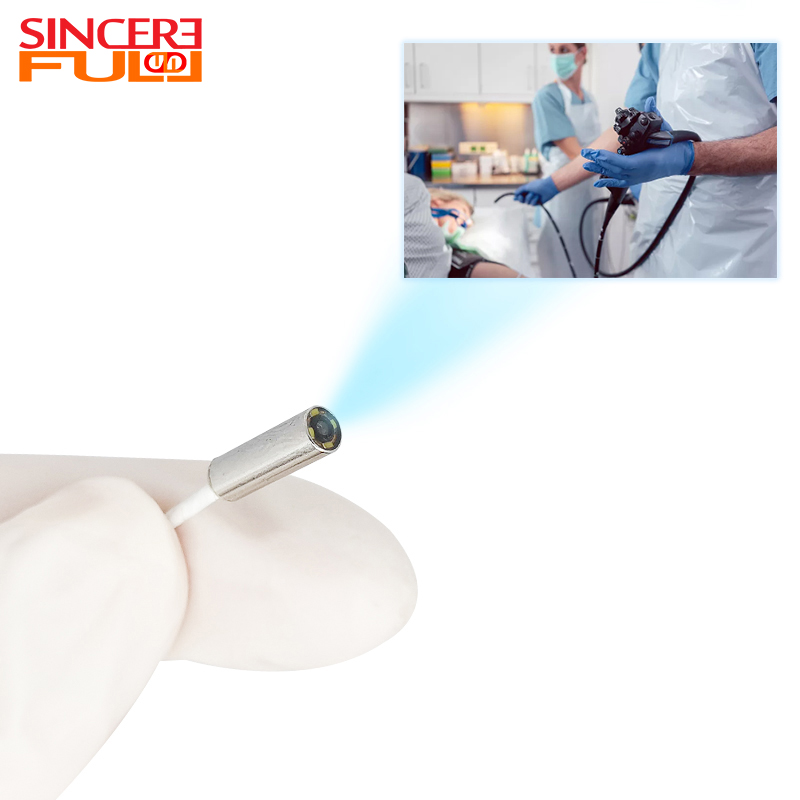

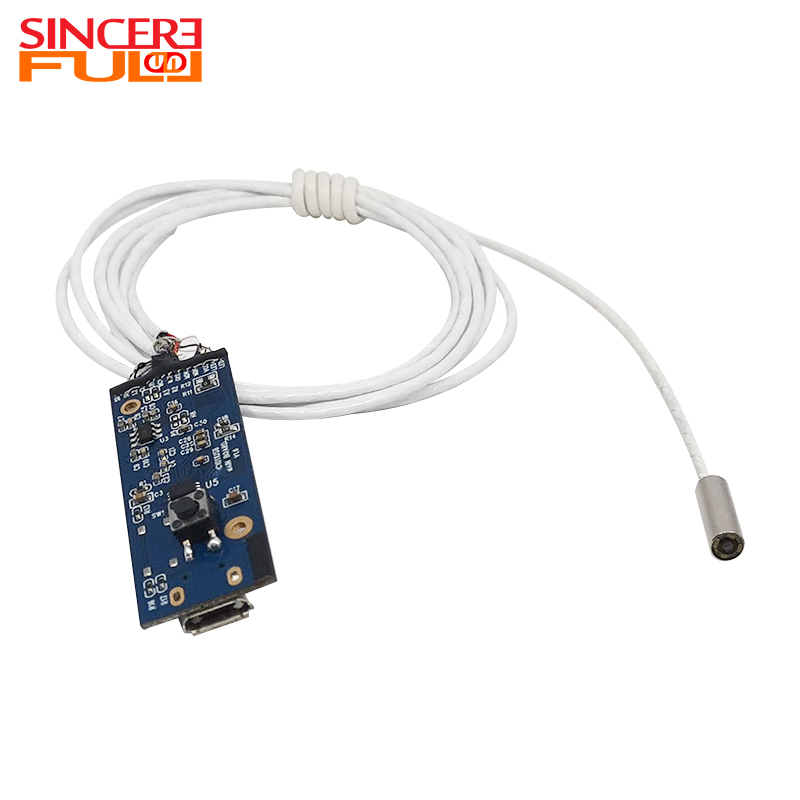

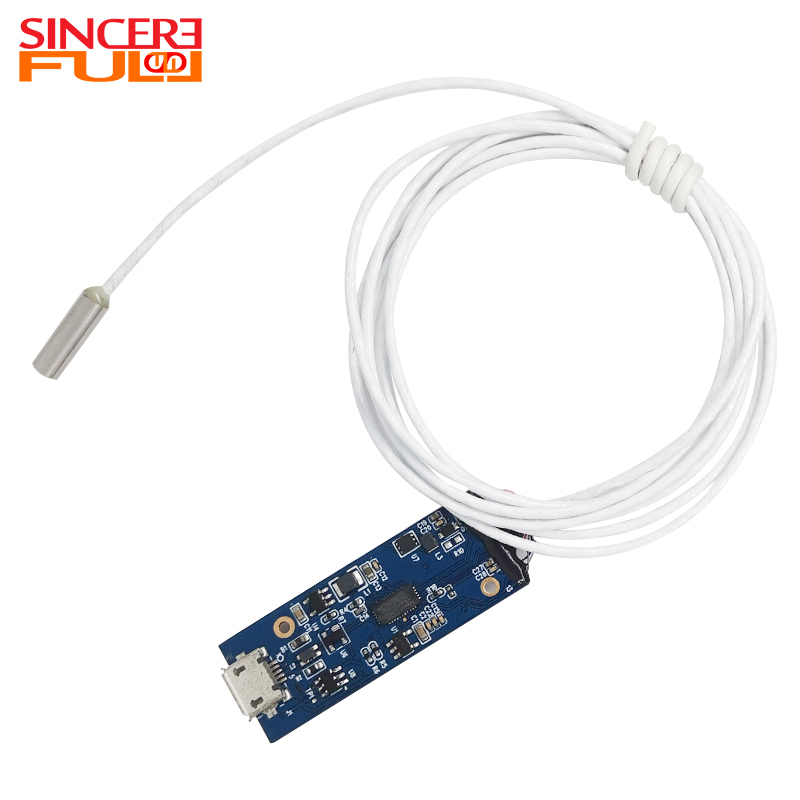

This is medical 3.9mm OH01A10 image sensor USB endoscope camera module, output 720P HD resolution at a smooth 60fps frame rate, ensuring high-quality imaging for diverse applications with its compact design and robust features. Equipped with a 1/11-inch optical sensor and 4 adjustable LED lights, it provides consistent illumination across varying light conditions, while the UVC interface enables plug-and-play USB connectivity for effortless setup. Key advantages include moisture resistance, full customizability, and a micro-sized diameter, supporting a focusing range of 10mm to 100mm, a 1.25mm focal length, and a 75° field of view for precision tasks. Ideal for specialized uses such as aero-engine hole inspections, early esophageal cancer screenings with AI-enhanced accuracy, and robot-assisted microsurgery for intricate procedures. |  |
Product Advantage ◢

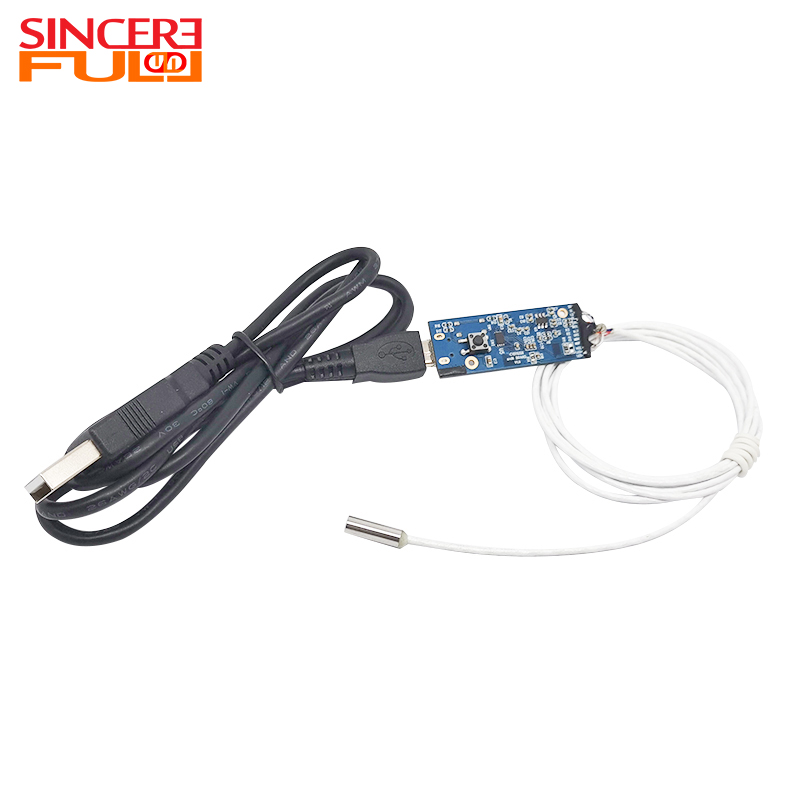

User-Friendly Operation: Plug-and-play USB connectivity, fully customizable for specialized requirements.
Smart Diagnostic Support: AI-assisted lesion marking with 0.2mm positioning accuracy, narrowband imaging enhances vascular contrast detection.
Medical-Grade Performance: 10-100mm focusing range suits diverse clinical applications,UVC interface guarantees stable 4K signal transmission.

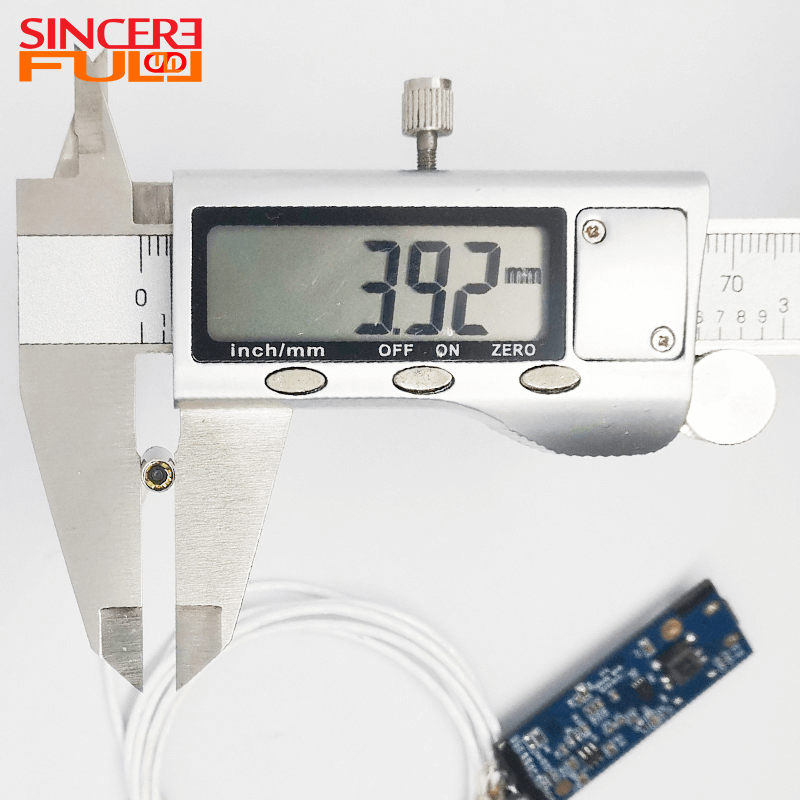

Compact and Robust Design: Only 3.9mm diameter for accessing confined spaces, moisture-resistant construction ensures durability.

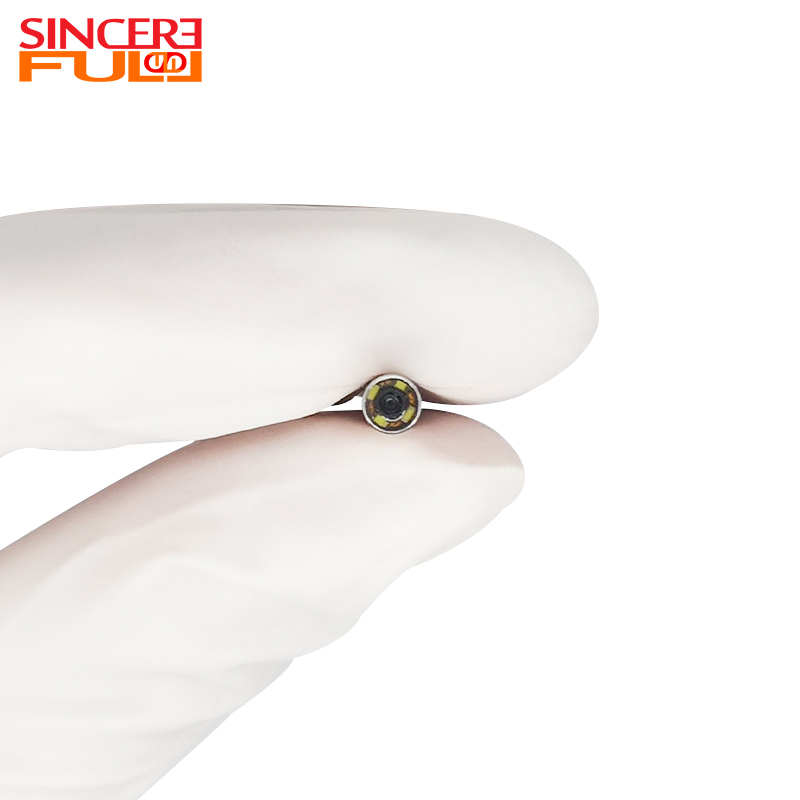

Adaptive Illumination System: 4 adjustable LEDs maintain optimal brightness in varying conditions, intelligent light compensation for dark field imaging.
High-Precision Imaging: 720P HD resolution at 60fps for smooth real-time visualization, 1/11-inch optical sensor with 75° wide field of view, 1.25mm focal length enables 0.5mm microsurgery precision.
1. Otolaryngology Examination: High-definition imaging assists in the diagnosis of ear canal, nasal cavity and throat lesions.
2. Engine Endoscope: Utilizing miniaturized lenses, it can enter the interior of the engine to inspect wear or the assembly of parts.
3. Pipe Endoscope: With LED lights, it can enter the interior of the pipe to check if there are any cracks or defects on the inner wall of the pipe.
Technical Parameters ◢
Product Name | Industry Inspection Endoscope Camera |
Image Sensor | 1/11” |
Pixel | 720P |
Led | 0402 White Led |
Focusing Range | 10mm-100mm |
Focal Length | 1.25mm |
F Number | 4 |
FOV(D) | 75° |
TV Distortion | ＜-10% |
Lens | 120°*88.8° |
FAQ ◢
1. What is a endoscope camera module?
The endoscope camera module is a special image acquisition device for endoscope equipment. It usually consists of an image sensor, a lens system, a light source, a connecting interface, and an encapsulation housing material to capture a high-quality image or video of an internal organ or cavity for the staff to observe and intervene when conducting an inspection.
2. What are the common specifications of the resolution of the endoscope camera module?
Mainstream resolutions include 720p, 1080p, 4K, etc. Medical grade modules usually require more than 1080p to ensure diagnostic accuracy, while industrial modules may choose lower resolutions to reduce costs according to demand. Ultra-high resolution modules (such as 4K) are mostly used in precision surgery or scientific research.
3. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).
