SF-C1019USB-D3.9-ALL-D95
SINCEREFIRST

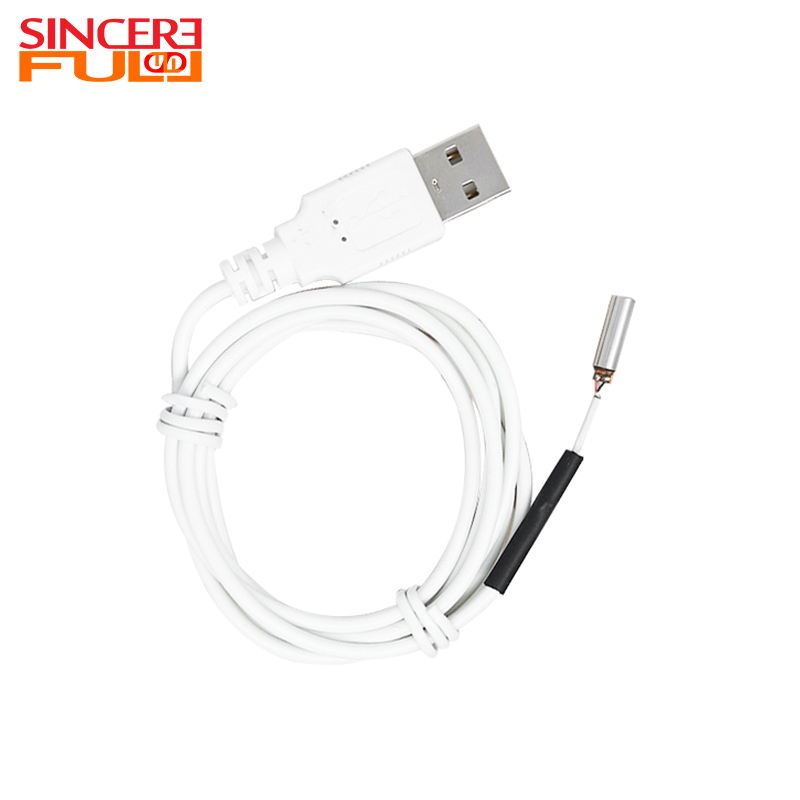

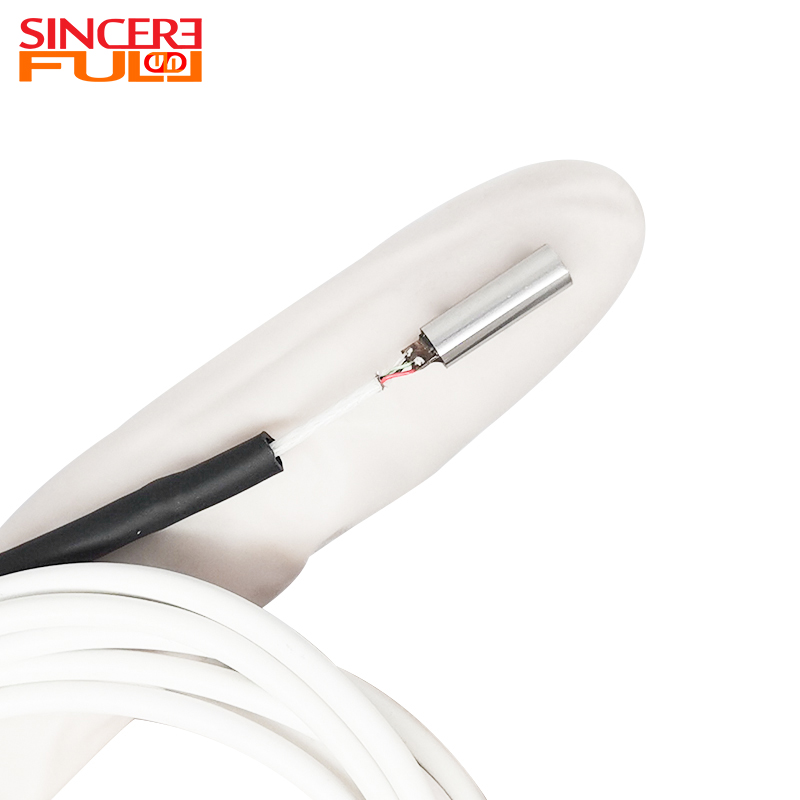

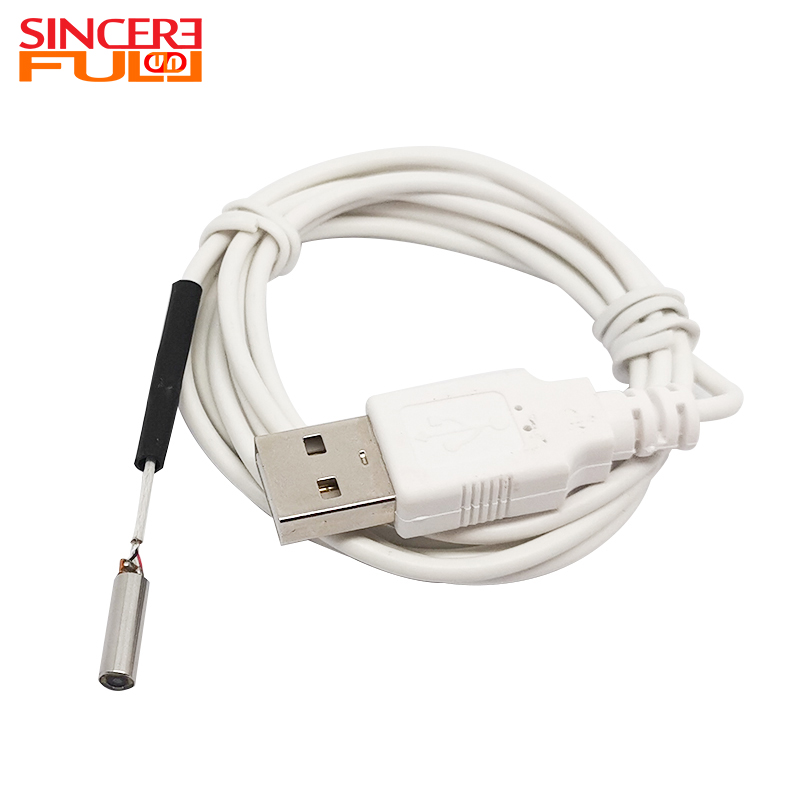

This 3.6mm USB multi-function camera module with OV9734 sensor and USB2.0 interface is designed for multi-scene high-precision detection. Its 1.25mm ultra-short focal length and F4 aperture achieve full-focus segment clear imaging within the ultra-wide focusing range of 10mm-100mm, adapting to the needs of macro observation and long-distance detection. The 95° diagonal Field of View (FOV) covers a wide area and combines with < -20% TV distortion control to ensure image edge accuracy while maintaining a large field of view. Integrated LED lights provide uniform fill light and eliminate imaging obstacles in dark environments. USB2.0 interface supports plug and play to quickly access various host devices. With a compact size of 3.6mm, this module can achieve full scene coverage of industrial inspection, medical endoscopy, security monitoring and scientific research observation, especially suitable for complex tasks such as engine interior exploration, mechanical assembly inspection and microscopic experimental observation. |  |
1. Extreme wide-angle coverage: 95° diagonal FOV captures a wider range of scenes and reduces shooting blind spots.
2. Full focus adaptability: 10mm-100mm focus range +F4 aperture, covering macro to long view requirements.
3. Edge accuracy guarantee: TV distortion < -20%, to ensure the reliability of image edge measurement under large field of view.

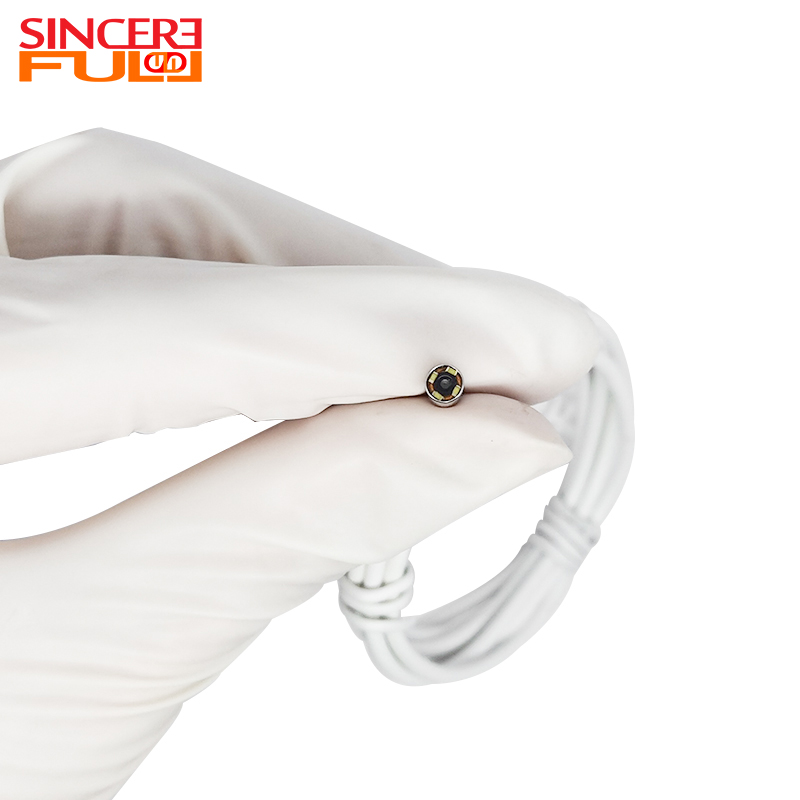

4. Dark environment optimization: Integrated LED lights complement the light and improve the imaging quality of hidden space.
1. Industrial testing: engine internal carbon inspection, pipeline corrosion detection, mechanical assembly quality monitoring.
2. Medical equipment: Integration of minimally invasive surgical endoscope, supporting 3.6mm fine-diameter instrument channel to observe lesions in vivo.

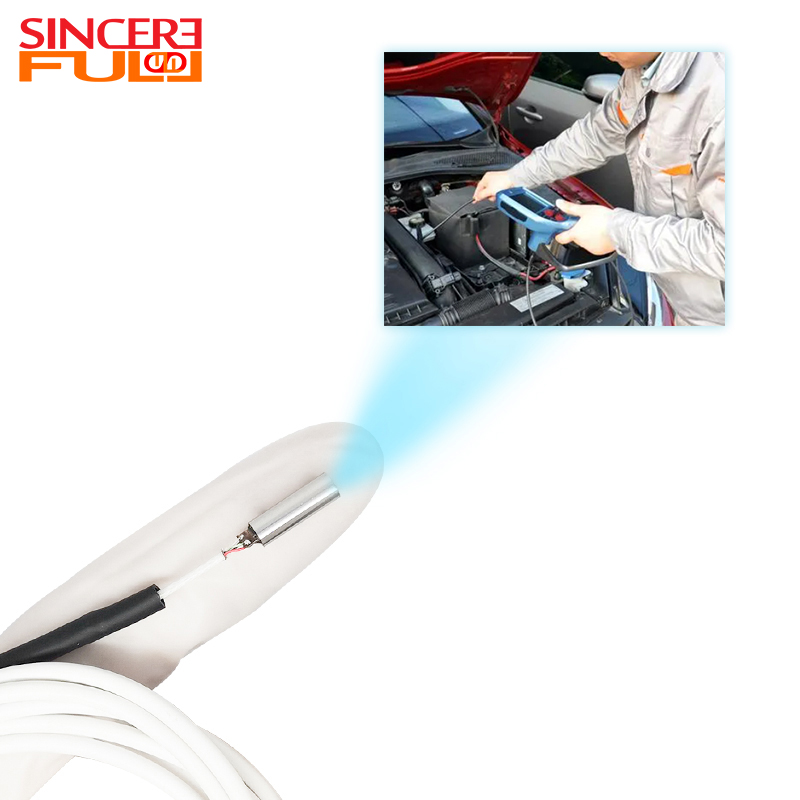

3. Automobile maintenance: visual maintenance of fuel system and exhaust pipe, auxiliary fault location.

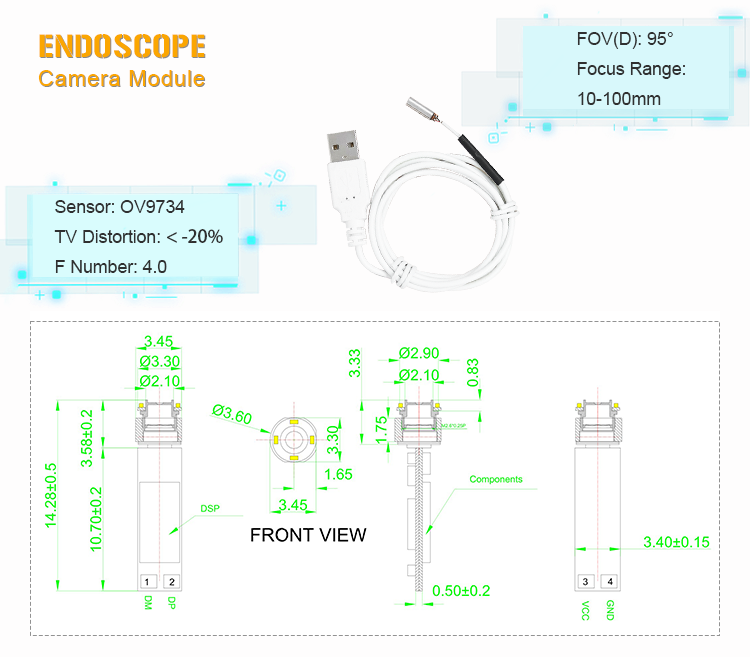

Keywords | 3.6mm USB Endoscope Camera Module With LED Light |
Sensor | OV9734 |
LED | 0201 White LED |

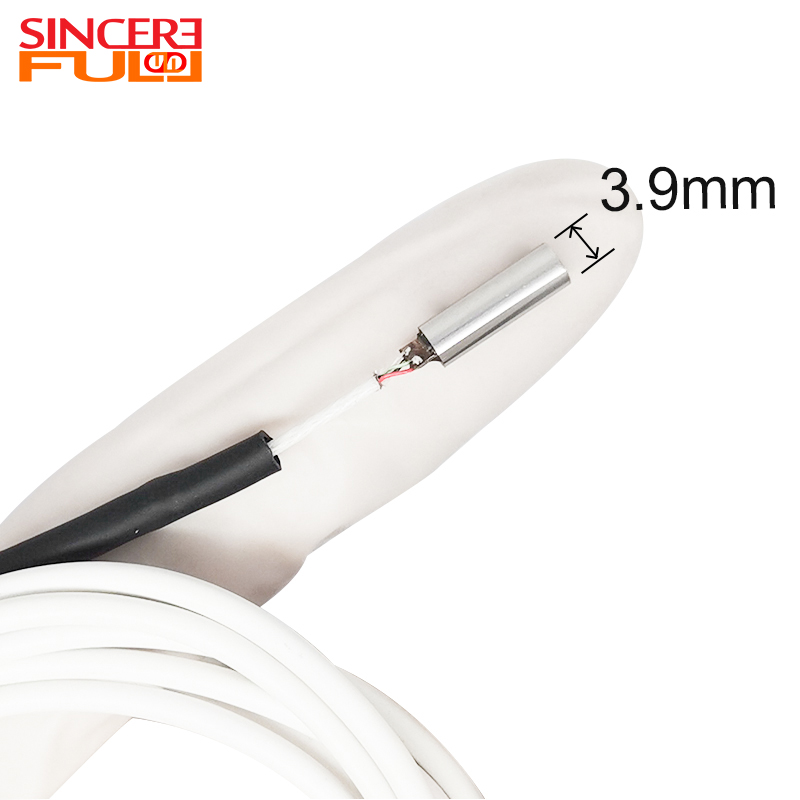

Module Size | 3.9mm |
Focusing Range | 10mm-100mm |
Focal Length | 1.25mm |
FOV(D) | 95° |
TV Distortion | <-20% |
Output Format | Standard UVC |
F Number | 4 |
Imaging Quality | Colorfull |
Interface | USB2.0 |
FAQ
1. How to achieve stereoscopic vision with 3D endoscope?
Images of the left and right eyes are captured through a dual lens module or a splitter prism, and synchronously output to a 3D display at ≥1080p/60fps to ensure smooth operation, suitable for minimally invasive surgery.
2. Why is low illumination performance important for endoscope modules?
In case of insufficient light in the body or pipeline environment, the module needs a high sensitivity sensor and a large aperture lens, and the noise reduction algorithm ensures the clarity of the dark field. Some products use infrared fill light or HDR technology to improve low light performance.
3. What is the significance of the depth of field range of the module?
Large depth of field can clearly show near and far objects at the same time, reduce the need for frequent focusing, suitable for endoscopic surgery; Shallow depth of field is used to highlight specific plane details, such as skin inspection.
