SF-SYL7-FT+SF-N73915
SINCEREFIRST
This 3.9mm endoscope camera module is equipped with an OmniVision OV9734 CMOS color sensor and delivers 720P HD output through a Type-C interface. As a compact OV9734 endoscope camera module, it supports USB 2.0 transmission and UVC protocol for standard video connection and system integration. The LED endoscope camera module is designed with a steel housing, integrated LED lights, and a separate camera structure, and it is commonly listed in the category of miniature endoscope camera modules, 3.9mm CMOS camera modules, and 720P USB endoscope camera modules. Standard specifications include 1280 x 720 resolution at 30fps, a 1/9 inch sensor format, manual focus, and a 10-70mm focus range. This Type-C endoscope camera module is suitable for OEM and ODM product development, custom specification requests, and wholesale purchasing requirements. This OV9734 camera module can be referenced for product inquiry, bulk order evaluation, and custom endoscope camera module sourcing. |
|
Selection Requirement | Standard Configuration | Selection Note |
Entry Space | 3.9mm front structure | Confirm the complete shell / assembly diameter and insertion clearance. |
Lighting | 6×0402 LEDs | Use this direction when the final device needs integrated front illumination. |
Viewing Coverage | 88°±3° FOV | Confirm the moderate field is appropriate for the target size and distance. |
Target Distance | 10–70mm | Keep the inspection target inside the confirmed focus range. |
Device Layout | Separate structure; 1m Teflon cable | Confirm cable routing, board position and bend space. |
Front Protection | Steel-shell direction shown | Confirm the final shell, sealing and cleaning requirements at device level. |
With a high-definition resolution of 1280x720P and a smooth frame rate of 30FPS, Endoscope Camera Module can capture images with rich details and high clarity, while ensuring the coherence of the picture, avoiding stuttering and smearing, making the observation of dynamic scenes smoother and more natural.
Equipped with a 1/9-inch OV9734 CMOS color image sensor, the pixel size is 1.4μm x 1.4μm, offering high sensitivity and signal-to-noise ratio. Endoscope Camera Module integrates 6 0402 LED beads to provide sufficient illumination, ensuring clear images even in low-light environments.
Featuring a separate structure and miniaturized size design, the lens with a steel housing has a diameter of only 3.9mm, making the camera module not only robust and durable but also capable of flexibly pairing with other devices. Endoscope Camera Module can easily access narrow spaces for detection, suitable for various confined and complex detection environments.
Equipped with a Type-C interface, it supports USB2.0 speed and UVC protocol, ensuring stable connection and fast data transmission. Endoscope Camera Module is plug-and-play without the need for additional driver installation, compatible with mainstream operating systems, greatly enhancing ease of use.

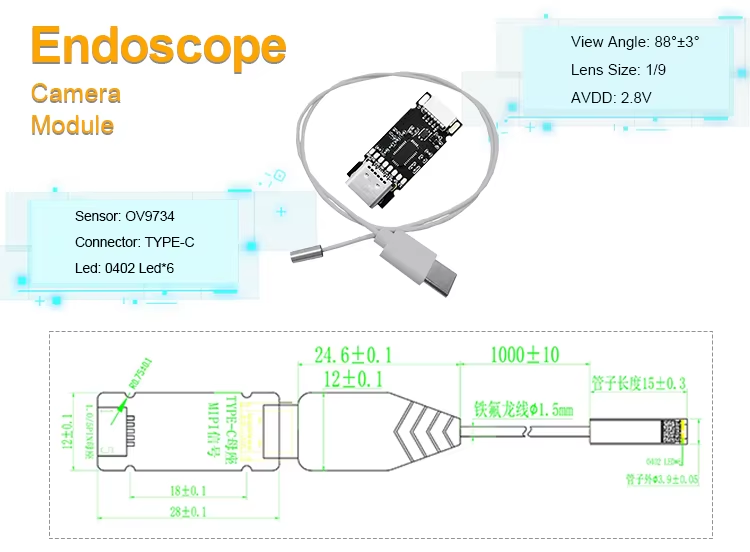

Product Name | 3.9mm Separate Endoscope Camera Module |
Features | High Resolution Endoscope Camera Module |
Interface | TYPE-C |
Sensor | OV9734 |
Lens Size | 1/9 |
DVDD/DOVDD | 1.2V/1.8V |
FOV | 88°±3° |
Connector | TYPE-C / 1.0 5PIN |
DSP | USB2.0 UVC |
Led | 0402LED*6 |
In mini invasive surgeries, Endoscope Camera Module can serve as a surgical navigation tool, enabling doctors to clearly observe the surgical site, thereby enhancing the precision and safety of the operation.
Endoscope Camera Module can be used to inspect blockages, corrosion, cracks, and other conditions inside small pipelines, facilitating timely maintenance and cleaning to ensure the smooth and safe operation of the pipelines.
During archaeological excavations, Endoscope Camera Module can be employed to explore confined spaces, such as the interiors of ancient tombs and gaps in artifacts, assisting archaeologists in gaining a better understanding of ancient cultures and history.
1. Steel-Shell Mechanical Fit: If the 3.9mm steel-shell direction does not fit the device, the mechanical and shell configuration can be reviewed. Please provide the required outer diameter, insertion length, sealing area and housing drawing.
2. Optical Matching: If the 88° FOV or 10–70mm focus range does not match the target, the lens / focus direction can be evaluated. Please provide the target size, target distance and required coverage.
3. Six-LED Lighting: If the six-LED arrangement does not match the cavity condition, the lighting direction and control method can be reviewed where supported. Please provide the target reflectivity, working distance and brightness requirement.
4. Separated Connection Layout: If the 1m cable, Type-C or 5-pin arrangement does not fit the device, the cable, connector and board placement can be reviewed. Please provide the host position, cable route, connector preference and available board space.
The endoscope camera module collects the internal image through the front optical lens, converts it into electrical signal by CMOS or CCD sensor, and then optimizes it through image processing chip for noise reduction and enhancement, and finally outputs high-definition video signal. Some modules support wireless transmission or fiber optic signal transmission, suitable for medical or industrial inspection scenarios.
Mainstream resolutions include 720p, 1080p, 4K, etc. Medical grade modules usually require more than 1080p to ensure diagnostic accuracy, while industrial modules may choose lower resolutions to reduce costs according to demand. Ultra-high resolution modules are mostly used in precision surgery or scientific research.
Check that the power adapter, interface, and fuse are loose. For wireless modules, check the battery level and pairing status.
CTA◢
For sample evaluation, please share the available diameter, target distance, lighting condition, cable route, board position, required shell / protection and host connection. We can then review whether this 3.9mm illuminated separated configuration fits the final device.
