SF-C0310USB-D3.9-L20 V1.0
SINCEREFIRST

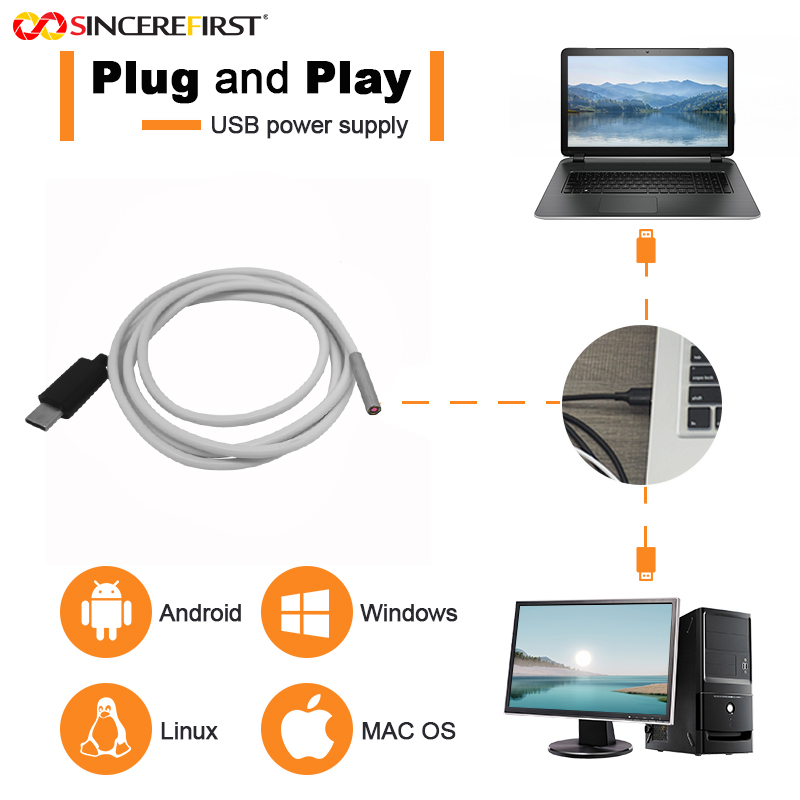

The 3.9mm GC030A Type-C endoscope camera module uses a 640×480 resolution image sensor for 30FPS full HD video transmission through the Type-C interface. Its 1.72mm short focal length design with F3 large aperture provides bright and clear imaging effects in the 20-62mm focus range, 85° circular field of view takes into account wide viewing angles and detail capture, and lens distortion control is better than the -5% standard to ensure industrial inspection grade geometric accuracy. The module integrates high brightness white LED lighting system, which can adapt to the needs of middle and long distance detection in low light environment, especially suitable for precision mechanical exploration, automotive engine detection and medical inspection and other scenarios. The Type-C interface also supports plug and play and fast charging function to improve work efficiency. |  |
1. Full HD dynamic imaging: 640×480 resolution with 30FPS frame rate, can smoothly capture moving targets, suitable for dynamic detection scenes.
2. Low light environment enhancement: F3 large aperture combined with white LED lighting can still provide clear images in dim Spaces.
3. Precision detection adaptation: TV distortion <-5% meets industrial measurement standards to ensure the accuracy of defect positioning.
4. Medium range detection optimization: 20-62mm focusing range covers the internal space of most industrial equipment, reducing operation interruption.
1. Medical field: Assisted uroscopic surgery.
2. Intelligent manufacturing: industrial robot joint inspection, 3C product internal assembly verification.
3. Energy field: oil pipeline corrosion detection, wind power gearbox internal exploration.
Product Name | Type C Endoscope Camera Module |
Features | 3.9mm Endoscope Camera Module |
Interface | Type C |
Sensor | VGA |
Focusing Range | 20mm-60mm |
Led | 4pcs |
Focal Length | 1.72mm |
TV Distortion | <-5% |
F Number | 3 |
Fov(D) | 90° |
FAQ
1. What are the typical requirements for custom modules?
Common requirements include special dimensions (e.g., 1mm diameter), multispectral imaging (e.g., fluorescence navigation), and interface protocol adaptation (e.g., interfacing with DICOM systems).
2. Why do some modules differ several times in price?
The difference is due to sensor brands (such as SONY IMX series vs domestic), optical lens groups (aspherical lenses cost more), medical certification (such as FDA process takes 2-3 years) and other factors.
3. What can I do if the module fails to start?
Check the power adapter (for example, 12V output), the port is loose, and the fuse is blown. If the wireless module is used, check the battery level and pairing status.
4. Why do pipeline inspection modules need long cables?
The cable length is usually 10-30 meters, including Kevlar tensile layer and waterproof connector, which supports real-time transmission while resisting internal friction and chemical corrosion of the pipeline.
5. What are the features of the dental endoscope module?
Integrated high color rendering ring LED light, resolution ≥1080p, some equipped with wireless handheld design, easy to take multi-angle photography in the mouth and connect to the diagnosis and treatment system.
