SF-C1019USB-D3.9-PRO-L200
SINCEREFIRST

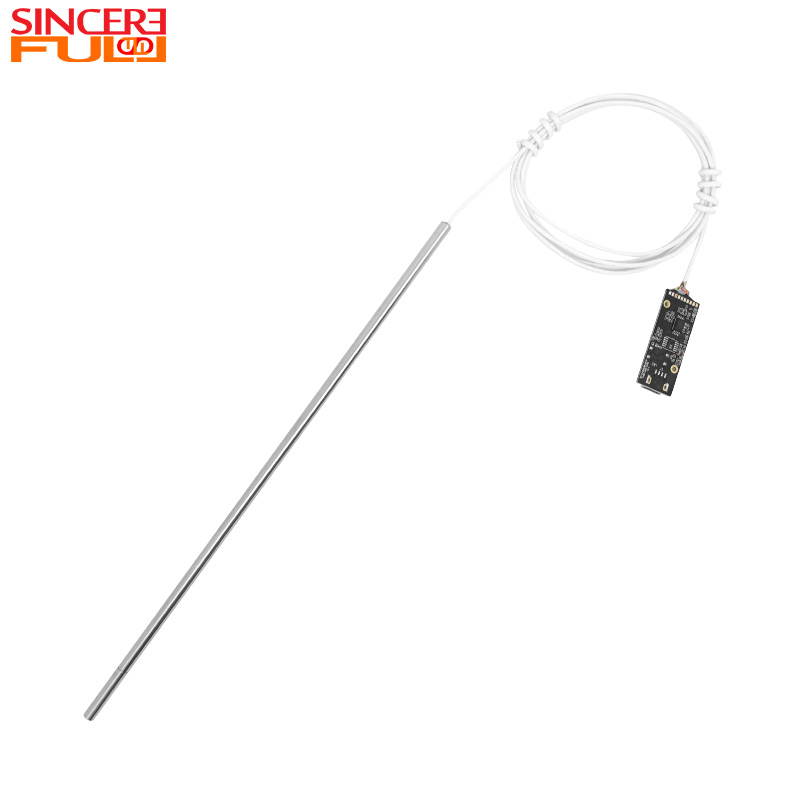

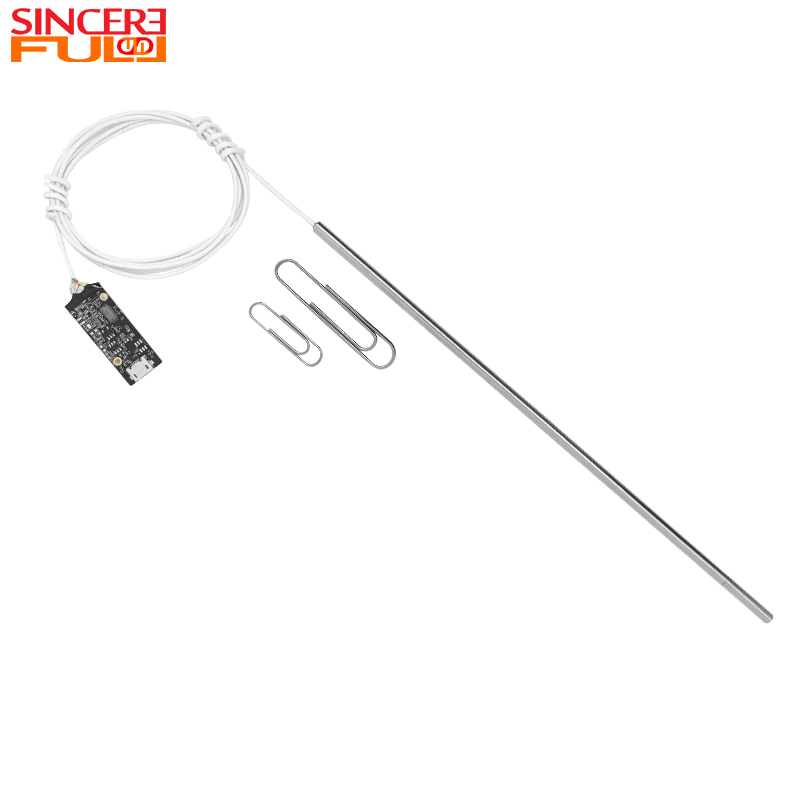

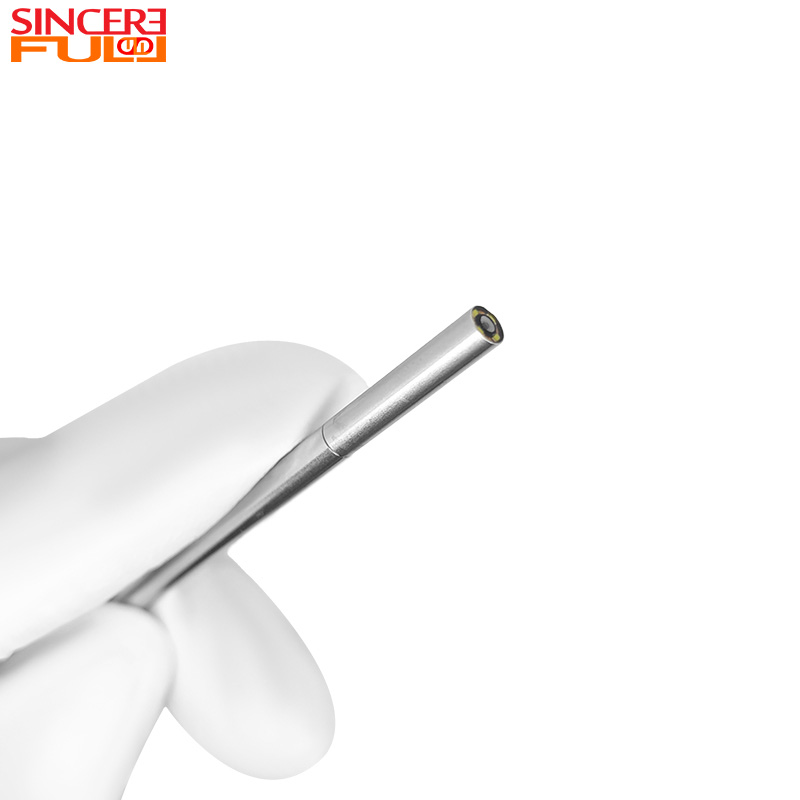

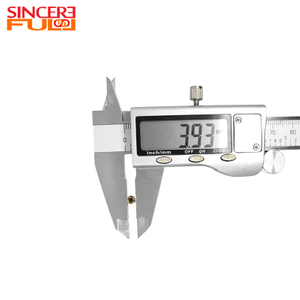

This is all-glass lens 1MP OmniVision OV9734 CMOS sensor LED endoscope camera module with a steel sleeve and a diameter of 3.9mm. It features a 1/9-inch image sensor, which significantly enhances low-light sensitivity and dynamic range through its 1280×720 resolution and large pixel size of 1.4μm×1.4μm, ensuring high-definition and low-noise imaging under complex lighting conditions. The lens, made entirely of glass, has a focal length of 1.08mm, supports a manual focusing range of 10–100mm, and is equipped with an F4.0 aperture and an ultra-wide field of view (95° diagonal / 83° horizontal / 43.5° vertical), covering a large inspection area. Distortion is controlled at less than -10%, effectively reducing edge deformation. The module supports output at 30fps for 720p or VGA frame rates, meeting the needs of diverse application scenarios. It features a compact, separated design with a main body diameter of only 3.9mm, incorporating 4 built-in LED illumination chips and a protective steel sleeve, achieving IP67 water resistance and ensuring stability for long-duration operations. Data is stably transmitted via a USB 2.0 interface, compatible with high-precision visualization applications such as medical endoscopy and industrial inspection. |  |
Product Advantage ◢
High-Definition and Low-Noise Imaging: Equipped with a 1.4μm large-pixel sensor and an all-glass lens, ensuring clear and pure images under complex lighting conditions.
Robust Environmental Adaptability: An IP67 waterproof steel enclosure with 4 LED illuminators ensures stable operation under harsh working conditions.
Flexible Focusing Design: A fixed focusing range of 10–100mm precisely meets the needs of different inspection distances.
Multi-Scenario Compatibility: USB 2.0 interface supports 720p@30fps output, meeting the high-precision visualization needs of medical and industrial applications.

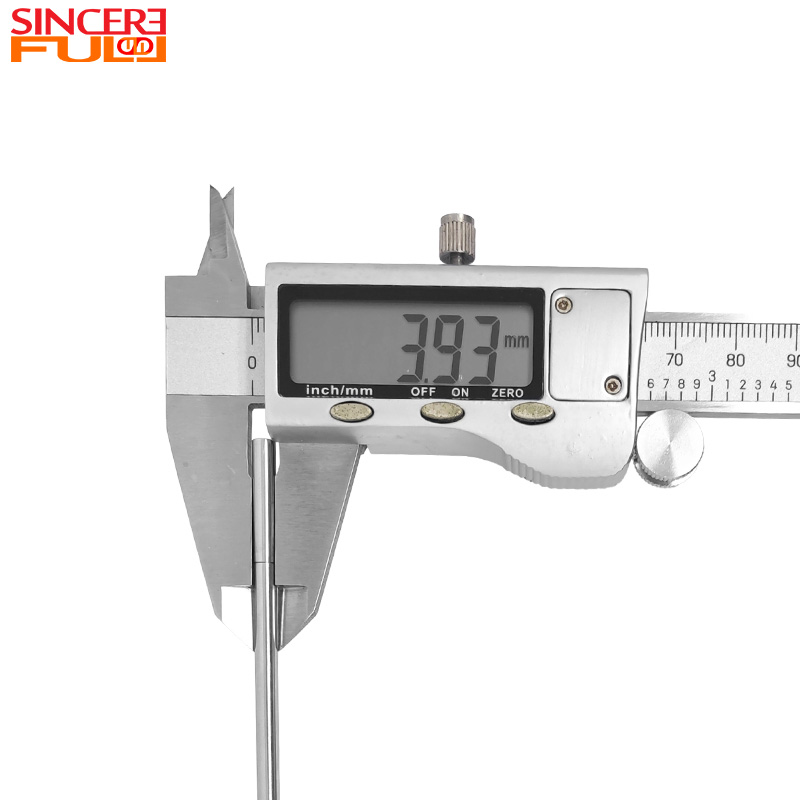

Miniaturized Structure: A separated design with a diameter of only 3.9mm balances portability and functionality.
1. UAV Inspection Equipment for Structural Damage: Integrated into drones for remote visual inspection of internal structures of bridges and wind turbine blades.
2. Scientific Microscopic Imaging System: Used for microscopic observation of biological tissues in conjunction with microscopes, and directly connected to a computer via USB to achieve real-time high-definition recording.
3. Automotive Inspection Endoscope: Inspects wear of precision components such as engine blocks and transmissions through narrow gaps, with LED illumination solving the problem of dark corners.
4. Industrial Pipeline Inspection Device: Detects cracks, corrosion, or foreign objects inside oil and gas pipelines and air conditioning ducts, with IP67 protection suitable for humid environments.
5. Medical Electronic Endoscope: Used for real-time high-definition imaging in minimally invasive surgeries, supporting lesion exploration with instruments such as laryngoscopes and cystoscopes.

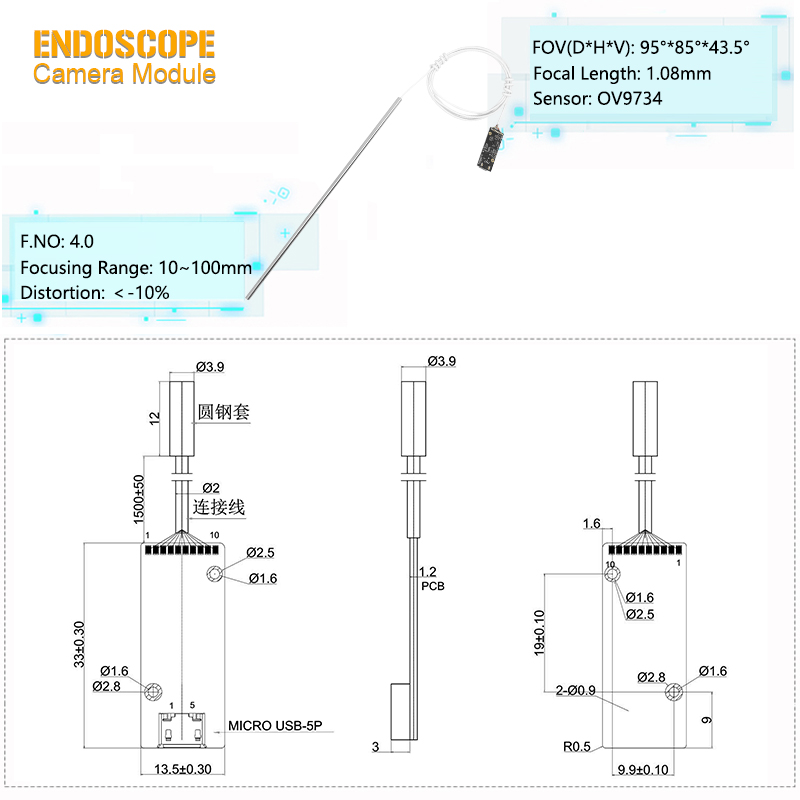

Technical Parameters ◢
Product Name | Industry Inspection Endoscope Camera |
Image Sensor | 1/9” |
Pixel | 720P |
FOV(D*H*V) | 95° 85° 43.5° |
Focusing Range | 10mm-100mm |
Focal Length | 1.08mm |
F Number | 4.0 |
FOV(D) | 75° |
TV Distortion | ＜-10% |
Interface | USB2.0 |
FAQ ◢
1. What is a endoscope camera module?
The endoscope camera module is a special image acquisition device for endoscope equipment. It usually consists of an image sensor, a lens system, a light source, a connecting interface, and an encapsulation housing material to capture a high-quality image or video of an internal organ or cavity for the staff to observe and intervene when conducting an inspection.
2. What are the common specifications of the resolution of the endoscope camera module?
Mainstream resolutions include 720p, 1080p, 4K, etc. Medical grade modules usually require more than 1080p to ensure diagnostic accuracy, while industrial modules may choose lower resolutions to reduce costs according to demand. Ultra-high resolution modules (such as 4K) are mostly used in precision surgery or scientific research.
3. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).
4. Does this endoscope camera module require a dedicated driver?
The module uses a standard USB 2.0 interface and supports plug-and-play functionality. It is compatible with mainstream operating systems such as Windows and Linux through the UVC protocol. If a dedicated driver is required, customization can be supported.
