SF-C1019USB-D3.9-ALL-D95
SINCEREFIRST

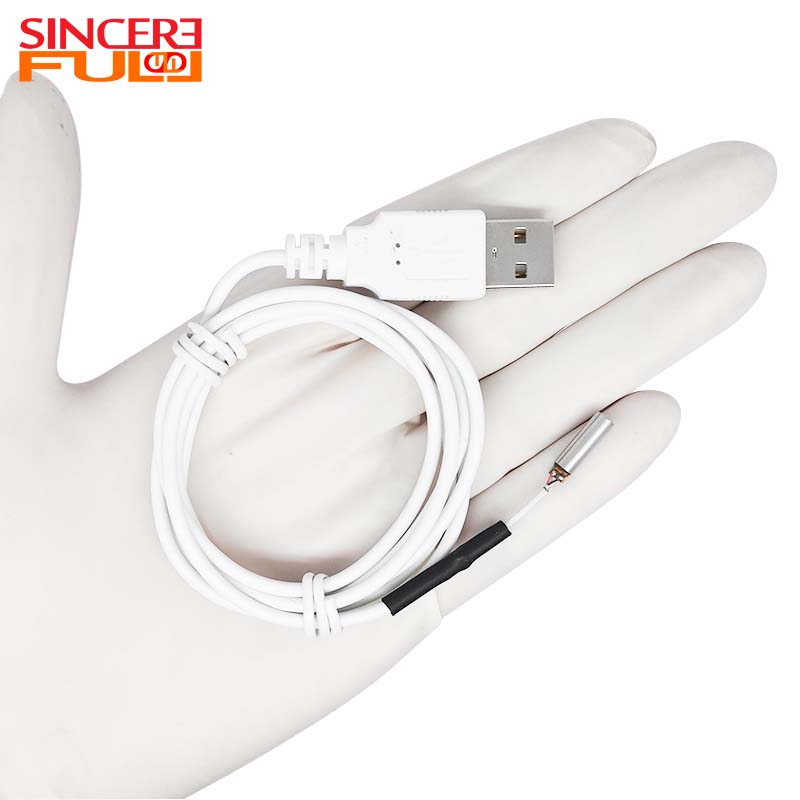

This camera moudle is OV9734 Sensor-based Dental Endoscopic Camera Module, a versatile USB2.0 camera module designed to enhance medical and industrial applications. Featuring the 1MP OV9734 sensor with a 1/9 inch size and a 1.75 µm pixel size, this camera module delivers exceptional image quality with multiple resolution options, including full size (1280x720), VGA (640x480), and 2x2 RGB/BW binning (640x360). The 3.9mm diameter endoscopic camera module is ideal for dental procedures, offering flexibility in imaging through programmable controls for frame rate, exposure, and windowing. Equipped with 6 optional LEDs and advanced features such as automatic black level calibration (ABLC), defect pixel correction (DPC), and black sun cancellation, this camera module ensures clear, high-quality visuals in challenging conditions. It also supports a standard SCCB interface and GPIO tri-state configurability. With USB2.0 compatibility, this endoscope camera is a reliable solution for medical professionals requiring precise and efficient diagnostic imaging. |  |
Features ◢
1.1MP OV9734 sensor with 1.75 µm pixel size, supporting multiple resolutions (1280x720, 640x480, 640x360 RGB/BW binning).

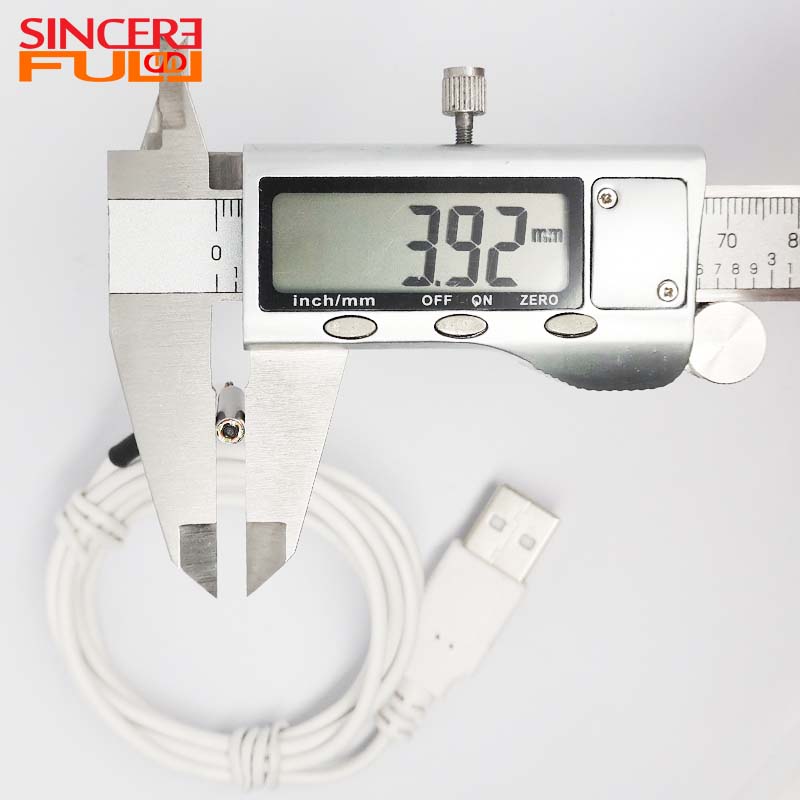

2.3.9mm diameter, ideal for dental procedures and industrial applications.
3.Includes automatic black level calibration (ABLC), defect pixel correction (DPC), and black sun cancellation for superior image clarity.
4.Programmable frame rate, exposure, mirror/flip, and windowing adjustments.
5.Easy integration with a USB2.0 connection, SCCB interface, and GPIO configurability.
Application Of Endoscope Camera Module ◢
Oral Endoscope
Veterinary Endoscope
Dental Plaque Detection
Small Dental Mirrors
bronchoscope
cystoscope
Product Details ◢
Keywords | Dental Endoscope Camera Module |
Sensor | OV9734 |
Focus Range | 10mm-100mm |
Led | 0201 LED |
Keywords | Endoscope Camera |
Focal Length | 1.25mm |
FOV(D) | 85° |
TV Distortion | <-20% |
Output Format | Standard UVC |
F .NO | 4 |
Certificate | CE, FCC, ISO |
FAQ◢
Q1: What is a endoscope camera module?
The endoscope camera module is an essential part of endoscopic equipment, enabling the capture of high-quality images or videos of internal body structures. It usually consists of an image sensor, optical lens, light source, connection interface, and a protective casing. This module plays a vital role in assisting healthcare providers to examine and diagnose the condition of internal organs or cavities during medical procedures. It offers live visual feedback, supporting surgical decisions and interventions with accurate, real-time imagery.
Q2.Are you a factory or a trading company?
A2: We are a leading manufacturer of smart camera modules, operating an in-house production line with 10 dust-free workshops. Our workers adhere to strict production guidelines to ensure uniformity and dependability throughout the entire process. To preserve the clean room environment, the team is thoroughly trained and wears specialized dust-free attire. Quality control is a top priority for us, with each product undergoing thorough inspections at various stages to guarantee the highest standards of performance and reliability.
Q3: How to control an endoscope camera module?
A3: To use an endoscope camera module, start by linking it to a compatible device, such as a smartphone, tablet, or computer. Afterward, gently position the camera into the area that needs to be examined, whether it’s a body cavity or a confined space. Utilize the camera’s integrated focus and lighting settings to fine-tune the image for optimal clarity and brightness. This ensures you can effectively observe the target area with a clear and illuminated view, allowing for precise inspection.
Q4: What does an endoscope camera module see?
Endoscopes play a crucial role in both medical and industrial applications. In healthcare, they enable doctors to diagnose various conditions by providing a clear view of internal areas such as the esophagus, stomach, and intestines, helping to identify issues like ulcers, tumors, or inflammation. A gastroscope, for example, allows examination of the upper digestive system, while a colonoscope is used for inspecting the colon. In industrial settings, endoscopes are valuable for inspecting pipelines, detecting signs of damage or blockages, and evaluating the condition of machinery or electrical systems, contributing to effective maintenance and problem-solving.
Q5: What can be customized for endoscope camera modules?
A5:The endoscopic camera modules we offer offer very many customization options to meet specific needs. You can choose the right software for your endoscope diameter, interface, and device. In addition, customization options also include choosing whether the module comes with a durable steel sleeve for additional protection, dust and water resistance, with certain drop protection features, and whether it comes with built-in LED lighting to ensure that your device is illuminated in low light or no light conditions. Its brightness is adjustable.
