SF-C0310USB-D3.9-L16
SINCEREFIRST

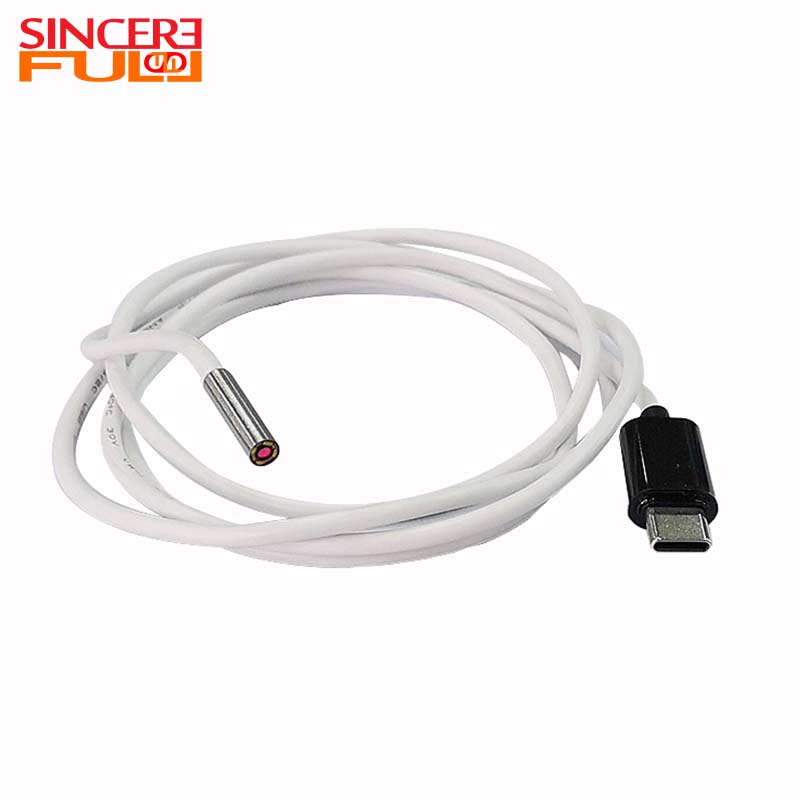

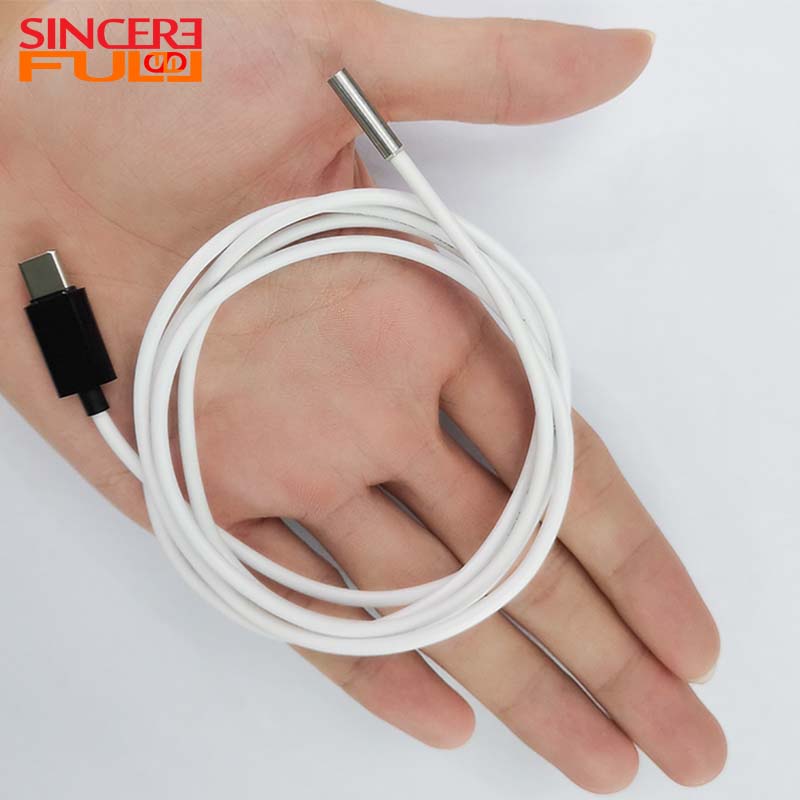

Designed for high precision visual inspection, this 3.9mm VGA Sensor endoscope camera module integrates a USB2.0 DSP chip with a VGA sensor to provide clear 640×480 resolution images. Its 1.72mm short focal length and F3 large aperture achieve accurate imaging in the 20cm-60cm focusing range, adapting to different distance detection needs.
The 85° diagonal field of view covers a wider area, combined with < -5% TV distortion control to ensure low image edge deformation and facilitate accurate measurement and analysis. 0402 White LED provides auxiliary lighting to enhance the visibility of dark environments, with USB2.0 interface to achieve plug and play, suitable for industrial detection hosts, medical imaging systems and automotive maintenance equipment.

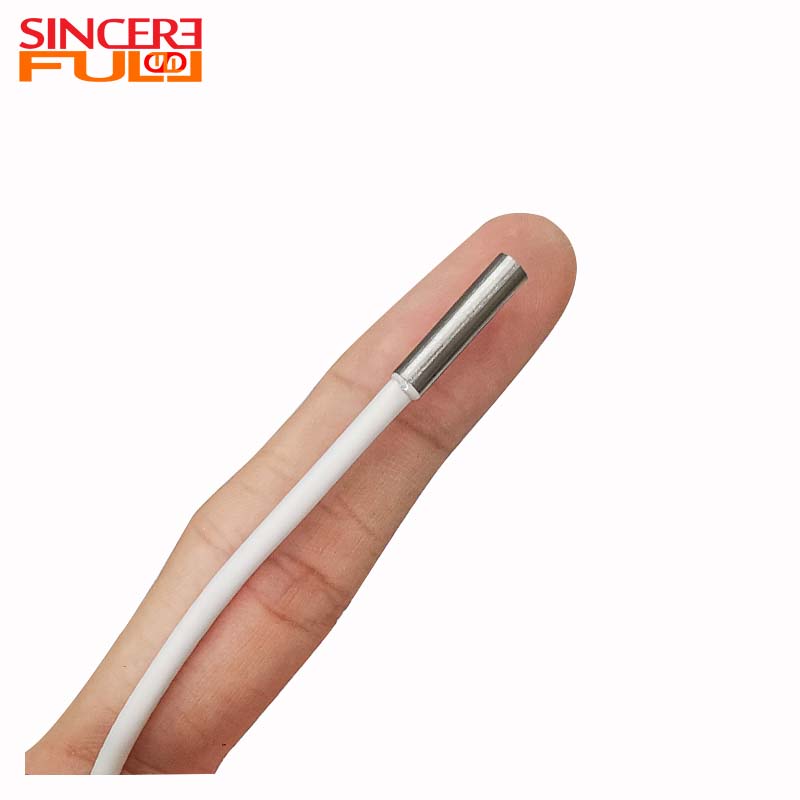

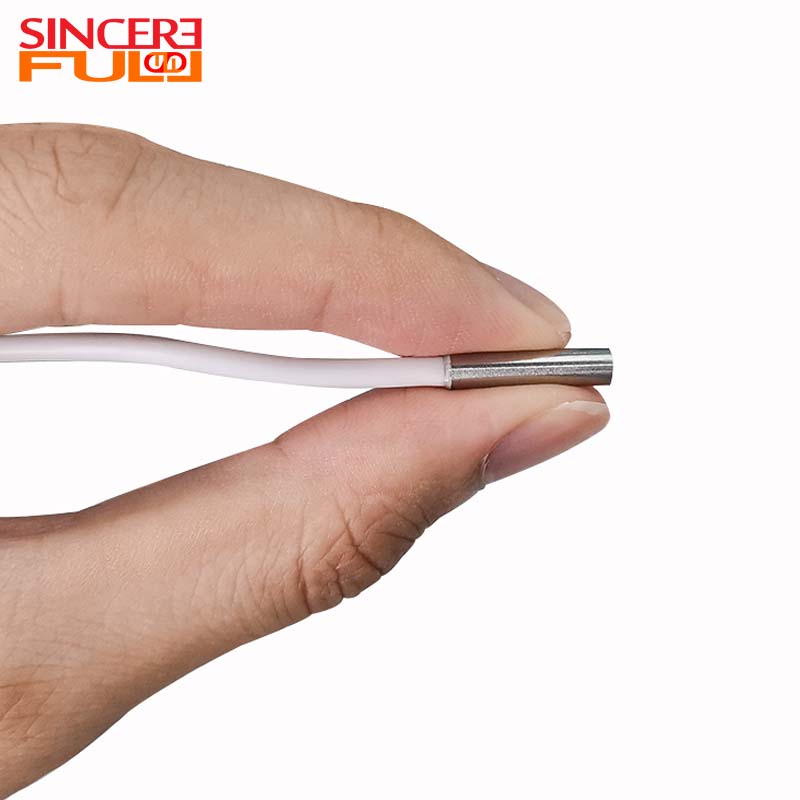

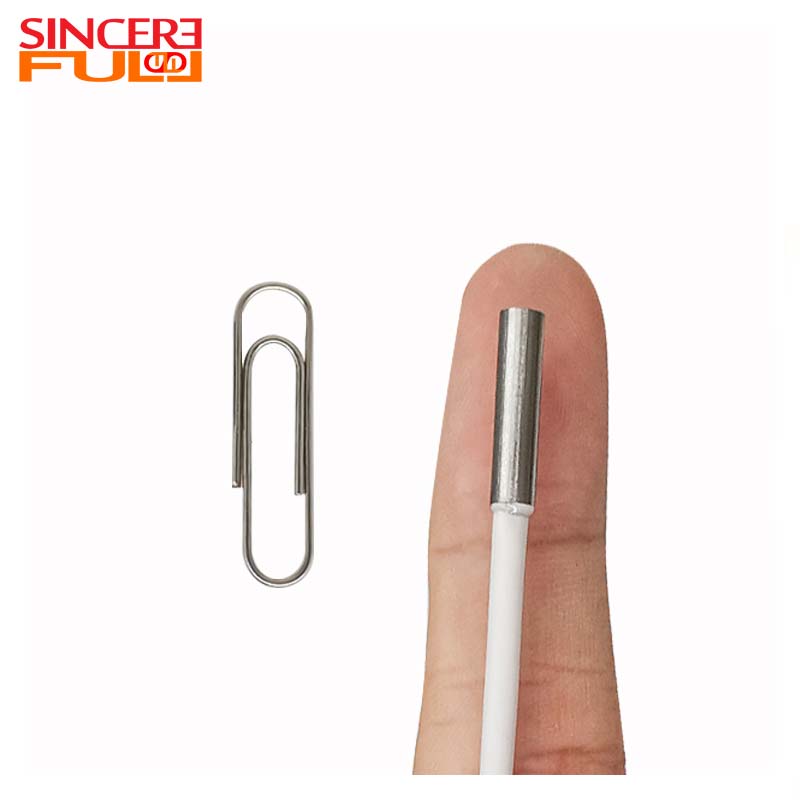

The compact 3.9mm diameter design of the module supports minimally invasive surgical instrument integration, while meeting the needs of high resolution and flexible operation in industrial pipeline exploration, mechanical interior inspection and other scenarios.
 |
Product Advantage ◢
1. Ultra-wide field of view coverage: 85° diagonal FOV reduces the blind area, and obtains a larger detection range in a single shot.
2. Low distortion optical design: TV distortion < -5%, to ensure the image edge measurement accuracy, suitable for industrial testing standards.
3. Flexible environment adaptation: F3 large aperture +0402 LED fill light to deal with low light scenes; The 20cm-60cm focus range covers multi-scale inspection requirements.
1. Industrial inspection: aircraft engine internal exploration, oil pipeline corrosion detection, precision mold defect investigation.
2. Minimally invasive surgery: ear, nose and throat/abdominal endoscopy integration, support 3.9mm small instrument channel to achieve high-definition lesion observation.
3. Security field: detection of dangerous goods in hidden Spaces such as building gaps and ventilation ducts.
Technical Parameters ◢
Product Name | VGA Sensor Endoscope Camera Module |
Features | Smallest Endoscope Camera Module |
Output Interface | USB2.0 |
Sensor | VGA |
Focusing Range | 20-60mm |
TV Distortion | <-5% |
Focal Length | 1.72mm |
Keyword | camera module |
Lens | DFOV85 |
TV Distortion | 0402 White Led |
FAQ ◢
1. How to control an endoscope camera module?

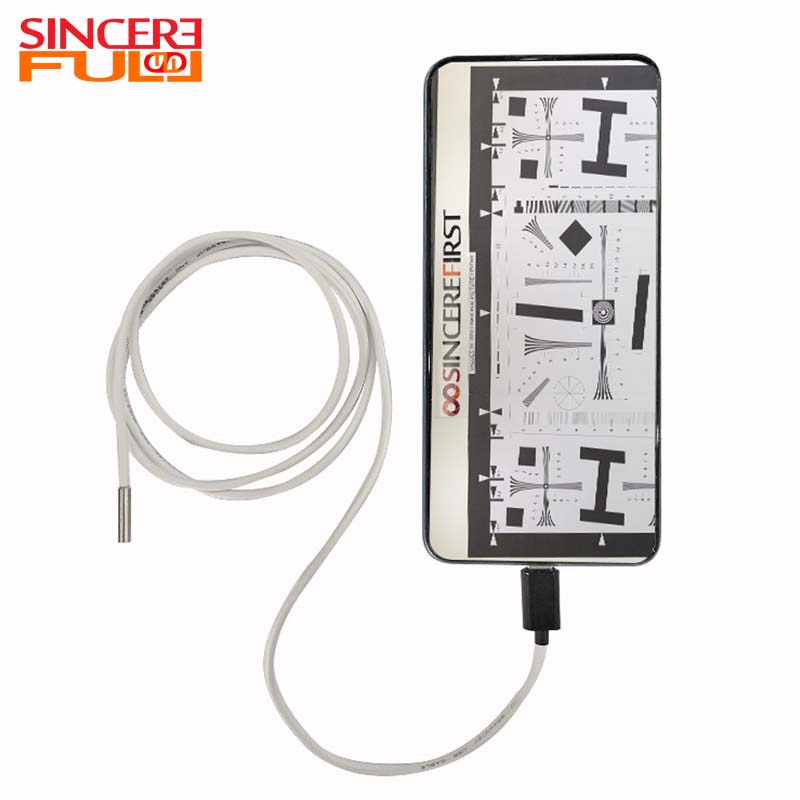

A3: To use an endoscope camera module, first connect the camera to a compatible device, such as a smartphone, tablet, or computer. Then, insert the camera into the area you want to examine, such as a body cavity or a confined space. Use the camera's controls to adjust the focus and light as needed.
2. How to achieve waterproof and sterilization design?
The medical-grade module adopts IP68 waterproof seal, the shell material is resistant to high temperature and pressure, and can withstand 134°C steam sterilization. Industrial modules may require only a splash proof design.
3. What are the interface types of the module?
Common interfaces include USB3.0, HDMI, SDI, etc. Industrial scenarios may use PoE power supply interfaces, and medical devices are multi-integrated dedicated medical image interfaces.
