SF-C1011USB-D3.9-720P60-L20
SINCEREFIRST

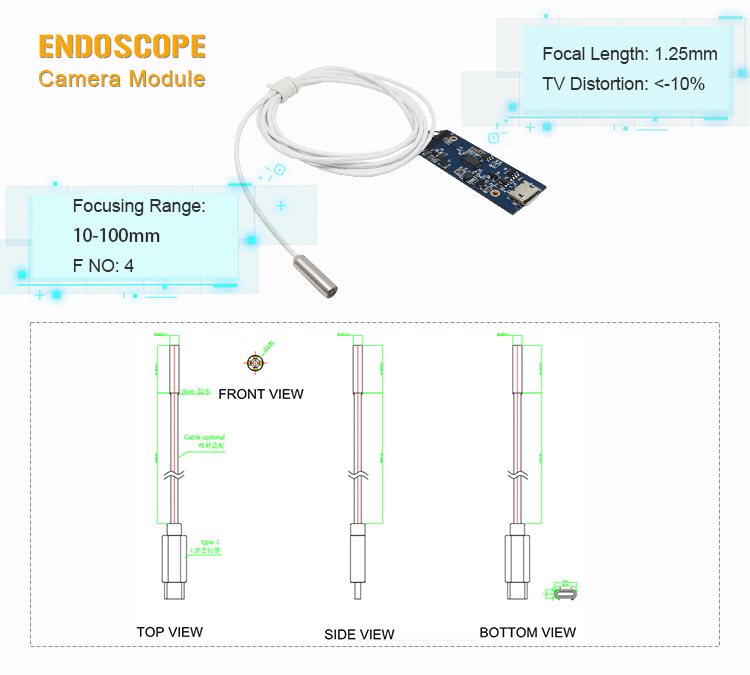

This 720P HD endoscope CMOS sensor USB LED endoscope camera module is equipped with a high-performance CMOS color image sensor, supporting 1280x720P high-definition output. Combined with a maximum frame rate of 60FPS, it can present smooth and delicate dynamic images. The sensor size is 1/11 inch, paired with a lens with a diagonal field of view (DFOV) of 75°, which can capture a wide viewing range even in narrow spaces. Its core advantage lies in the ingenious combination of 4 integrated 0402-type LED lights and the F4.0 large aperture: the F4.0 aperture allows more light to enter the sensor, while the high-brightness LED lights provide sufficient illumination for dim detection environments. Even within the focusing range of 10mm~100mm (with a focal length of 1.25mm), it can ensure clear and bright images with every detail clearly visible. The module adopts a manual focusing design, with distortion controlled at < -10% to effectively reduce image distortion; the lens diameter is only 3.9mm and comes with a steel sleeve, combining a compact size with durability. The product is manufactured using advanced SMT technology and AA process, ensuring stable and reliable quality. It supports the UVC protocol through a USB2.0 interface, enabling plug-and-play for convenient and efficient use. The separated design makes it more adaptable to diverse endoscope detection scenarios. |  |
Product Advantage ◢
HD and Smooth Imaging: 1280x720P resolution paired with 60FPS frame rate, ensuring delicate and stable dynamic images.
Precise Viewing Range Coverage: 1/11 inch sensor + 75° diagonal field of view, capable of capturing a wide view even in narrow spaces.
Strong Light Capability: Integrated with 4 0402-type LED lights to provide sufficient illumination for dim detection environments.
High Light Input Efficiency: F4.0 large aperture design increases light input to enhance image brightness.
Low Distortion and Easy Operation: Distortion < -10% reduces image distortion, and manual focusing accurately adapts to different detection distances.
Compact and Durable: 3.9mm diameter lens with a steel sleeve, featuring a slim size for easy access to narrow areas while ensuring durability.
Stable and Convenient: SMT technology and AA process guarantee quality; USB2.0 + UVC protocol enables plug-and-play, and the separated design adapts to multiple scenarios.
1. Internal Inspection of Industrial Equipment: Such as checking wear and foreign objects in narrow gaps of pipelines and mechanical parts.
2. Automotive Maintenance and Inspection: Viewing the status of components in enclosed spaces such as engine compartments and gearboxes.
3. Household Appliance Fault Diagnosis: Detecting problems in internal structures like air conditioner evaporators and refrigerator pipelines.
4. Building Pipeline Inspection: Checking blockages or corrosion in dim and narrow channels such as wall-embedded pipes and sewers.
5. Electronic Equipment Repair: Observing and inspecting subtle defects in circuit board solder joints and precision components.
Technical Parameters ◢
Product Name | 720P Micro Endoscope Camera |
Image Sensor | CMOS |
Pixel | 720P |
Interface type | USB |
Focusing Range | 10mm-100mm |
Focal Length | 1.25mm |
F Number | 4 |
FOV(D) | 75° |
TV Distortion | ＜-10% |
Certificate | CE RoHS Reach |
FAQ ◢
1. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).
2. What are the features of the dental endoscope module?
Integrated high color rendering ring LED light, resolution ≥1080p, some equipped with wireless handheld design, easy to take multi-angle photography in the mouth and connect to the diagnosis and treatment system.
3. What can I do if the module fails to start?
Check the power adapter (for example, 12V output), the port is loose, and the fuse is blown. If the wireless module is used, check the battery level and pairing status.
