SF-C1019USB-1000P-D3.9-PLUS-D140 V1.0
SINCEREFIRST
This USB2.0 Camera Module featuring the ES101 Sensor, This Micro Camera Module boasts a resolution of 1280(H)×720(V), with a maximum resolution of 1000H×1000V, and also a 3.9mm Endoscope Camera Module integrates a high-performance 1.4um BSI pixel design, ensuring exceptional image quality and sensitivity of 600mV/Lux-sec. With a Dynamic Range of 68dB@8x gain, the endoscope camera module captures clear images even in challenging lighting conditions. This innovative Full Frame Camera Module supports multiple output formats, including full frame, skip, binning, and window modes, utilizing LVDS/MIPI with 10bit/8bit image output options. Its high frame rate readout ensures seamless performance, making it a nice choice for a Medical Endoscope Camera Module. |  |
Product Advantage ◢
Resolution: Supports a maximum resolution of 1000H×1000V with 1280(H)×720(V) output.
Advanced Sensitivity: Features 1.4um BSI pixel design with 600mV/Lux-sec sensitivity.
Versatile Output Formats: Offers full frame, skip, binning, and window modes compatible with LVDS/MIPI.
Dynamic Range: Delivers a dynamic range of 68dB@8x gain for superior image quality.
Technical Parameters ◢

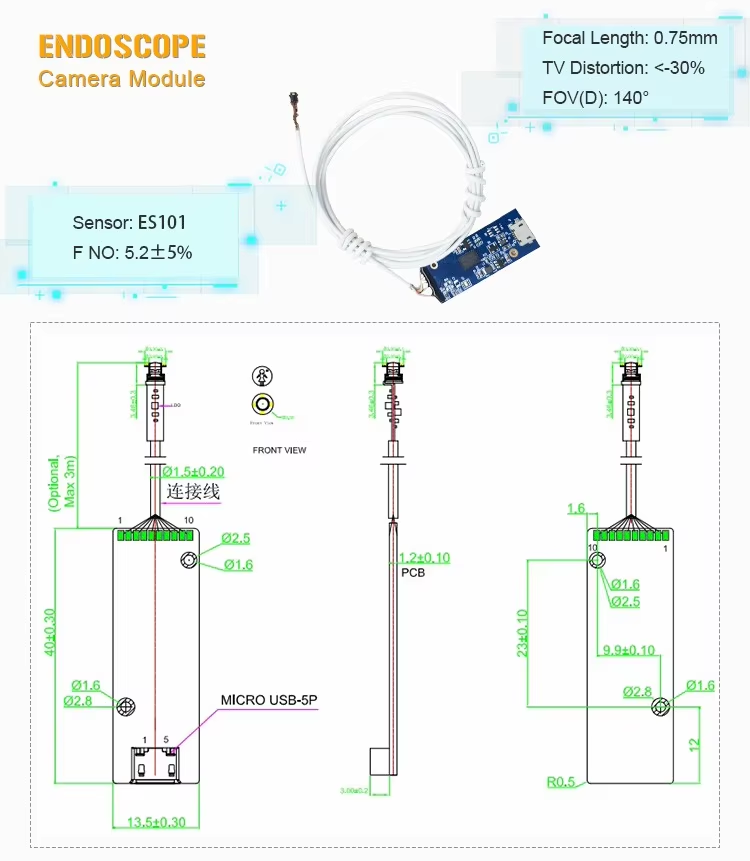

Product Name | 3.9MM Endoscope Camera Module |
Features | USB2.0 Medical Endoscope Camera Module |
LED | 0402 White Led |
Sensor | ES101 |
Focal Length | 0.75mm |
Focusing Range | 10-100mm |
Fov(D) | 140° |
Trademark | SINCERE FIRST |
DSP | USB2.0 UVC |
Focus | Fixed |
Product Uses ◢
gastroscope
enteroscope
Veterinary Procedures
FAQ ◢
Q1: What is a endoscope camera module?
A1:
The endoscope camera module is an advanced device specifically designed to capture high-definition images and videos of narrow internal structures, widely used in many fields such as medical, industrial and scientific research. In the medical field, the high-speed transmission interface adopted can transmit data in real time, achieve remote consultation and analysis through 6G network connection, and help doctors observe internal organs and tissues and identify potential lesions and health problems. In application, the use of gastroscopy and colonoscopy in general can help doctors directly observe the situation in the digestive tract, perform biopsies and provide immediate feedback, thus improving the accuracy of diagnosis and timeliness of treatment. In the industrial field, endoscopic in-depth inspection of mechanical equipment and pipes helps engineers find wear, corrosion and blockage, and adopts non-destructive detection methods, which greatly improves work efficiency, but also reduces potential safety risks and ensures the normal operation of equipment.
Q2: Are you factory or trade company?
A2: We are an industry leading camera module manufacturer, committed to providing customers with high quality smart camera products. Our production facilities have ten dust-free and sterile automated production workshops, ensuring that every production process can be carried out in an efficient and clean environment. This strict control not only improves production efficiency, but also significantly reduces the risk of product contamination. Our employees are systematically trained, strictly follow the operating procedures, and wear special dustproof clothing to maintain the health and safety of the production environment. Each endoscope module is subjected to multiple rigorous inspections during the production process to ensure that our products always maintain industry-leading pass rates in terms of quality. At the same time, our company has a professional R & D team to continue to promote product innovation and technological progress. Team members not only have rich industry experience, but also constantly pay attention to market dynamics and actively respond to changes in market demand to maintain our products in the technical level and application breadth of the leading position. We are committed to providing customers with better solutions and pursuing excellence to win the trust and support of the market.
Q3: How to control an endoscope camera module?
A3: When performing endoscopic operations, the user needs to fully understand the characteristics of the device and ensure that the operation steps are performed accurately to obtain the best image quality and data recording. Therefore, it is particularly important to be familiar with the use of relevant software and equipment to improve work efficiency and imaging effect. The operation of the endoscope camera module includes data transmission, software parameter setting, image processing and image display. For successful operations, seamless collaboration between hardware and software is essential. Endoscope cameras generally operate in a specific voltage range, so it is necessary to prevent fluctuations caused by voltage instability. To ensure a stable connection, the control module is usually connected to devices such as computers, tablets or smartphones through a variety of interfaces, including USB, micro-USB, HDMI and wireless Wi-Fi. Depending on the compatibility of the camera, users can install dedicated software or applications to easily adjust Settings such as zoom, focus, resolution, contrast, and other image parameters. In addition, users can also monitor the video picture in real time and dynamically adjust it according to demand to achieve the best imaging results.
Q4: What does an endoscope camera module see?
A4: An endoscope is a slender and flexible tubular instrument with a variety of types, including but not limited to digestive endoscopes, respiratory endoscopes, and urinary endoscopes. In the digestive system, gastrointestinal endoscopes (such as gastroscopes and colonoscopes) can help doctors assess the condition of the esophagus, stomach, and intestines and detect abnormalities in time, such as tumors, inflammation, or ulcers. Respiratory endoscopes are used to examine the airways and lungs, commonly bronchoscopes, and can help diagnose respiratory infections, tumors, and other lung diseases. The urinary endoscope is used to examine the bladder and urethra to help diagnose stones, tumors, and other urinary diseases.
Q5: What can be customized for endoscope camera modules?
A5: The endoscope camera module offers a variety of customization options to meet the actual needs of customers. In the medical or industrial field. In terms of lens design, depending on the operating environment, the diameter can be adjusted accordingly to ensure the best imaging results. Determine whether to add dustproof and waterproof protective steel sleeves as required. The built-in LED lighting system is also optional, providing high brightness illumination and significantly improving visibility in low light conditions, especially suitable for inspection tasks in medical environments. Our endoscopic camera modules are customized to provide customers with reliable imaging solutions. Whether for clinical diagnosis or industrial testing, users can choose the most suitable configuration according to their needs.
