SF-C1019USB-D3.9-PRO V1.2 D95
SINCEREFIRST

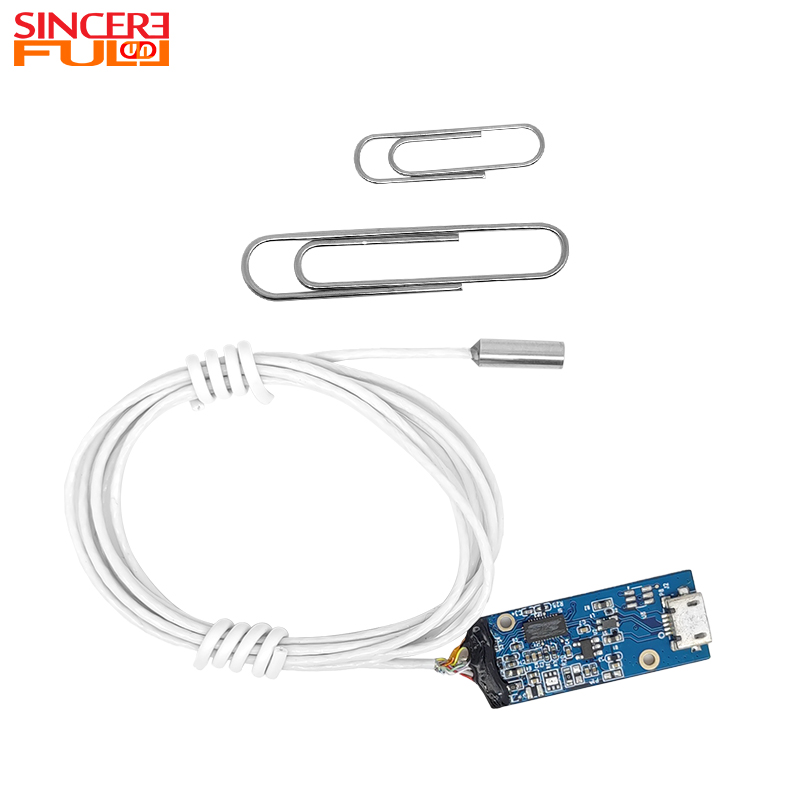

| This is a high-performance industrial endoscope camera module, equipped with the OV9734 high-sensitivity sensor, supporting 720P high-definition resolution and featuring a 95° wide viewing Angle, ensuring a broad field of view even in narrow Spaces. The 3.9mm ultra-fine probe design enables easy penetration into extremely narrow Spaces of ≥4mm, making it suitable for precise inspection scenarios such as precision instruments, micro-mechanics, and electronic components. The USB plug-and-play design features strong compatibility and can be quickly integrated into a PC or embedded system. It can be paired with professional software to achieve real-time imaging, measurement and report generation. |  |
1.High definition imaging: 720P@60fps, still clear in low light conditions

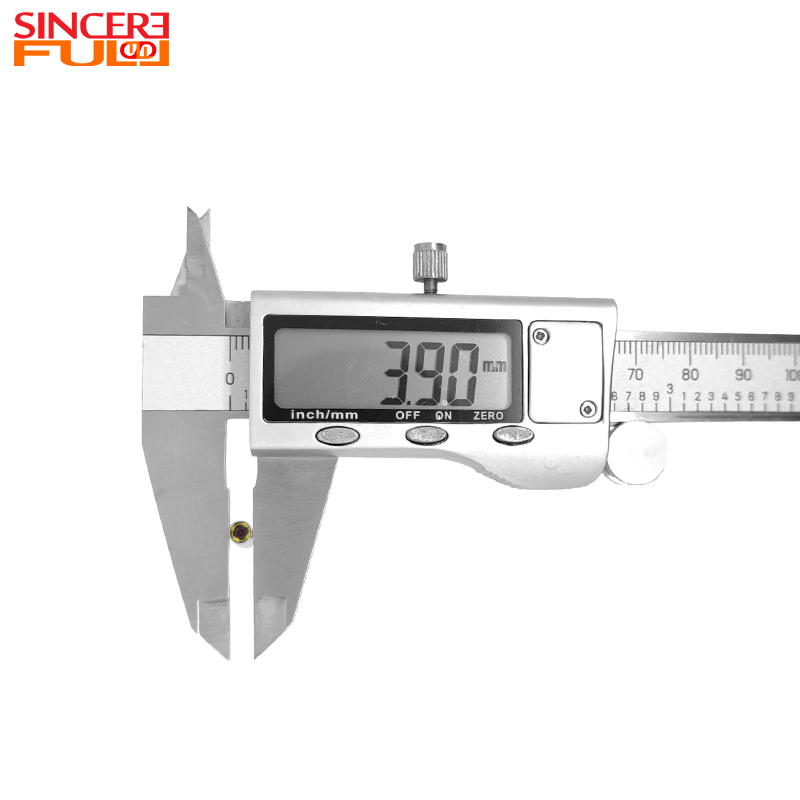

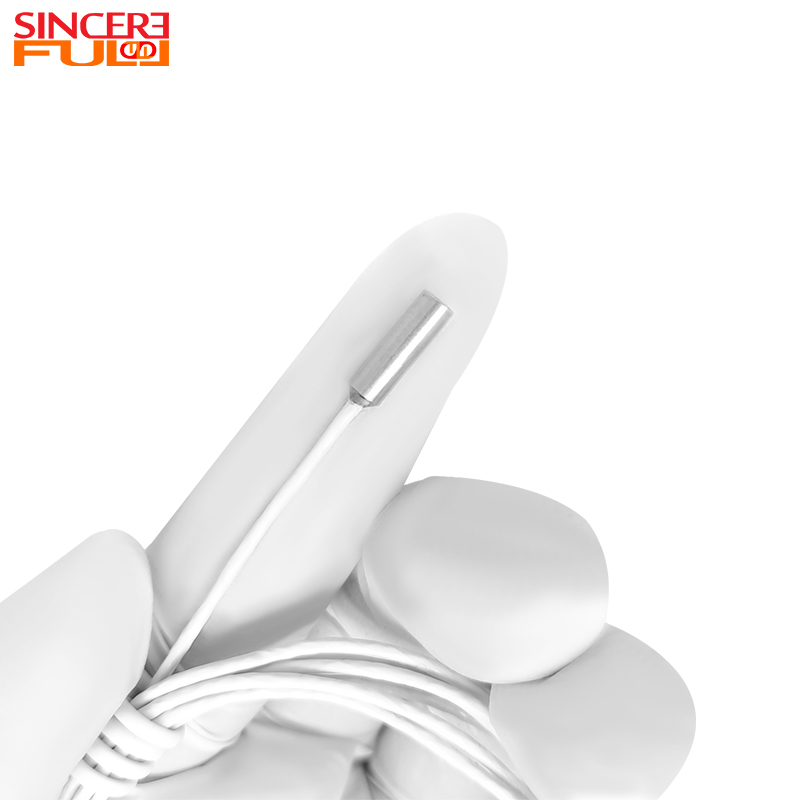

2.Ultra-fine probe: 3.9mm diameter, suitable for detection in extremely narrow Spaces
3.Wide-angle field of view: 95° large viewing Angle, reducing detection blind spots
1.In the field of industrial manufacturing: internal defect detection of automotive engine blocks/turbines, inspection of scratches and corrosion on the inner walls of precision injection molds, and non-destructive testing of the quality of industrial pipeline welding seams
2.electronic manufacturing: quality inspection of solder joints on high-density PCB boards, observation of the assembly status of micro surface mount components, and internal structure inspection of chip packaging
3.Research and experimental fields: Flow observation of microfluidic chip channels, deformation analysis of the microstructure of new materials, and research on precision mechanical motion mechanisms
4.Medical technology field: Internal condition inspection of minimally invasive surgical instruments, precision pipeline detection of dental equipment, maintenance and calibration of endoscope equipment

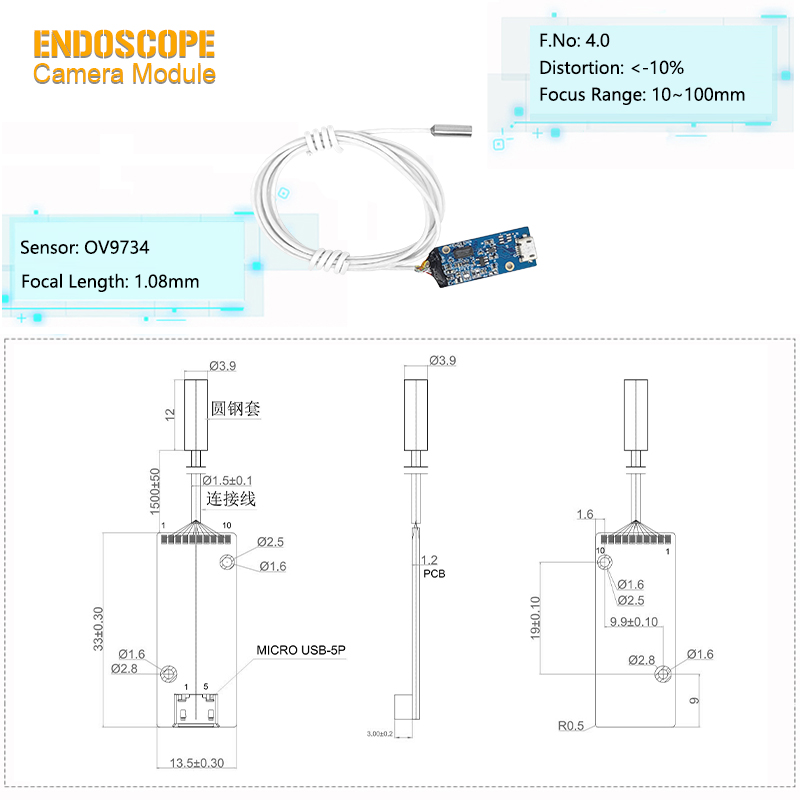

Product Name | High Resolution USB Borescope Camera |
Basic tolerance | ±0.1mm |
DSP | USB |
Sensor | OV9734 |
Focusing Range | 10-100mm |
Focal Length | 1.08mm |
F Number | 4.0 |
Resolution: | 720P Max 30fps |
TV Distortion | ＜-10% |

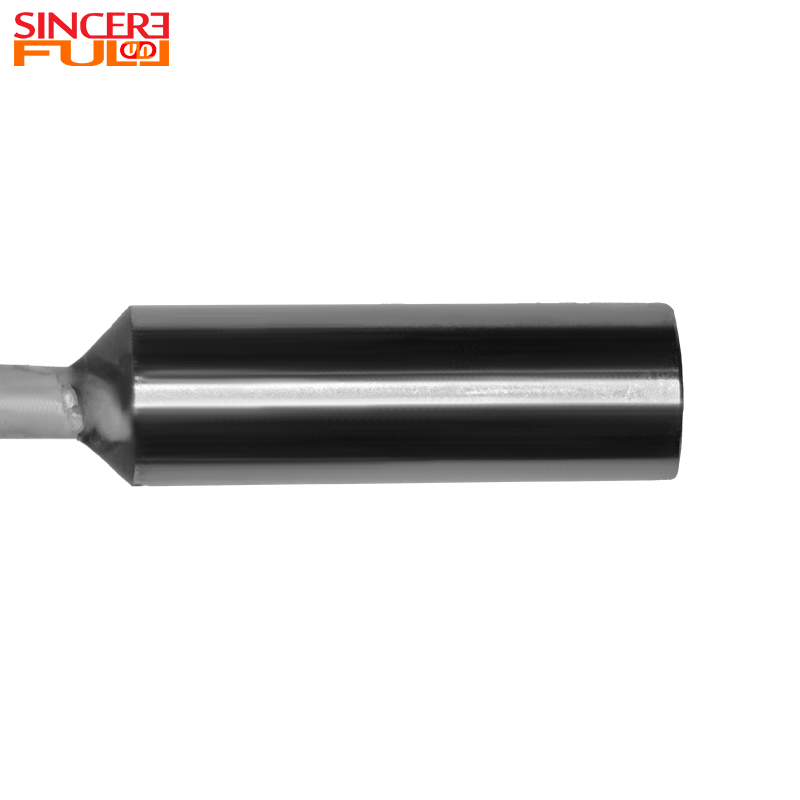

Diameter | 3.9mm |
1. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).
2. How to clean the camera lens of an endoscope?
Use a sterile soft cloth and a dedicated lens cleaner to prevent alcohol from damaging the coating. Industrial modules can be air-blown to remove dust. In oily environments, oil-resistant solvents need to be used in combination.
3. What could be the possible reasons for noise in an image?
It might be due to sensor overheating, signal transmission interference, or excessively high ISO in low light conditions. It is necessary to check the heat dissipation design, cable shielding, or enable the noise reduction mode.
