SF-C16TV-D2.0
SINCEREFIRST
| This 2mm 1/18-Inch 0.16MP 30fps Sensor Endoscope Camera Module integrates three core advantages: wide-angle field of view, compact-size packaging, and stable imaging performance. Adopting a 1/18-inch image sensor, the module supports 400×400 resolution imaging. Equipped with a lens boasting a 120° diagonal field of view, it can still deliver a horizontal field of view coverage of up to 87.5° at ultra-short distances (with a focusing range of 5–50mm), which significantly reduces inspection blind spots and the frequency of lens movement. The product is available in two package configurations: a lightweight version without a steel shell with a diameter of 1.5mm, and a protected version with a steel shell with a diameter of 2mm. Users can flexibly select the appropriate version based on the mechanical strength requirements and size constraints of the application environment.Built-in with 4 high-brightness LEDs, the module enables clear imaging in 0 lux fully dark environments. It also features a signal-to-noise ratio (SNR) of over 36.8dB and a dynamic range of 65.8dB, maintaining stable imaging across a wide temperature range from -20℃ to 70℃.With a low power consumption of only 0.6W and a standard 2-meter cable design, it can be easily integrated into various portable or embedded endoscopic devices. It is suitable for high-precision vision scenarios such as medical minimally invasive examinations, industrial pipeline inspections, and precision instrument maintenance. |  |

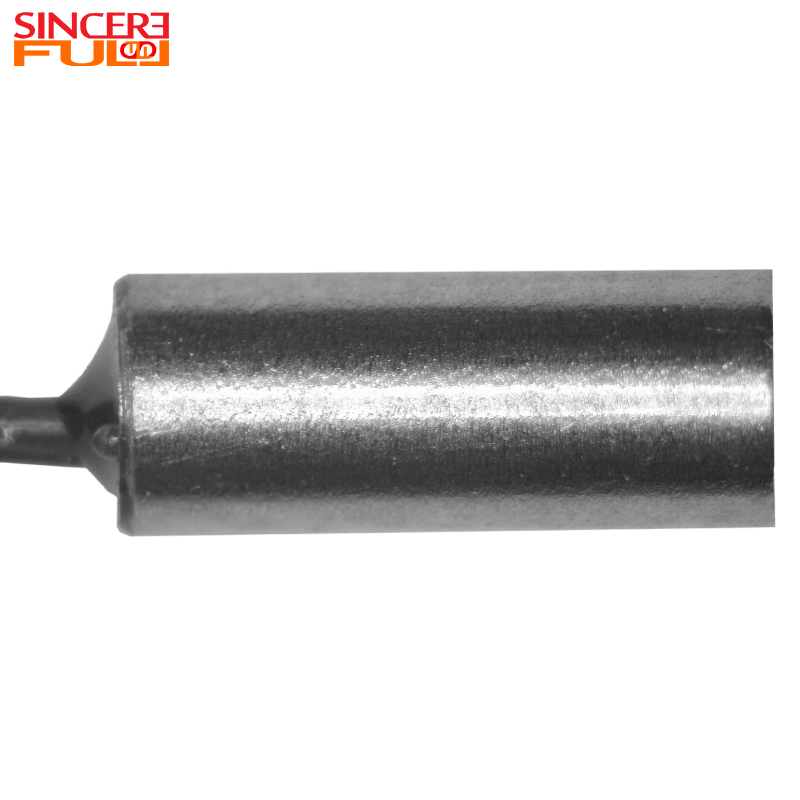

1. Dual-Form Miniature Design：Two package options are offered: steel-shell-free (1.05×1.05×5.0mm) and steel-shell-included (Φ2.0×6.0mm). It adapts to scenarios with different mechanical strength requirements and size constraints, and can access ultra-narrow spaces with a diameter of Φ2mm or above.
2. Ultra-Wide Field of View & Extended Depth of Field：Boasting a 120° diagonal field of view and 5–50mm continuous focusing capability, it covers a wider area in a single shot, reduces the frequency of lens movement, and is ideal for operation in confined spaces.
3. High-Definition Imaging in Total Darkness：Integrated with 4 high-brightness LEDs, it supports imaging under 0 lux illumination. With a signal-to-noise ratio (SNR) of over 36.8dB and a dynamic range of 65.8dB, it ensures clear and distinguishable images in dark environments.
4. Wide-Temperature Stability & Low Power Consumption：Operating stably within a temperature range of -20℃ to 70℃ with a power consumption of only about 0.6W, it features high environmental adaptability and reliable long-term operation, making it suitable for continuous work in complex application scenarios.
1.Medical Endoscopic Examination: Suitable for minimally invasive diagnosis and treatment in otorhinolaryngology, dentistry and other fields, supporting high-definition imaging and surgical guidance in narrow lumens.
2.Industrial Pipeline Inspection: Used for detecting internal defects in pipelines of machinery, oil and gas industries, and adaptable to small-diameter environments of Φ2mm and above.
3.Precision Instrument Maintenance: Ideal for internal visual inspection and fault diagnosis of micro-structures such as electronic components and clock mechanisms.
4.Scientific Research & Security Monitoring: Applicable to professional scenarios including experimental observation, biological microscopy and security surveillance in concealed spaces.

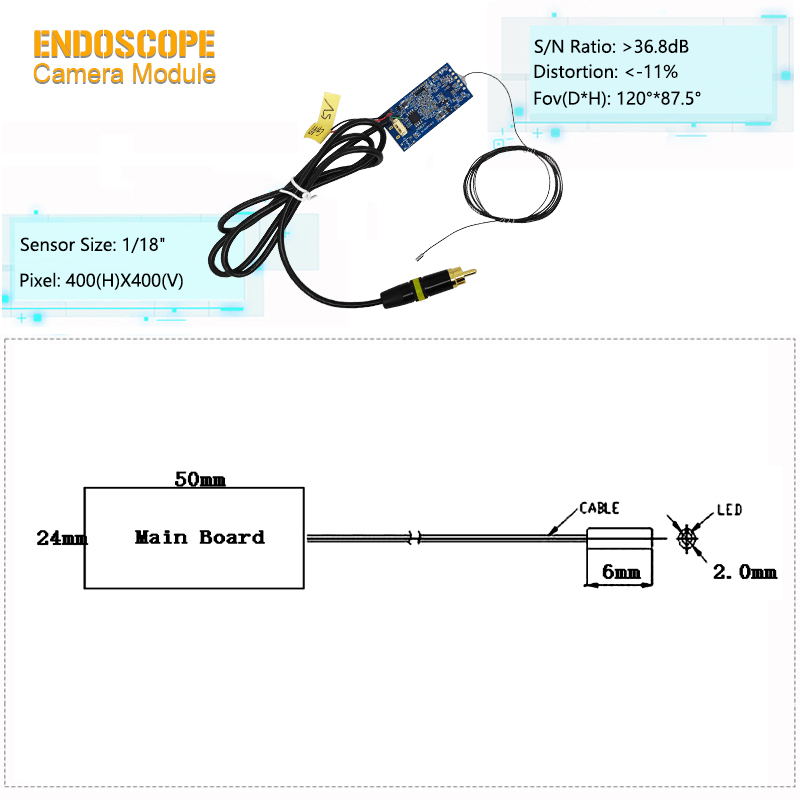

Product Name | Endoscope Camera Module |
Features | 2mm Endoscope Camera Module |
Interface | USB2.0 UVC |
Pixel | 400H*400V |
LED | 4 |
Pixel | 0.16MP |
Depth of Field | 5-50mm |
Distortion | <-11% |
Fov(D) | 120°*87.5° |
1.What is SINCERE's core identity and business?
SINCERE is a leading high-tech enterprise in China, focusing on R&D, manufacturing, and sales of integrated optical devices, as well as providing overall solutions for optical imaging systems. Its brand "SincereFirst" is well-recognized globally.
2. What are the special requirements of laparoscopic surgical modules?
This module serves as a high-definition image acquisition core that can be integrated into laparoscopic systems compliant with medical standards. It delivers accurate color reproduction and crisp 720P images, facilitating the observation of tissue conditions.
3. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV). 4. Does this endoscope camera module require driver installation? No, it is completely driver-free. With a USB2.0 interface and UVC protocol support, it offers plug-and-play functionality on Windows, Mac, and Android systems.
