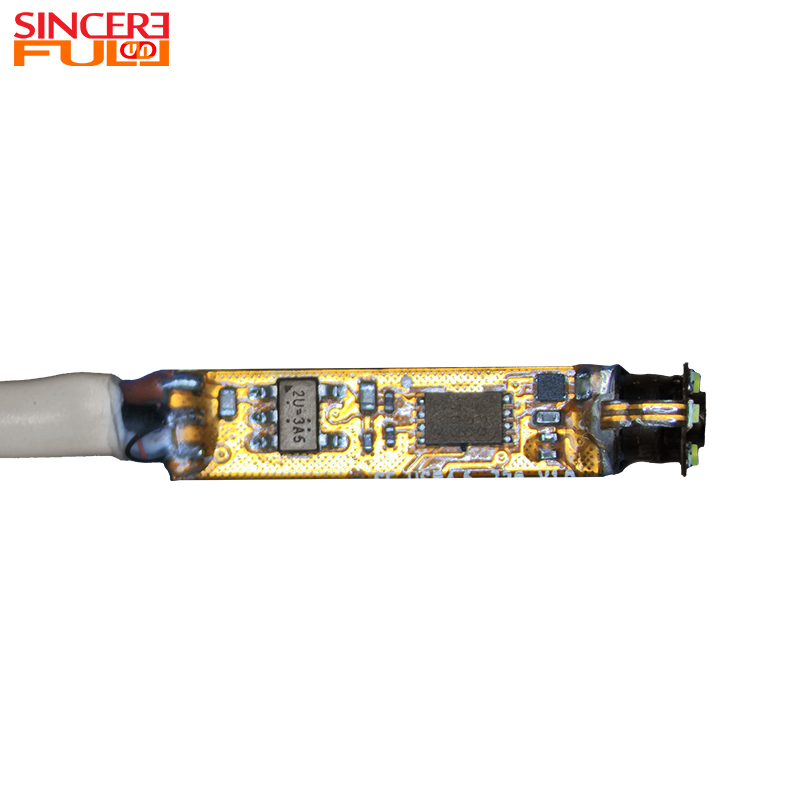

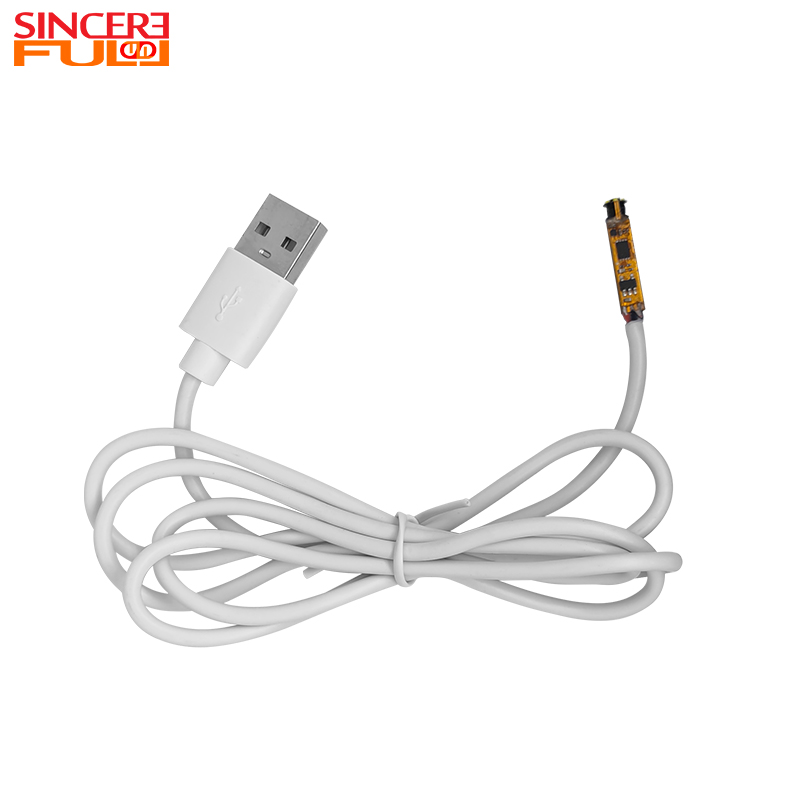

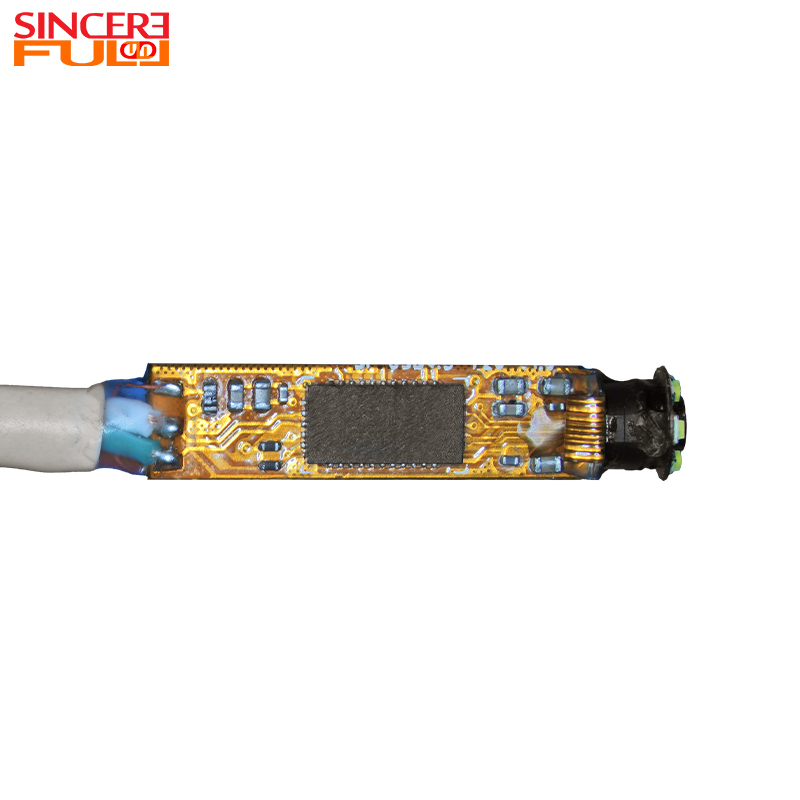

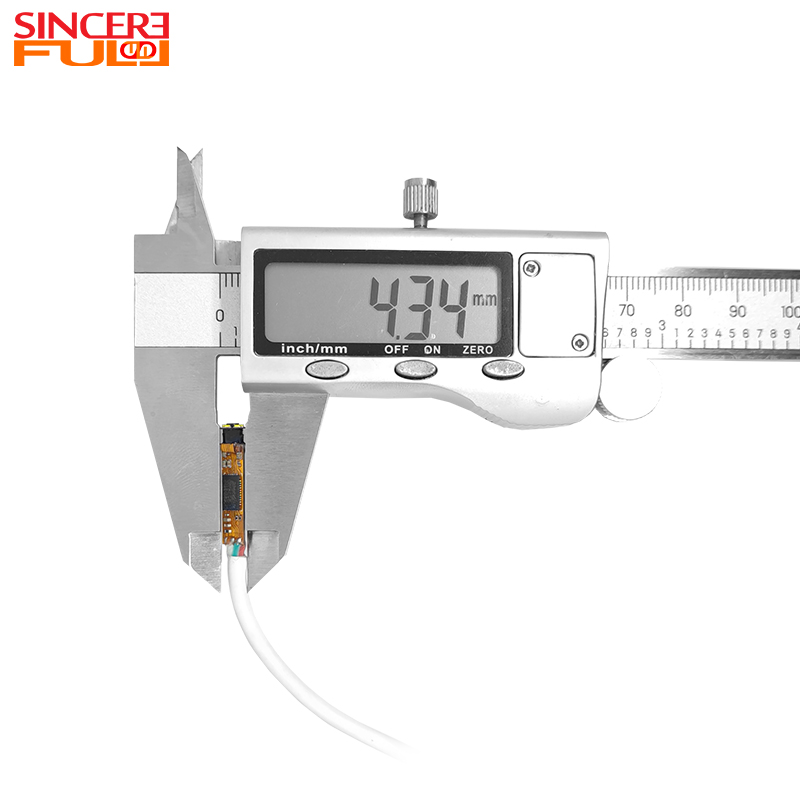

This 720P USB2.0 OV9734 CMOS Sensor Camera Module, integrates a 1/9 inch CMOS image sensor supporting 1280 × 720 resolution, features a compact 4.4mm diameter lens without steel shell,offering YUV2 and MJPEG dual format video output at up to 30 fps. With its 110° wide field of view and distortion below –20%, it provides a stable, wide angle imaging performance suitable for short to mid range applications. The module operates across –10 ℃ to 50 ℃ and is compatible with Windows, Linux, Android, and macOS systems.Its compact design (21.2 mm length) combined with USB bus power enables easy integration into portable and embedded devices. The fixed focus range of 10–100 mm ensures consistent clarity across varying distances.Typical applications include medical endoscopy, video conferencing, industrial machine vision, and security monitoring systems.
|  |
Product Advantage ◢
1.High Image Quality with Low Distortion: Featuring a wide 110° field of view and distortion kept below –20%, it provides clear and accurate images even at close range, making it ideal for applications requiring reliable visual fidelity.

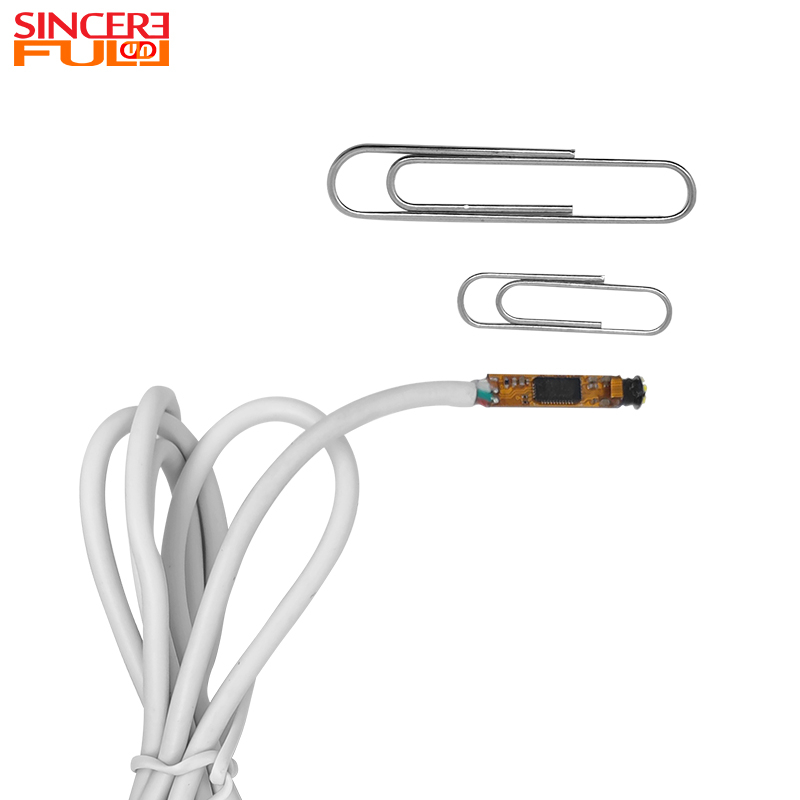

2.Compact and Easy to Integrate: With a compact design measuring just 21.2 mm in length and powered directly through the USB bus, it can be easily embedded into space-constrained and portable devices without the need for an external power supply.
3.Wide Operating Temperature and System Compatibility: The module operates reliably across a temperature range of –10 ℃ to 50 ℃ and is compatible with major operating systems including Windows, Linux, Android, and macOS, ensuring versatile deployment in various environments.
4.Dual Video Output and Stable Performance: It supports both YUV2 and MJPEG output formats at up to 30 fps, offering flexibility in video processing. The fixed-focus design with a range of 10–100 mm ensures consistent image clarity without the need for manual adjustment.
Application Of Endoscope Camera Module ◢
1.Medical Endoscopic Imaging: Suitable for integration into portable endoscopes and medical inspection devices, providing clear and reliable internal imaging support.
2.Video Conferencing and Live Streaming: Ideal for integration into conference cameras, desktop webcams, and mobile live streaming equipment, offering stable high-definition video output.
3.Industrial Machine Vision and Inspection: Used in automated visual inspection, positioning recognition, and quality control on production lines, with excellent environmental adaptability and image consistency.
4.Security Monitoring and Smart Devices: Applicable to miniaturized surveillance cameras, smart doorbells, home monitoring systems, and vehicle rearview cameras, offering compact size and low power consumption.
Technical Parameters ◢
Product Name | Endoscope Camera Module |
Features | 4.4mm Endoscope Camera Module |
Interface | USB2.0 UVC |
Pixel | 720P |
LED | 6 |
Pixel | 1MP |
Focusing Range | 10-100mm
|
Distortion | <-20% |
Fov(D) | 110° |
FAQ ◢
1.Where is SINCEREFULL headquartered, and what is its production scale?
Headquartered in Guangdong, China, with marketing headquarters in Guangzhou. It has 33,350 square meters of factory buildings, a monthly production capacity of 3 million units, and a Class 100 dust-free COB automatic production workshop plus AA (Active Alignment) process.
2. Is this module suitable for outdoor or harsh environments?
Yes, it operates reliably within a temperature range of -10℃ to 50℃ and has passed multiple reliability tests including temperature cycling, humidity storage, and vibration tests, making it suitable for industrial and outdoor embedded applications.
3.Can this module be used on Android or Linux systems?
Yes, it fully supports UVC protocol and is compatible with Android 4.0 and above, as well as Linux kernels 2.6.26 and later, allowing for plug-and-play functionality without the need for additional driver installation.
