720P Separate Mini Endoscope Camera Modules Technology Evolution And Market Strategy Positioning

720P Separate Mini Endoscope Camera Modules Technology Evolution and Market Strategy Positioning

Against the backdrop of continuous miniaturization and integration in industrial inspection and medical auxiliary equipment, the core of embedded vision systems—micro camera modules—reveals the demand orientation and engineering wisdom of specific niche markets through their technological path selection and performance balancing strategies. This paper aims to explore the industry trends, application boundaries, and competitive landscape reflected in the design logic of a typical compact endoscope camera module through technical analysis.

I. Engineering Choices for Core Components: Pursuing Functional Optimization Under Constraints

The module's design foundation rests on a deliberate choice of its core image sensor. The selected 1/9-inch CMOS sensor outputs a resolution locked at 720P (1280×720 pixels). This decision prioritizes precision alignment with the target application scenario—close-range, confined-space static or quasi-dynamic observation—rather than chasing cutting-edge pixel counts. Within typical working distances of 10 to 100 millimeters, 720P resolution delivers sufficient spatial detail for fundamental needs like defect identification and structural observation. It also effectively avoids the challenges associated with higher resolutions, such as increased data bandwidth demands, higher processing power consumption, and the need for lens resolution matching.

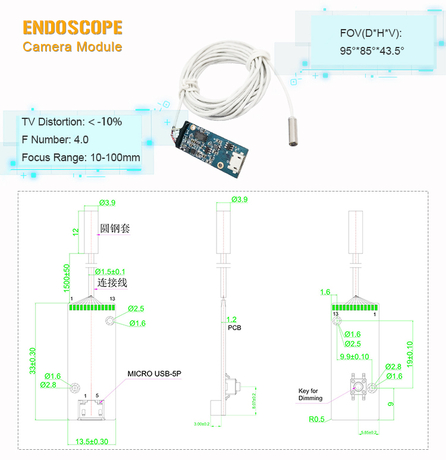

The optical system paired with the sensor exhibits equally targeted parameter settings. The lens's physical dimensions, with a diameter of just 3.9 mm, constitute a prerequisite for accessing narrow passages. The combination of a short focal length of 1.08 mm and an F4.0 aperture defines the module's optical characteristics: the short focal length ensures appropriate imaging magnification at limited object distances, while the smaller aperture delivers a relatively large depth of field. This eliminates the need for frequent refocusing when observing objects with varying depths—such as pipe interiors or internal component structures—enhancing observation continuity and operational efficiency. The 95° wide-angle view further expands the coverage per imaging session. Accompanying barrel distortion (nominal < -10%) is corrected via backend image processing algorithms. This “optical acquisition-algorithm correction” collaborative design approach has become a universal paradigm for addressing geometric distortion in miniature wide-angle imaging.

To address unpredictable ambient lighting conditions, the module offers optional multi-LED supplementary illumination systems. This design not only resolves illumination issues in cavities or dark corners but also provides manual dimming functionality. This empowers operators to adjust settings in real-time based on the observed target and environmental reflectivity characteristics, representing a functional evolution from “automation” to “optimized human-machine interaction.”

II. Standardized Interfaces and Integration: Lowering Technical Barriers and Accelerating Application Deployment

This module significantly reduces integration complexity at the system interface level. Utilizing a standard USB 2.0 physical interface and adhering to the UVC protocol, it achieves cross-platform plug-and-play functionality. This design choice holds dual significance: First, it drastically shortens development cycles for device manufacturers or system integrators, allowing them to focus R&D resources on host application software or industry-specific algorithm development rather than low-level driver adaptation. Second, the standardized interface provides broad compatibility, enabling seamless integration with diverse hardware platforms ranging from industrial PCs to portable tablets and embedded control boards. Simultaneous support for both YUV and MJPEG output formats offers flexibility in balancing image quality and transmission efficiency across different applications—YUV format suits scenarios requiring advanced image analysis downstream, while MJPEG compression format is more advantageous for real-time previews and network streaming.

III. Application Scenario Mapping: Defining Value Boundaries in Niche Markets

The module's technical characteristics precisely delineate its core application domains, primarily targeting niche markets with stringent requirements for size, cost, and reliability:

Industrial Precision Inspection and Predictive Maintenance: For internal inspections of complex machinery, oil/gas pipelines, aerospace components, and microelectronics assembly lines, the module's miniaturization enables integration into various endoscopes or robotic arm tips. This facilitates non-destructive visualization of hidden defects such as cracks, corrosion, and welding flaws. Its fixed near-to-medium focus range and sufficient depth of field precisely match the observation distance requirements of most industrial cavities.

Professional Equipment Maintenance and Post-Sales Diagnostics: During maintenance of appliances, automotive engines, precision instruments, and similar products, technicians can use portable inspection devices incorporating this module to rapidly locate internal fault points. This enhances diagnostic efficiency and accuracy while reducing unnecessary disassembly.

Specialized Medical and Scientific Observation Support: For non-invasive or minimally invasive medical examinations, dental diagnostics, veterinary inspections, and scientific research involving biological samples, material microstructures, or cultural relic restoration, this module serves as a cost-effective, user-friendly visual documentation tool. It assists professionals in conducting detailed observations and recording findings.

It must be explicitly noted that while resembling medical endoscopes in form, such universal modules typically lack rigorous biocompatibility certification, sterilization cycle tolerance validation, and medical-grade reliability standards. Consequently, their medical applications are largely confined to non-critical scenarios like surface observations or educational demonstrations, maintaining a clear distinction from true medical devices intended for internal diagnostics.

IV. Industry Competitive Landscape and Evolutionary Trends

Currently, suppliers of miniature camera modules serving these niche markets face a competitive environment shaped by multiple forces.

On one hand, camera module giants from the consumer electronics sector are continuously expanding downward, leveraging their massive economies of scale and advanced pixel technologies. However, their products often fall short in customization levels, extreme environment tolerance (e.g., wide temperature range, oil resistance), and deep optimization for specific optical performance requirements (e.g., ultra-close-range microscopy, minimal distortion). On the other hand, traditional professional industrial camera manufacturers remain entrenched in the high-end market. While their products excel in performance and reliability, their cost and size often fail to meet the demands of numerous lightweight, low-cost applications.

Therefore, the success of products like the module described in this article hinges on striking a precise balance: within an acceptable cost range, through meticulous engineering design and mature supply chain management, they maximize fulfillment of core requirements for specific application scenarios—compact size, moderate resolution, sufficient reliability, and easy integration. Their competitive barrier does not stem from monopolizing cutting-edge technology, but rather from a deep understanding of vertical industry application details, the ability to optimize systems under stringent constraints, and agility in rapidly responding to customized customer requirements (such as varying cable lengths, lighting solutions, and interface variants).

Looking ahead, technological evolution in this field is projected to unfold along these pathways: First, sensor performance will undergo steady, incremental improvements, pursuing enhanced low-light capabilities and dynamic range while maintaining compact dimensions. Second, the integration of computational optics with embedded artificial intelligence will emerge as a key trend. By incorporating lightweight AI processing units at the module level or near the sensor, intelligent functions such as enhanced autofocus, real-time defect annotation, and image semantic segmentation will be enabled, elevating the module from an “image collector” to a “preliminary information extractor.” Third, wireless connectivity and power optimization will broaden application scenarios, enabling more flexible integration into mobile robots or standalone inspection devices.

Conclusion

In summary, this compact endoscope camera module is not an isolated product but a quintessential example of miniaturized machine vision technology engineered under specific constraints. It reveals a pragmatic product development philosophy amid the interplay of technology diffusion and market segmentation: abandoning the blind pursuit of generic performance metrics in favor of deep immersion in specific application scenarios. Through a series of highly synergistic design trade-offs, it constructs a solution that balances functionality, usability, and cost-effectiveness. Its existence and evolution demonstrate that within a highly mature electronics supply chain, precise market positioning and deep engineering optimization can still carve out and firmly occupy valuable niche market space. For industry participants, mastering this ability to “innovate within constraints” may become the key to achieving differentiated growth in seemingly red ocean competition.
